54809-3175

Description
FFC u0026 FPC Connectors 31P RA SMT FPC CONN BOTTOM CONT STYLE
CategoryThe connector    The connector
File Size31KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

54809-3175 Online Shopping

Suppliers Part Number Price MOQ In stock
54809-3175 - - View Buy Now

54809-3175 Overview

FFC u0026 FPC Connectors 31P RA SMT FPC CONN BOTTOM CONT STYLE

54809-3175 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
Samacsys DescriptionFFC & FPC Connectors 31P RA SMT FPC CONN BOTTOM CONT STYLE
Other featuresEASY ON
body width0.051 inch
subject depth0.171 inch
body length0.457 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance80 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage250VAC V
Durability20 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance50000000 Ω
Insulator colorBEIGE
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.012 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing3.7592 mm
Rated current (signal)0.2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.6 mm
Termination typeSURFACE MOUNT
Total number of contacts31
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N
Base Number Matches1

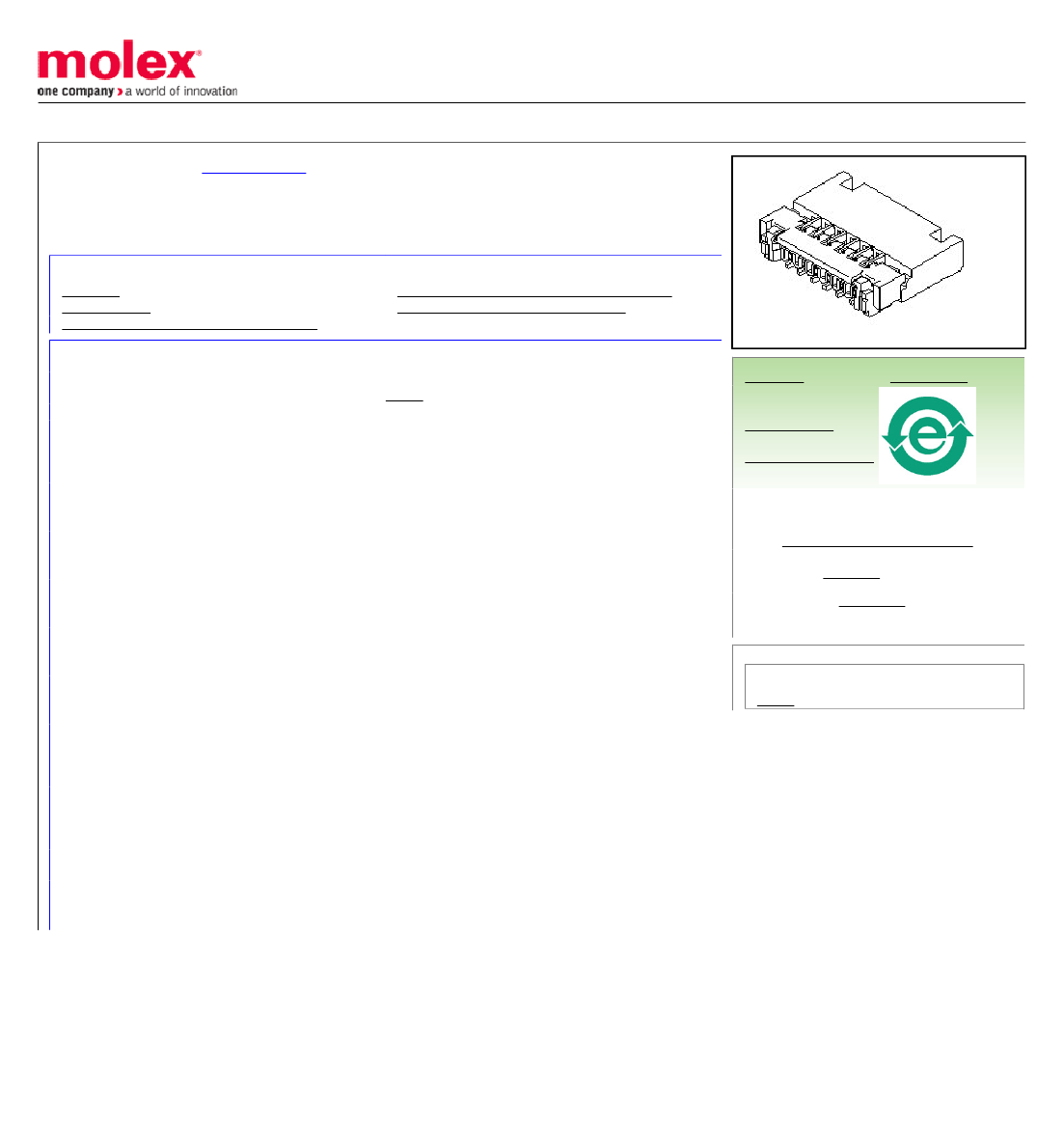

This document was generated on 09/23/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0548093175
Active
0.30mm (.012") Pitch Easy-On™ Type FPC Connector, 1.30mm (.051") Mated Height,
Right Angle, SMT, ZIF, Bottom Contact Style, 31 Circuits, Lead-Free, Gold Contact
Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-54809-034 (PDF)
Application Specification AS-54809-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Product Name
FFC/FPC Connectors
54809
Easy-On™
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
Physical
Circuits (Loaded)
Contact Position
Durability (mating cycles max)
Entry Angle
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
31
Bottom
20
90° Angle
1.30mm (.051")
Phosphor Bronze
Gold
Gold
1
Right Angle
No
Yes
Embossed Tape on Reel
0.30mm (.012")
Yes
No
-20°C to +85°C
Surface Mount
FPC only
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54809Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.2A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
AS-54809-001
PS-54809-034, RPS-54809-066, RPS-54809-070
SD-54809-038, SD-54809-039
This document was generated on 09/23/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
