Part Number

Search

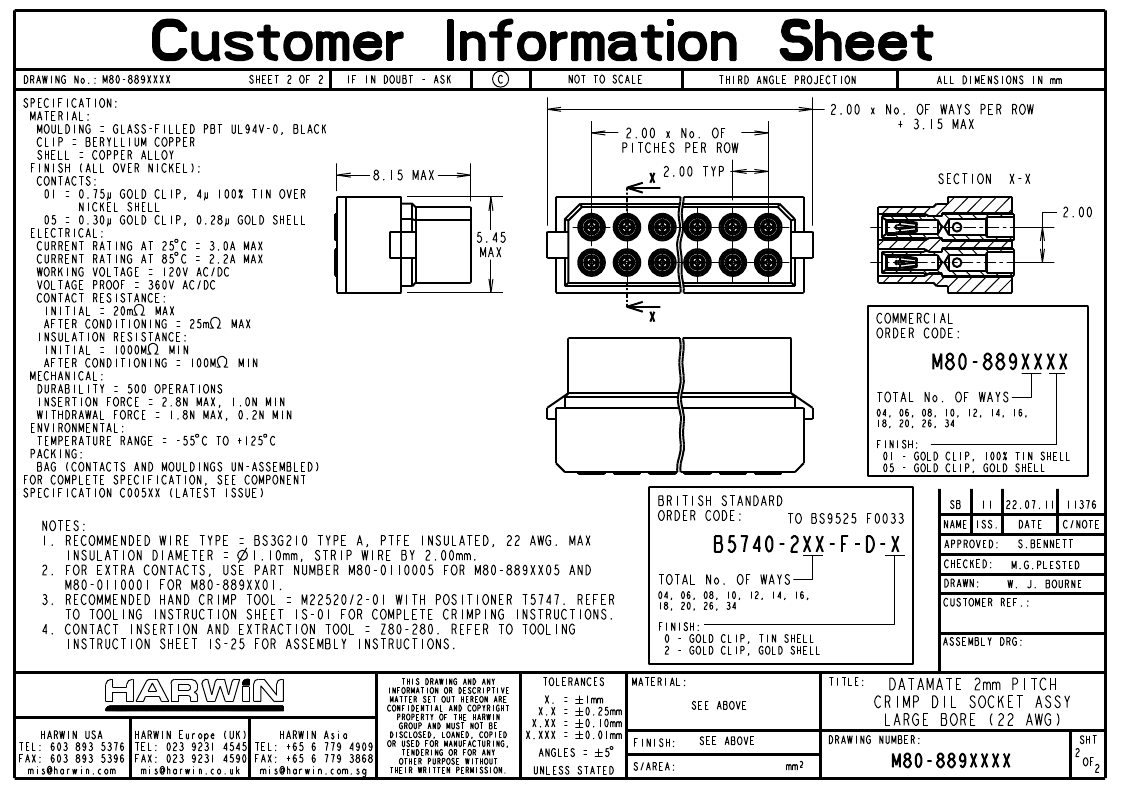

B5740-220-F-D-2

Description
Headers u0026 Wire Housings 20 PIN FEMALE LARGE BORE
CategoryThe connector    The connector
File Size72KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

B5740-220-F-D-2 Online Shopping

Suppliers Part Number Price MOQ In stock
B5740-220-F-D-2 - - View Buy Now

B5740-220-F-D-2 Overview

Headers u0026 Wire Housings 20 PIN FEMALE LARGE BORE

B5740-220-F-D-2 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.215 inch
subject depth0.321 inch
body length0.911 inch
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberB5740
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts20
UL Flammability Code94V-0
Maximum wire diameter22 AWG
Minimum wire diameter22 AWG
Base Number Matches1

B5740-220-F-D-2 Related Products

B5740-220-F-D-2 M80-8893405 B5740-214-F-D-2 B5740-206-F-D-2
Description Headers u0026 Wire Housings 20 PIN FEMALE LARGE BORE USB Interface IC USB to Serial UART Enhanced IC SSOP-28 Headers u0026 Wire Housings 14 PIN FEMALE LARGE BORE Headers u0026 Wire Housings 6 PIN FEMALE LARGE BORE
Is it lead-free? Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to
package instruction ROHS COMPLIANT LEAD FREE ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant not_compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
body width 0.215 inch 0.213 inch 0.215 inch 0.215 inch
subject depth 0.321 inch 0.297 inch 0.321 inch 0.321 inch
body length 0.911 inch 1.463 inch 0.675 inch 0.36 inch
Body/casing type SOCKET SOCKET SOCKET SOCKET
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact to complete cooperation GOLD GOLD (12) OVER NICKEL GOLD NOT SPECIFIED
Contact completed and terminated GOLD Gold (Au) - with Nickel (Ni) barrier GOLD GOLD
Contact point gender FEMALE FEMALE FEMALE FEMALE
Contact material BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 20 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO NO
IEC compliance NO NO NO NO
Insulation resistance 100000000 Ω 1000000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYESTER GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code e4 e4 e4 e4
MIL compliance NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Mixed contacts NO NO NO NO
Installation option 1 LOCKING LOCKING LOCKING LOCKING
Installation type CABLE CABLE CABLE CABLE
Number of rows loaded 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE WITH CABLE ASSEMBLY GENERAL PURPOSE GENERAL PURPOSE
Guideline UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Termination type CRIMP CRIMP CRIMP CRIMP
Total number of contacts 20 34 14 6
UL Flammability Code 94V-0 94V-0 94V-0 94V-0
Maximum wire diameter 22 AWG 22 AWG 22 AWG 22 AWG
Minimum wire diameter 22 AWG 22 AWG 22 AWG 22 AWG
Base Number Matches 1 1 1 1
polarization key POLARIZED HOUSING - POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A - 3 A 3 A
