52465-3070

Description
Board to Board u0026 Mezzanine Connectors 0.8 BtB Hsg Assy SMT SMT 30Ckt EmbsTp Pkg
CategoryThe connector    The connector
File Size363KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

52465-3070 Online Shopping

Suppliers Part Number Price MOQ In stock
52465-3070 - - View Buy Now

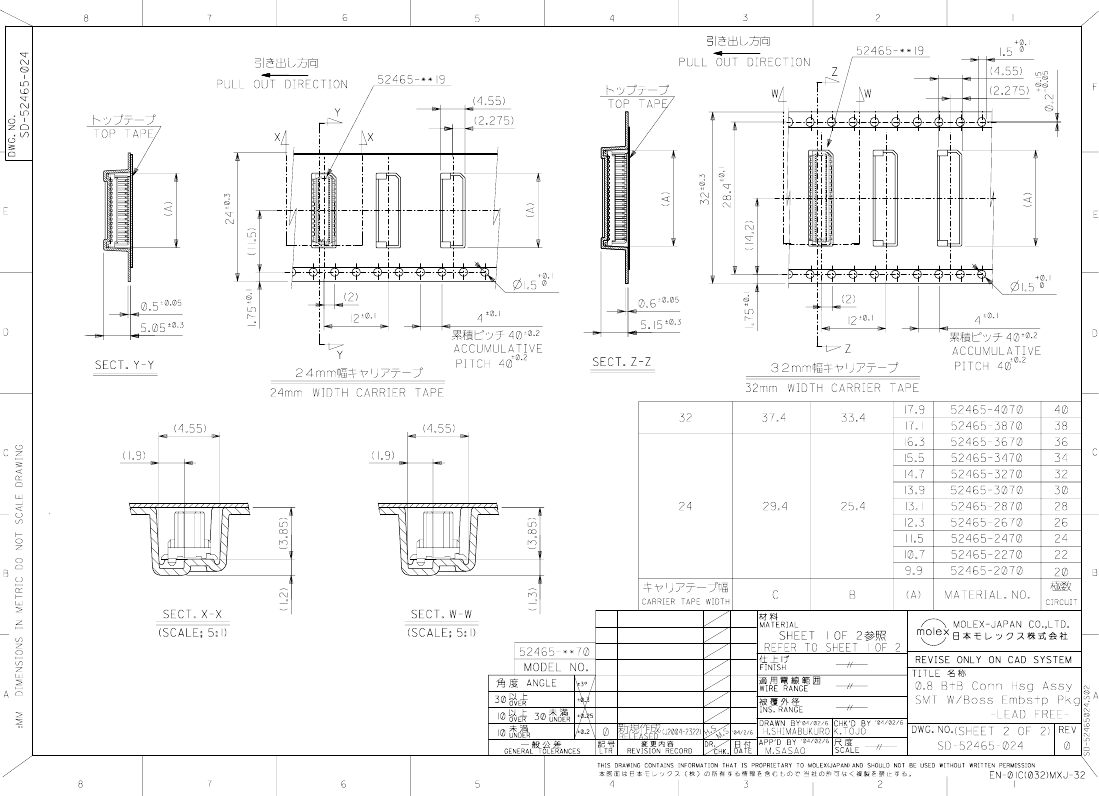

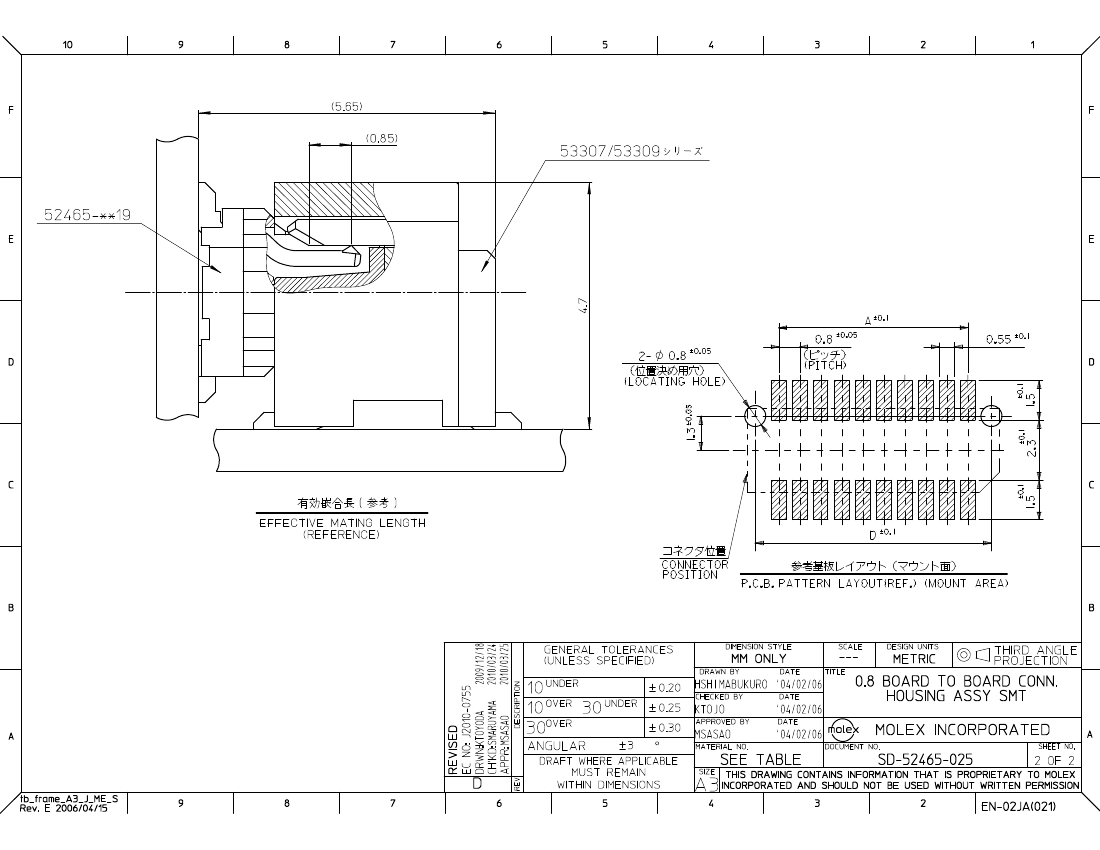

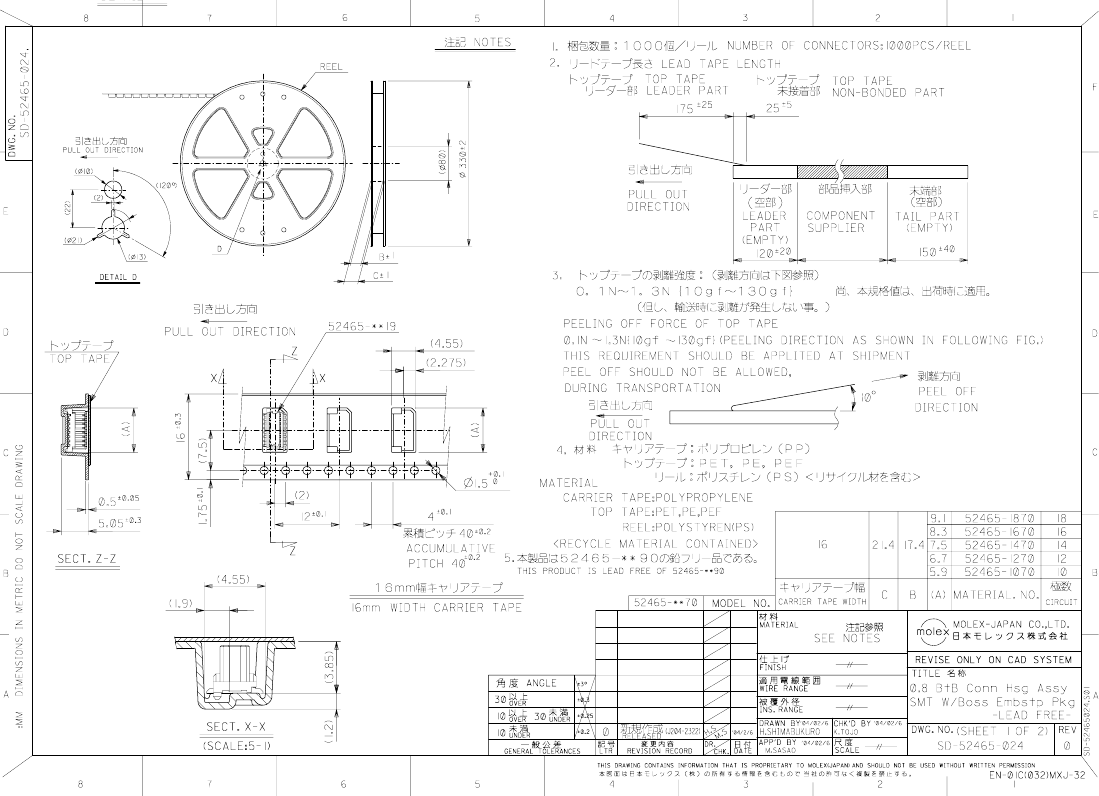

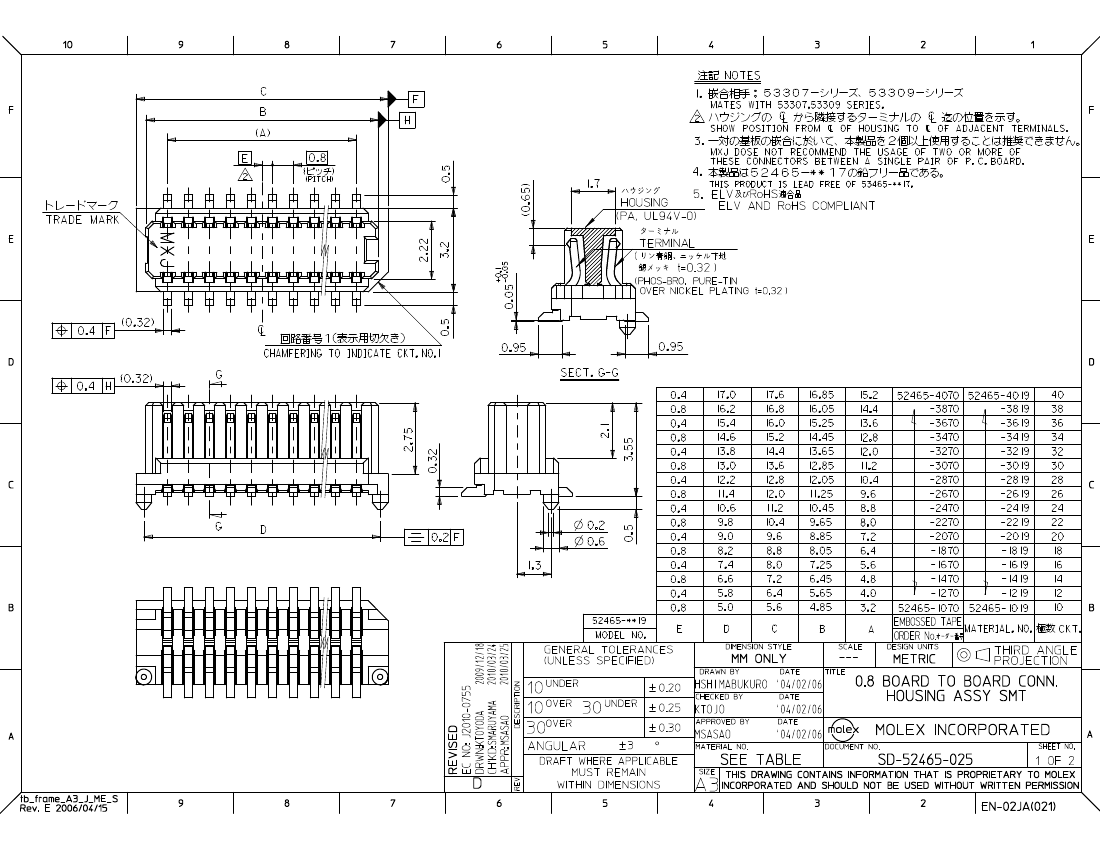

52465-3070 Overview

Board to Board u0026 Mezzanine Connectors 0.8 BtB Hsg Assy SMT SMT 30Ckt EmbsTp Pkg

52465-3070 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Samacsys DescriptionBoard to Board & Mezzanine Connectors 0.8 BtB Hsg Assy SMT SMT 30Ckt EmbsTp Pkg
Board mount optionsPEG
body width0.126 inch
subject depth0.14 inch
body length0.535 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage700VAC V
Durability30 Cycles
Insulation resistance100000000 Ω
Insulator colorNATURAL
insulator materialPOLYAMIDE
JESD-609 codee3
Plug contact pitch0.031 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-20 °C
PCB contact patternRECTANGULAR
PCB contact row spacing3.81 mm
Plating thickness40u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.7874 mm
Termination typeSURFACE MOUNT
Total number of contacts30
Base Number Matches1

52465-3070 Related Products

52465-3070 52465-2070 52465-4070
Description Board to Board u0026 Mezzanine Connectors 0.8 BtB Hsg Assy SMT SMT 30Ckt EmbsTp Pkg Board to Board u0026 Mezzanine Connectors 0.8 BtB Hsg Assy SMT SMT 20Ckt EmbsTp Pkg Board to Board u0026 Mezzanine Connectors 0.8 BtB Hsg Assy SMT SMT 40Ckt EmbsTp Pkg
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code compliant compliant compliant
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Base Number Matches 1 1 1
Maker Molex Molex -
Samacsys Description Board to Board & Mezzanine Connectors 0.8 BtB Hsg Assy SMT SMT 30Ckt EmbsTp Pkg Board to Board & Mezzanine Connectors 0.8 BtB Hsg Assy SMT SMT 20Ckt EmbsTp Pkg -
Board mount options PEG - PEG
body width 0.126 inch - 0.126 inch
subject depth 0.14 inch - 0.14 inch
body length 0.535 inch - 0.693 inch
Body/casing type RECEPTACLE - RECEPTACLE
Contact to complete cooperation SN ON NI - NOT SPECIFIED
Contact completed and terminated Tin (Sn) - with Nickel (Ni) barrier - Tin (Sn) - with Nickel (Ni) barrier
Contact point gender FEMALE - FEMALE
Contact material PHOSPHOR BRONZE - NOT SPECIFIED
contact mode RECTANGULAR - RECTANGULAR
Contact resistance 20 mΩ - 20 mΩ
Contact style BELLOWED TYPE - BELLOWED TYPE
Dielectric withstand voltage 700VAC V - 700VAC V
Durability 30 Cycles - 30 Cycles
Insulation resistance 100000000 Ω - 100000000 Ω
Insulator color NATURAL - NATURAL
insulator material POLYAMIDE - POLYAMIDE
JESD-609 code e3 - e3
Plug contact pitch 0.031 inch - 0.031 inch
Installation option 1 LOCKING - LOCKING
Installation method STRAIGHT - STRAIGHT
Installation type BOARD - BOARD
Number of connectors ONE - ONE
PCB row number 2 - 2
Number of rows loaded 2 - 2
Maximum operating temperature 105 °C - 105 °C
Minimum operating temperature -20 °C - -20 °C
PCB contact pattern RECTANGULAR - RECTANGULAR
PCB contact row spacing 3.81 mm - 3.81 mm
Plating thickness 40u inch - 40u inch
polarization key POLARIZED HOUSING - POLARIZED HOUSING
Rated current (signal) 0.5 A - 0.5 A
Guideline UL - UL
reliability COMMERCIAL - COMMERCIAL
Terminal pitch 0.7874 mm - 0.7874 mm
Termination type SURFACE MOUNT - SURFACE MOUNT
Total number of contacts 30 - 40
