TX1475T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> TX1475T

TX1475T: DescriptionAudio Transformers / Signal Transformers SMD T1/CEPT/ISDN-Pri 1200uH 8-Port; CategoryPassive components; File Size83KB，1 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric Compare View All

TX1475T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TX1475T	-	-	View	Buy Now

TX1475T Overview

Audio Transformers / Signal Transformers SMD T1/CEPT/ISDN-Pri 1200uH 8-Port

TX1475T Parametric

Parameter Name	Attribute value
Product Category	Audio Transformers / Signal Transformers
Manufacturer	Pulse A Technitrol Company
RoHS	No
Number of Channels	Octal
Product	LAN
Type	Module
Application	T1/E1/CEPT/ISDN-Pri
Packaging	Reel
Factory Pack Quantity	200

Preview

Download Datasheet

View All

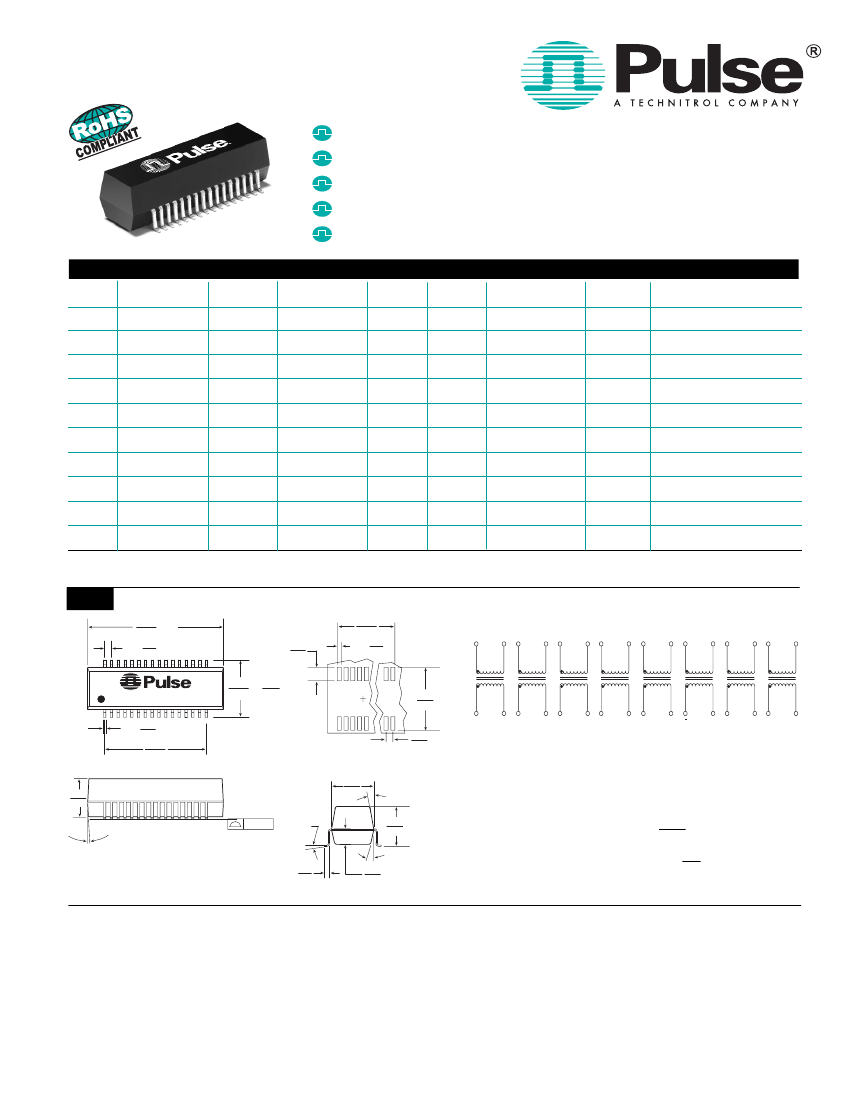

T1/E1/CEPT/ISDN-PRI TRANSFORMER

Octal SMT Transformer Module, Small Package

Industry’s smallest T1/E1 quad-port transformer module

Crosstalk: -60dB typically

Operating temperature range: -40°C to +85°C

UL recognized (some parts pending approval)

Isolation voltage: 1500Vrms

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Standard RoHS-6 Compliant Turns Ratio

Part No.

(Pri:Sec ±2%)

TX1341

TX1342

T1343

TX1344

TX1470

TX1471

TX1472

TX1473

TX1474

TX1475

TX1341NL

TX1342NL

T1343NL

TX1344NL

TX1470NL

TX1471NL

TX1472NL

TX1473NL

TX1474NL

TX1475NL

1:2

1:1.15

1:1.266

1:1 & 1:2

1:1.41

1:1

1:2.4 & 1:1

1:2 & 1:1

1:2.42

1:2 & 1:1

OCL Secondary

@ 25°C

(mH MIN)

1.2

1.5

1.2

(µH MAX)

.60

.50

.60

W/W

(pF MAX)

Isolation Voltage

(Vrms MIN)

1500

Package/

Schematic

YB/1

Primary

Pins

1-2, 3-4, 5-6, 7-8

9-10, 11-12, 13-14, 15-16

1-2, 3-4, 5-6, 7-8

9-10, 11-12, 13-14, 15-16

32-31, 30-29, 28-27, 26-25

24-23, 22-21, 20-19, 18-17

1-2, 5-6, 9-10, 13-14 &

3-4, 7-8, 11-12, 15-16

1-2, 3-4, 5-6, 7-8

9-10, 11-12, 13-14, 15-16

1-2, 3-4, 5-6, 7-8

9-10, 11-12, 13-14, 15-16

1-2, 7-8, 9-10, 15-16 &

3-4, 5-6, 11-12, 13-14

1-2, 5-6, 9-10, 13-14 &

3-4, 7-8, 11-12, 15-16

1-2, 5-6, 9-10, 13-14 &

3-4, 7-8, 11-12, 15-16

1-2, 7-8, 9-10, 15-16 &

3-4, 5-6, 11-12, 13-14

Mechanical

1.000 MAX

25,40

.050

15X 1,27

32X .100

2,54

.425 ± .005

10,80

0,13

.780

19,81

.030

32X 0,76

Schematic

31 30

29 28

27 26

25 24

23 22

21 20

19 18

.465

11,81

Date Code Country of Origin U.S. Pat. 5015981

Part No.

32X .018

0,46

.750

19,05

.050 TYP

1,27

SUGGESTED PAD LAYOUT

.310

7,87

4 5

6 7

10 11

12 13

14 15

.280

7,11

4 X 3°

.004/0,10

32 SURFACES

2 X 10°

.295 MAX

7,49

2 X 15°

Weight

. . . . . . . . . . . . . .2.7 grams

Tape & Reel

. . . . . . . . . . . .200/reel

Tube

. . . . . . . . . . . . . . . . . .20/tube

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

0° 8°

.035

32X 0,89

.115

2,92

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

Tel: 858 674 8100

Fax: 858 674 8262

Pulse

Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen

Tech-Innovation International

Tenth Kejinan Rd.

High-Tech Industrial Park

Nanshan District, Shenzhen

China

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Pulse North Asia

No. 26

Kao Ching Rd.

Yang Mei Chen

Taoyuan Hsien

Taiwan, R. O. C.

Tel: 886 3 4641811

Fax: 886 3 4641911

Tel: 49 7032 7806 0

Fax: 49 7032 7806 12

Tel: 65 6287 8998

Fax: 65 6280 0080

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

www.pulseeng.com

T671.E (2/07)
