T520X687M004ATE015 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> T520X687M004ATE015

Preview

T520X687M004ATE015: DescriptionTantalum Capacitors - Polymer SMD 4volts 680uF 20% X CASE ESR=15; CategoryPassive components capacitor; File Size71KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T520X687M004ATE015 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T520X687M004ATE015	-	-	View	Buy Now

T520X687M004ATE015 Overview

Tantalum Capacitors - Polymer SMD 4volts 680uF 20% X CASE ESR=15

T520X687M004ATE015 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 2917
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Samacsys Description	Tantalum Capacitors - Polymer SMD 4V 680uF 2917 20% ESR=15mOhms
capacitance	680 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	15 mΩ
high	4 mm
JESD-609 code	e3
leakage current	0.272 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	4 V
ripple current	1025 mA
size code	2917
surface mount	YES
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal shape	J BEND
width	4.3 mm

Preview

Download Datasheet

View All

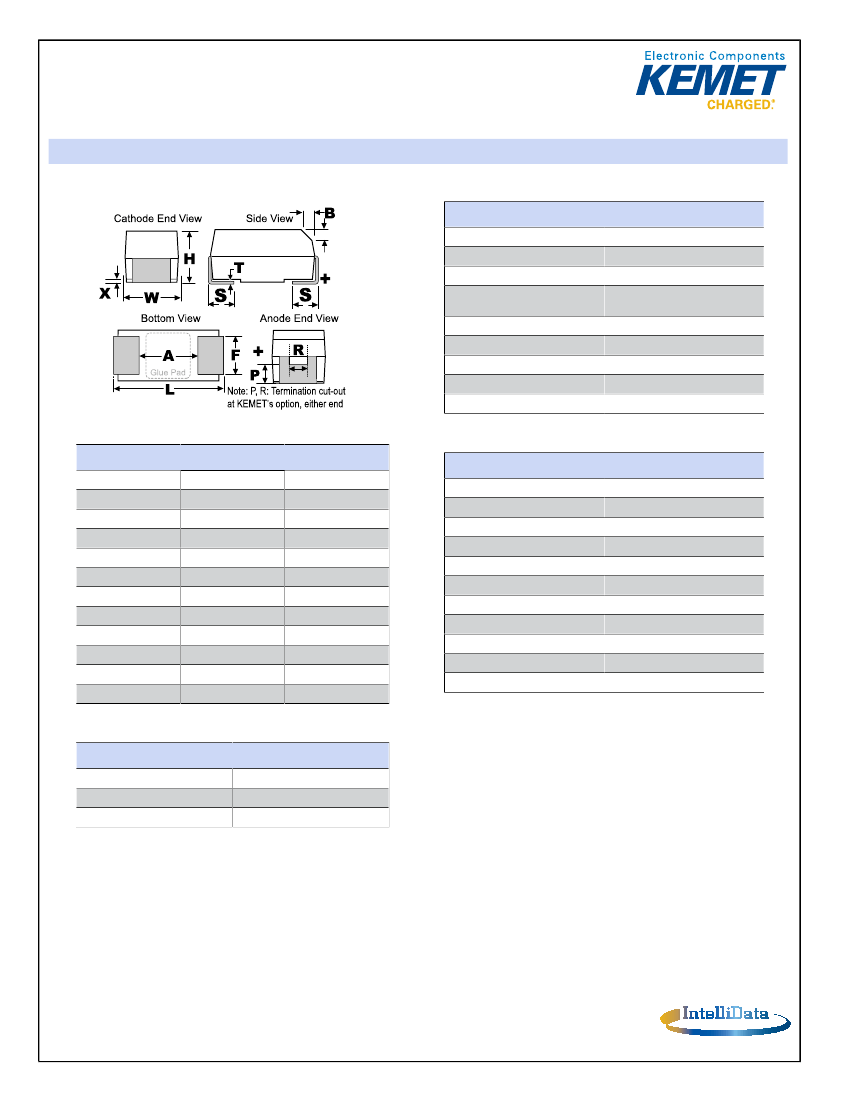

KEMET Part Number: T520X687M004ATE015

Capacitor, Tantalum, SMD, Polymer, Molded, Low ESR, Non-Combustible, 680 uF, 7343, +/-20% Tol, -55/+105C, 4 VDC (105C)

General Information

Supplier:

Application:

Sub Application:

Part Type Description:

Construction:

Body Type:

Footprint:

Weight:

RoHS:

KEMET

Low ESR

(NonCombustibleCathode)

SMD, Polymer, Molded, Low

ESR, Non-Combustible

Standard Chip-Polymer

SMD Chip

7343

553.96 mg

Yes

Symbol

L

W

H

F

S

B

X

P

R

T

A

Dimensions (mm)

Dimension

7.3

4.3

4

2.4

1.3

0.5

0.1

1.7

1

0.13

3.6

Tolerance

+/-0.3

+/-0.1

+/-0.3

+/-0.15

+/-0.1

REF

MIN

Specifications

Capacitance:

Tolerance:

Voltage:

Temperature Range:

Current/Ripple Current:

Resistance/ESR:

Failure Rate:

Leakage Current:

Dissipation Factor:

680 uF

+/-20%

4 VDC (105C)

-55/+105C

4100 mAmps (100kHz 45C)

2870 mAmps (85C)

1947.5 mAmps (105C)

15 mOhms (100kHz 25C)

N/A

272 uA

10%

Packaging Specifications

Package Kind:

Package Size:

Package Quantity:

T&R

7 in/180 mm

500

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/12/2017 - a55f2b83-23fa-49e5-b780-5f9c8d8bff82
