GENERAL PURPOSE CHIP RESISTORS
RC0805
5%, 1%, 0.5%, 0.1%
RoHS Compliant & Halogen Free
Product specification - July 26, 2016 V0
www.yageo.com
1
Chip Resistor Surface Mount
RC
SERIES
0805
5
SCOPE
This specification describes RC0805 series chip resistors with lead-free terminal made by thick film process.
ORDERING INFORMATION
Part number is identified by the series, size, tolerance, packing style, temperature coefficient, taping reel,
resistance value.
RC0805 X R
—
XX XXX L
(1) (2) (3) (4)
(5)
(6)
MARKING
RC0805
(1) TOLERANCE
B =
±0.1%
F =
±0.5%
F =
±1%
J =
±5%
( for jumper ordering use
code of J)
Fig.1 Value = 10kΩ
103
5% E-24 series: 3 digits
First two digits for significant figure and 3rd
digit for number of zeros.
(2) PACKAGING TYPE
R = Paper taping reel
(3) TEMPERATURE COEFFICIENT
OF RESISTANCE
—
= base on spec.
1002
Fig.2 Value = 10KΩ
Both 1% E-24 and E-96 series: 4 digits
First three digits for significant figure and 4th
digit for number of zeros.
(4) TAPING REEL
07 = 7 inch dia. Reel
(5) RESISTANCE VALUE
1
Ω
to 100MΩ
(6)
Default Code
CONSTRUCTION
The resistors are constructed out of a high-grade ceramic body. Internal metal
electrodes are added at each end and connected by a resistive material. The
composition of the resistive material is adjusted to give the approximate
required resistance and laser cutting of this resistive layer that achieves
tolerance trims the value. The resistive layer is covered with a protective coat
and printed with the resistance value. Finally, the two external
terminations
are added. See fig.3
Letter L is system default
code for order only
(NOTE)
Note
1.
All our RSMD products meet RoHS compliant and Halogen Free. "LFP" of the internal 2D reel label mentions "Lead Free Process".
2. On customized label, "LFP" or specific symbol can be printed
www.yageo.com
2
Chip Resistor Surface Mount
RC
SERIES
0805
5
DIMENSION
Table 1
TYPE
L (mm)
W (mm)
H (mm)
I1 (mm)
I2 (mm)
RC0805
2.00±0.10
1.25±0.10
0.50±0.10
0.35±0.20
0.35±0.20
POWER RATING
RATED POWER AT 70°C,
RC0805 0.25W
ELECTRICAL CHARACTERISTICS
Table 2
CHARACTERISTICS
Operating Temperature Range
Maximum Working Voltage
Maximum Overload Voltage
Dielectric Withstanding Voltage
Resistance Range
RC0805
0.25 W
–55°C
to +155°C
150V
300V
300V
±5%
(E24) 1Ω to 100MΩ
±1%
( E24/E96) 1Ω to 10MΩ
±0.1%,
0.5% ( E24/E96) 10Ω to 1MΩ
Jumper <50mΩ
Temperature Coefficient
1Ω≤ R
≤10Ω
10Ω< R
≤10MΩ
10MΩ< R
≤22MΩ
24MΩ< R
≤100MΩ
±200ppm/℃
±100ppm/℃
±200ppm/℃
±300ppm/℃
2A
5A
RATED VOLTAGE:
The DC or AC (rms) continuous working voltage
corresponding to the rated power is determined
by the following formula:
V=
Jumper Criteria
Rated Current
Maximum Current
(
P
*
R
)
V=Continuous rated DC
or AC (rms) working voltage
Where
P=Rated power
R=Resistance value
www.yageo.com
3
Chip Resistor Surface Mount
RC
SERIES
0805
5
TAPING REEL
Table 3
DIMENSION
Tape Width(mm)
RC0805
8
180+0/–3
60+1/–0
13.0±0.2
9.0±0.3
11.4±1
ØA
(mm)
ØB
(mm)
ØC
(mm)
W (mm)
T (mm)

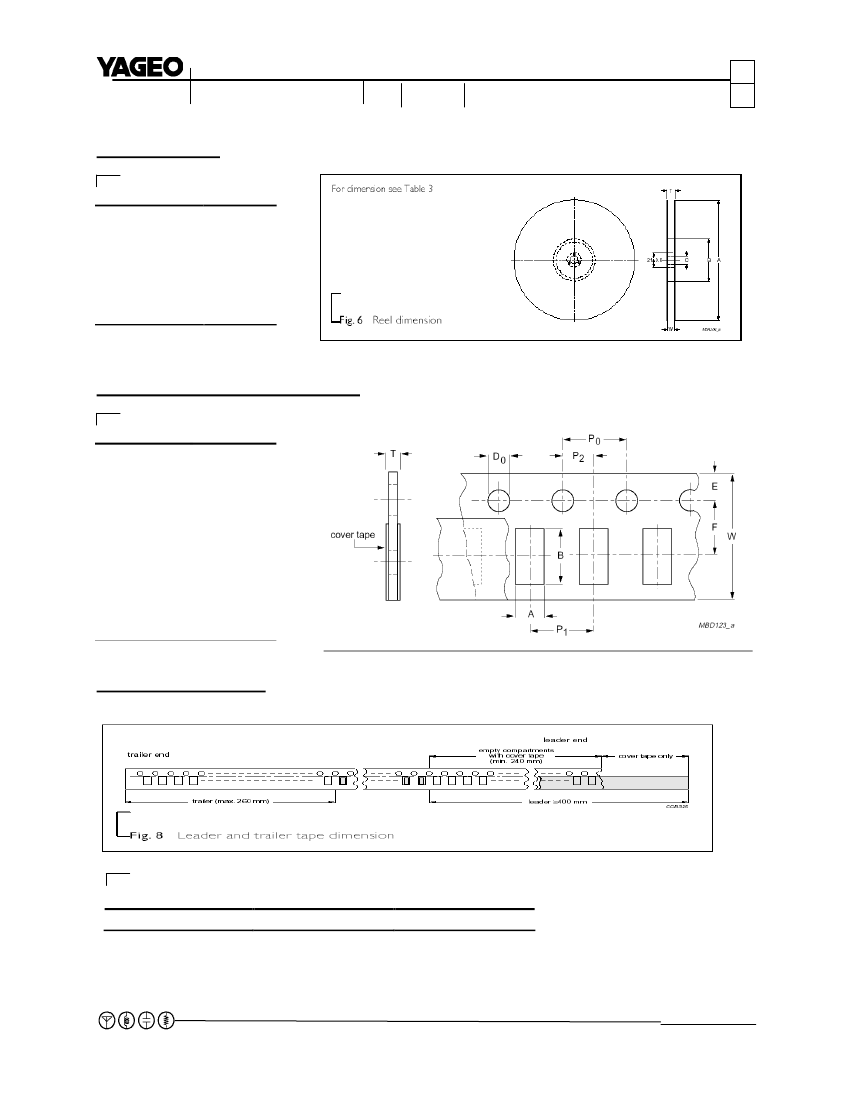

PAPER TAPE SPECIFICATION
Table 4
DIMENSION
RC0805
A (mm)
B (mm)
W (mm)
E (mm)
F (mm)
P
0
(mm)
P
1
(mm)
P
2
(mm)
ØD
0
(mm)
T (mm)
1.9±0.1
3.5±0.1
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.05
4.0±0.1
2.0±0.05
1.5+0.1/–0
0.85±0.1
PACKING METHOD
LEADER/TRAILER TAPE SPECIFICATION
Table 5 Packing style and packaging quantity.
PACKING STYLE
Paper taping reel
REEL
DIMENSION
RC0805
5,000
7" (178 mm)
www.yageo.com
4
Chip Resistor Surface Mount
RC
SERIES
0805
5
TESTS AND REQUIREMENTS
TEST
Life/
Endurance
TEST METHOD
MIL-STD 202 Method 108
IEC 60115-1 4.25.1
PROCEDURE
At 70±2℃ for 1,000 hours; RCWV applied
for 1.5 hours on and 0.5 hour off, still air
required
REQUIREMENT
±(1%+0.05
Ω
) for 0.1%/
0.5%/ 1% tol.
±(3%+0.05
Ω
) for 5% tol.
<100mΩ for jumper
High
Temperature
Exposure
MIL-STD 202 Method 108
IEC 60068-2-2
1,000 hours at maximum operating
temperature depending on specification,
unpowered
±(1%+0.05
Ω
) for 0.1%/
0.5%/ 1% tol.
±(2%+0.05
Ω
) for 5% tol.
<50mΩ for jumper
Moisture
Resistance
MIL-STD-202 Method 106
Each temperature / humidity cycle is
defined at 8 hours (method 106), 3 cycles /
24 hours for 10d with 25
°C
/ 65
°C
95%
R.H, without steps 7a & 7b, unpowered
Parts mounted on test-boards, without
condensation on parts
-55/+125℃
Note Number of cycles required is 300
Devices mounted
Maximum transfer time is 20 seconds
Dwell time is 15 minutes. Air - Air
2.5 times RCWV or maximum overload
voltage which is less for 5 seconds at
room temperature
±(0.5%+0.05
Ω
) for 0.1%/
0.5%/ 1% tol.
±(2%+0.05
Ω
) for 5% tol.
<100mΩ for jumper
±(0.5%+0.05
Ω
) for 0.1%/
0.5%/ 1% tol.
±(1%+0.05
Ω
) for 5% tol.
Thermal
Shock
MIL-STD-202 Method 107
<50mΩ for jumper
±(1%+0.05
Ω
) for 0.1%/
0.5%/ 1% tol.
±(2%+0.05
Ω
) for 5% tol.
Short Time
Overload
IEC 60115-1 4.13
Board Flex/
Bending
IEC 60115-1 4.33
Device mounted or as described only 1
board bending required
3 mm bending time: 60±5 seconds
Electrical Test not required Magnification
50X
SMD conditions:
1st step: method B, aging 4 hours at 155
°C
dry heat
2nd step: leadfree solder bath at 245±3
°C
Dipping time: 3±0.5 seconds
Leadfree solder ,260°C, 30 seconds
immersion time
Condition B, no pre-heat of samples
Leadfree solder, 260
°C ±5℃,
10
±1
seconds
immersion time
Procedure 2 for SMD: devices fluxed and
cleaned with isopropanol
<50mΩ for jumper
No visible damage
±(1%+0.05Ω)
<50mΩ for jumper
No visible damage
Well tinned (>95%
covered)
No visible damage
Solderability
- Wetting
J-STD-002 test B
-Leaching
-Resistance
to Soldering
Heat
J-STD-002 test D
MIL-STD 202 Method 210
IEC 60115-1 4.18
No visible damage
±(0.5%+0.05
Ω
) for 0.1%/
0.5%/ 1% tol.
±(1%+0.05
Ω
) for 5% tol.
<50mΩ for jumper
www.yageo.com
