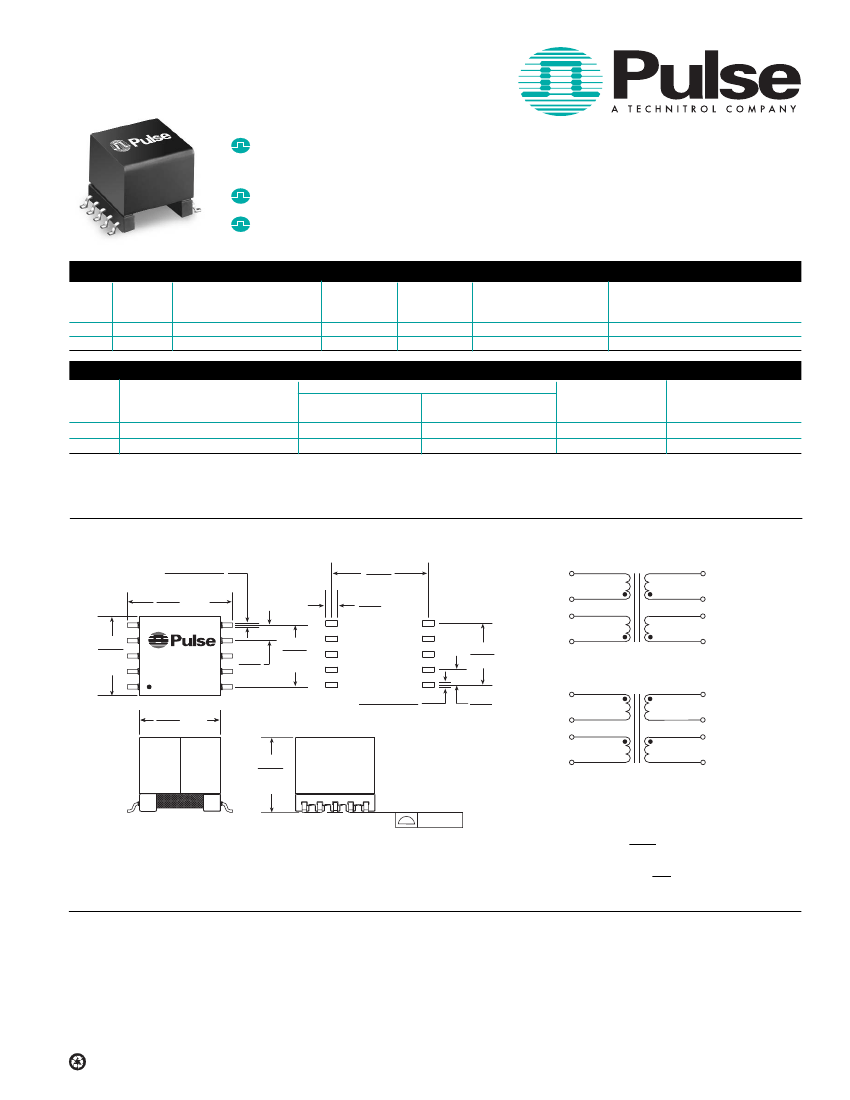

ADSL LINE TRANSFORMERS
For Use With Centillium Chipsets
For use with Centillium's CopperFlite™ CT-L50SC04/CT-L50ST81
and CopperLite™ CT-L21SC08/CT-L41SC04 chipsets
Excellent THD performance
Small footprint
Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C
Part
Number
B2178
B2189
Mounting
SMT
SMT
Matched to
Chipset Number
CT-L21SC08/CT-L41SC04
CT-L50SC04/CT-L50ST81
Application
CO
CO/CPE
Turns Ratio
(± 2%)
(line - chip)
1:1
1.8:1
OCL
(± 10%)
(1-4) with (2-3) short
450 µH @ 10 KhZ, 0.1 V
450 µH @ 30 KhZ, 0.1 V
Leakage Inductance
@ 100 KhZ, 0.1 V
(1-4) with (2-3), (7-10) and (8-9) short
5.0 µH MAX
7.0 µH MAX
Additional Electrical Specifications
Part
Number
B2178
B2189
THD
(Linearity TYP - 10 kHz, 3.0 Vrms)
≤
-67 dB
≤
-67 dB
DC Resistance
Line Side
(1-4) with (2-3) short
≤
1.3
Ω
MAX
≤
1.3
Ω
MAX
Chip Side
(10-7) with (9-8) short
≤
1.3
Ω
MAX
≤
0.9
Ω
MAX
Isolation Voltage
(Vrms)
1500
1500
Longitudinal Balance
(from 10 kHz to 1.1 MHz)
≤
-50 dB
≤
-50 dB
NOTE: Transformers are shipped in trays unless Tape & Reel packaging is specified by adding the suffix
“T”
to the part number (i.e. B2178T).
Mechanical
10 X .028
± .002
0,71
± 0,05
.695
17,65 MAX
.530
13,46
MAX
.394
10,00
MAX
10 X .051
± .002
1,30
± 0,05
Schematics
.605
15,37
.100
2,54
.394
10,00
.098
2,50
1
3
2
4
B2178
10
8
9
Date Code
Country of Mfg.
B21XX
.098
2,50
1:1
B2189
7
1
3
2
4
10
8
9
.516
13,11MAX
.485
12,32
MAX
1.8:1
7
.005/0,13
10 SURFACES
Weight
. . . . . . . . . . . . . .6.2 grams
Tray
. . . . . . . . . . . . . . . . . .60/tray
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
