Automotive&Industrial Grade Ultra Miniature Ceramic Base SMD Crystal
ABM11AIG
FEATURES:
• PPAP ready and supported
• TS16949 certified production lines
• Ultra-miniature size and low profile package: 2.0 x 1.6 x 0.55mm
• AEC-Q200 qualified
• Hermetically sealed ceramic package assures high precision and reliability
• Extended operating temperature range: -40°C to +125°C
• RoHS compliant and Pb free
Pb
RoHS / RoHS II Compliant
2.0 x 1.6 x 0.55mm
Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable
APPLICATIONS:
• Navigation
• Comfort control
• Car entertainment system
• Instrument panel
• COTS Military
• Telematics
• Test equipment
• Industrial automation
• Industrial control
• Medical Electronics (non-life dependent)

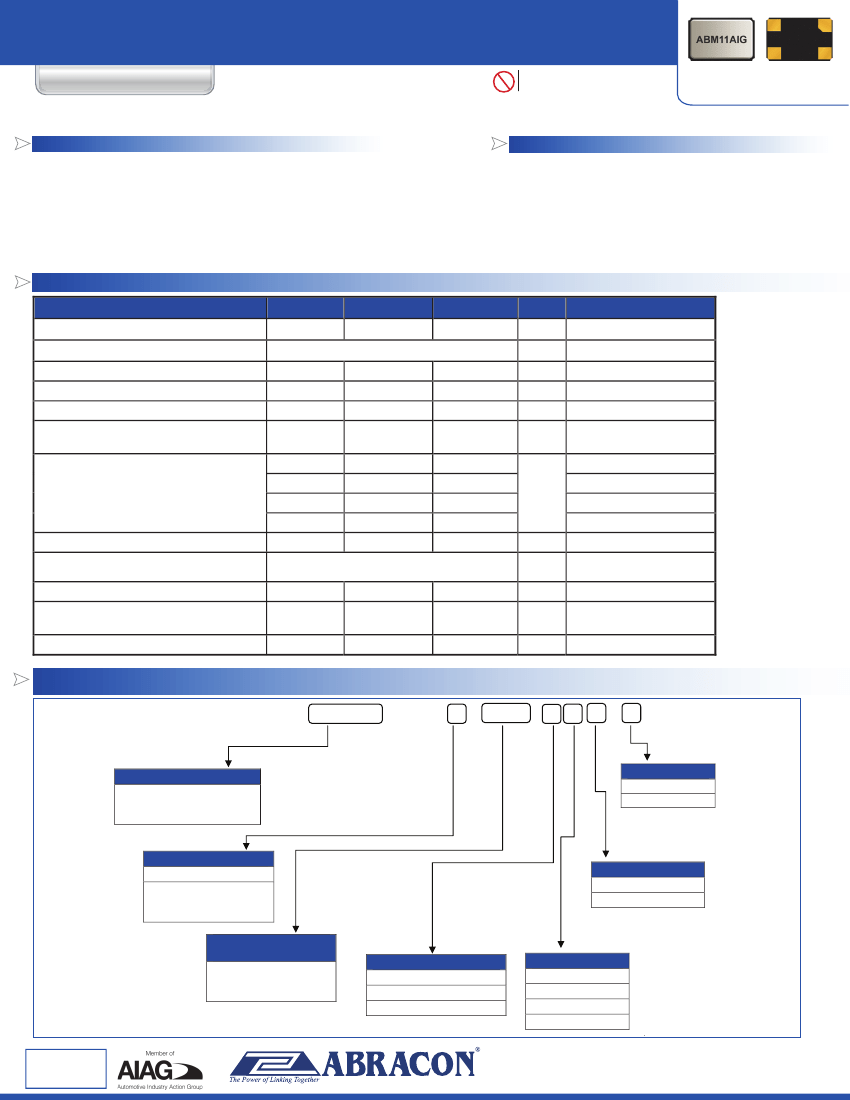

STANDARD SPECIFIC ATIONS:
Parameters
Frequency Range
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance @+25°C
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
Equivalent series resistance (R1)
Shunt capacitance (C0)
Load capacitance (CL)
Drive Level
Aging
Insulation Resistance
-5
500
10
10
100
+5
-40
-40
-50
-100
Minimum
16.000
Fundamental
+125
+125
+50
+100
150
100
80
60
5 .0
ºC
ºC
ppm
ppm
See options
See options
See options
16.000~19.999MHz
20.000~29.999 MHz
30.000~37.999 MHz
38.000~50.000 MHz
Standard
(See options if
other than STD)
Typical
Maximum
50.000
Units
MHz
Notes
Ω
pF
pF
µW
ppm
M
Ω
@25°C±3°C
First year
@ 100Vdc ± 15V
OPTIONS AND PART IDENTIFICATION:
AND PART IDENTIFIC ATION: (Left blank if
-
standard)
ABM11AIG -
MHz
-
-
-
Packaging
Blank: Bulk
T3: 3kpcs / reel
Frequency in MHz
Please specify the frequency
in MHz.
e.g. 14.31818MHz
Load Capacitance (pF)
Blank: 10pF
If not standard, please
specify CL in pF or S for
series
Custom ESR if other
than standard
R□
□: Specify
a value in
Ω
(e.g.: R80)
Freq. Stability
Blank: ± 100 ppm
Z: ± 50 ppm
Operating Temp.
Blank: -40°C ~ +125°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C
Freq. Tolerance
Blank: ± 50 ppm
4: ± 30 ppm
2: ± 20 ppm
1: ± 10 ppm
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 12.09.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Automotive&Industrial Grade Ultra Miniature Ceramic Base SMD Crystal
ABM11AIG

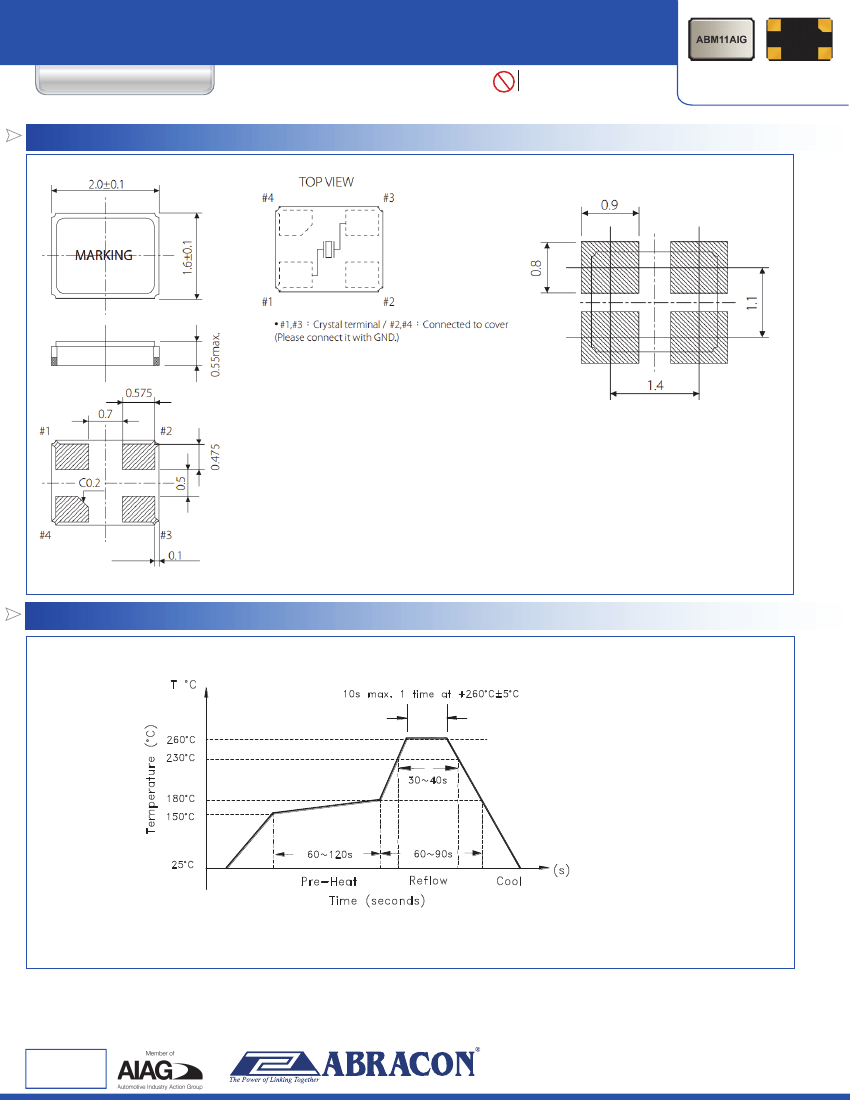

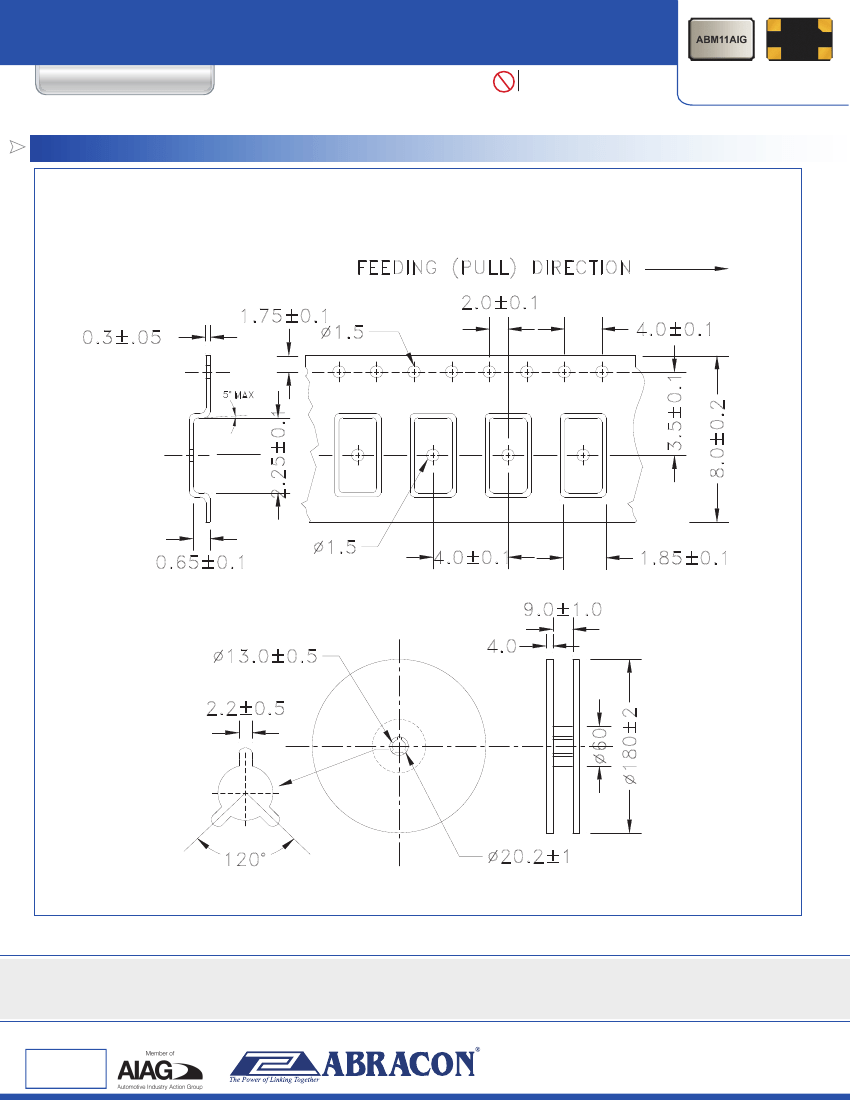

TAPE & REEL:
Packaging: T3: 3,000pcs/reel
Pb
RoHS / RoHS II Compliant
2.0 x 1.6 x 0.55mm
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization
from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 12.09.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Pierce Analyzer System (PAS)
Advanced Board Characterization Service
Abracon PAS System enables us to offer Automotive, Medical, and Industrial application customers a
comprehensive, automated assessment of the Pierce Oscillator loop, in concert with the customers selected Quartz
Crystal. The PAS System Circuit Analysis report is ideally suited for PPAP documentation, design history
reporting, and overall assurance of a reliable optimized circuit.
Features:
•
Circuit characterization; providing best possible match between Quartz Crystal, oscillator loop and
associated components
•
Eliminates probability of oscillator start-up issues related to inadequate design or marginal component
performance
•
Eliminates production launch issues related to crystal oscillator based timing circuit
•
Solves design margin uncertainty
Deliverables:
A detail Report encompassing:
•
Stand alone Quartz Crystal characteristics including:
- Motional parameters (Cm, Lm, ESR & C0)
- Narrow Band Frequency Response Plot
- Wide Band Frequency Response Plot
- Admittance versus Susceptance plot
- Frequency dependence versus load capacitance plot
•
Oscillator loop characteristics including:
- Initial frequency accuracy and drive level as seen by the crystal with measured ESR
- Worst case projected drive level with maximum specified ESR
- Safety Factor of the oscillator loop under both typical and maximum ESR
- Recommendation on proper component selection (C1, C2 & Rs when applicable) for
best compromise with respect to Safety Factor and Frequency accuracy
- Recommendation on the Abracon Crystal part # with proper plating load and other key
attributes to enable the most robust design, specific to the µcontroller/processor implemented
Ordering information:
PAS-BC1WK
PAS-BC2WK
PAS-BC3WK
Analysis & Report with 1-week maximum lead-time
Analysis & Report with 2-week maximum lead-time
Analysis & Report with 3-week maximum lead-time
For detailed information, click here:
For additional information, please contact at:
tech-support@abracon.com
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 12.18.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
