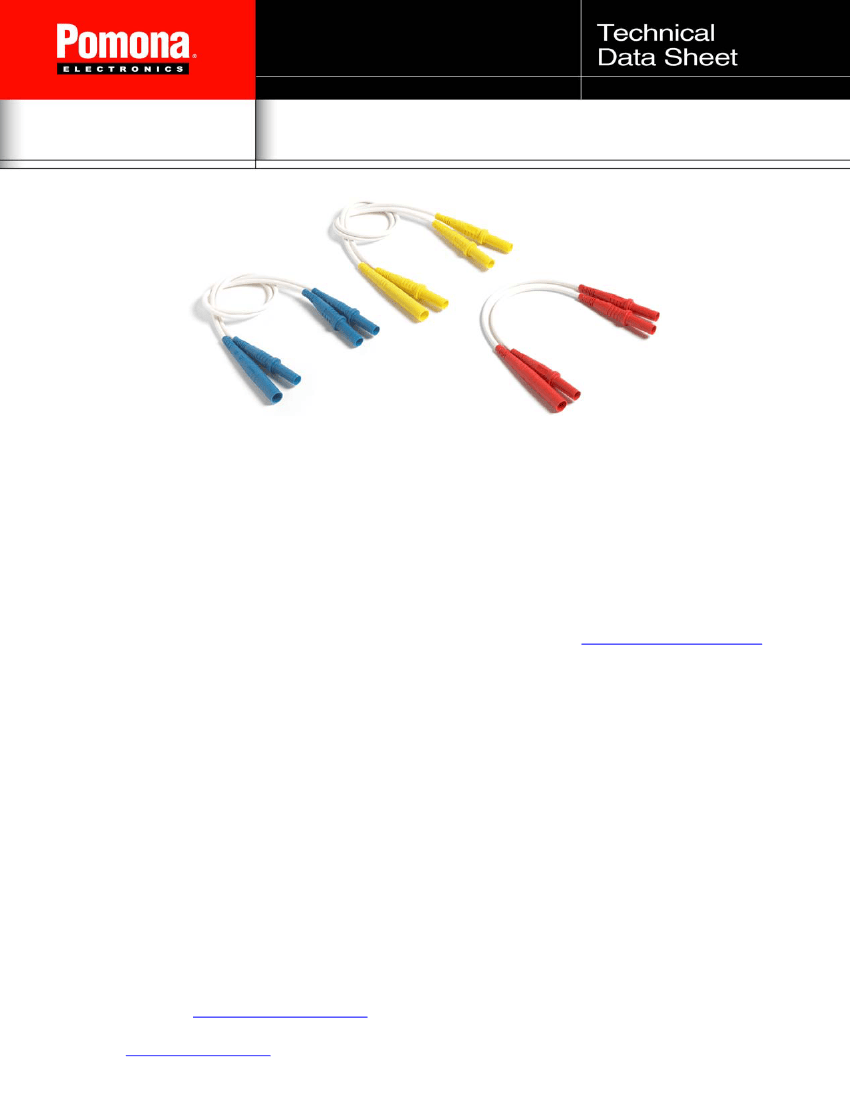

Model 73087
Jumper Test Lead Set
Model 73087, Jumper Test Lead Set
Features
•
•
•
•
•
•
•
Each jumper test lead set includes one sheathed 4mm banana plug to sheathed 4mm banana plug test lead, and one
sheathed 4mm banana plug to sheathed 4mm banana jack patch cord.
Flexible jumper test lead sets are perfect for conducting
peer-checking system
tests with test point check before final
connection.
Perfect for use with the
73084, 73085, 73086,
and
73088
terminal jacks.
Plug and housing are molded directly to the cable in an intergral one piece design and wire is double crimped for a
long lasting connection.
Multi-leaf banana spring is beryllium copper, nickel-plated for extended insertion cycle life and low contact resistance.
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
For more information, please visit our “Articles” section on nuclear applications at
www.pomonaelectronics.com.
Materials
Plug:
Brass, Nickel-plated
Spring:
Beryllium Copper, Nickel plated
Insulator:
Polypropylene
Wire:
18 AWG
Wire Insulation:
Silicone, O.D. 0.146” (3.7mm)
Ratings
Sheathed 4mm Banana Plug to Sheathed 4mm Banana Plug:
Operating Temperature:
-4° to +131°F (-20° to +55°C)
Operating Voltage:
CAT I, 1000 Vrms
For
hands free
use only
Current:
10 Amp Max
Sheathed 4mm Banana Plug to Sheathed 4mm Banana Jack:
Operating Temperature:
-4° to +131°F (-20° to +55°C)
Operating Voltage:
CAT I, 1000 Vrms
For
hands free
use only
Current:
10 Amp Max
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D2019031 Rev. 001
Page 1 of 2

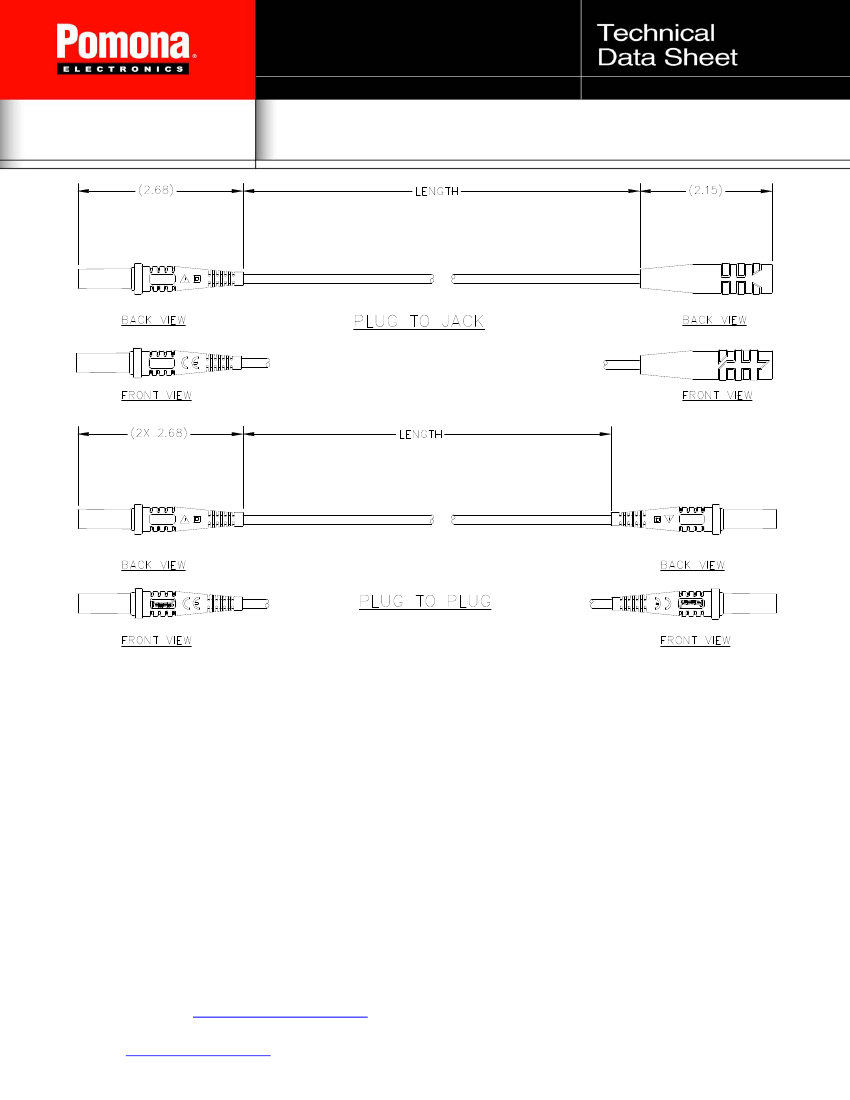

Model 73087
Jumper Test Lead Set
Ordering Information
Model:
73087-XX-*
XX
= Standard Lengths:
6” (152), 12” (305), 24” (610), 36” (914), 72” (1829)
(9”
(229), 20” (508), 150” (3810),
and
210” (5334)
lengths available in blue only)
Additional lengths may be quoted upon request.
*
= Colors: -0 Black, -2 Red, -4 Yellow, -6 Blue
Ordering Example:
73087-12-6,
banana plugs and jacks are Blue with a cable length of 12” (305mm)
