5969 Overview

Test Clips TEST CLIP 20 PIN

5969 Parametric

Parameter Name	Attribute value
Product Category	Test Clips
Manufacturer	Pomona Electronics Inc.
RoHS	Details
Product	SSOP Test Clips
Features	Interfaces with high density SSOP surface mount chip leads

Preview

Download Datasheet

View All

Pomona

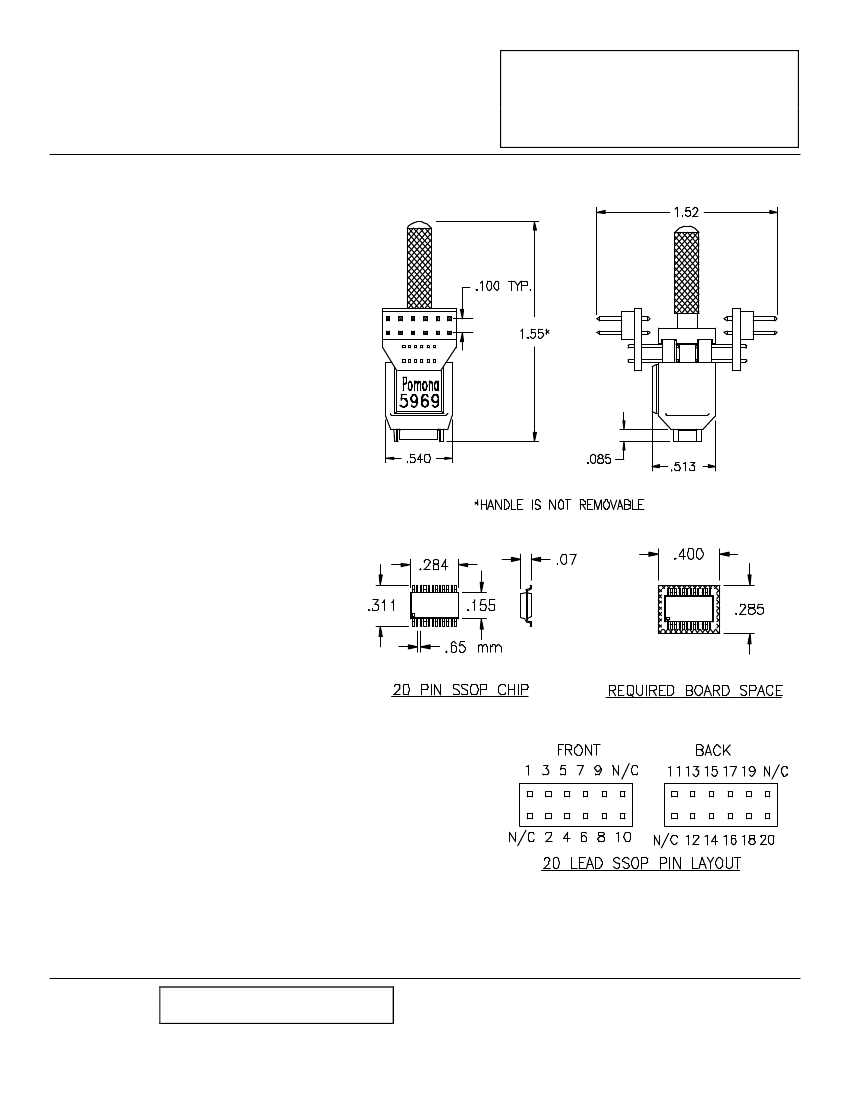

Model 5969 & 5969A

20 Lead SSOP Test Clip

0.65mm Lead Pitch

These new test clips provide the user with an

easy means to connect instrumentation to the

fine pitch plastic SSOP chip leads.

•

Interfaces with high density SSOP surface

mount chip leads.

Holding feature insures positive retention

on the chip in either vertical or horizontal

position.

Pin number 1 indicator on the side of the

clip.

Gold plated connector pins and contacts

assure noise free connections.

•

Pomona's SSOP test clips are perfect for field

service testing, system design or failure

analysis.

The holding mechanism grips the chip body at

both ends. Each contact is individually

cantilevered to assure positive contact.

Other clips are available in many sizes to fit

the most popular SSOP chips now in use.

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies.

Made in USA

6/9/99

SY/EH/LS

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90424

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 2

C:\Laura Goldberg\FlukeDataSheet\d5969_5969A_2_01.doc
