5117

Description
Test Connectors 3PIN PNL MT XLR PLG DISCONTINUED
CategoryTopical application    Test and measurement
File Size18KB,1 Pages
ManufacturerPomona Electronics Inc.
Websitehttps://www.pomonaelectronics.com/
Download Datasheet Parametric Compare View All

5117 Online Shopping

Suppliers Part Number Price MOQ In stock
5117 - - View Buy Now

5117 Overview

Test Connectors 3PIN PNL MT XLR PLG DISCONTINUED

5117 Parametric

Parameter NameAttribute value
Product CategoryTest Connectors
ManufacturerPomona Electronics Inc.
RoHSNo
Pomona
®
Model 5117 & 5130
Connector Audio, Wall Mount,
Male, 3 & 5 Conductor
FEATURES:
Model 5117 Mates to Model # 5109 straight cord female plug.
Model 5130 Mates to Model # 5125 straight cord female plug.
Wall or Floor mount receptacle.
Model 5117 will accept standard 3 pin XLR female plugs.
Model 5130 will accept standard 5 pin XLR female plugs.
Durable Zinc Alloy housing.
Model 5117 Accepts up to 14 AWG.
Model 5130 Accepts up to 18 AWG.
MATERIALS:
Housing: Zinc Alloy with a nickel finish
Contacts: Bronze with a Tin finish
Ground Tag: Steel
Insulator: Black Polyester
RATINGS:
Operating Voltage: 133 VRMS/DC
Current: 15 Amperes.
ORDERING INFORMATION:

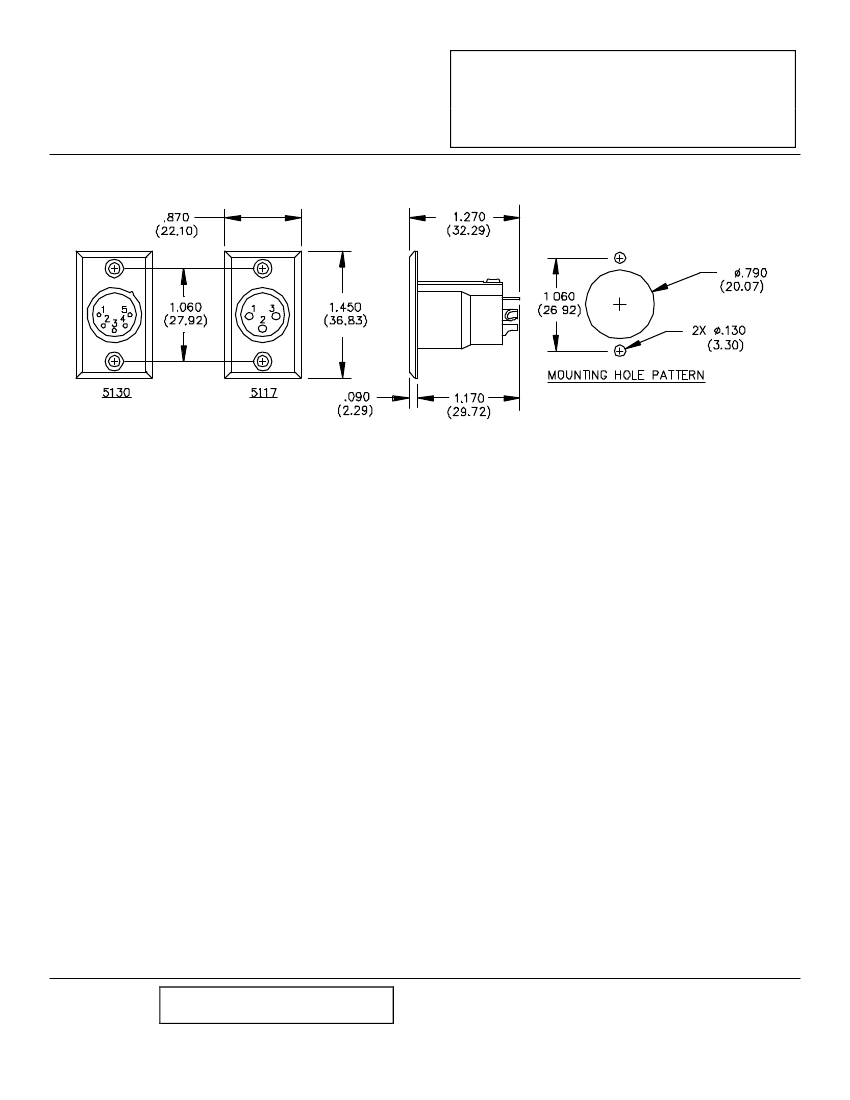

Models 5117, 5130
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90620
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
C:\Laura Goldberg\FlukeDataSheet\d5117_5130_1_01.doc
