Split-core construction allows easy circuit connection
High accuracy with typically less than 1% DC gain error
Low noise and DC drift
3rd party safety certification
Key performance specifications
DC to >120 MHz bandwidth
30 A RMS maximum current capability
50 A peak pulse current capability
High accuracy with typically less than 1% DC gain error
Accurately measures current levels as low as 1 mA
Applications
Power supplies
Semiconductor devices
Power inverters/converters
Electronic ballasts

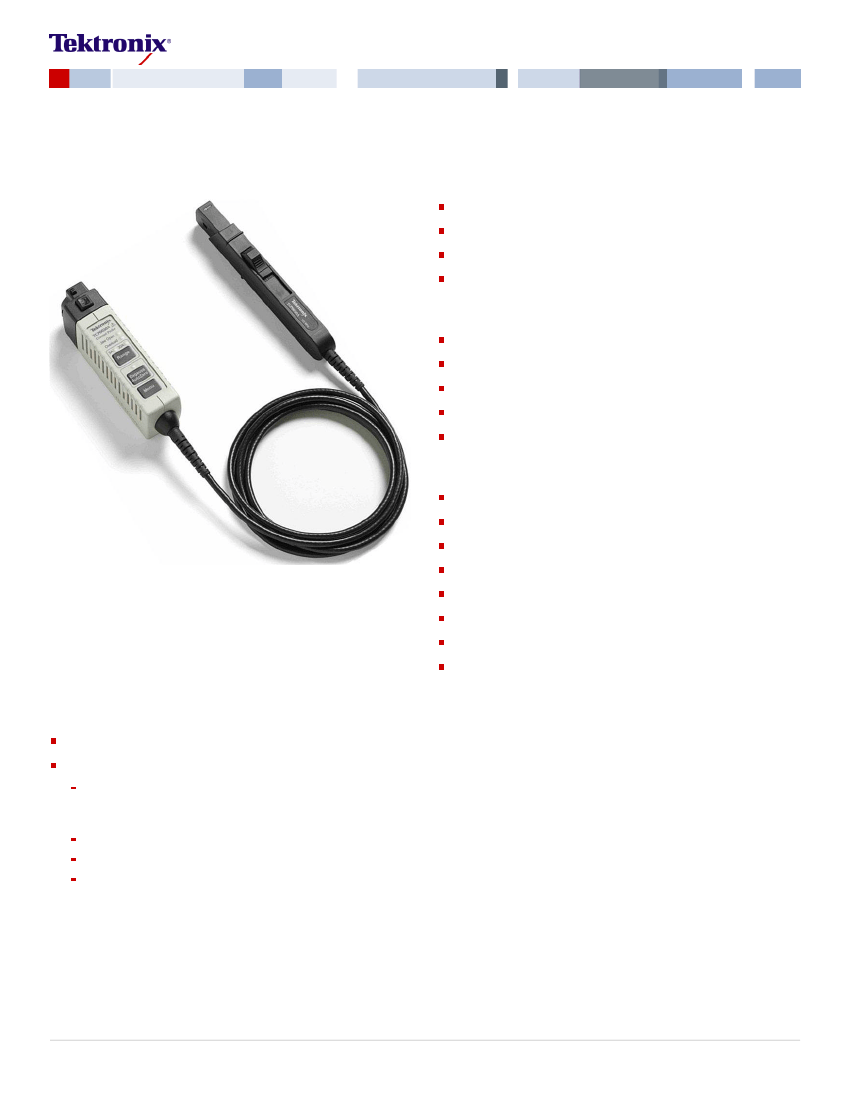

TCP0030A is a high-performance, easy-to-use AC/DC current probe
designed for use and direct connection to oscilloscopes with the TekVPI
™
probe interface. This AC/DC current measurement probe provides greater
than 120 MHz of bandwidth with selectable 5 A and 30 A measurement
ranges. It also provides exceptional low-current measurement capability
and accuracy to current levels as low as 1 mA, important for meeting
today's challenging current measurement needs.
Industrial/consumer electronics
Mobile communications
Motor drives
Transportation systems
Key features
Easy-to-use and accurate AC/DC current measurements
Intelligent communication with TekVPI
™
oscilloscopes provides:
Units scaling and readout. Automatic, on-screen readout of amps
and magnitude. Manual setup is not required. Hand calculation
from volts to amps is unnecessary
Push button degauss and Autozero functionality
Probe status and diagnostic indicator LEDs
Remote GPIB/USB probe control
www.tektronix.com 1
Datasheet
Specifications
All specifications apply to all models unless noted otherwise.
Electrical characteristics
Bandwidth
Rise time
Maximum DC current
Maximum RMS current
Maximum peak pulse current
Maximum bare wire voltage
Sensitivity
DC accuracy
Accuracy, typical
DC to ≥120 MHz
≤2.92 ns
30 A
30 A
50 A
150 V CAT II, (insulated wire 300 V CAT II)
1 mA (on oscilloscopes that support 1 mV/div setting)
±3% warranted
DC: ±1% of reading
DC to 60 Hz, ≤5 A: ±1%
60 Hz – 5 kHz, ≤5 A: ±1.5%
DC – 5 kHz, >5 A: ±1.5%
Maximum Amp-Second product
Insertion impedance
500 A*µs (in 30 A range)
1 mΩ at 10 kHz
3.5 mΩ at 100 kHz
0.08 Ω at 1 MHz
0.15 mΩ at 10 MHz
0.7 Ω at 100 MHz
0.85 Ω at 120 MHz
Signal delay
Current ranges
Power requirements
14.5 ns
5 A and 30 A
TCP0030A is powered directly by oscilloscopes with the TekVPI
™
interface. Note: For best support, download and install the latest
version of the oscilloscope software from www.tek.com.
2 www.tektronix.com
30 A AC/DC Current Probe
Physical characteristics
Probe head
Length
Width
Height
Maximum conductor size
Cable length
Shipping weight
20 cm (7.77 in)
1.6 cm (0.625 in)
3.2 cm (1.25 in)
5 mm (0.197 in)
200 cm (79 in)
1.55 kg (3.44 lb)
EMC environment and safety
Temperature
Operating
Nonoperating
Humidity
Operating
Nonoperating
Altitude
Operating
Nonoperating
Compliance labeling
Up to 3,000 m (10,000 ft.)
Up to 12,192 m (40,000 ft.)
CE (European Union), WEEE (European Union)
5% to 95% Relative Humidity (RH) at up to +30 °C; 5% to 85% RH above 30 °C up to +50 °C, noncondensing
5% to 95% Relative Humidity (RH) at up to +30 °C; 5% to 85% RH above 30 °C up to +75 °C, noncondensing
0 °C to 50 °C (32 °F to 122 °F)
-40 °C to +75 °C (-40 °F to 167 °F)
Ordering information
Models
TCP0030A
AC/DC Current Probe
Standard accessories
Instruction manual
Probe ground lead - 6 in. length
Nylon carrying case
071-3006-xx
196-3120-xx
016-1952-xx
Recommended accessories
Current Loop, 1 Turn, 50 Ω with
BNC connector used for
Performance Verification
Order 067-2396-00
Warranty
One year parts and labor.
www.tektronix.com 3
Datasheet
Service options
Opt. C3
Opt. C5
Opt. D3
Opt. D5
Opt. R3
Opt. R3DW
Opt. R5
Opt. R5DW
Opt. SILV600
Calibration Service 3 Years
Calibration Service 5 Years
Calibration Data Report 3 Years (with Opt. C3)
Calibration Data Report 5 Years (with Opt. C5)
Repair Service 3 Years (including warranty)
Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
Repair Service 5 Years (including warranty)
Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
Standard warranty extended to 5 years
Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar.
