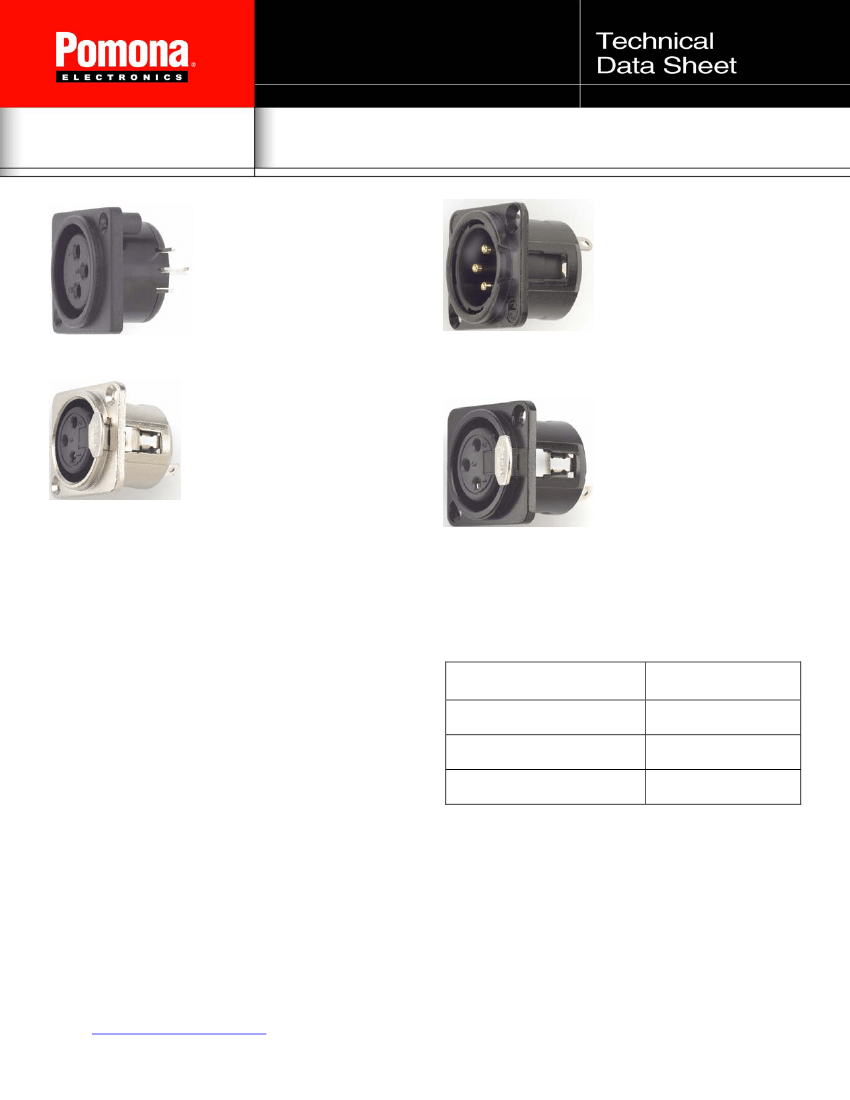

Models 7111, 7113, 7114, 7115
XLR D Square Flanged Panel Receptacles
Model 7111 D Series Square Flanged Panel Receptacle
Horizonal PCB (F), Black
Model 7113 D Series Square Flanged Panel Receptical Solder
Cups 3 Pin (M), Black
Model 7114 D Series Square Flanged Panel Receptacle Solder
Cups 3 Pin (F)
Use for your audio applications
to protect contacts and absorb
vibrations.
Features
•
•
•
•
3-pin audio receptacle with sturdy all metal one
piece design
Solder cup terminations
Front mountable
Female receptacles have latch lock mechanism
Model 7115 D Series Square Flanged Panel Receptacle Solder
Cups 3 Pin (F), Black
Specifications
Number of contacts
Contact resistance
Dielectric strength
Wire Size (AWG)
3
< 5 mΩ
1500 V dc
14 AWG / 2.5 mm
2
Materials
•
Housing is diecast zinc alloy with tarnish resistant
nickel plating. Models 7111, 7113, 7115 have
black nickel-plating
Contacts for 7111 are nickel-plated brass
Ground tab is made of steel
•
•
Ordering
Information
Model: 7111, 7113, 7114, 7115
USA:
Sales: 800-490-2361 Technical Support: 800-241-
2060 Fax: 888-403-3360
Europe:
31-(0) 40 2675 150
International:
425-446-5500
e-mail:
technicalsupport@pomonatest.com
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright 2004 10/2004 2401769 D-ENG-N Rev A
Page 1 of 1
