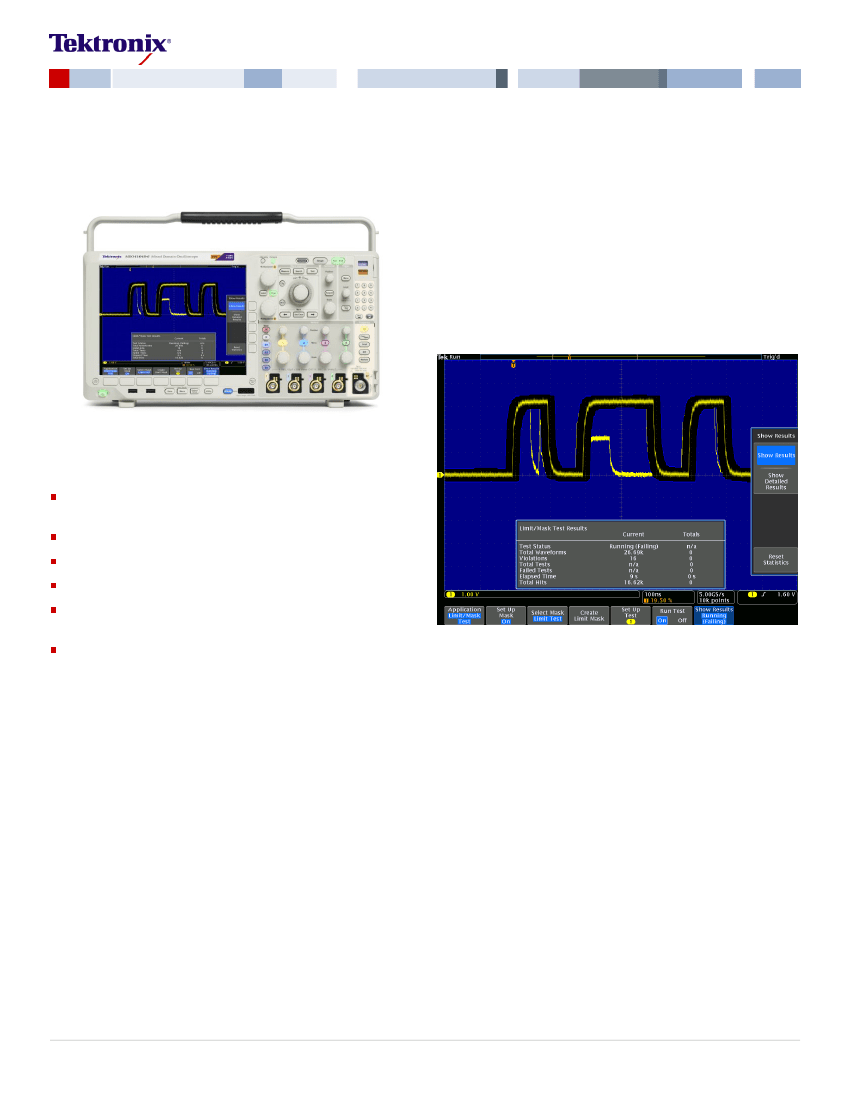

Limit and Mask Test Application Module

DPO4LMT/MDO3LMT Datasheet

Limit test

A common method for understanding your signal quality is to test against a

known good or “golden” waveform. You can apply horizontal and vertical

tolerances to the golden waveform to create a mask that can be used for

quick, accurate Pass/Fail testing. This method is also a great way to

perform go/no-go testing on a manufacturing line by enabling repeatable,

fast decisions on the quality of a component or system. The Limit and Mask

Test Application Module allows you to save your limit test mask for use

later across multiple oscilloscopes in a lab or on a production line.

Key features

Conduct limit test Pass/Fail testing against a “golden” waveform with

tolerances

Perform mask testing on ITU-T, ANSI T1.102, and USB standards

Perform mask testing on custom user-defined masks

Detailed test statistics provide insight into true signal behavior

Customizable tests allow for multiple actions upon violations or test

failures

High waveform capture rates enable thousands of waveforms to be

tested per second

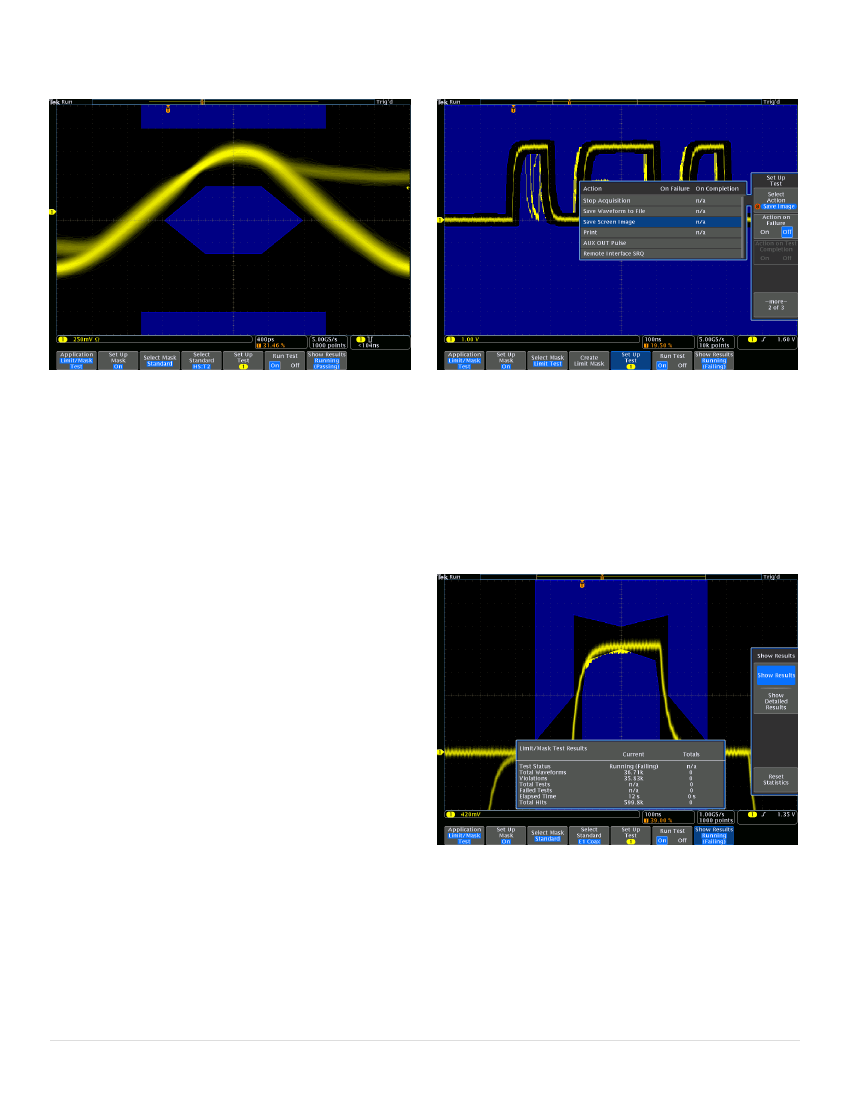

Limit Test finds infrequent glitches and runt signals using a mask created by adding

vertical and horizontal tolerances around a golden waveform. Quickly test your signals

against a golden waveform and quickly gain insight into anomalous behavior.

Automated pass/fail testing

Validating signal quality is an important part of any embedded system

design. One way to determine how well your signals conform to expected

signal quality is to use mask testing. A mask defines a portion, or portions,

of the oscilloscope display that a signal must not enter. Whether you need

to test to a well-defined telecommunication or computer standard or are

interested in validating how your signals are performing compared to a

known good condition, the Limit and Mask Test Application Modules for the

MDO/MSO/DPO4000 and MDO3000 Series provide instant automated

statistical analysis of signal quality. The Limit and Mask Test capability

makes testing against telecommunication and computer industry standards

easy by making mask definition quick and accurate, allowing flexible testing

configurations, and providing detailed statistical test results.

Standard mask test

More than 40 standard telecommunications and computer industry

standard masks are included with the DPO4LMT application module. Each

standard mask is easily loaded from the oscilloscope internal memory and

can be immediately used to conduct Pass/Fail testing. Adherence to a

standard is determined pixel-by-pixel throughout the display. Masks for

ITU-T up to 155 Mb/s data rates, ANSI T1.102 up to 155 Mb/s data rates,

and high-speed USB 2.0 are included.
