Pomona
®
Models 1581, 2854 & 4900
Panel Mount Banana Jack
FEATURES:
•
Banana Jacks mount into panels ranging in thickness from .063” (1.6mm) to .375” (9.5mm).
•
Model 4900 features Polypenylene Sulfide for high temperature applications.
•
Model 2854 features gold plated body for optimum electrical connection.
•
Model 1581 features bright tin plating
MATERIALS:
Banana Jack: Body – Brass Nickel Plated, (Model 2854, Brass, Gold Plated)
Insulators: Polycarbonate (Model 4900, High Temperature Polyphenylene Sulfide)
¼ Internal Locking Washer: Steel, Nickel Plated
¼-32 Hex Nut: Brass, Nickel Plated
RATINGS:
Operating Voltage: Hand-held Testing: 30VAC/60VDC Max.
Hand Free Testing in controlled Voltage Environment: 2500 WVDC.
Operating Temperature: +115°C (+239°F), Model 4900 +220°C (+428°F)
Current: 15 Amperes
ORDERING INFORMATION:
Model #-Color Code
1581 & 2854 Std. Colors: -0 Black, -1 Brown, -2 Red, -3 Orange, -4 Yellow, -5 Green, -6 Blue, -7 Violet,-8 Gray, -
9 White
4900 Std. Colors: -0 Black, -6 Blue.
Sold unassembled, in packages of 10 per color
Ordering Example: 2854-2 Gold Plated Banana Jack, Color: Red

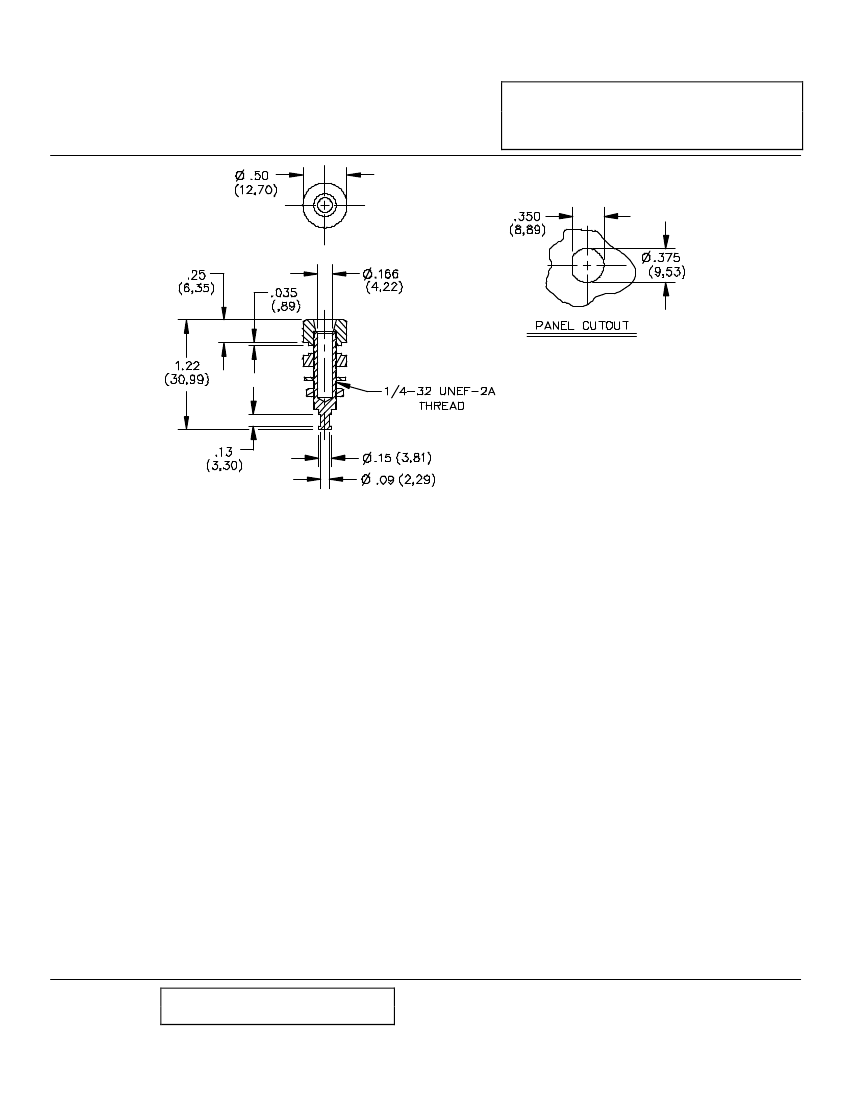

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
05/22/02
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
