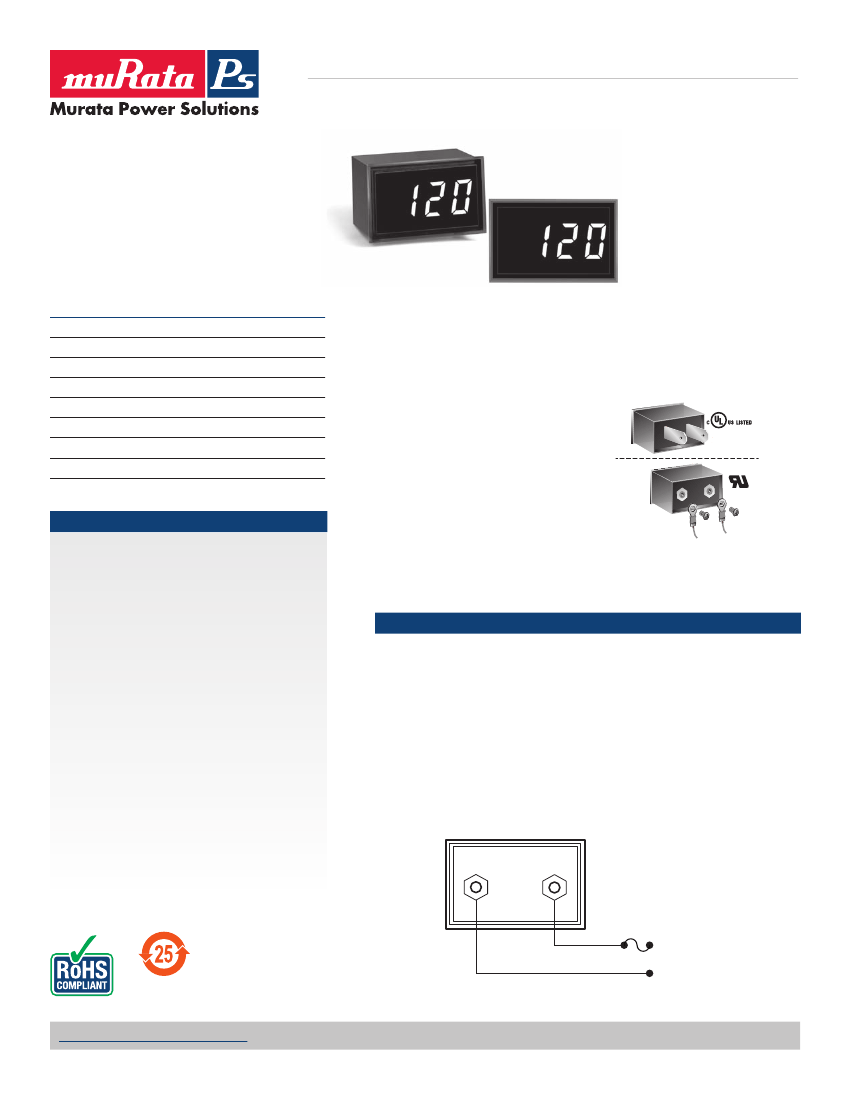

www.murata-ps.com
DMS-20PC-1-LM
Self-Powered 3 Digit, LED Display
AC Line Voltage Monitors
FEATURES
directly into USA-style wall outlets
Plugs
Screw terminals for panel mounting
Small 1.38" x 0.88" x 1.0" packages
Large, easy-to-read, red, blue or green LED displays
encapsulated for harsh environments
Fully
Half-wave averaging, rms calibrated
CSA and IEC1010-1 certified
UL,
low cost!
Very
Functional Specifications
Input
Voltage Range
➀
UL/IEC61010-1
Frequency Range
➀
Current Consumption
Performance
Sampling Rate
Measurement Type
Accuracy @ +25°C
Temperature Drift
(–25 to +60°C)
Mechanical
Dimensions
Display Type
Weight
Case Material
6-32 screw torque
85-264Vrms
Measurement Category II
47-63Hz
50mArms (max.)
2.5 readings/second
Half-wave average, rms
calibrated for sinusoidal input
±1V (typ.), ±2V (max.)
±0.15 Volts/°C (max.)
1.38" x 0.88" x 1.00"
3 digit, red LED, 0.37"/9.4mm
1 ounce (28 grams)
Polycarbonate
6-8 in-lb (0.7 – 0.9N-m)
Murata Power Solutions’ DMS-20PC-1-LM is a component-size, self-contained, low-cost
ac voltmeter for true line measurements. It requires no additional components or auxiliary
power. Simply plug it into any wall outlet and instantly read voltages from 85 to 264Vac
(47-63Hz). The large (0.37"/9.4mm), bright red, blue or green LED display makes the
DMS-20PC-1-LM easily readable under any lighting conditions.
DMS-20PC-1-LM employs half-wave
DMS-20PC-1-LM-F
sinusoidal averaging (rms calibrated) and has
(Blade Terminals)
a display resolution of 1Vac over its full input
8C48
range. Packaged in a red-filter case with built-
in bezel, the meter is fully encapsulated for
ruggedness. All units are overvoltage protected
to 300Vac.
This low-cost meter is ideal for industrial,
laboratory, office and field-service applica-
tions. Its miniature size is perfect for design
DMS-20PC-1-LM
into high-end consumer electronics, laboratory
(Panel Mount)
instrumentation and other products requiring
accurate ac line monitoring
.
Suggested wiring (user supplied)
®
C
®
US E156931
Ordering Information
DMS-20PC-1-LM-C
DMS-20PC-1-LM-B-C
DMS-20PC-1-LM-G-C
DMS-20PC-1-LM-F-C
DMS-20PC-1-LM-BF-C
DMS-20PC-1-LM-GF-C
DMS-20-CP
DMS-BZL3-C
DMS-BZL4-C
Red LED with threaded standoffs
➁
Blue LED with threaded standoffs
➁
Green LED with threaded standoffs
➁
Red LED with blade terminals
Blue LED with blade terminals
Green LED with blade terminals
Optional panel cutout punch
Optional panel mount bezel
Optional panel mount bezel with sealing gasket
➁
Brass screws (6-32 thread) and a panel-mount retaining clip are supplied with meter.
Environmental
Operating Temperature
–25 to +60°C
Storage Temperature
–40 to +75°C
Humidity (Non-condensing)
0 to 95%
➀
Operation and accuracy at inputs above or below these ranges are not specified.
CURRENT
LIMITED
AC SUPPLY
Typical Connection Diagram
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
MPM_DMS-20PC-1-LM.D01
Page 1 of 2
DMS-20PC-1-LM
Power Supply Polarity, Grounding, Fusing, and Wiring
1. Polarity and Grounding:
DMS-20PC-1-LM’s two ac-supply input terminals are not polarity sensitive,
that is, they have no “AC LO” or “AC HI” designations. These units do not
include nor require a connection to earth/chassis ground. All ac-supply wiring
must be rated for the voltages and currents they will conduct and comply
with any code or application-mandated requirements pertaining to the user’s
specific installation. Additional model-specific information is provided below.
2. UL Recognized Panel Mount Models with Screw Terminals:
C
®
Self-Powered 3 Digit, LED Display
AC Line Voltage Monitors
3. UL Listed Models with “Plug-in” Blade Terminals:
Plug-in DMS-20PC-1-LM-XF models are not internally fused and must be
protected by an external current limiting circuit breaker or fuse in accordance
with applicable regulatory codes. These models are designed to be plugged
into NEMA 1-15R, NEMA 5-15R, and NEMA 5-20R receptacles.
4. Description of the safety marks:
Caution, risk of electrical shock
Caution, risk of danger
Equipment is protected throughout by double or reinforced insulation
5. Cleaning Instructions: Gently clean with dry cloth only.
6. Caution: if the equipment is used in a manner not specified by Murata
Power Solutions, the protection provided by the equipment may be
impaired.
US E156931
DMS-20PC-1-LM AC voltmeters are not internally fused. The supply wires
feeding these voltmeters must be fused with a 0.25A/250V time delay/time lag
fuse, in accordance with applicable regulatory codes. The rear threaded stand-
off input-terminals are to be used only for powering the voltmeter’s internal
circuitry; they must not be used to supply power to external loads.
The recommended wire size is 16AWG to 20AWG (1.31mm
2
to 0.52mm
2
)
stranded copper wire. Wires must be properly stripped and attached to the
threaded standoffs such that their insulation is not pinched by the supplied
6-32 screws. Rated tightening torque for the 6-32 screws is 7 to 8 pound-
inches (0.8 to 0.9N-m). 300V UL rated wire suitable for the intended applica-
tion is required.
1.30
(33.0)
0.04
(1.016)
0.04
(1.016)
0.04
(1.016)
#6-32
UNC THD
0.44
(11.2)
0.80
(20.3)
0.88
(22.4)
0.37
(9.4)
0.75
(19.1)
0.32
(8.1)
1.00
(25.4)
#2-56 INSERT
0.156 (3.96) DEEP
0.19
(4.8)
1.07
(27.2)
DMS-BZL3-C
Optional Bezel
1.28
(32.5)
0.10
(2.5)
1.63 (41.4)
1.83 (46.5)
0.10
(2.5)
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
This product is subject to the following operating requirements
and the Life and Safety Critical Application Sales Policy:
Refer to:
http://www.murata-ps.com/requirements/
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2015 Murata Power Solutions, Inc.
www.murata-ps.com/support
MPM_DMS-20PC-1-LM.D01
Page 2 of 2
DMS-20PC-1-LM
1.38
(35.1)
Dimensions in inches (millimeters)
Tolerances: 2 PL Dec ±0.02 (±0.51)
3 PL Dec ±0.010 (±0.254)
Recommended panel cutout dimensions:
1.336 (33.93)W × 0.838 (21.29)H
Internal corner radii 0.032 (0.81) Max.
