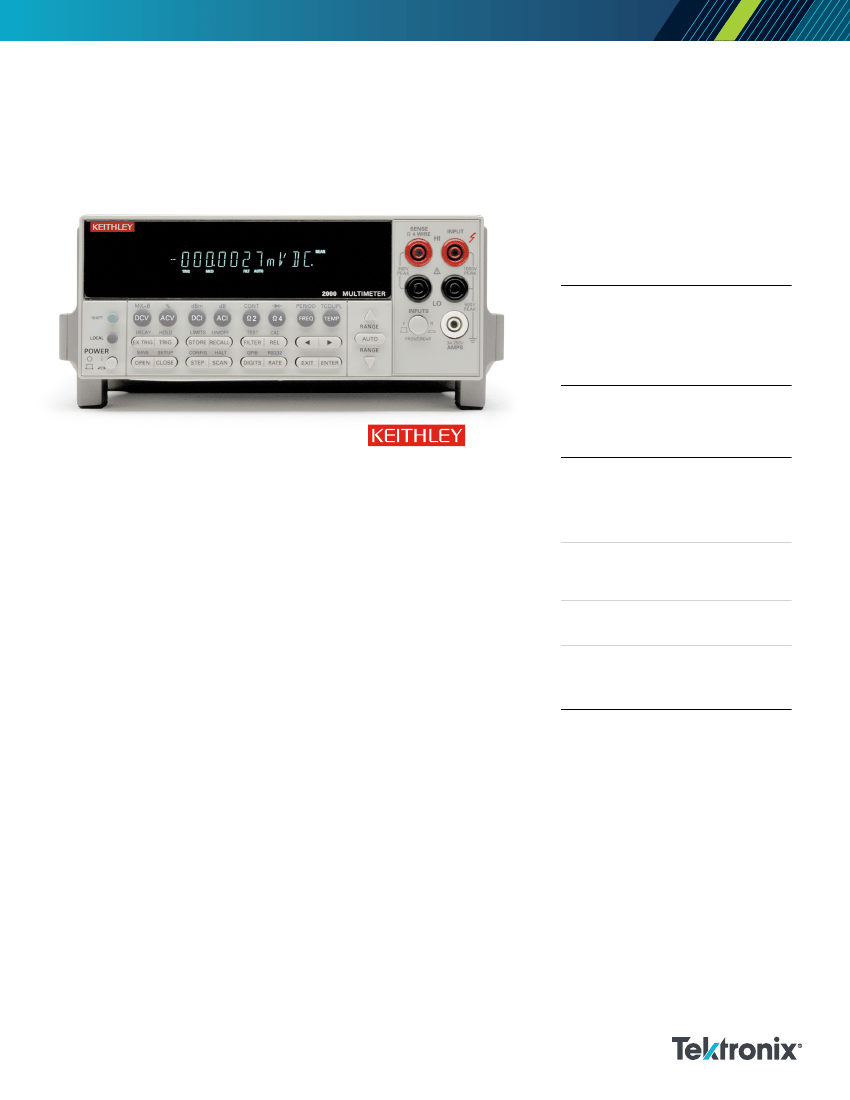

Rel, Min/Max/Average/StdDev (of stored reading), dB, dBm, Limit Test, %, and mX+b with user defined units displayed.
DBM REFERENCE RESISTANCES:
1 to 9999W in 1W increments.
Standard Programming Languages
SCPI (Standard Commands for Programmable Instruments)
Keithley 196/199
Fluke 8840A, Fluke 8842A
Remote Interface
GPIB (IEEE-488.1, IEEE-488.2) and RS-232C.
Frequency and Period Characteristics
1, 2
ACV
Range
100 mV
to 750 V
Frequency
Range
3 Hz to
500 kHz
Period
Range
333 ms to
2 µs
Gate Time
1 s (SLOW)
Resolution
±(ppm of
reading)
0.3
Accuracy
90 Day/1 Year
±(% of reading)
0.01
FREQUENCY NOTES
1. Specifications are for square wave inputs only. Input signal must be >10% of ACV range. If input is <20mV on the 100mV range, then frequency must be >10Hz.
2. 20% overrange on all ranges except 750V range.
Temperature Characteristics
Thermocouple
2, 3, 4
Accuracy
1
90 Day/1 Year (23°C ± 5°C)
Resolution
760°C
1372°C
400°C
0.001°C
0.001°C
0.001°C
Relative to
Reference Junction
±0.5°C
±0.5°C
±0.5°C

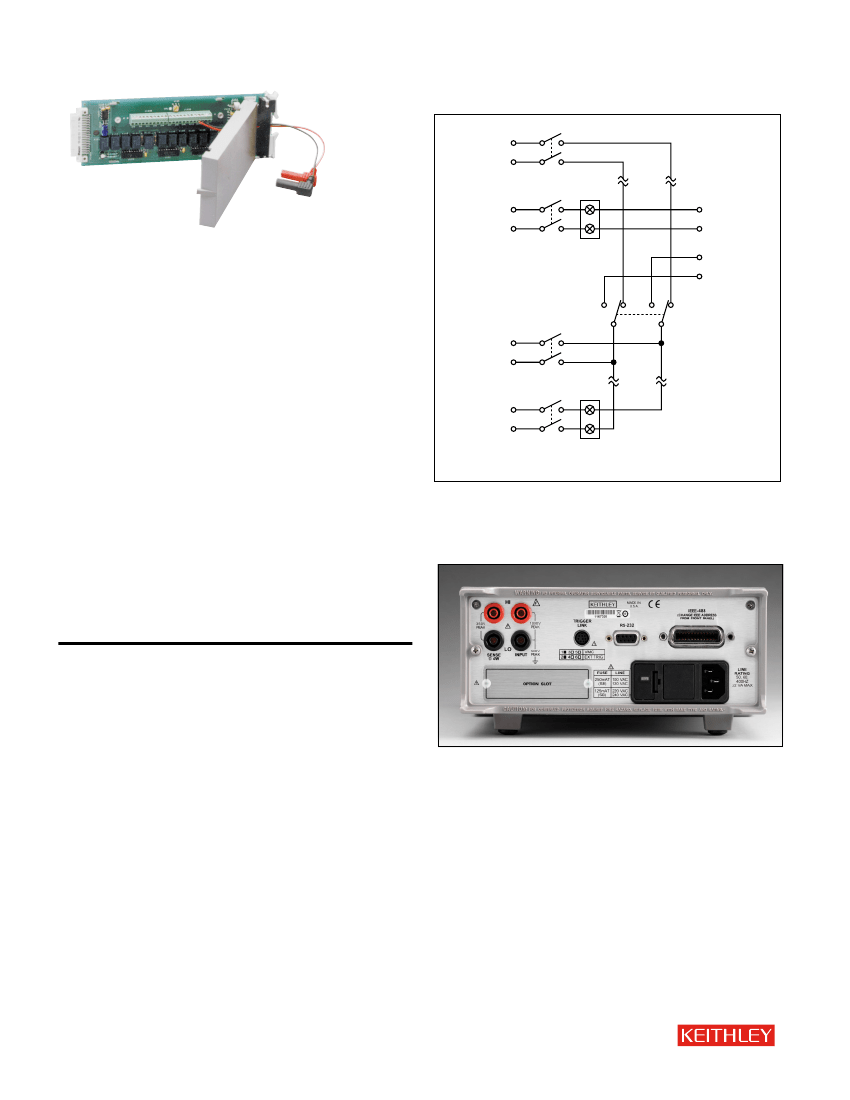

Using 2001-TCSCAN
5
±0.65°C
±0.70°C
±0.68°C
Type
J
K
T
1.
2.
3.
4.
5.
Range
–200 to +
–200 to +
–200 to +
TEMPERATURE NOTES
For temperatures <–100°C, add ±0.1°C and >900°C add ±0.3°C.
Temperature can be displayed in °C, K or °F.
Accuracy based on ITS-90
Exclusive of thermocouple error.
Specifications apply to channels 2–6. Add 0.06°C/channel from channel 6.
General Information
POWER SUPPLY:
100V / 120V / 220V / 240V.
LINE FREQUENCY:
50Hz to 60Hz and 400Hz, automatically sensed at power-up.
POWER CONSUMPTION:
22VA.
VOLT HERTZ PRODUCT:
≤8 ×
10
7
V·Hz.
OPERATING ENVIRONMENT:
Specified for 0°C to 50°C. Specified to 80% R.H. at 35°C and at an altitude of up to 2000m.
