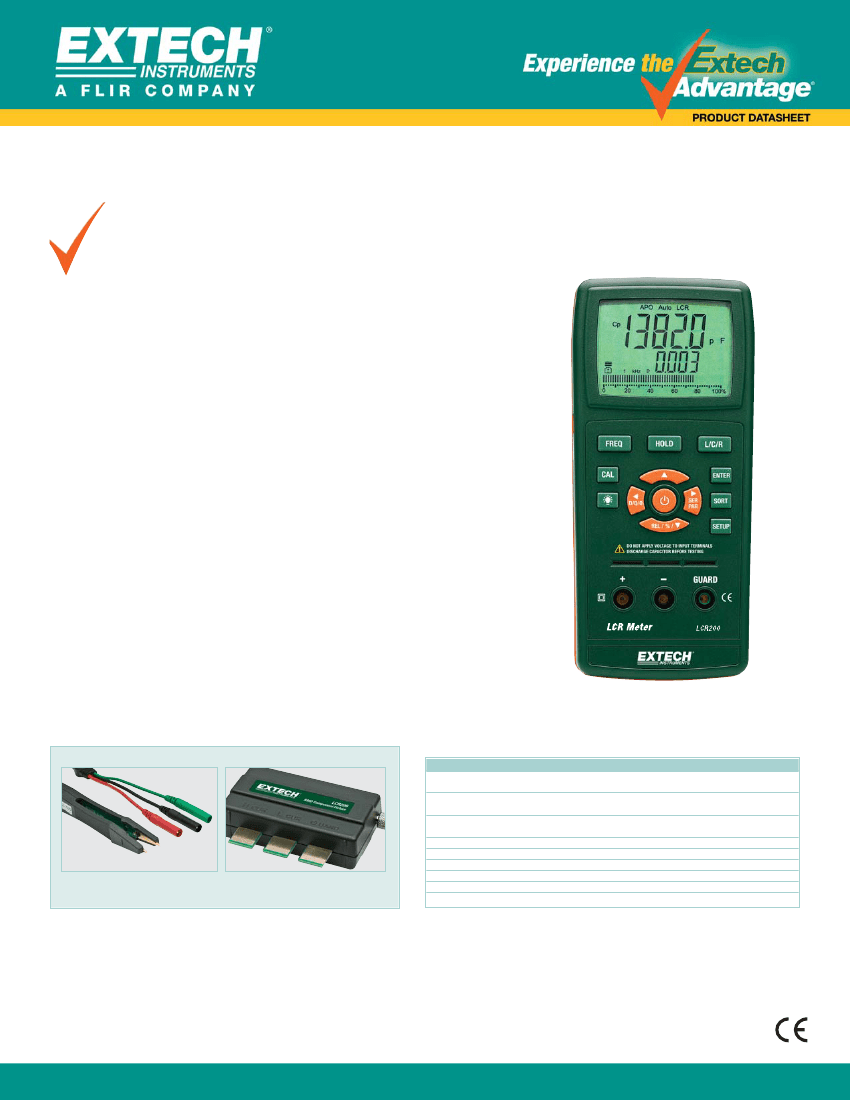

Passive Component LCR Meter
Measures Inductance, Capacitance, and Resistance
With secondary parameter Q (Quality), D (Dissipation), R (Resistance),
θ
(Phase), ESR (Equivalent Series Resistance)
Features:
•
Simultaneous 20,000/2,000 count backlit display of the primary
parameter (L, C or R) with the secondary parameter of
Q (quality), D (dissipation) R (resistance),
θ(phase),
or
ESR (equivalent series resistance)
•
Auto Select measurement function with 1kHz
default test frequency
•
Five test frequencies
•
Set Hi/Lo limits using absolute values or percentage limits
•
Relative mode function
•
Parallel or Series equivalent circuit
•
Auto power off with disable
•
Low battery and overrange indicators
•
Built-in test fixture or use external test leads
•
Open and Short calibration removes unwanted
stray impedances from the measurement
•
Complete with test leads and 9V battery
•
Optional SMD Tweezer (LCR203), plug-in SMD Component
Fixture (LCR205), and pouch case (CA900)
Specifications
Inductance
Capacitance
Resistance
DF (with C)
Q
Phase
Test Frequency
Dimensions
Weight
LCR203 SMD Tweezer
LCR205 SMD Component Fixture
Ranges
20μH, 200μH, 2000.0μH, 20.0000mH, 200.00mH
2000.0H, 20.000H, 200.00H, 2000.0H
20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF
20.000μF, 200.00μF, 2.0000mF, 20.00mF
20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ,
200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ
0.000 to 999
0.000 to 999
±90°
100Hz/120Hz/1kHz/10kHz/100kHz
7.6 x 3.5 x 1.6” (193 x 88 x 41mm)
14.8oz (420g)
Basic Accuracy
±(0.5%rdg + 5 digits)
(DF<0.1)
±(0.5%rdg + 5 digits)
(DF<0.1)
±(0.5%rdg + 5 digits)
Ordering Information:
LCR200
........Passive Component LCR Meter
Accessories
LCR203
........SMD Tweezer for Model LCR200
LCR205
........SMD Component Fixture For Model LCR200
CA900
..........Large soft carrying case fits meter and accessories
www.extech.com
Specifications subject to change without notice.
8/28/12 - R1
