ScopeMeter
®
190C
,
190B
,
and 120 Series
Technical Data

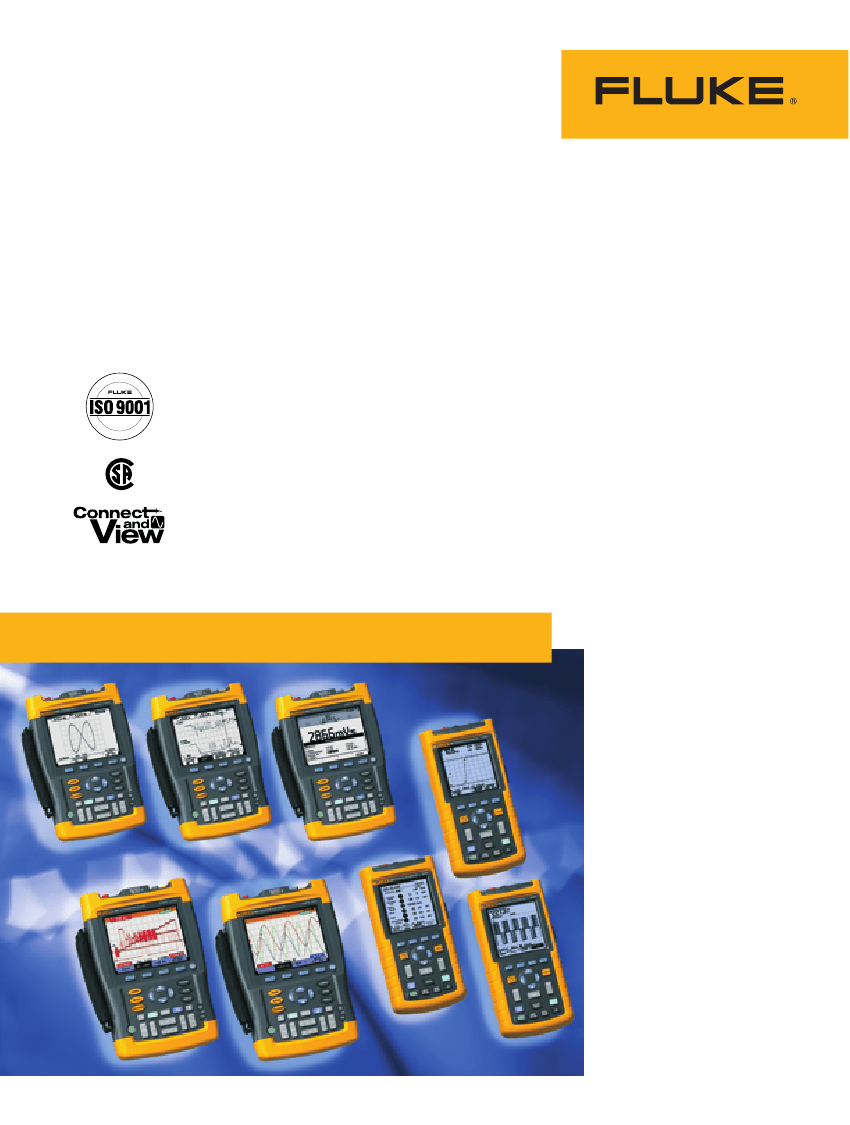

ScopeMeter 190C and 190B
Series: Speed, performance
and analysis power
QU
AL
ANAGEMENT
S
YM
Y
IT
•
•
•
•
•
•
•
IF
IE
D
TO
MEET
I
SO
For demanding applications, the
ScopeMeter 190C and 190B Series
high-performance oscilloscopes
offer specifications usually found on
top-end bench instruments. With
up to 200 MHz bandwidth,
2.5 GS/s real time sampling and a
deep memory of 27,500 points per
input, they’re ideal for engineers
who need the full capabilities of a
high-performance scope in a hand-
held, battery powered instrument.
•
Dual input - 200, 100 or
60 MHz bandwidth
•
Up to 2.5 GS/s real time
sampling per input
High waveform resolution of
3000 datapoints per channel
Frequency Spectrum using FFT
analysis (190C)
Connect-and-View
™
automatic
triggering, a full range of man-
ual trigger modes plus external
triggering
Digital Persistence for analyz-
ing complex, dynamic signals
like on an analog oscilloscope
(190C)
Fast display update rate for
seeing dynamic behavior
instantaneously
Automatic capture and replay of
100 screens
27,500 points and more per
input record length using
ScopeRecord
™
mode
•
•
•
1,000 V CAT II and 600 V
CAT III safety certified
Up to 1,000 V independently
floating isolated inputs
Four hours rechargeable
NiMH battery pack
EM
ST
ScopeMeter 120 Series:
Three-in-one simplicity
The compact ScopeMeter 120 Series
is the rugged solution for industrial
troubleshooting and installation
applications. It’s a truly integrated
test tool, with oscilloscope, multi-
meter and “paperless” recorder in
one affordable, easy-to-use instru-
ment. Find fast answers to problems
in machinery, instrumentation,
control and power systems.
90
Now including the
NEW
ScopeMeter 125
CE
RT
01
•
•
•
•
•
•
•
•
•
•
•
•
•
A dual input 40 MHz or 20 MHz
digital oscilloscope
Two 5,000 counts true-rms
digital multimeters
Cursor measurements
(Fluke 124, 125)
A dual input TrendPlot recorder
Connect-and-View trigger
simplicity for hands-off operation
Shielded test leads for oscillo-
scope, resistance, continuity
and capacitance measurements
Full bandwidth, VPS40 10:1
40 MHz probe included standard
with Fluke 124, 125
Up to seven hours battery
operation
600 V CAT III safety certified
Optically isolated RS-232
interface
Rugged, compact case
Bus Health test for industrial bus
systems (Fluke 125)
Power measurements and har-
monics measurement (Fluke 125)
Technical specifications 190C and 190B Series
Oscilloscope mode
Vertical deflection
Bandwidth
Rise time
Fluke 199C
Fluke 199B
200 MHz
1.7 ns
Fluke 196C
Fluke 196B
100 MHz
3.5 ns
Fluke 192B
60 MHz
5.8 ns
Bandwidth limiter:
User selectable: 10 kHz, 20 MHz
or off
Number of inputs:
Two plus external trigger.
All inputs isolated from each other and ground.
Input coupling:
AC or DC, with ground level indicator
Input sensitivity:
2 mV/div to 100 V/div (Fluke 190C
Series); 5 mV/div to 100 V/div (Fluke 190B Series)
Normal/invert:
On both input channels; switched
separately
Variable attenuator:
Variable gain on input channel A
Input voltage:
1000 V CAT II, 600 V CAT III rated—see
“general specifications” for further details
Vertical resolution:
8 bit
Accuracy:
± (1.5 % of reading + 0.04 x range/div)
Input impedance:
1 MW ± 1 % // 15 pF ± 2 pF
Connect-and-View
™
:
Advanced automatic triggering
that recognizes signal patterns, automatically sets up
and continuously adjusts triggering, time base and
amplitude. Automatically displays stable waveforms
of complex and dynamic signals like motor drive and
control signals.
Video triggering:
NTSC, PAL, PAL+, SECAM. Includes
field 1, field 2 and line select.
Pulse width triggering:
Pulse width qualified by time.
Allows for triggering <t, >t, =t,
≠t,
where t is select-
able in minimal steps of 0.01 div. or 50 nsec.
Time delay:
One full screen of pre-trigger view or up
to 100 screens (= 1200 divisions) of post-trigger delay
Dual slope triggering:
Both rising and falling tran-
sitions, when crossing the trigger level, initiate an
acquisition (190C only)
N-cycle triggering:
Triggers on N-th occurrence of
a trigger event; N to be set in the range 2 to 99
(190C only)
Automatic capture of 100 screens
The instrument ALWAYS memorizes the last 100
screens (no user setup required). When an anomaly
occurs on screen, the REPLAY button can be pressed to
review the full screen sequence over and over.
Instrument can be set up for triggering on glitches
or intermittent anomalies and will operate in
“baby-sit” mode and will capture 100 events.
Alternatively, the 199C and 196C can be set up
in waveform compare mode to store only matching
(“Pass”) or only non-matching (“Fail”) acquired wave-
forms in the replay memory bank for further analysis.
Replay:
Manual or continuous replay. Displays the
captured 100 screens as a “live” animation or under
manual control. Each screen has date- and time-stamp.
Replay storage:
Up to 2 sets of 100 screens each
can be saved for later recall and analysis
Horizontal
Maximum
real-time
sample rate
Number of
digitizers
Time base
range
Fluke 199C
Fluke 199B
2.5 GS/s
2
5 ns/div
to 5 s/div
Fluke 196C
Fluke 196B
1 GS/s
2
Fluke 192B
500 MS/s
2
10 ns/div
to 5 s/div
Maximum record length:
3000 points per input in
Scope mode; 27,500 points per input in ScopeRecord
™
roll mode (5 ms/div to 2 min/div)
Accuracy:
± (0.01 % of reading + 1 pixel)
Glitch capture:
50 nsec (at 5 µsec/div to 1 min/div);
250 nsec (at 2 min/div)
FFT – Frequency Spectrum Analysis
(190C only)
Shows frequency content of oscilloscope waveform
using Fast Fourier Transform
Window:
Automatic, Hamming, Hanning or None
Automatic window:
Digitally re-samples acquired
waveform to get optimum frequency resolution in FFT
resultant
Vertical scale:
Linear/logarithmic, in volts
Frequency axis:
Logarithmic; frequency range
automatically set as function of timebase range of
oscilloscope
Display and acquisition
Display
Display modes
Persistence
modes
Fluke 190C
Fluke 190B
144 mm
144 mm
Full color LCD
Monochrome LCD
Input A, input B, dual, average, replay
Digital persistence:
Persistence
short/medium/long/infinite
on / off
Visible screen width:
12 divisions
Waveform mathematics:
A + B, A - B, A * B, all
with user selectable scaling of resultant; A versus B
(X - Y mode); Frequency Spectrum using FFT analysis
(190C only)
Acquisition modes:
Normal, auto, single shot,
ScopeRecord
™
roll, glitch capture, waveform
compare, waveform compare with automatic
“Pass / Fail testing” (in 199C and 196C only)
Waveform compare and pass/fail testing
Waveform compare:
Provides storage and display
of a reference waveform for visual comparison with
newly acquired waveforms. Reference is derived from
an acquired waveform and can be modified in the
ScopeMeter or externally using FlukeView
®
Software.
Pass/Fail Testing (199C, 196C):
In waveform com-
pare mode, the Color Scopemeter can be set up to
store only matching (“Pass”) or only non-matching
(“Fail”) acquired waveforms in the replay memory
bank for further analysis.
Trigger and delay
Source:
Input A, input B, external trigger input.
All input references isolated from each other and
from ground
Modes:
Automatic Connect-and-View,
™
free run,
single shot, edge, delay, video, video line, selectable
pulsewidth, dual slope (190C only), N-cycle
(190C only)
Automatic scope measurements
Vdc, Vac rms, Vac+dc, Vpeak max, Vpeak min, Vpeak to
peak, Aac, Adc, Aac+dc, frequency (Hz), risetime, fall-
time, power factor, Watts, VA, VA reactive, phase, pulse
width (pos/neg), dutycycle (pos/neg), temperature °C,
temperature °F, dBV, dBm into 50
W
and 600
W
Vpwm ac, Vpwm ac+dc for measurement on pulse
width modulated motordrives and frequency inverters
2 Fluke Corporation
ScopeMeter 190C/190B Series, 120 Series and the NEW ScopeMeter 125
Cursor measurements
Source:
Input A, input B or the mathematical result
trace (excluding A vs B curve)
Dual horizontal lines:
Voltage at cursor 1 and 2,
voltage between cursors
Dual vertical lines:
Time between cursors, 1/T
between cursors (in Hz), voltage between markers,
risetime with markers, falltime with markers; Vrms
between cursors (190C only), watts between cursors
(190C only)
Single vertical line:
Min-Max and Average voltage
at cursor position; frequency and rms-value of individ-
ual frequency component in FFT result (190C only)
Meter mode
Via 4 mm banana inputs. Fully isolated from scope
inputs and scope ground. The specified accuracy is
valid over the temperature range 18 °C to 28 °C
(65 °F to 82 °F). Add 10 % of specified accuracy for
each degree C below 18 °C or above 28 °C.
Maximum resolution:
5,000 counts
Voltmeter ranges:
500 mV, 5 V, 50 V, 500 V,
1,000 V
Accuracy:
Vdc ± (0.5 % + 5 counts)
Vac true rms
15 Hz to 60 Hz: ± (1 % + 10 counts)
60 Hz to 1 kHz: ± (2.5 % + 15 counts)
Vac+dc true rms
dc to 60 Hz: ± (1 % + 10 counts)
60 Hz to 1 kHz: ± (2.5 % + 15 counts)
Ohms:
Ranges: 500
W,
5 kW, 50 kW, 500 kW, 5 MW, 30 MW
Accuracy: ± (0.6 % + 5 counts)
Zoom
Up to 16x horizontal zoom
Recorder mode
ScopeRecord – roll mode
Dual input waveform storage mode
Source and display:
Input A, input B, dual
Memory depth:
27,500 points per input. Each point
consists of Min-Max pair
Min-Max values:
Min-Max values are measured at
high sample rates ensuring capture and display of
glitches
Time base range
Recorded timespan
Glitch capture
Sample rate
Resolution
5 ms/div to 1 min/div
6 sec to 24 hr
50 ns
20 MS/s
200 µsec to 2 sec
2 min/div
48 hr
250 ns
4 MS/s
4.8 sec
Other meter functions
Continuity:
Beeper on < 50
W
(± 30
W)
Diode test:
Up to 2.8 V
Amps:
Adc, Aac, Aac+dc using an optional current
clamp or shunt. Scaling factors: 0.1 mV/A ... 100 V/A
Temperature (°C, °F):
With optional accessories. Scale
factors 1 mV/°C or 1 mV/°F
Input impedance:
1 MW ± 1 % // 10 pF ± 2 pF
Advanced meter functions:
Auto/manual ranging,
relative measurements (zero reference), TrendPlot
recording
Recording modes:
Single sweep, continuous roll,
Start-on-Trigger, Stop-on-Trigger
Stop-on-Trigger (through external):
ScopeRecord
mode can be stopped by an individual trigger event, or
by an interruption of a repetitive trigger signal
Horizontal scale:
Time from start, time of day
Zoom:
Up to 100x
Memory:
Up to 2 dual input ScopeRecord waveforms
can be saved for later recall and analysis
General specifications
Memory save and recall
Scope memories:
10 memory locations that each can
contain two waveforms plus corresponding setup
Recorder memories:
2 memory locations that each
can contain 100 captured dual input scope screens,
or a dual input ScopeRecord (27,500 Min-Max pairs
per input), or a dual input Trendplot (18,000 min-max
pairs + average values)
TrendPlot
™
recording
Single or dual input electronic paperless chart
recorder. Plots, displays and stores meter and scope
measurements.
Source and display:
Input A, input B or DMM input
Memory depth:
18,000 points recording. Per record
point a minimum, a maximum and an average value,
plus a date and timestamp are recorded.
Ranges:
5 s/div to 30 min/div in normal view mode;
5 min/div to 48 hr/div in view all mode, giving
overview of total record
Recorded timespan:
Up to 22 days with a resolution
of 1 minute
Recording mode:
Continuous roll for the duration of
the full recordable timespan
Measurement speed:
5 measurements per second
Horizontal scale:
Time from start, time of day
Zoom:
Up to 64x zoom
Memory:
Up to 2 TrendPlot recordings can be saved
for later recall and analysis
Real-time clock
Time and date stamp for ScopeRecord, 100 captured
screens and TrendPlots
Mechanical data
Size:
256 x 169 x 64 mm (10.1 x 6.6 x 2.5 in)
Weight:
2 kg (4.4 lbs)
Case
Design:
Rugged, shock proof with integrated
protective holster
Drip and dust proof:
IP51 according to IEC529
Shock and vibration:
Shock 30 g, vibration
Display
Brightness
Fluke 190C
Bright full-color LCD
with backlight,
80 Cd/m
2
typ.
using power adapter
Fluke 190B
Bright LCD
with backlight
125 Cd/m
2
typ.
using power adapter
Cursor measurements – all recorder modes
Source:
Input A, B or DMM input
Dual vertical lines:
Min-Max or Average
voltage. Time between cursors
Single vertical line:
Min-Max or Average
voltage. Absolute date and time or time from start
(sinusoidal) 3 g according to MIL-PRF-28800F Class 2
Display size:
115.2 mm x 86.4 mm (4.54 in x 3.4 in)
Resolution:
320 x 240 pixels
Contrast and brightness:
User adjustable,
temperature compensated
ScopeMeter 190C/190B Series, 120 Series and the NEW ScopeMeter 125
Fluke Corporation 3
Power
Line power:
Country-specific line voltage
adapter/battery charger included
Battery power:
Rechargeable NiMH (installed)
Battery operating time:
4 hours
Battery charging time:
4 hours
Battery power saving functions:
Auto power down
with adjustable power down time. On-screen battery
status indicator.
Humidity:
10 °C to 30 °C: 95% RH non condensing
30 °C to 40 °C: 75% RH non condensing
40 °C to 50 °C: 45% RH non condensing
Maximum operating altitude:
3,000 m (10,000 feet)
Maximum storage altitude:
12 km (40,000 feet)
Electro-Magnetic-Compatibility (EMC):
EN 61326-1
for emission and immunity
Optically-isolated PC/printer interface
PC communication:
Transfer instrument settings,
screen images, waveform data and waveform
references, compatible with FlukeView
®
software
for Windows
®
via optional PM9080.
To printer:
Supports HP Laserjet
®
, DeskJet, Epson FX/
LQ, Seiko DPU-414 and Postscript printers via optional
PAC 91
Safety
Compliance:
EN61010-1-2001, Pollution degree 2;
UL 3111-1, with approval;
CAN/CSA C22.2, No. 61010-1-04, with approval;
ANSI/ISA-82.02.01
Input voltage ratings
Maximum probe voltage:
1000 V CAT II/600 V CAT III
(Maximum voltage between 10:1 probe tip [VPS200]
and reference lead)
Floating voltage:
1000 V CAT II/600 V CAT III
(Maximum voltage between earth ground and any
terminal [signal input or shielding])
Independently isolated inputs:
1000 V CAT II/600 V CAT III
(Maximum voltage between any terminal of one input
or probe [VPS200] and any other terminal of another
input or probe [VPS200])
Maximum voltage on BNC input directly
(input A or B):
300 V CAT III
Maximum voltage on meter input:
1,000 V CAT II/600 V CAT III
Warranty
Three-years, parts and labor on mainframe instrument
One-year on accessories
Accessories
Standard accessories
Rechargeable battery pack (installed)
Line voltage adapter/battery charger
Voltage probes and accessories
Fluke 199C, Fluke 196C, Fluke 199B,
Fluke 196B, Fluke 192B
BP190
BC190
10:1 voltage probe (VPS200, 1 red + 1 grey)
including hook clip, ground lead with mini alliga-
tor clip, ground lead with hook clip, 4 mm add-on
probe tip, ground lead to 4 mm banana plug
TL75 Hard Point test lead set (1red, 1 black)
10 language versions on CD-ROM, “Getting Started”
booklet included with instrument
Multimeter test leads
User manual
Environmental
Operating temperature:
0 °C to +50 °C
Storage temperature:
-20 °C to +60 °C
Technical specifications 120 Series
Oscilloscope mode
Vertical deflection
Bandwidth and risetime
Fluke 125, 124 Fluke 123
40 MHz
40 MHz
12.5 MHz
8.75 ns
20 MHz
20 MHz
12.5 MHz
17.5 ns
Horizontal
Max. sample rate (both channels simultaneously):
Fluke 125, 124: 2.5 GS/s for repetitive signals;
25 MS/s for single shot
Fluke 123: 1.25 GS/s for repetitive signals; 25 MS/s
for single shot
Number of digitizers:
2
Time base range:
10 ns/div to 1 min/div; 20 ns/div
to 1 min/div (Fluke 123)
Maximum record length:
512 Min-Max points
per input
Accuracy:
± (0.1 % of reading + 1 pixel)
Glitch detect:
40 ns
•
with VPS40 probes
•
input A and B directly
•
with STL120 Shielded Test Leads
Instrument risetime (input directly)
Bandwidth (risetime)
Number of inputs:
2
Input coupling:
AC, DC with ground level indicator
Input sensitivity:
5 mV to 500 V/div (with the
included VPS40 (Fluke 125, 124) and STL120 shielded
test leads measure up to 600 Vrms, CAT III)
Input voltage:
600 V CAT III. See “general specifica-
tions” for more detailed information.
Vertical resolution:
8 bit
Accuracy:
± (1 % of reading + 0.05 x range/div)
Input impedance:
1 MW ± 1 % // 225 pF with
STL120 shielded test leads; 1 MW ± 1 % // 20 pF
± 3 pF with BB120; 5 MW ± 1 % // 15.5 pF with
VPS40, 10:1 Voltage probe
Display and acquisition
Display modes:
Input A, input A and B, envelope,
smooth
Acquisition modes:
Normal (including glitch capture),
single shot, roll
Trigger and delay
Source:
Input A, input B, external via optional ITP120
Modes:
Automatic Connect-and-View, Free Run, Edge,
Single Shot, Video, Video Line
4 Fluke Corporation
ScopeMeter 190C/190B Series, 120 Series and the NEW ScopeMeter 125
Connect-and-View:
Advanced automatic triggering
that recognizes signal patterns and automatically sets
up and continuously adjusts triggering, time base and
amplitude. Automatically displays stable pictures of
complex and dynamic signals like motor drive and
control signals
Video triggering:
NTSC, PAL, PAL+, SECAM. Includes
line select
Time delay:
Up to 10 divisions pre-trigger view
Harmonics mode (Fluke 125 only)
Converts waveform information into a harmonics dis-
play (using FFT processing), which shows the relative
amplitudes of the 1st up to the 33rd harmonic
Harmonics frequency range:
DC to 33rd harmonic
(fundamental
≤
60 Hz); DC to 24th (fundamental
≤
400 Hz)
Analyzed waveform:
Voltage waveform (Ch.A),
current waveform (Ch.B) or power (Ch.A x Ch.B),
automatically generated
Display:
Bargraph showing 1st up to 33rd harmonic,
amplitude displayed in % relative to fundamental
Timebase setting:
5 ms/div.
Measurements:
Relative amplitude of individual
harmonic; THD in %r or %f
Measurements
Vdc, Vac, Vac+dc, Vpeak max, Vpeak min, Vpeak
to peak, frequency (Hz), positive pulse width, negative
pulse width, positive duty cycle, negative duty
cycle, Amp ac, Amp dc, Amp ac+dc, Phase,
Temperature °C, Temperature °F, dBV, dBm into 50
W
and 600
W.
(Amps, °C or °F with optional probes)
Dual input meter
The specified accuracy is valid over the temperature
range 18 °C to 28 °C (64 °F to 82 °F). Add 10 % of
specified accuracy for each °C below 18 °C or above
28 °C (64 °F to 82 °F)
Max. meter bandwidth:
40 MHz (Fluke 125, 124),
20 MHz (Fluke 123)
Cursor measurements (125, 124)
Sources:
Input A, Input B
Modes:
Single or dual vertical cursor, dual horizontal
cursor, risetime or falltime
Measurements:
Single vertical line: Average, min value, max value,
time from start of recording in roll mode
Dual vertical lines:
∆V
at markers, time between
cursors, 1/T between cursors (in Hz)
Dual horizontal lines: High, low or
∆V
– readout,
risetime and falltime: transition time, 0 %-level,
100 %-level, with markers at 10 % and 90 %
Accuracy:
As oscilloscope
Voltage measurements
Measurement selection:
Vdc, Vac rms, Vac+dc rms,
Vpeak max, Vpeak min, V
pk-pk
Ranges:
500 mV, 5 V, 50 V, 500 V, 1250 V
Full scale reading:
5,000 counts
Accuracy
Vdc:
± (0.5 % + 5 counts)
Vac rms:
1 Hz to 60 Hz: ± (1 % + 10 counts)
60 Hz to 1 kHz: ± (2.5 % + 15 counts)
20 kHz to 1 MHz ± (5 % + 20 counts)
Vac+dc true-rms:
DC to 60 Hz: ± (1 % + 10 counts)
60 Hz to 1 kHz: ± (2.5 % + 15 counts)
20 kHz to 1 MHz (5 % + 20 counts)
Vpeak:
Max peak or Min peak: 5 % of full scale
Peak-to-peak: 10 % of full scale
Bus health tester (Fluke 125 only)
Bus health automatically analyzes the electrical signals
on the network to give waveform data and measure
individual parameters. Automatic comparison of the
measurement results to the standards results in “good”
or “false” indicators to be displayed per parameter.
Bus types and reference standards used:
AS-i (EN50295, 166 kb/s)
®
;
CAN-bus (ISO-11898, up to 1 Mb/s);
Interbus S (EIA-485, up to 10 Mb/s)
®
;
ControlNet (61158 type 2, 2.5 Mb/s)
®
;
Modbus (EIA-232, up to 115 kb/s and
EIA-485, up to 10 Mb/s)
®
;
Foundation Fieldbus H1 (61158 type 1, 31.25 kb/s)
and H2 (61158 type 1, up to 10 Mb/s);
Profibus DP (EIA-485, up to 10 Mb/s) and
PA (61158 type 1, 31.25 kb/s);
Ethernet [10Base2 (coaxial) and 10BaseT
(UTP)], 10 Mb/s;
RS-232 (EIA-232, up to 115 kb/s);
RS-485 (EIA-485, up to 10 Mb/s);
or user defined system
Measured parameters:
Baud rate, risetime, falltime,
high level, low level, distortion, amplitude and jitter,
with comparison to system’s standard values
Ohms
Ranges:
500
W,
5 kW, 50 kW, 500 kW, 5 MW, 30 MW
(all models), 50.00
W
(Fluke 125 only)
Max. resolution:
5,000 counts
Accuracy:
± (0.6 % of reading + 5 counts)
Capacitance
Ranges:
50 nF to 500 µF
Max. resolution:
5,000 counts
Accuracy:
± (2 % of reading + 10 counts)
Other meter functions
Frequency:
Up to 70 MHz (Fluke 125, 124) or up to
40 MHz (Fluke 123)
Rotational speed (RPM):
Revolutions per minute,
based on 1, 2 or 4 or 8 pulses per 2 revolutions
(Fluke 125 only)
Max. RPM reading:
50 kRPM
Continuity:
Beeper on < 30
W
Diode test:
Up to 2.8 V
Amps:
Amp dc, Amp ac, Amp ac+dc using an optional
current clamp or shunt. Scaling factors: 0.1 mV/Amp to
100 V/Amp
Power measurements (Fluke 125 only)
Measure types:
Watt, VA, VAR, Power Factor (PF)
Power configuration:
Single phase or balanced
3-phase (delta-configuration) mains supply
Voltage measurement:
Channel A, using STL120,
voltage probe or direct input
Current measurement:
Channel B, using i400s
current clamp (included) or other compatible clamp
Current clamp sensitivity:
0.1/1/10/100/1000 mV/A,
10 mV/mA and 400 mV/A
ScopeMeter 190C/190B Series, 120 Series and the NEW ScopeMeter 125
Fluke Corporation 5
Analog electronics
京公网安备 11010802033920号
EEWORLD
