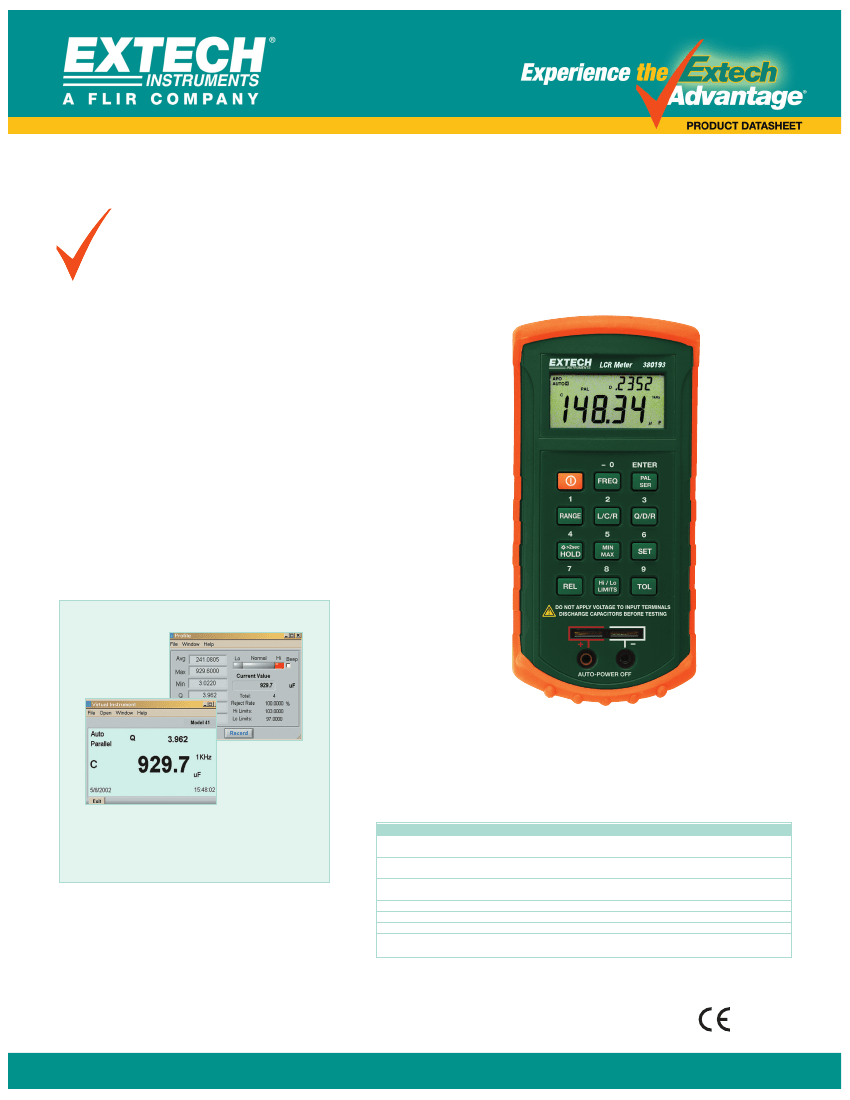

Passive Component LCR Meter
Measures Inductance, Capacitance, and Resistance
With secondary parameter Q (Quality), D (Dissipation), R (Resistance)
Features:
•
Simultaneous 20,000/10,000 count
backlit display of the primary parameter
(L, C or R) with the secondary parameter of
Q (quality), D (dissipation) or R (resistance)
•
Set Hi/Lo limits using absolute values or
percentage limits
•
Parallel or Series equivalent circuit
•
Max/Min/Avg; Auto power off with disable
•
Automatic blown fuse indication
•
Built-in test fixture or use external test leads
•
Open and Short Zero removes unwanted stray
impedances from the measurement
•
Relative mode, zero, or supplied reference
•
Complete with test leads, 9V battery, software,
cable, and protective holster
Built-in RS-232 with
Windows
®
95/98/NT/2000/XP
compatible software.
Specifications
Inductance
Capacitance
Resistance
DF (with C)
Q
Test Frequency
Dimensions
Weight
Ranges
2000.0μH, 20.000mH, 200.00mH, 2000.0mH
20.000H, 200.00H, 2000.0H, 10000H
2000.0pF, 20.000nF, 200.00nF, 2000.0nF
20.000μF, 200.00μF, 2000.0μF, 10.000mF
20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ,
200.00kΩ, 2.0000MΩ, 10.000MΩ
0 to 0.9999
0 to 9999
120Hz and 1kHz
7.56 x 3.58 x 2.1” (19.2 x 9.1 x 5.25cm)
12.87oz (365g)
Basic Accuracy
±(0.7%rdg + Lx/10000 + 5 digit)
(DF<0.5)
±(0.7%rdg + 5 digit)
(DF<0.1)
±(0.5%rdg + 8 digit)
±(0.7%rdg + 100/Cx + 5 digit)
±(1.2%rdg + 100/Lx + 5 digit)
Ordering Information:
380193
........Passive Component LCR Meter
153117
........117VAC adaptor
153220
........230VAC adaptor
www.extech.com
Specifications subject to change without notice.
5/24/10 - R1
