5645L-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Test and measurement> 5645L-2

5645L-2: DescriptionTest Clips TEST CLIP 160 PIN; CategoryTopical application Test and measurement; File Size51KB，1 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/

Download Datasheet Parametric Compare View All

5645L-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5645L-2	-	-	View	Buy Now

5645L-2 Overview

Test Clips TEST CLIP 160 PIN

5645L-2 Parametric

Parameter Name	Attribute value
Product Category	Test Clips
Manufacturer	Pomona Electronics Inc.
RoHS	Details
Product	QFP Clips
Type	0.65 mm lead pitch
Features	Centrally activated locking mechanism

Preview

Download Datasheet

View All

Pomona

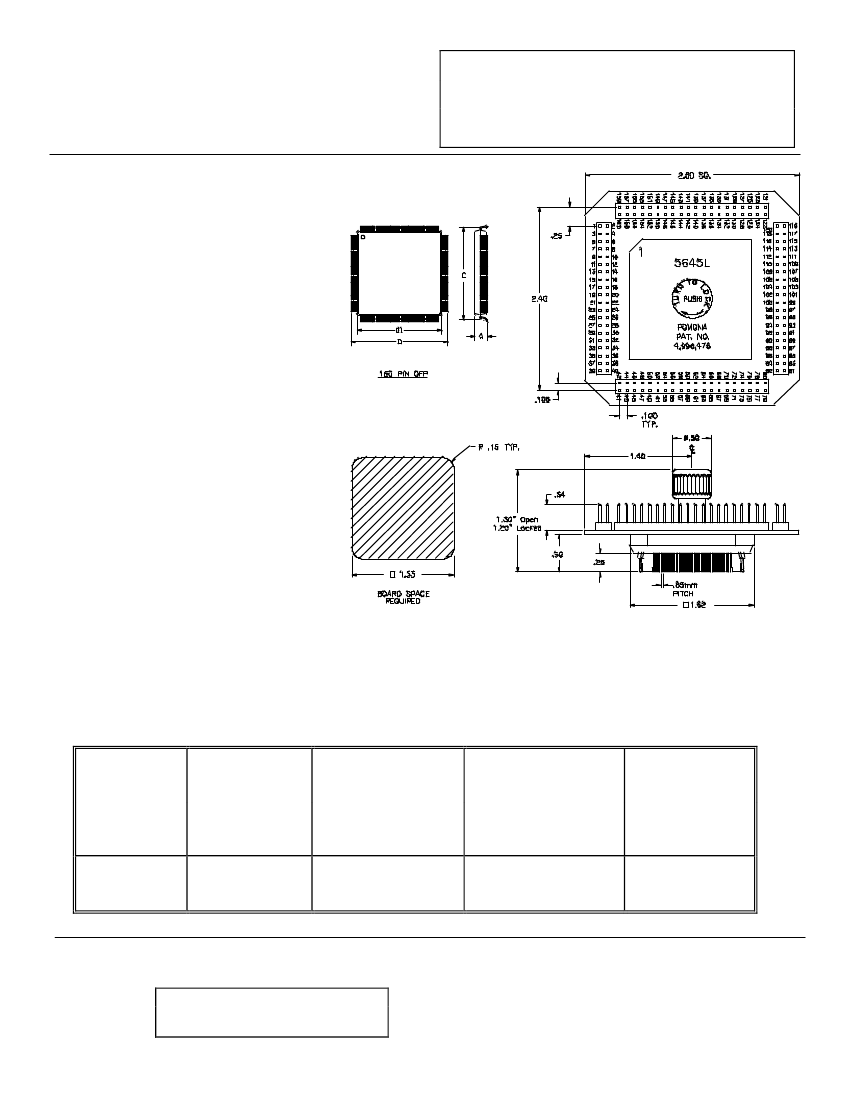

Model 5645L & 5645L-2

160 Pin QFP Locking Test Clip

0.65mm Lead Pitch

hese new locking test clips provide the user

with an easy means to connect

instrumentation to the fine pitch QFP chip

leads.

The special locking fingers at each corner

attach to the body of the chip and hold the

clip firmly against the chip leads.

•

Centrally activated locking mechanism

allows testing vertical boards..

Interfaces with high density 160 Pin EIAJ

QFP surface mount chip leads.

Two stage alignment assures positive

connections.

Gold plated connector pins and contacts

assure noise free connections.

Gold plated .025" square pins provide

easy connection with either ribbon cable or discrete jumpers.

Pomona's EIAJ test clips are perfect for system design, field service testing, failure analysis, and for use with logic

analyzers. Other clips are also available in other sizes to fit the most popular EIAJ chips now in use. Pomona offers a

test clip to fit the most commonly found variations on the EIAJ specifications.

Leads

“D”

31.9mm

31.2mm

Body

“D1”

28.0mm

Lead Interface

“C”

30.3mm

(1.193")

29.6mm

(1.165")

ChipHeight

“A”

3.4mm

Pomona

Part Number

5645L

5645L-2

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

6/9/99

SY/EH/LS

C:\Laura Goldberg\FlukeDataSheet\d5645L_45L-2_1_01.doc

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90352

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1
