DMS-EB-HTB

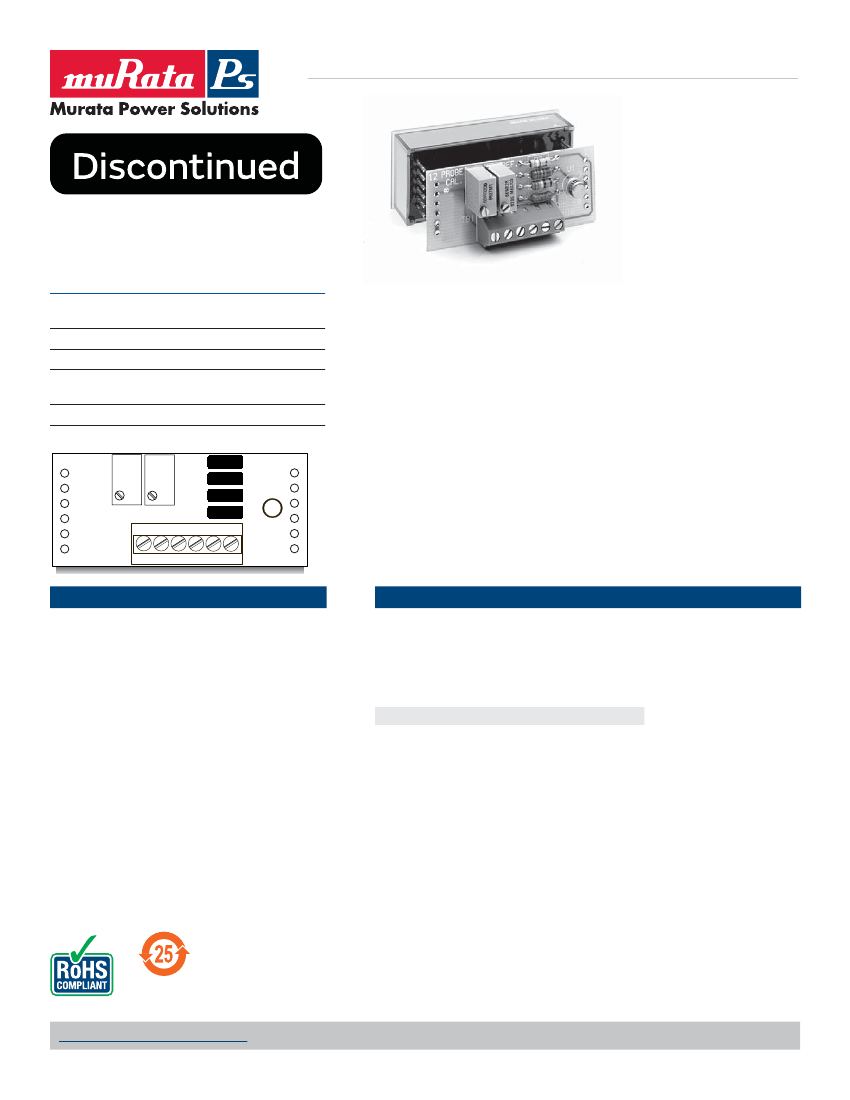

High-Accuracy Temperature Sensor Boards DMS-30PC/LCD-0 Meters
FEATURES
Accepts inputs from user-supplied solid-state tempera-
ture sensors
Available in °C or °F output readings
6-wire screw-type terminal block
Measures temperatures from –55 to +150°C
(–67 to +199.9°F)
with DMS-30PC/LCD-0 meters
Use
12
PROBE
CAL.
R1
R4
R6
1
REF.
CAL
R3
R5
R2
U1
Description: The DMS-EB-HTB Application Boards accept inputs from user-supplied,
AD590 solid-state temperature sensors. The boards can be used with any of Murata Power
Solutions’ ±200mV, 5V-powered DMS-30PC/LCD-0 Series, 3½ Digit, LED/LCD Display,
Digital Panel Voltmeters — although better performance can be achieved with either LCD
or low-power LED models. This meter/board combination provides extremely accurate
(±0.3°C) temperature measurements over the range of –55 to +150°C(with DMS-EB-
HTBC) or –67 to +199.9°F (DMS-EB-HTBF). Individual reference-adjust and probe-adjust
potentiometers allow for "fine tuning" the AD590 output to precisely match the selected
meter. A 6-wire, screw-type terminal block provides for quick, reliable, signal and power
connections.
Calibration: R4 (Reference Adjust) is factory-calibrated to +459.8mV for °F and
+273.2mV for °C (do not readjust). This measurement is taken between TB1 (pin 6) and pin
12 of the DMS-30PC/LCD-0. R1 (Probe Adjust) requires customer adjustment since every
sensor has a slightly different zero offset. Calibration is simple: connect the sensor leads to
TB1 and adjust R1 until the DMS-30's display matches a selected reference temperature
indicator.
TB1
1
T
A
= 25°C, V
CC
= +5V
Functional Specifications
Measurement Range:
DMS-EB-HTBC
DMS-EB-HTBF
Sensor Type
Accuracy:
Typical
Maximum
Operating Voltage Range
Input Current (Board only):
Typical
Maximum
Sensor Lead Length
–55 to +150°C
–67 to +199.9°F
AD590 active linear device
±0.3°C (or °F)
±1.0°C (or °F)
+5V (±10%)
+0.8mA
+1.0mA
3 feet, maximum
Ordering Information
DMS-EB-DC/DC
DMS-BZL1
DMS-BZL2
RN-DMS
Ordering Information
DMS-EB-HTBC
DMS-EB-HTBF
DMS-BZL1
DMS-BZL2
High-accuracy temperature
probe board, Celsius
High-accuracy temperature
probe board, Fahrenheit
Bezel assembly
Bezel assembly with sealing gasket
DC/DC converter board (with mating connector)
Bezel assembly
Bezel assembly with sealing gasket
Resistor accessory kit
Operating Temperature Range
0 to +60°C
Storage Temperature Range
Humidity
(non-condensing)
Dimensions
–20 to +75°C
0 to 95%,
2.02" (51.31mm)L
0.83"(21.08mm)W
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
MPM_DMS-EB-HTB.C01
Page 1 of 2
