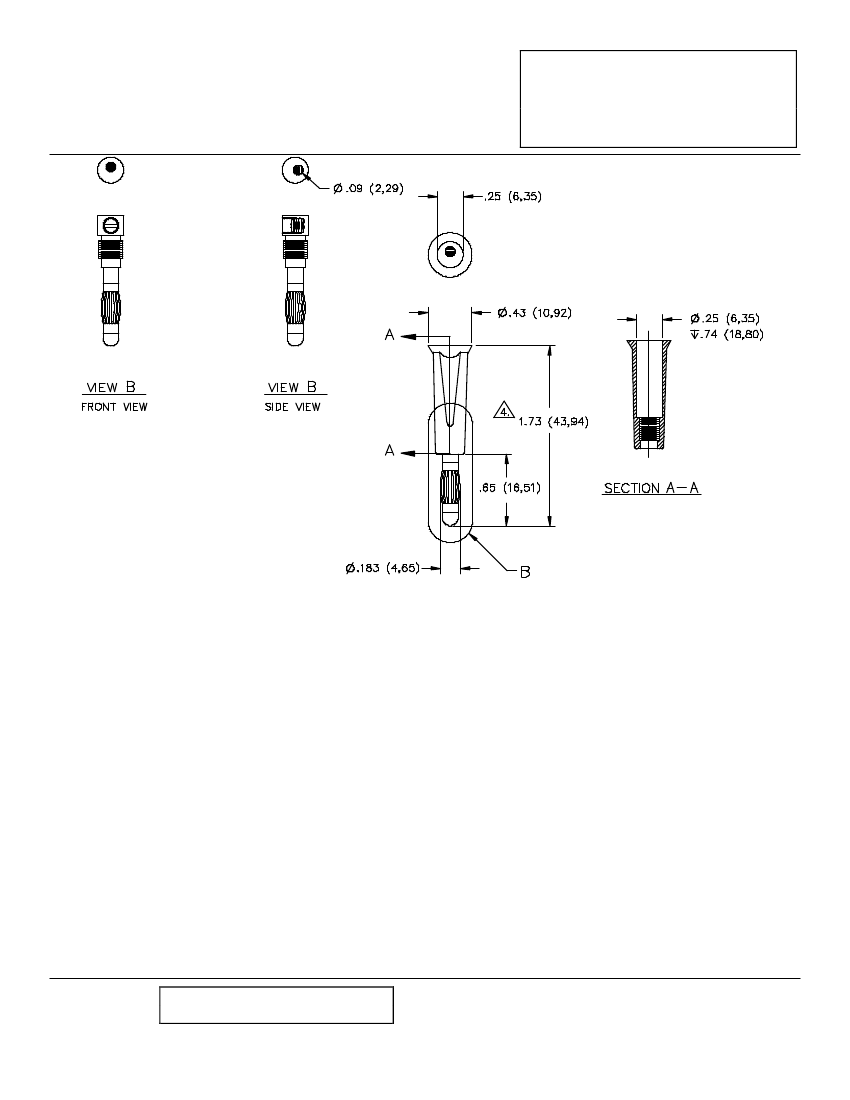

Model 5934

Do-It-Yourself In-Line

4MM Banana Plug

FEATURES:

•

Easy to assemble threaded two piece construction enables solderless wire attachment by means of an internal

set screw

•

Compatible with 18 to 22 AWG wire

•

Banana plug spring is Beryllium Copper for long insertion life

•

Banana plug body and spring are nickel plated for tarnish resistance

MATERIALS:

Plug Body: Brass, Nickel Plated

Plug Spring: Beryllium Copper, Nickel Plated

Insulation: Nylon

Set Screw: Brass

RATINGS:

Operating Voltage: 750V AC/DC (Independent of Wire)

Current: 25 Amperes Max.

ORDERING INFORMATION:

Model 5934-*

* = Color Code; Standard Colors: -0 Black, -2 Red, -4

Yellow, -5 Green, -6 Blue and –9 White

Sold in packages of 10 per color.

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

6/9/99

SY/EH/LS

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90304

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1
