Pomona
®
Model 3302
Shielded Aluminum Box, Size F
With BNC Females Both Ends
MATERIALS:
Shielded Housing: Extruded Aluminum, Alloy 6063-T5
Finish: Blue paint per Federal Standard 595, #25109 over primer wash per DOD-P-15328
Connector: 2 each BNC Female
Finish: Body and Fittings – Tarnish Resistant. Center Contact – Gold plated
Turret Screws: 4 each #3-30, Steel
Screws: 4 each #4-40 x 6.35 (1/4) per MS 35208-12 with clear irridite dip
Cover: 2 each, 2.03 (.080) thick Aluminum, Alloy #1100-H14
Finish: Clear anodized per MIL-A-8625
Cover Screws: 16 each #4-40 x 6.35 (1/4”) Flat head per MS35109-221 with clear irridite dip
RATINGS:
Operating Temperature: -55°C to +150C (-67°F to +302°F)
Nominal Impedance: 50 Ohms
ORDERING INFORMATION:

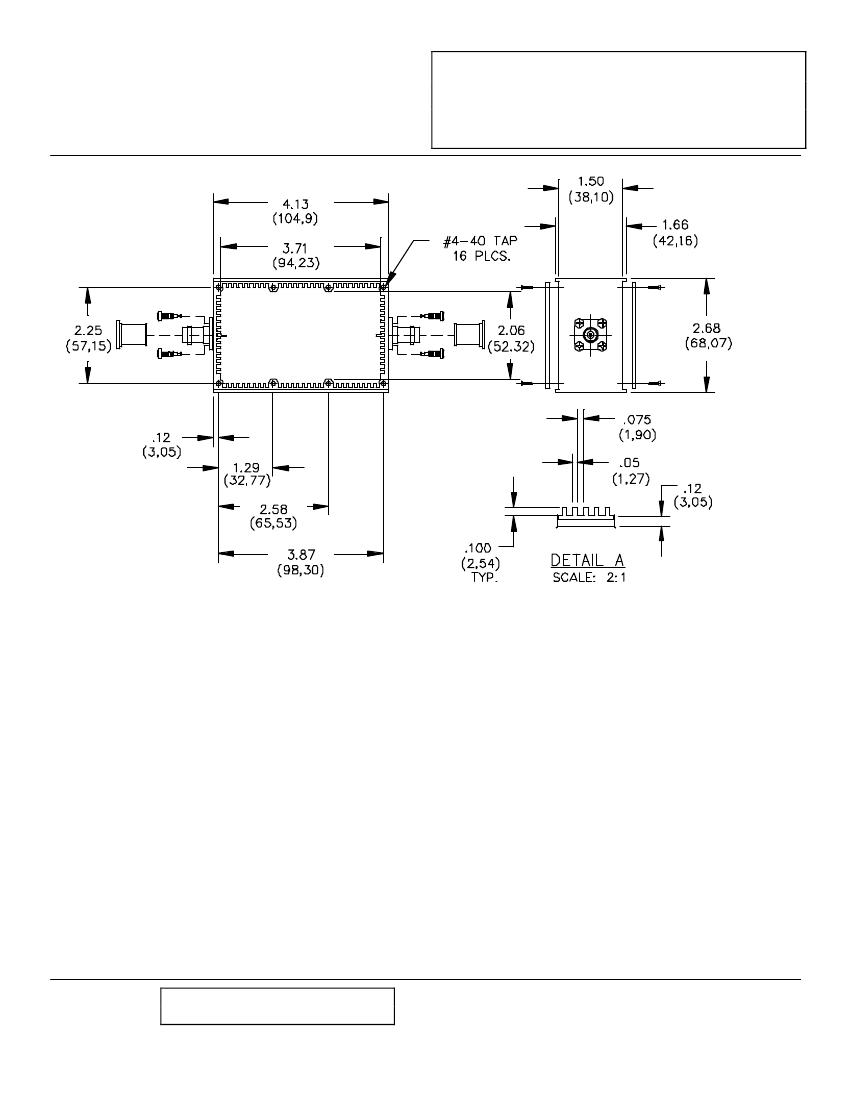

Model 3302
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
