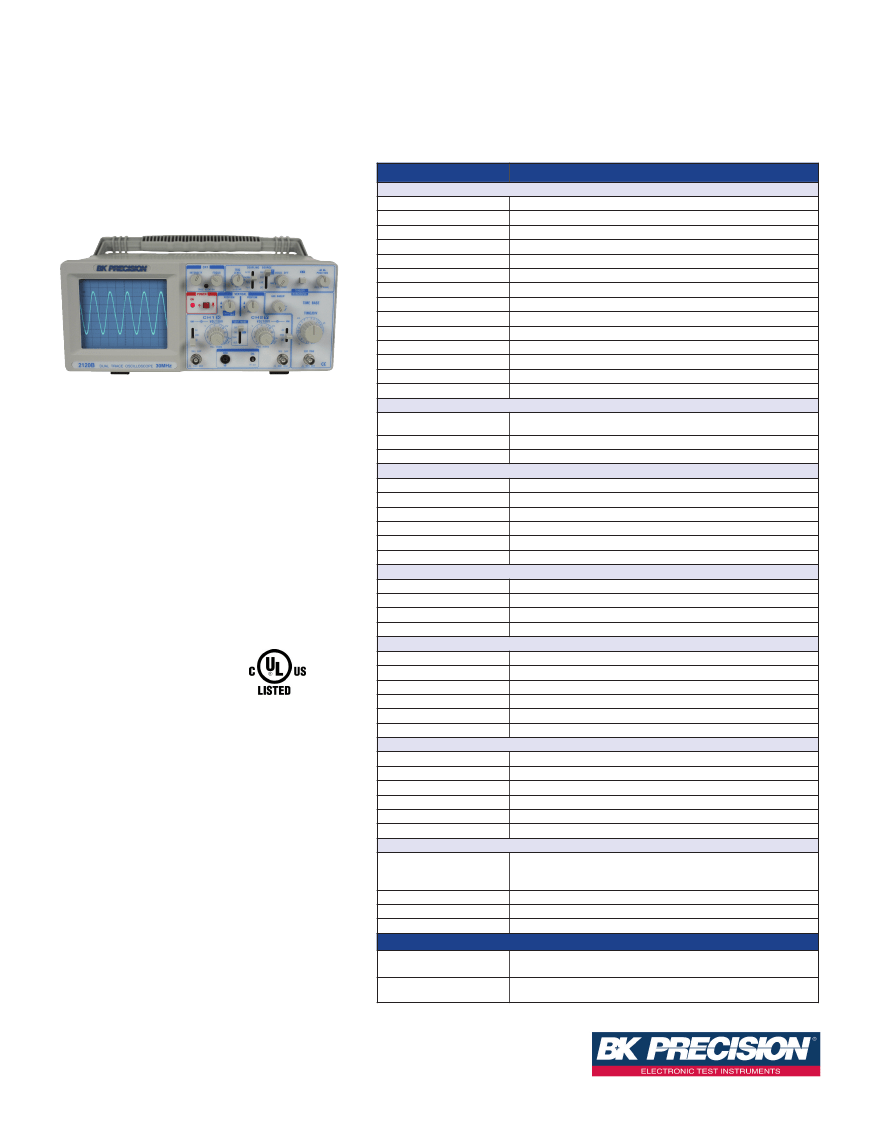

Data Sheet
30 MHz Dual Trace Analog Oscilloscope With Probes
Model 2120B
Speci ficat ions
21 20 B
VERTICAL AMPLIFIERS (CH 1 and CH 2)
Sensitivity
5 mV/div to 5 V/div, 1 mV/div to 1 V/div at X5
Attenuator
10 steps in 1-2-5 sequence. Vernier control provides full adjustment between steps
Accuracy
±3%, ±5% at X5
Input Resistance
1 MΩ ±2%
Input Capacitance
25 pF ±10pF
Frequency Response
5 mV to 5 V/div: DC to 30 MHz (-3dB). X5: DC to 10 MHz (-3dB)
Rise Time
12 ns (Overshoot
≤5%)
Operating Modes
CH 1: CH 1, single trace
CH 2
CH 2, single trace
ALT
dual trace, alternating
CHOP
dual trace, chopped
ADD
agebraic sum of CH 1 + CH 2
Polarity Reversal
CH 2 only
Maximum Input Voltage
400 V (DC + AC peak)
SWEEP SYSTEM
0.1 µs/div to 2 s/div in 1-2-5 sequence, 23 steps,
Sweep Speed
Vernier control provides fully adjustable sweep time between steps.
Accuracy
±3%
Sweep Magnification
10x
TRIGGERING
Triggering Modes
AUTO (free run) or NORM, TV-V, TV-H
Trigger Source
CH 1, CH 2, ALT, EXT, LINE
Maximum External Trigger Voltage
300 V (DC + AC peak)
Trigger Coupling
AC 30 Hz to 30 MHz
TV H
Used for triggering from horizontal sync pulses
TV V
Used for triggering from vertical sync pulses
TRIGGER SENSITIVITY
Auto
Bandwidth:100 Hz-30 MHz, Internal: 1.5 div, External: 100 mV
Norm
Bandwidth: DC to 30 MHz, Internal: 1.5 div, External: 100 mV
TV V
Bandwidth: 20 Hz-1 kHz, Internal: .5 div, External: 100 mV
TV H
Bandwidth:1 kHz-100 kHz, Internal: .5 div, External: 100 mV
HORIZONTAL AMPLIFIER (Input through channel 2 input)
X-Y Mode
Switch selectable using X-Y switch. CH 1: X axis, CH 2: Y axis
Sensitivity
Same as vertical channel 1
Input Impedance
Same as vertical channel 1
Frequency Response
DC to 1 MHz typical (-3 dB)
X-Y Phase Difference
Approximately 3˚ at 50 kHz
Maximum Input Voltage
Same as vertical channel 1
CRT
Type
Rectangular with internal graticule
Display Area
8 x 10 div (1 div = 1 cm)
Accelerating Voltage
2 kV
Phosphor
P31
Trace Rotation
Electrical, front panel adjustable
Calibrating Voltage
1 kHz (±10%) Positive Square Wave, 2 V p-p (±3%)
GENERAL
Within Specified Accuracy: 50˚ to 95˚F (10˚ to 35˚C),
≤85%
RH
Full Operation: 32˚ to 104˚F (0˚ to 40˚C),
≤85%
RH
Temperature
Storage: -4˚ to 158˚F ( -20˚ to +70˚C
Power Requirements
100/120/220/240 VAC ±10%, 50/60 Hz, approximately 40 W.
Dimensions (WxHxD)
7 x 14.5 x 17.25" (180 x 370 x 440 mm)
Weight
Approximately 17.2 lbs (7.8 kg)
B&K Precision's model 2120B is a dual trace oscilloscope
that offers high performance at a low price. Most competi-
tor's entry level oscilloscopes have a 20 MHz bandwidth,
while B&K Precision's models 2120B has a bandwidth of
30 MHz. This oscilloscope is built by and backed by B&K
Precision, a company that has been selling reliable,
durable, value priced test instruments for over 50 years.
I
I
I
I
I
Dual or single trace operation
5 mV/div sensitivity
AUTO/NORM triggered sweep operation with AC,
TVH, TVV and line coupling
Compact low profile design
cUL certified
Two Year Warranty
Supplies Accessories
Optional Accessories
Instruction Manual, Two PR-33A x1/x10 Probes or equivalent,
AC Power Cord, Spare Fuse
PR-32A Demodulator Probe, PR-37A x1/x10/REF Probe, PR-100A x100 Probe,
.
PR-55 High Voltage x1000 Probe, LC-210A Carrying Case
Technical data subject to change
© B&K Precision Corp. 2012
v013012
www.bkprecision.com
Tel.: 714.921.9095
