3565-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3565-2

3565-2: DescriptionTest Plugs u0026 Test Jacks 13 AMP PIN ADAPT BK; CategoryThe connector The connector; File Size124KB，2 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3565-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3565-2	-	-	View	Buy Now

3565-2 Overview

Test Plugs u0026 Test Jacks 13 AMP PIN ADAPT BK

3565-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	MALE-MALE, POLYVINYLCHLORIDE, 23A
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

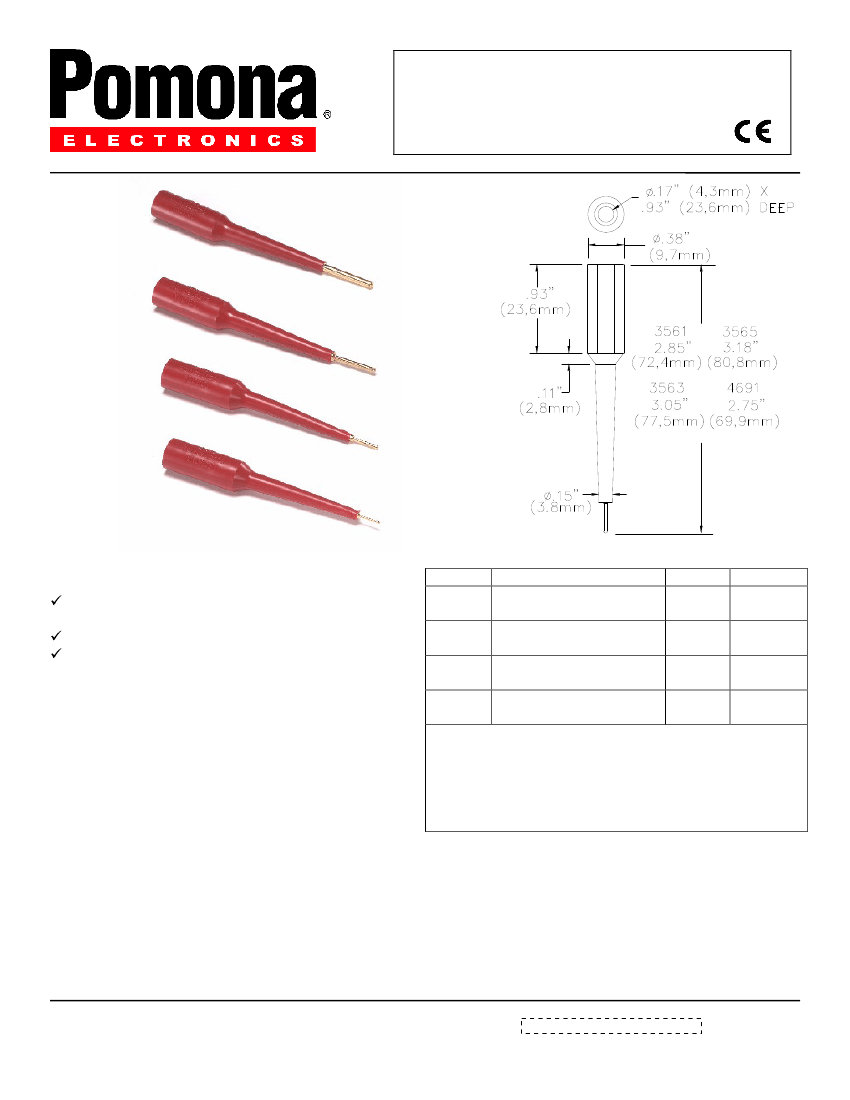

Model 3561, 3563, 3565, 4691

Banana Jack To #12, 16, 20 & 22

FEATURES:

Ideal test adapters for rapid testing of the hard-to-get

to sockets of multi-socket connectors.

Flexible tip allows testing of adjacent contacts.

Full insulation protects against shorting or contact

damage.

MATERIALS:

Insulation: Polyvinyl chloride (PVC).

Banana Jack Body (upper connector)

Material:

Brass.

Finish:

Bright Tin plated

Pin (lower connector):

Material:

Brass

Finish:

Gold plated over nickel plating

Model

4691

3561

3563

3565

Contact Size

22 AWG .030” (.76mm)

20 AWG .040” (1.02mm)

16 AWG .063” (1.60mm)

12 AWG .093” (2.36mm)

Type

Current

5 Amps

7.5 Amps

13 Amps

24 Amps

Ratings:

Hands free testing in controlled voltage environments:

2500 Vrms Max.

For CE compliance:

not intended for

hand-held use at voltages above 33 Vrms/70 Vdc.

Operating Temperature: +131F (+55C) Max.

ORDERING INFORMATION:

Model:

3561-*, 3563-*, 3565-*, 4691-*

*=Color, -0 Black, -2 Red

Ordering Example: 3561-2 (red adapter)

Test Kit 6481:

contains 18 pieces, one red and one black adapter of each adapter; 3560, 3561, 3562, 3563, 3564, 3565,

4690, 4691 and one set of model 6358 test leads.

For banana jack to test sockets see models: 3560, 3562, 3564, 4690

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies.

Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)

For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com

Rev: 100

D1093953, D1093955, D1093957, D1094167

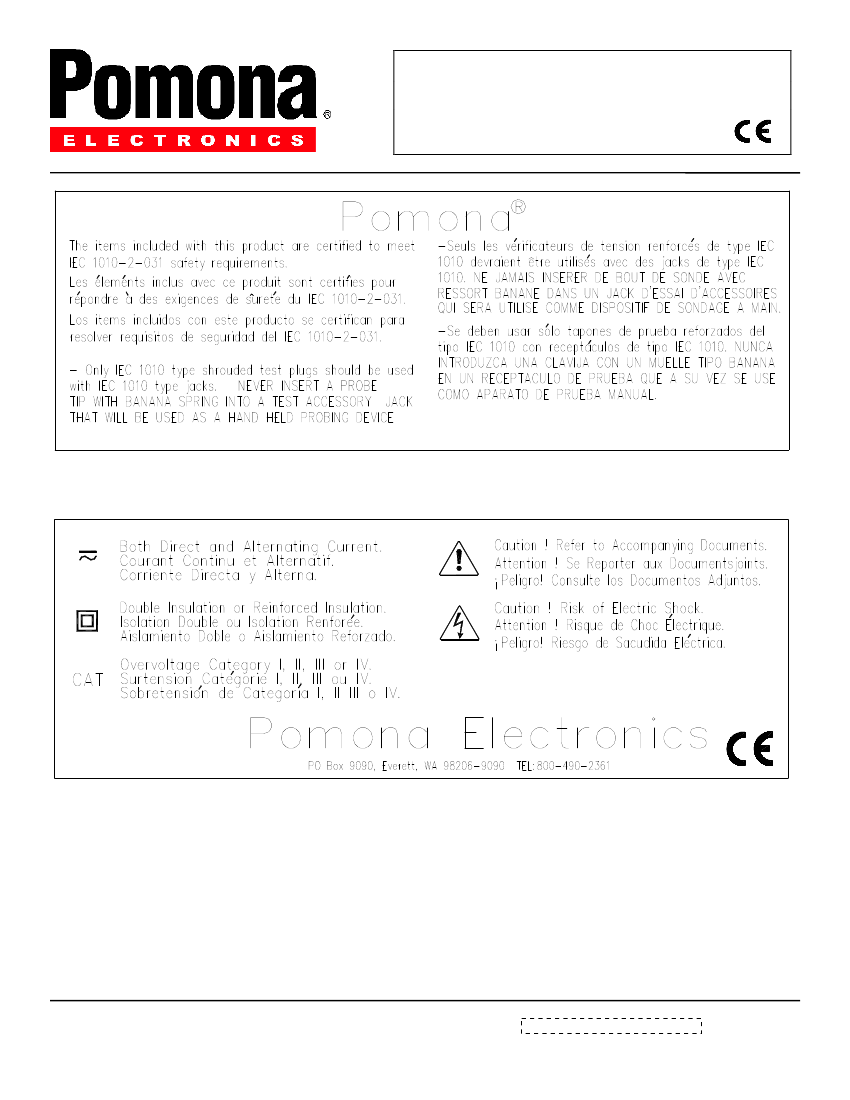

Page 1 of 2
