UPD4218160LG5-A70 datasheet, PDF

Datasheet> All Categories > storage> storage> UPD4218160LG5-A70

UPD4218160LG5-A70: DescriptionIC,DRAM,FAST PAGE,1MX16,CMOS,TSOP,44PIN,PLASTIC; Categorystorage storage; File Size10MB，39 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD4218160LG5-A70 Overview

IC,DRAM,FAST PAGE,1MX16,CMOS,TSOP,44PIN,PLASTIC

UPD4218160LG5-A70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	50
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G44
length	20.95 mm
memory density	16777216 bi
Memory IC Type	FAST PAGE DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

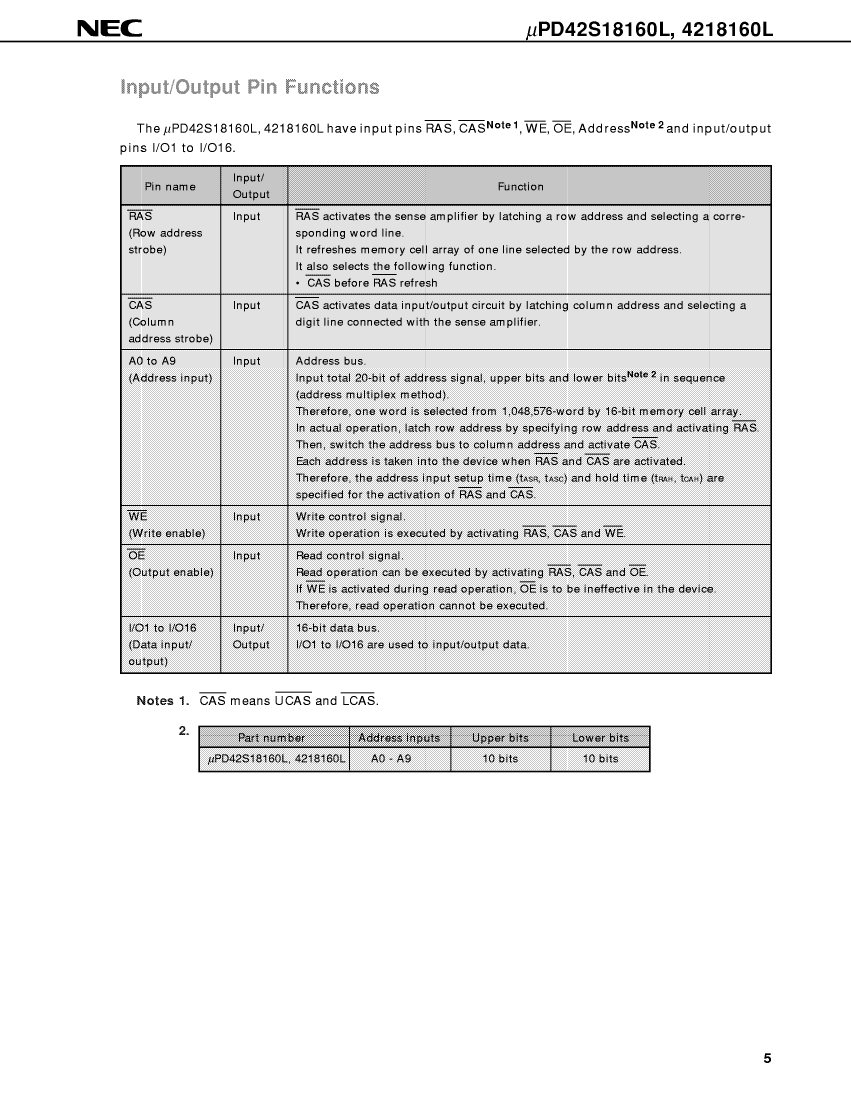

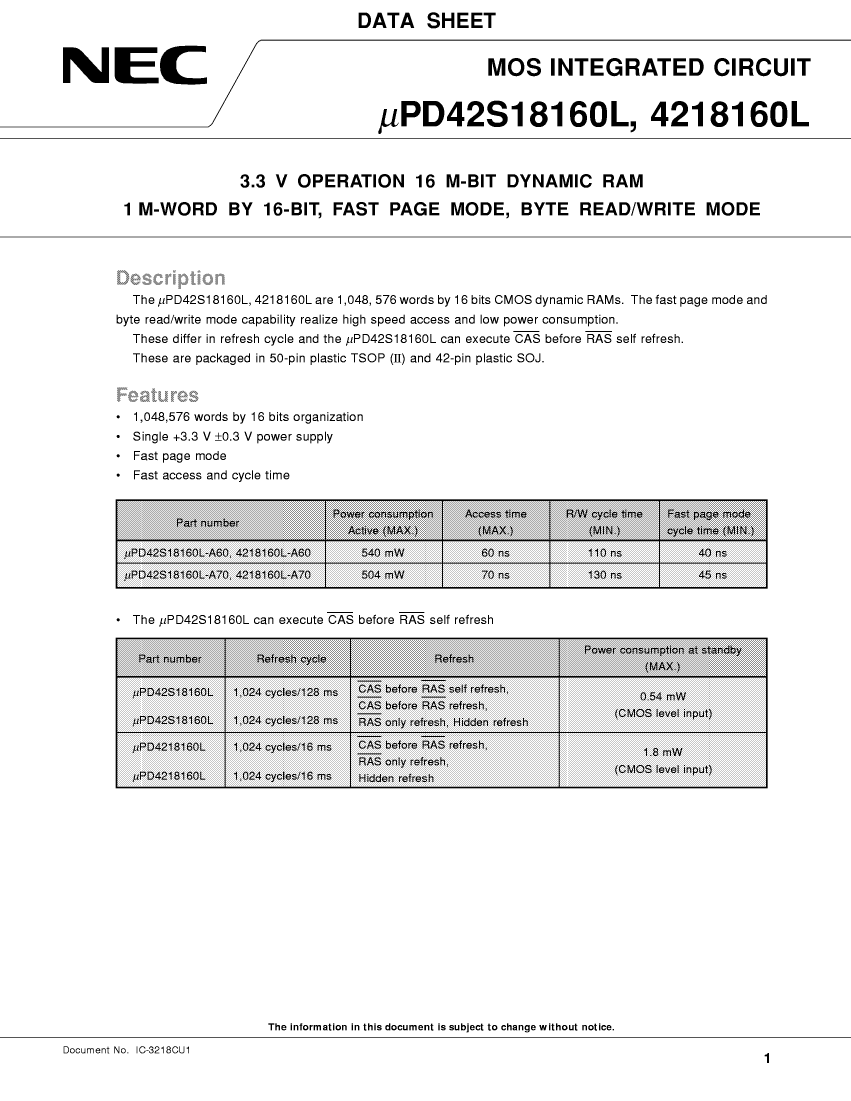

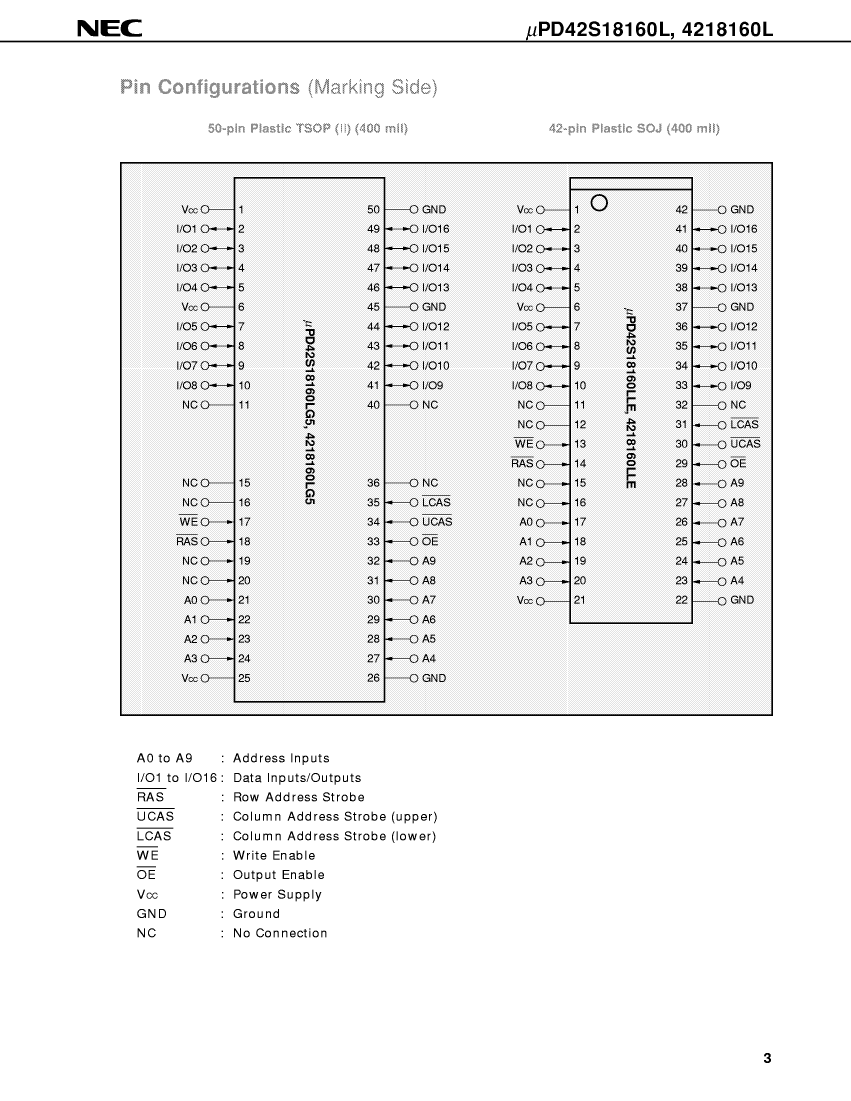

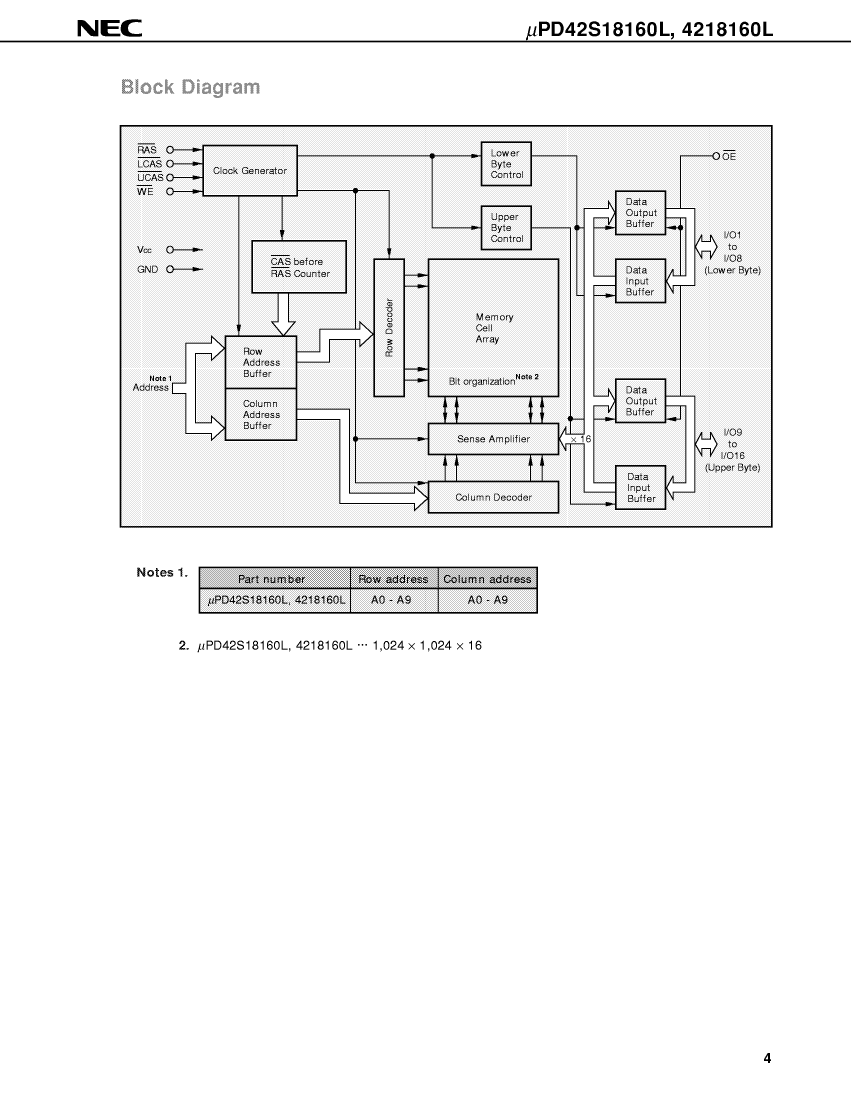

Preview

Download Datasheet

View All

UPD4218160LG5-A70 Related Products

	UPD4218160LG5-A70	UPD4218160LG5-A60	UPD42S18160LG5-A60	UPD4218160LLE-A70	UPD42S18160LLE-A60
Description	IC,DRAM,FAST PAGE,1MX16,CMOS,TSOP,44PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX16,CMOS,TSOP,44PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX16,CMOS,TSOP,44PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX16,CMOS,SOJ,42PIN,PLASTIC	IC,DRAM,FAST PAGE,1MX16,CMOS,SOJ,42PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP2	TSOP2	TSOP2	SOJ	SOJ
package instruction	TSOP2,	TSOP2,	TSOP2,	SOJ,	SOJ,
Contacts	50	50	50	42	42
Reach Compliance Code	unknow	unknow	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	60 ns	60 ns	70 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-J42	R-PDSO-J42
length	20.95 mm	20.95 mm	20.95 mm	27.56 mm	27.56 mm
memory density	16777216 bi	16777216 bi	16777216 bi	16777216 bit	16777216 bi
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	16	16	16	16	16
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	44	44	44	42	42
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	3.7 mm	3.7 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	J BEND	J BEND
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Base Number Matches	1	1	1	1	-
