4617-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> 4617-1

4617-1: DescriptionPCBs u0026 Breadboards IBM AT 13.25 X 4.8; CategoryTools and equipment; File Size3MB，1 Pages; ManufacturerVECTOR ELECTRONICS AND TECHNOLOGY, INC.; Websitehttps://www.vectorelect.com/

Download Datasheet Parametric Compare View All

4617-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4617-1	-	-	View	Buy Now

4617-1 Overview

PCBs u0026 Breadboards IBM AT 13.25 X 4.8

4617-1 Parametric

Parameter Name	Attribute value
Product Category	PCBs & Breadboards
Manufacturer	VECTOR ELECTRONICS AND TECHNOLOGY, INC.
RoHS	No
Product	Prototyping Boards
Type	Through Hole
Length	121.92 mm
Width	336.55 mm
Contact Material	FR4 Epoxy Glass
Height	1.57 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

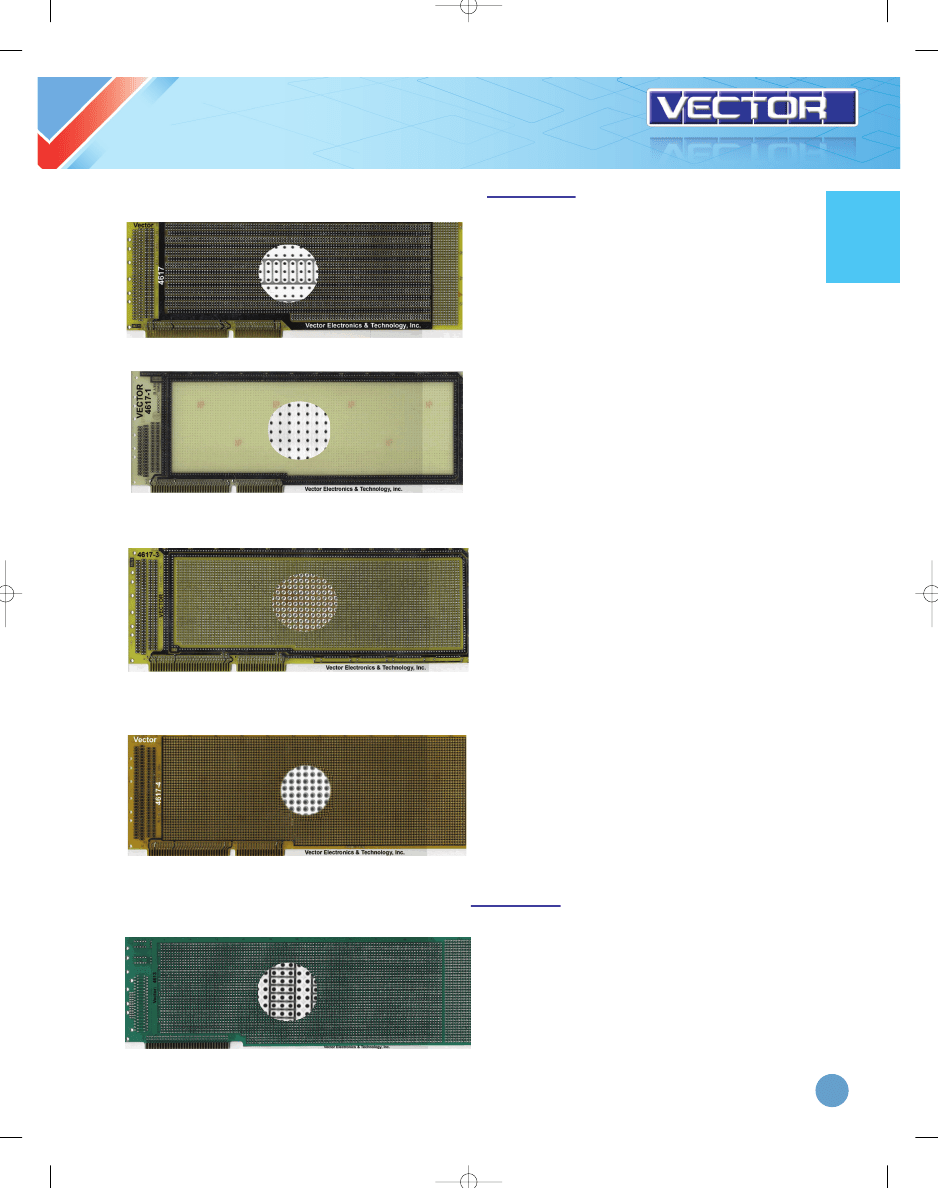

CATALOG 126:CATALOG 126.qxd

3/29/2011

10:58 AM

Page 61

Vectorbord

Plugbord

IBM AT/ISA

4617

3-hole Solder Pad

98 @ .1" Ctrs

Ni/Gold

Width/Thick:

3.25"/.062"

Height:

4.5"

16-Pin DIP Capacity:

Material:

FR4 Epoxy Glass

V/G Terminals:

T44, T46, T49, T68

Socket Pins:

R32

Extender:

3690-26, 3690-26-1

Hole Diameter:

.042"

Circuit Pattern:

Contacts:

ELECTRONICS & TECHNOLOGY, INC.

• 0.100” grid

•3-Hole Solder Pads (0.28” x

0.080”0 for interconnecting multi-

ple component leads

•10 x 42 hole grid unrestricted

component placement area

•I/O mounting area for up to 70-

pin D-subminiature and ribbon cable

connectors

•Mounting Bracket and hardware kit

included (HD36B)

•Row and column legends provided

Plugbord

4617-1

Peripheral Buses

98 @ .1" Ctrs

Ni/Gold

Width/Thick:

13.25"/.062"

Height:

4.5"

16-Pin DIP Capacity:

108

Material:

FR4 Epoxy Glass

V/G Terminals:

T44, T46, T49, T68

Socket Pins:

R32

Extender:

3690-26, 3690-26-1

Hole Diameter:

.042"

Circuit Pattern:

Contacts:

• 0.100” grid

•Bus surfaces solder-coated for con-

venience

•I/O mounting area for 37-pin D-sub-

miniature and ribbon cable connec-

tors

•Mounting Bracket and hardware kit

included (HD36B)

•Row and column legends provided

4617-3

Circuit Pattern:

Contacts:

Pad-Per-Hole

98 @ .1" Ctrs

Ni/Gold

Width/Thick:

13.25"/.062"

Height:

4.5"

16-Pin DIP Capacity:

Material:

FR4 Epoxy Glass

V/G Terminals:

T44, T46, T49, T68

Socket Pins:

R32

Extender:

3690-26, 3690-26-1

Hole Diameter:

.042"

• 0.100” grid

•Voltage and ground buses

around board perimeter

•Pad and bus surfaces solder-

coated for convenience

•I/O mounting area for up to 70-

pin D-subminiature and ribbon

cable connectors

•Mounting Bracket and hard-

ware kit included (HD36B)

•Hole position legend provided,

both sides

•Plate thru holes

4617-4

Circuit Pattern:

Contacts:

Voltage Ground Plane

98 @ .1" Ctrs

Ni/Gold

Width/Thick:

13.25"/.062"

Height:

4.5"

16-Pin DIP Capacity:

140

Material:

FR4 Epoxy Glass

Socket Pins:

R50, R51, R52, R53

Extender:

3690-26, 3690-26-1

Hole Diameter:

.055"

• 0.100” grid

•Plane surfaces solder-coated for

user convenience

•To simulate plated-thru holes com-

mitted to voltage or ground planes,

use Vector T123 eyelets, available

separately (for use without pins)

•Mounting Bracket and hardware kit

included (HD36B)

•I/O mounting area for up to 70-pin D-

subminiature and ribbon cable con-

nectors

IBM PC, XT

4613

Circuit Pattern:

Contacts:

Width/Thick:

Height:

16-Pin DIP Capacity:

Material:

V/G Terminals:

Socket Pins:

Extender:

Hole Diameter:

IBM PC, XT

3-Hole Solder Pad

31/62 @ .1" Ctrs

Ni/Gold

13.25"/.062"

4.2"

FR4 Epoxy Glass

T44, T46, T49, T68

R32

3690-26

.042"

• 0.100” grid

•3-Hole Solder Pads (0.28” x

0.080”0 for interconnecting multiple

component leads

•I/O mounting area for 37-pin D-

subminiature and ribbon cable con-

nectors

•Mounting Bracket and hardware

kit included (HD36B)

www.vectorelect.com

800-423-5659
