Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 1
GT 5
GT 13
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
Termination of coaxial cables in automotive, medical and instrumentation applications
utilizes a single motion to crimp the center conductor, shield and outer Insulator.
GT1 Series
— Connectors for coaxial cables —
<

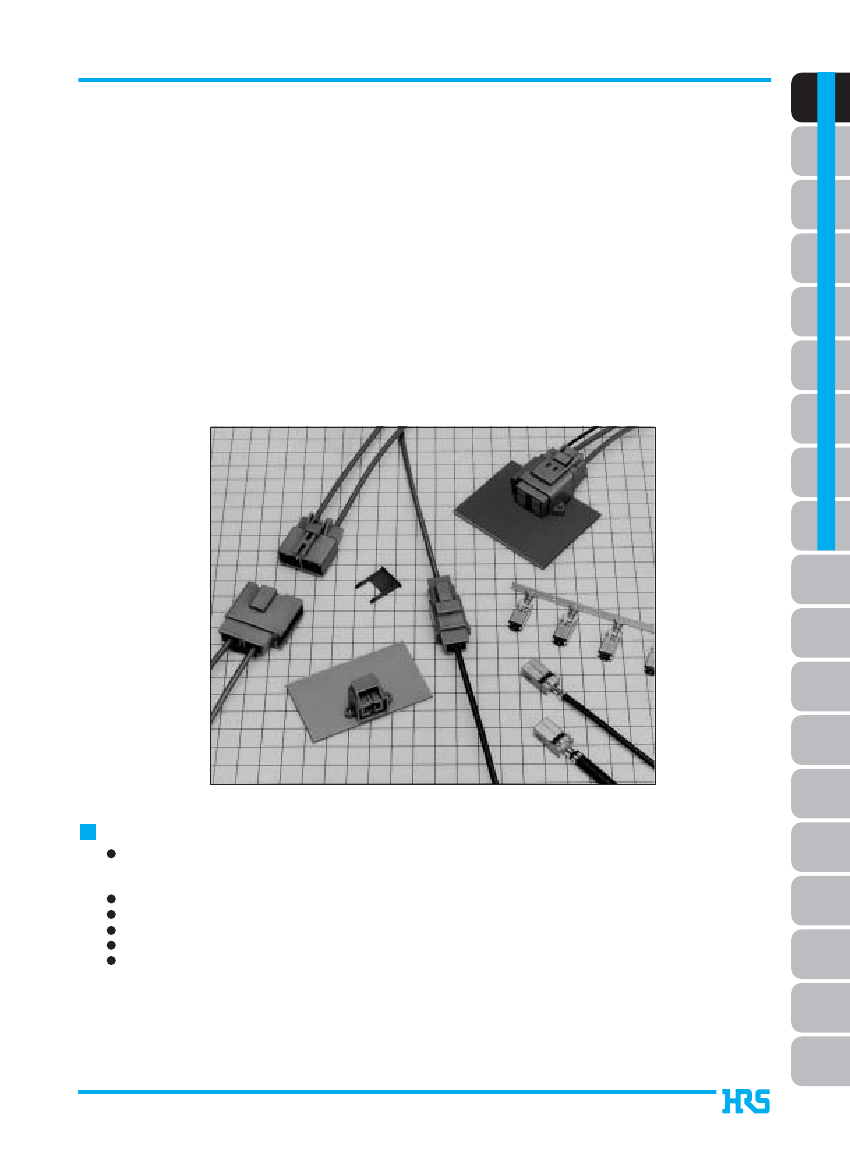

Several types and configurations: In-line, board mounted, combinations of
coaxial cable with signal/power. Multi-position.
>
GT 16
PO5G
GT 11
GT 14
GT 17
GT 19N
GT 2
GT 3
GT 6W
GT 7
GT 10
Features
Cost efficient termination
Highly efficient and reliable single motion crimp termination allows high volume production with semi-
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
GT1 Series
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 1
GT 13
GT 5
BTest
Data (Using Semi-rigid Cable)

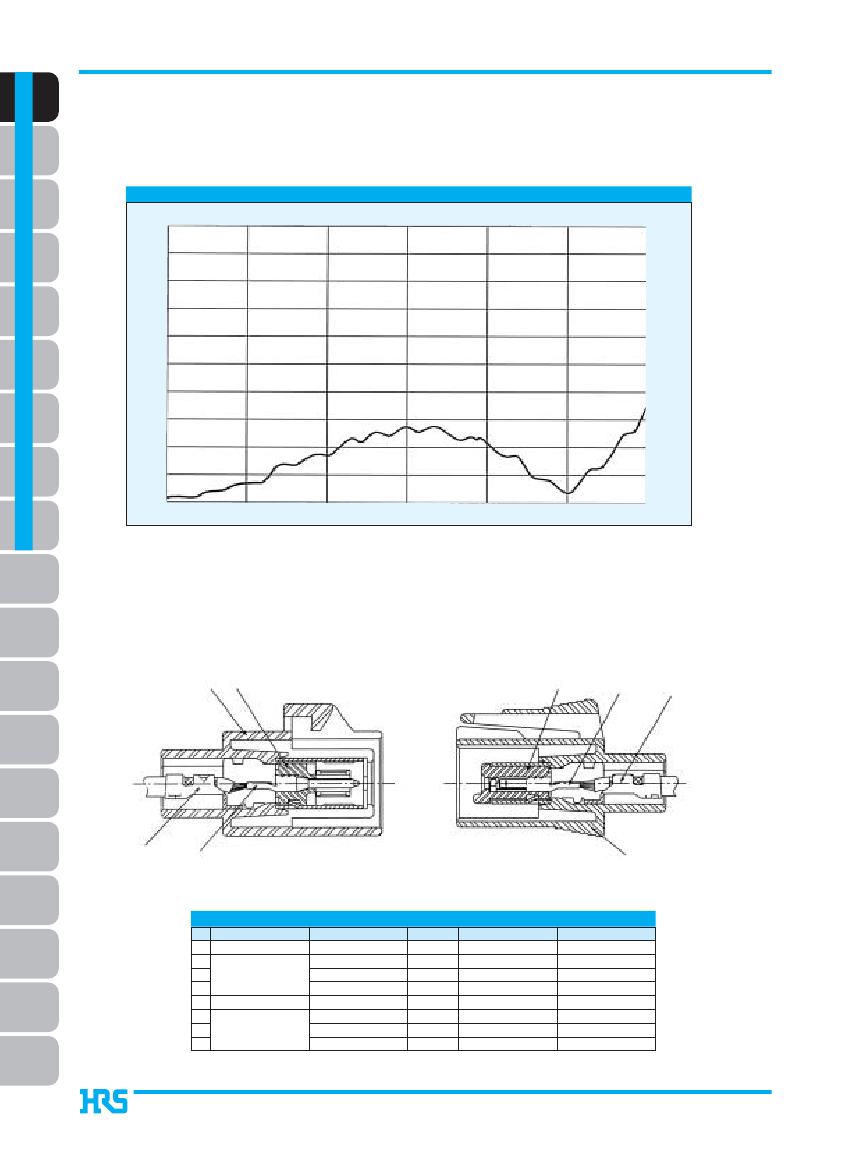

High Frequency Characteristics (V.S.W.R.)
3.0
2.8
2.6
2.4
2.2
GT 11
PO5G
GT 16
2.0
1.8
GT 14
1.6
1.4
GT 17
1.2
1
1.0
2.0
3.0GH
Z
GT 19N
Note: Data taken using fully assemblied and connected GT1-1S-HU and GT1-1P-DSA.
GT 2
GT 6W
GT 3
BDiagram
of GT1 In-line Type Structure
1
2
6
7
8
GT 15 GT 18W GT 12
GT 10
GT 7
4
3
5
PARTS LIST
1
2
3
4
5
6
7
8
Part Number
GT1-1P-HU
GT1-1P-2428/1.6C
GT1-1S-HU
GT1-1S-2428/1.6C
Part
Housing
Insulator
Crimp terminal
Outer terminal
Housing
Insulator
Crimp terminal
Outer terminal
Number Used
1
1
1
1
1
1
1
1
Material
PA(UL94V-0)
PBT(UL94V-0)
Brass
Brass
PA(UL94V-0)
PBT(UL94V-0)
Phosphor bronze
Brass
Finish
----
----
Tin plating
Tin plating
----
----
Tin plating
Tin plating
8
GT 9
GT 8
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
GT1 Series
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 1
BTermination
sequence

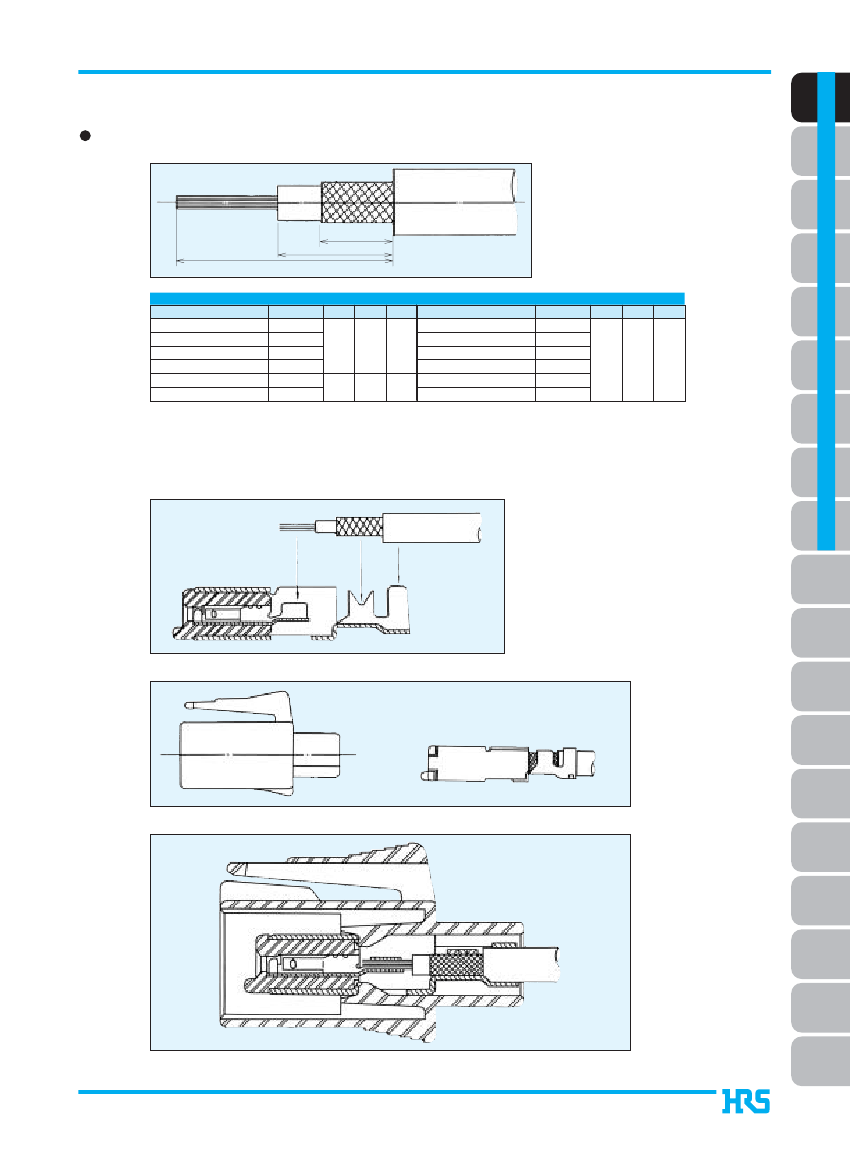

Coaxial Cable Terminal Finish Diagram
GT 5
GT 13
L1
L3
L2
GT 16
PO5G
Part Number
GT1-1S-2428 / 1.6C
GT1-1P-2428 / 1.6C
GT1-1S-30 / 1.6C
GT1-1P-30 / 1.6C
GT1-1S-2022 / 2.9C
GT1-1P-2022 / 2.9C
CL No.
751-0001-3
751-0002-6
751-0029-2
751-0030-1
751-0015-8
751-0014-5
L1
L2
3.8
6
4.9
6.8
Strip Length
L3
Part Number
GT1-1S-30 / 2.9C
GT1-1P-30 / 2.9C
10.5
GT1-1S-2428 / F5C
GT1-1P-2428 / F5C
GT1-1S-30 / F5C
11.3
GT1-1P-30 / F5C
CL No.
751-0032-7
751-0031-4
751-0033-0
751-0034-2
751-0037-0
751-0038-3
L1
L2
L3
GT 11
4.9
6.8
11.3
GT 14
GT 17
1Crimp
the cable to the terminal.
GT 19N
GT 2
GT 3
2Insert
the terminal in the housing until is fully locked.
GT 6W
GT 7
GT 10
3Completion
GT 12 GT 18W GT 15
GT 8
GT 9
9
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
GT1 Series
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 1

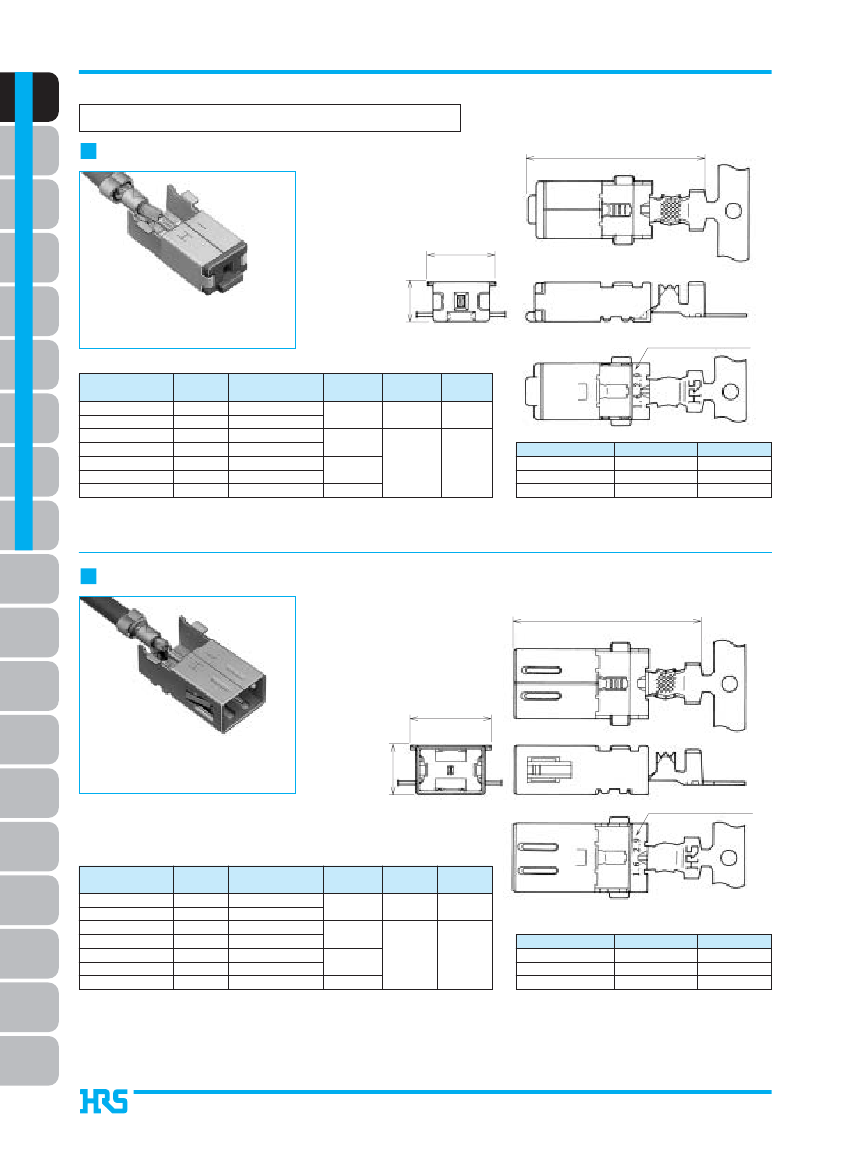

Terminals for coaxial shielded cable
F Connector Terminals
23
GT 16
GT 13
GT 5
8.8
PO5G
5
Indication of
Condductor Size(AWG)
GT 11
Part Number
CL No.
751-0001-3
751-0029-2
751-0015-8
751-0032-7
751-0033-0
751-0037-0
751-0046-1
Conductor Size
(AWG)
#24 to 28 or equivalent
#30 or equivalent
#20 to 22 or equivalent
#30 or equivalent
#24 to 28 or equivalent
#30 or equivalent
#24 to 28 or equivalent
Inner Insulator
Diameter
Outer
Diameter
Packaging
1,200
GT 14
GT1-1S-2428 / 1.6C
GT1-1S-30 / 1.6C
GT1-1S-2022 / 2.9C
GT1-1S-30 / 2.9C
* GT1-1S-2428 / F5C
* GT1-1S-30 / F5C
GT1-1S-2428 / F4C
1.5 to 2.0mm 2.6 to 3.4mm
2.8 to 3.5mm
2.5 to 3.5mm
4.0mm
4.6 to 5.0mm
0,800
Item
Insulator
Crimp terminal
Outer terminal
Material
PBT
Brass
Brass
Finish
Color: Dark gray
Tin plating
Tin plating
GT 19N
GT 2
GT 17
Note: Products marked with an asterisk (*) indicate polyethylene foam insulation.
M Connector Terminals
24.25
GT 6W
GT 3
10.4
GT 7
GT 10
6.2
Indication of
Condductor Size(AWG)
GT 15 GT 18W GT 12
Part Number
GT1-1P-2428 / 1.6C
GT1-1P-30 / 1.6C
GT1-1P-2022 / 2.9C
GT1-1P-30 / 2.9C
* GT1-1P-2428 / F5C
* GT1-1P-30 / F5C
GT1-1P-2428 / F4C
CL No.
751-0002-6
751-0030-1
751-0014-5
751-0031-4
751-0034-2
751-0038-3
751-0047-4
Conductor Size
(AWG)
#24 to 28 or equivalent
#30 or equivalent
#20 to 22 or equivalent
#30 or equivalent
#24 to 28 or equivalent
#30 or equivalent
#24 to 28 or equivalent
Inner Insulator
Outer
Diameter
Diameter
1.5 to 2.0mm 2.6 to 3.4mm
2.8 to 3.5mm
2.5 to 3.5mm
4.0mm
4.6 to 5.0mm
Packaging
0,800
0,600
Item
Insulator
Crimp terminal
Outer terminal
Material
PBT
Brass
Brass
Finish
Color: Dark gray
Tin plating
Tin plating
GT 8
10
Note: Products marked with an asterisk (*) indicate polyethylene foam insulation.
GT 9
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

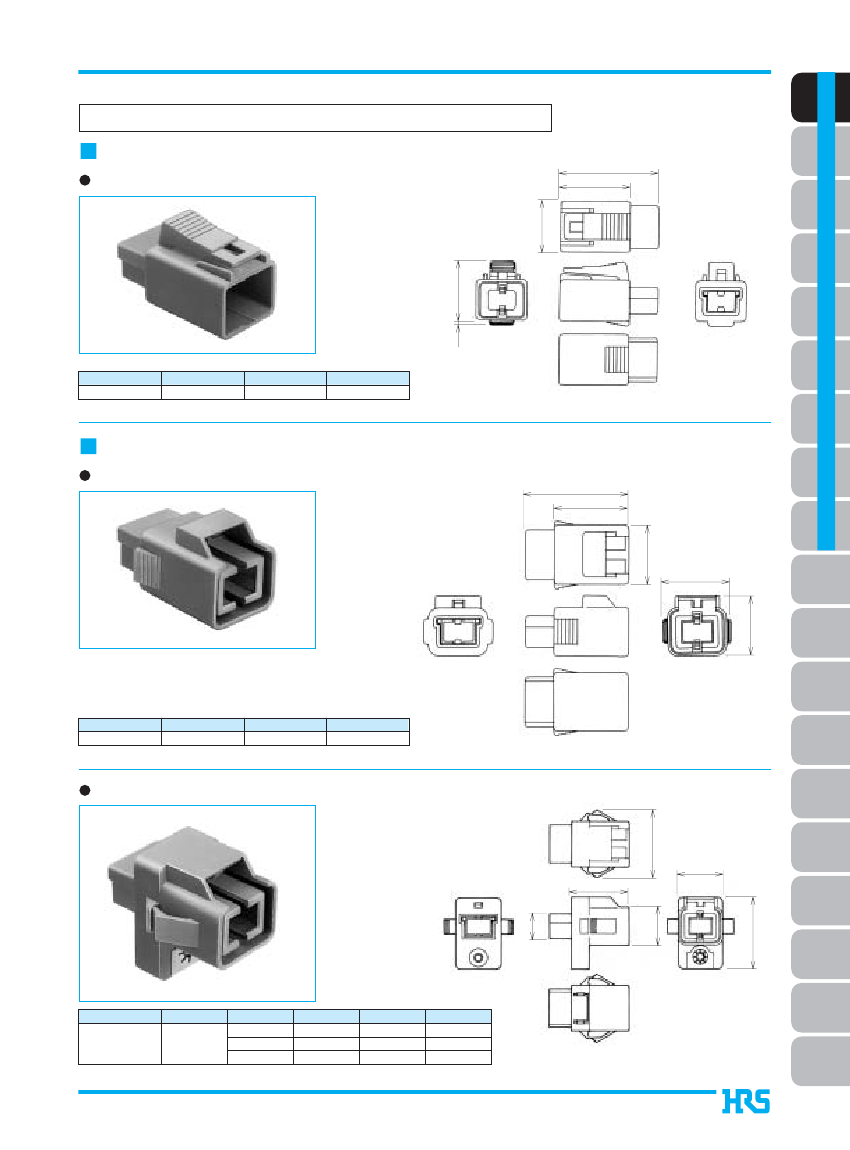

GT1 Series
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
