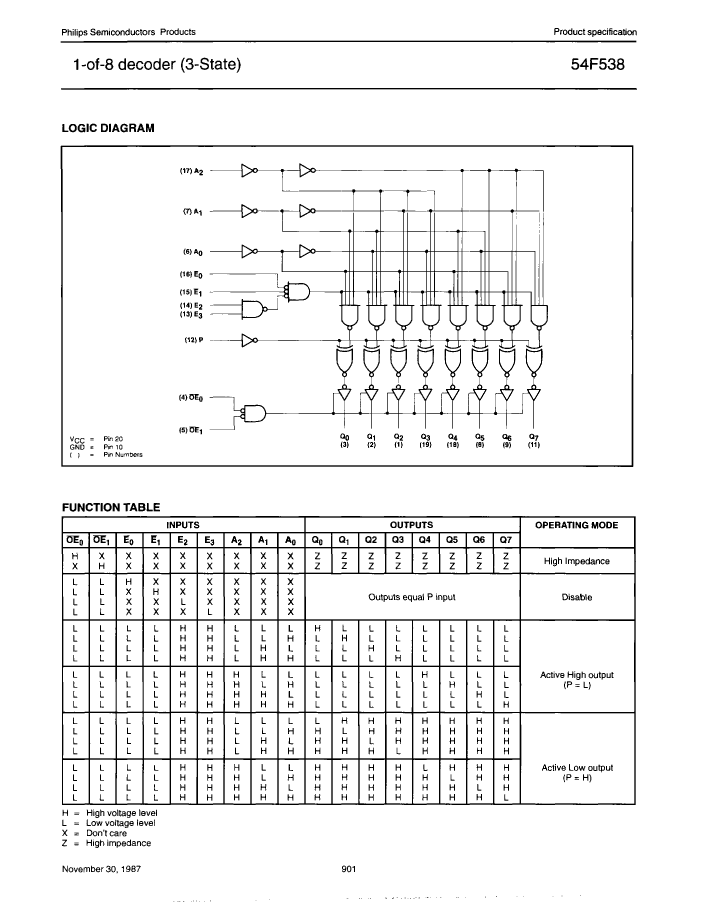

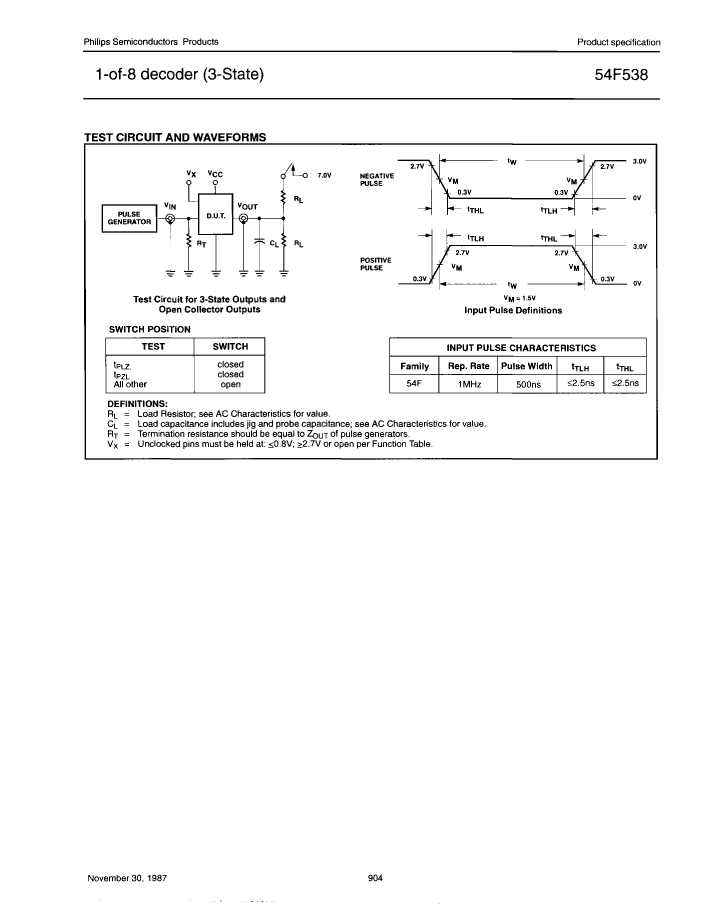

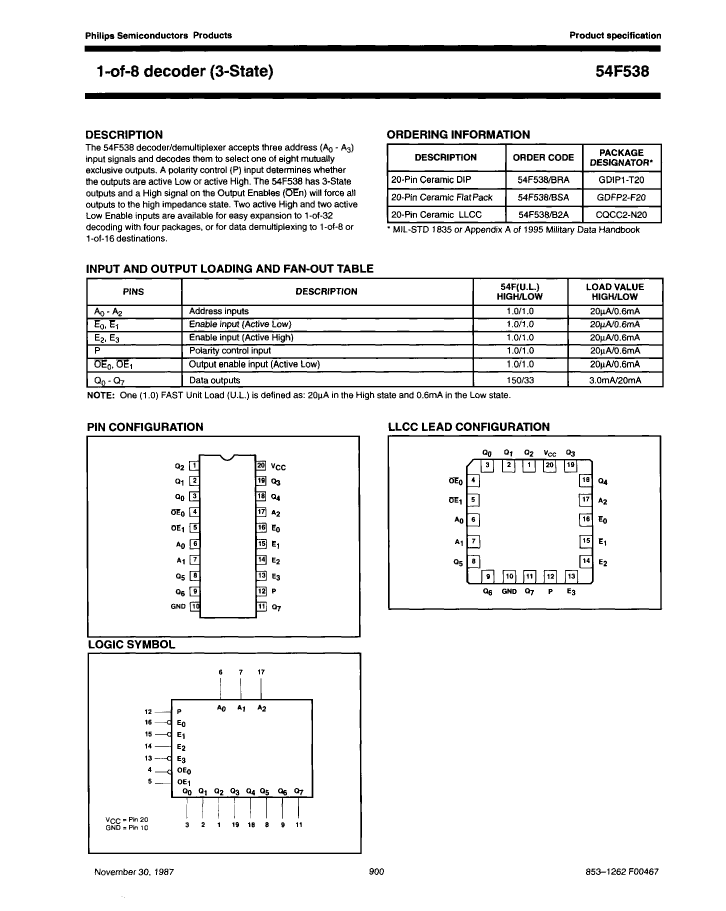

IC F/FAST SERIES, OTHER DECODER/DRIVER, CONFIGURABLE OUTPUT, CDIP20, Decoder/Driver

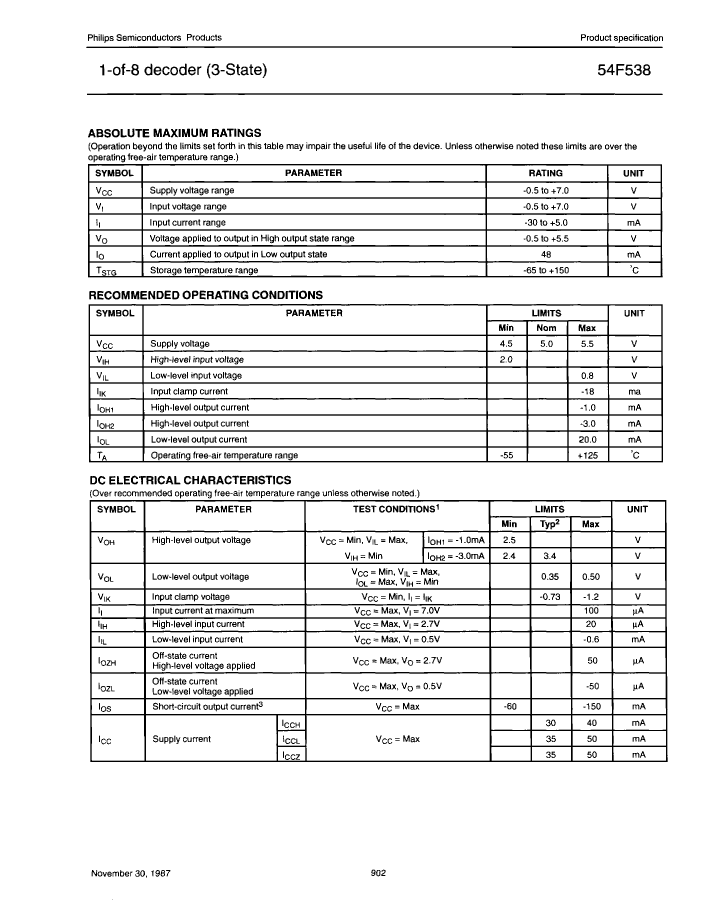

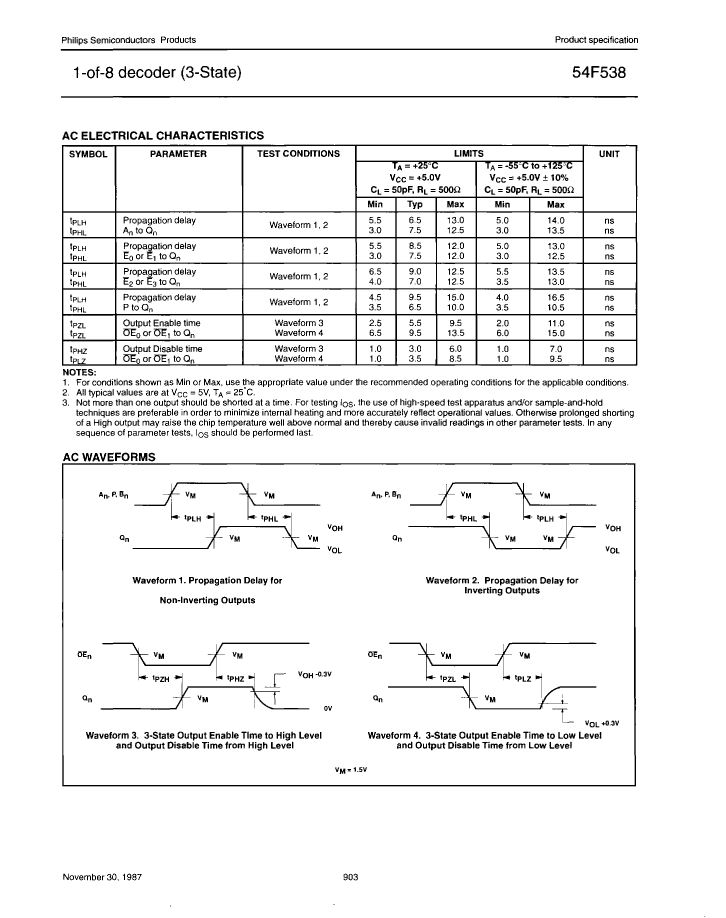

| Parameter Name | Attribute value |
| package instruction | DIP, |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | 2 ENABLE INPUTS |
| series | F/FAST |
| JESD-30 code | R-GDIP-T20 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | CONFIGURABLE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 13.5 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 54F538/BRA | 54F538/BSA-T | 54F538/BSA | 54F538/B2A | 54F538/B2A-T | |
|---|---|---|---|---|---|
| Description | IC F/FAST SERIES, OTHER DECODER/DRIVER, CONFIGURABLE OUTPUT, CDIP20, Decoder/Driver | IC F/FAST SERIES, OTHER DECODER/DRIVER, CONFIGURABLE OUTPUT, CDFP20, Decoder/Driver | IC F/FAST SERIES, OTHER DECODER/DRIVER, CONFIGURABLE OUTPUT, CDFP20, Decoder/Driver | IC F/FAST SERIES, OTHER DECODER/DRIVER, CONFIGURABLE OUTPUT, CQCC20, Decoder/Driver | IC F/FAST SERIES, OTHER DECODER/DRIVER, CONFIGURABLE OUTPUT, CQCC20, Decoder/Driver |
| package instruction | DIP, | DFP, | DFP, | QCCN, | QCCN, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | 2 ENABLE INPUTS | 2 ENABLE INPUTS | 2 ENABLE INPUTS | 2 ENABLE INPUTS | 2 ENABLE INPUTS |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDIP-T20 | R-CDFP-F20 | R-CDFP-F20 | S-CQCC-N20 | S-CQCC-N20 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | CONFIGURABLE | CONFIGURABLE | CONFIGURABLE | CONFIGURABLE | CONFIGURABLE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DFP | DFP | QCCN | QCCN |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE |
| Package form | IN-LINE | FLATPACK | FLATPACK | CHIP CARRIER | CHIP CARRIER |
| propagation delay (tpd) | 13.5 ns | 13.5 ns | 13.5 ns | 13.5 ns | 13.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | FLAT | FLAT | NO LEAD | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | QUAD | QUAD |
| Base Number Matches | 1 | 1 | 1 | 1 | - |
| Maker | - | NXP | NXP | NXP | NXP |
