3M™ Inline Splices for 3/C or 4/C Armored Power Cable (Teck-90) 5730 Series ......................169
3M™ Resin/Cold Shrink Non-Shielded, Armored or Non-Armored Splice Kits 5750 Series .......170
3M™ Cold Shrink Portable Cable Splice Kits 2237A and 2238A...............................................171
PHONE: 800-245-3573
www.3M.com/Electrical
147

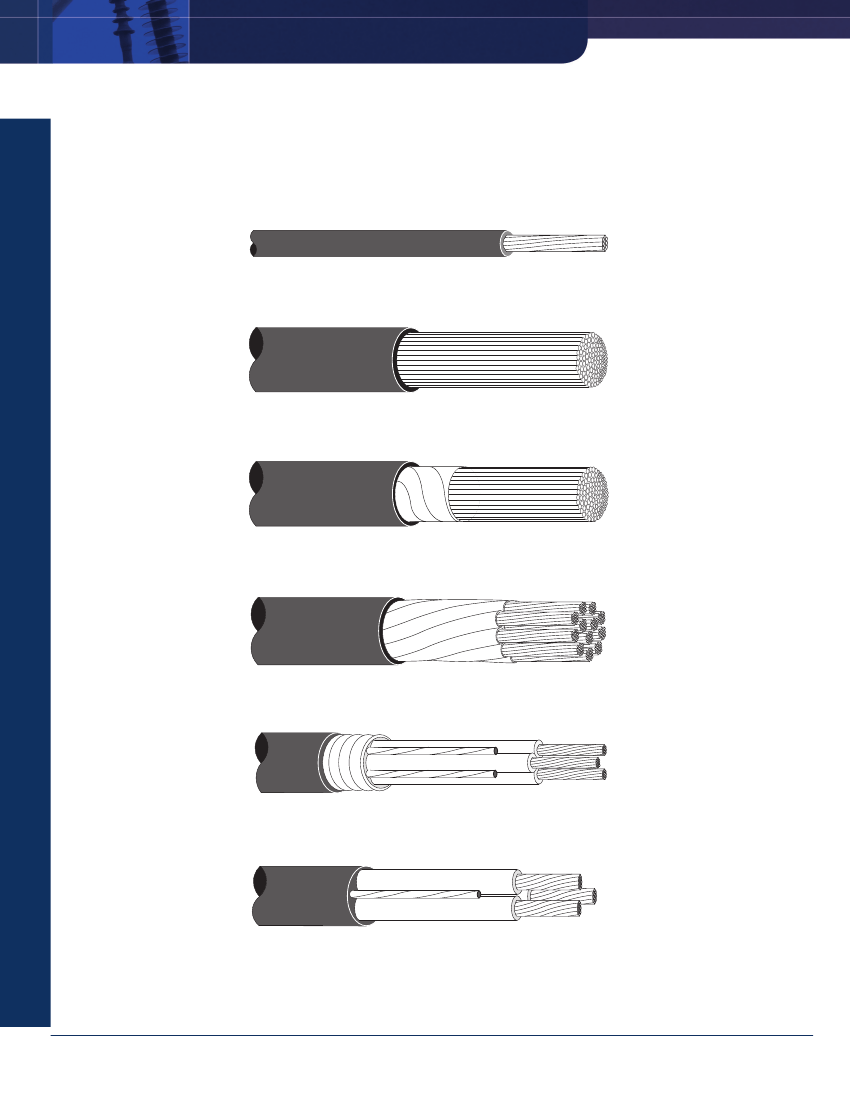

Cable Types for Low Voltage Splicing
Single Conductor Cable
Multiple Conductor Unshielded Signal and Control Cable
Multiple Conductor Shielded Signal and Control Cable
Low Voltage Splices, 1000 V or less
Multiple Conductor, to 1000 Volt, Cable
Three-Conductor Armored, Non Shielded Cable
Three-Conductor Non-Armored, Non Shielded Cable
148
FAX: 800-245-0329
3M™ Heat Shrink Splice Kits

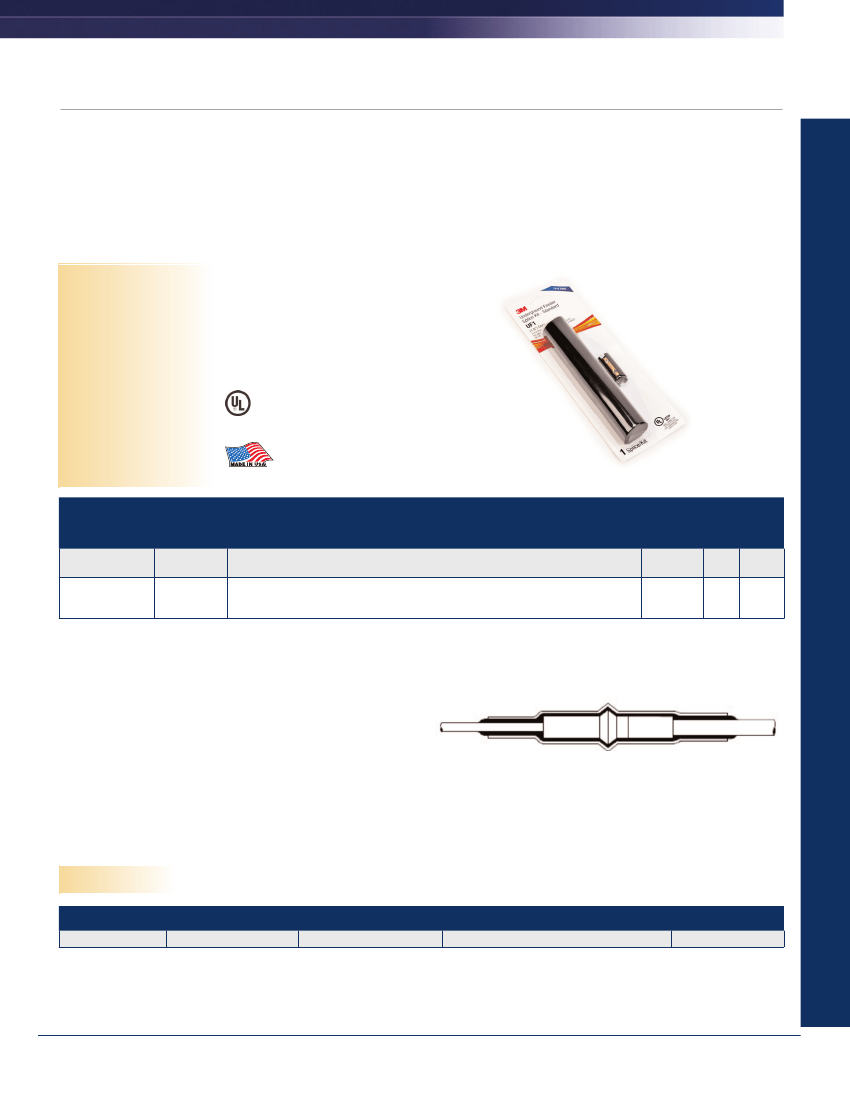

3M™ Splice Kit UF
3M™ Splice Kit UF is designed to provide a reliable, moisture proof electrical connection for type UF-B underground feeder cable rated for 600 V (copper
wire only) ranging from #14/3 without ground wire up to #8/3 with ground wire.
The UF splice kit consists of a connector-insulation assembly and a heat shrink tube. The connector assembly contains four cylindrical set screw
connectors separated by a piece of vinyl insulation. The heat shrink tube is a heavy-wall, adhesive-lined tube. Underground Feeder (UF)-B cables are flat,
and typically have three solid conductors without a ground or two solid conductors with a ground. They range in size from 14–8 AWG. The most common UF
cable size is 14–10 AWG.
Voltage Rating
Number of Conductors
Cable/Shielding Type
Splice Type
Operating Temperature
Range
RoHS 2011/65/EU
Agency Approvals
600 V (copper wire only)
Single Conductor
Non-Shielded
Heat Shrink
-67°F to 230°F (-55°C to 110°C)
Yes
UL 486D listed E102356
Low Voltage Splices, 1000 V or less
Manufacturing Origin
Order No.
UPC
Description
Conductor
Size
Min.
Order
Qty.
6 kits
6 kits
Case
Qty.
6 kits
6 kits
UF1-Splice Kit-6 Kits 054007-42920 UF Splice Kit-Standard includes 1.8" (45,7 mm) length connector/ 8.0" (203,2 mm) length of heavy 14–8 AWG
heavy wall, adhesive lined heat shrink tube. The Stretcher Kit is used in situations where a 7–10"
(17,8–25,4 cm) section of the cable has been damaged or destroyed.
3M™ Airport Lighting Connector Sealing
Kit
3M™ Airport Lighting Connector Sealing Kit IAL-3 is designed especially to meet the high demands on airport lighting connections. It meets specification for
sealing FAA Specification L-823 connectors.
Kit Includes:
Heat shrinkable sleeve
Cleaning pad
Instructions
RoHS 2011/65/EU
Yes
Order No.
IAL-3
UPC
054007-08862
Sleeve Length
16" (406,4 mm)
Expanded/Recovered I.D.
1.38/0.38" (35,1/9,7 mm)
Case Qty.
30 kit/case
PHONE: 800-245-3573
www.3M.com/Electrical
149
3M™ Heat Shrink Splice Kits

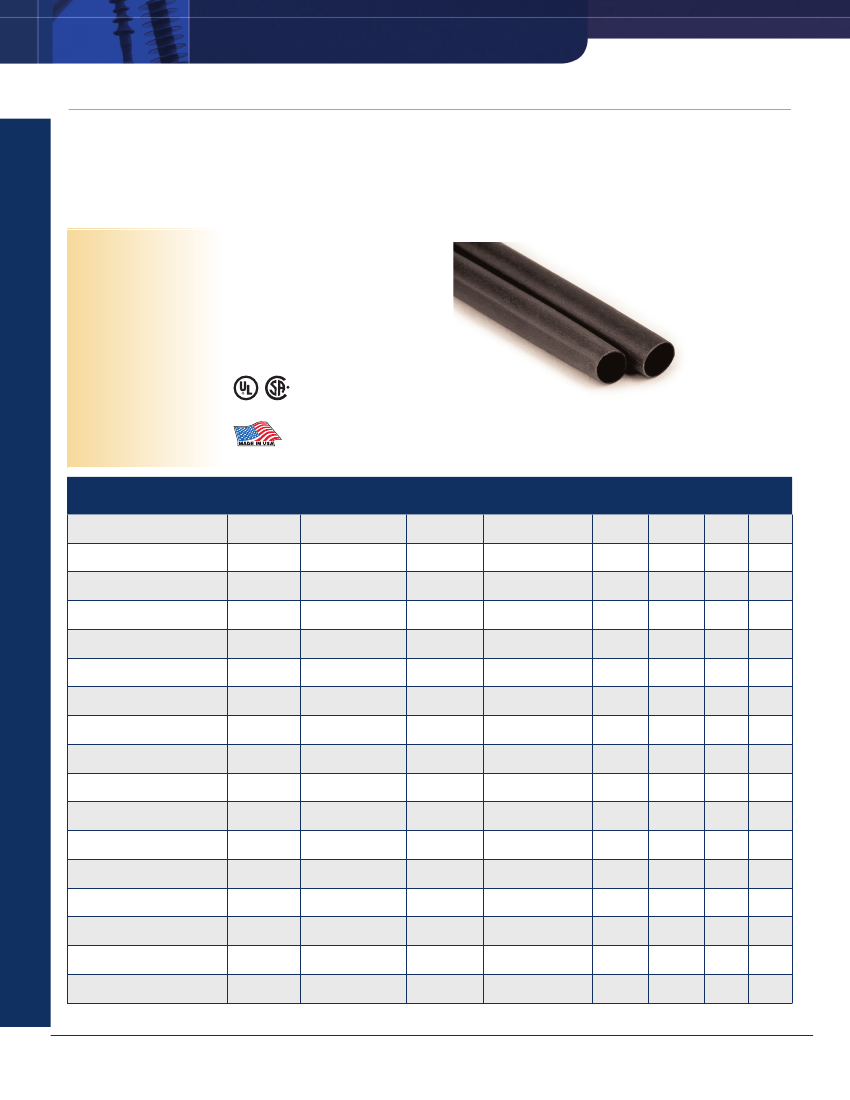

3M™ Heat Shrink Heavy-Wall Cable Sleeves ITCSN
The 3M™ Heat Shrink Heavy-Wall Cable Sleeves ITCSN are designed to provide reliable performance for electrical splices, connections and terminations,
as well as mechanical and environmental protection. ITCSN heavy-wall cable sleeves are cross-linked polyolefin. They are highly split resistant and fast
shrinking to provide rapid installation. The cut-to-length sleeves come standard with a factory-applied adhesive/sealant. Order any of several packaging
choices or look for the counter merchandiser assortment at a 3M authorized distributor.
