318106-1

Description
DIE COPALUM I.P. 4/O
CategoryTools and equipment
File Size351KB,7 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

318106-1 Online Shopping

Suppliers Part Number Price MOQ In stock
318106-1 - - View Buy Now

318106-1 Overview

DIE COPALUM I.P. 4/O

318106-1 Parametric

Parameter NameAttribute value
Tool levelAdvanced crimping tools
Mold set typeRemovable/interchangeable
canonical typeTE Product Specifications (114-), Military Specifications
CertificationYes – comes with certificate
Power supply typemanual, hydraulic, battery
Tool typeMold assembly
Crimping form - crimping barrel typeClosed crimping barrel-others
Crimping Die Assembly 318106-1
for Insulation Piercing
COPALUM* Terminals and Splices
Instruction Sheet
408-4199
12 DEC 07
Rev A

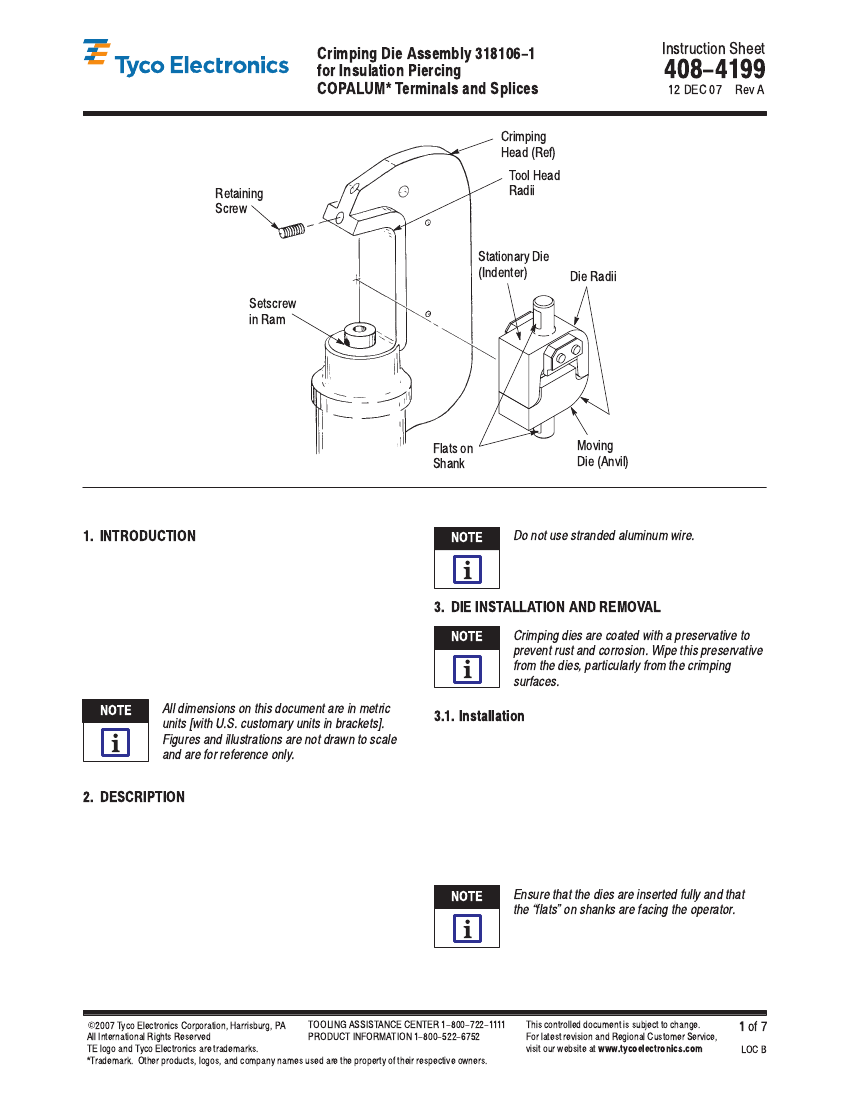

Crimping
Head (Ref)
Tool Head
Retaining
Screw
Radii
Stationary Die
(Indenter)
Die Radii
Setscrew
in Ram
Flats on
Shank
Moving
Die (Anvil)
Figure 1
1. INTRODUCTION
NOTE
Do not use stranded aluminum wire.
This instruction sheet covers the application and
maintenance procedures for Crimping Die Assembly
318106–1.
For additional information on COPALUM terminals
and splices, refer to Catalog 82020.
Read these instructions thoroughly before crimping
any terminals or splices.
NOTE
All dimensions on this document are in metric
units [with U.S. customary units in brackets].
i
3. DIE INSTALLATION AND REMOVAL
NOTE
Crimping dies are coated with a preservative to
prevent rust and corrosion. Wipe this preservative
i
from the dies, particularly from the crimping
surfaces.
3.1. Installation
i
Figures and illustrations are not drawn to scale
and are for reference only.
The radii of both dies must match the radii of the tool.
See Figure 1.
Proceed as follows:
2. DESCRIPTION
The die assembly consists of a stationary die
(indenter) and a moving die (anvil).
The crimping die assembly is designed for use in
Hydraulic Tool 69099 to crimp insulation piercing
COPALUM terminals and splices on size 4/0 film–
insulated solid aluminum or copper wire or stranded
copper wire.
For further information concerning setup procedures,
refer to instruction sheet 408–2458, which is
packaged with the hydraulic tool.
1. Loosen retaining screw in top section of
crimping head. See Figure 1.
2. Insert shank of stationary die into top section of
crimping head and tighten retaining screw.
NOTE
Ensure that the dies are inserted fully and that
the flats" on shanks are facing the operator.
i
3. Activate power unit to advance ram until
setscrew is visible.

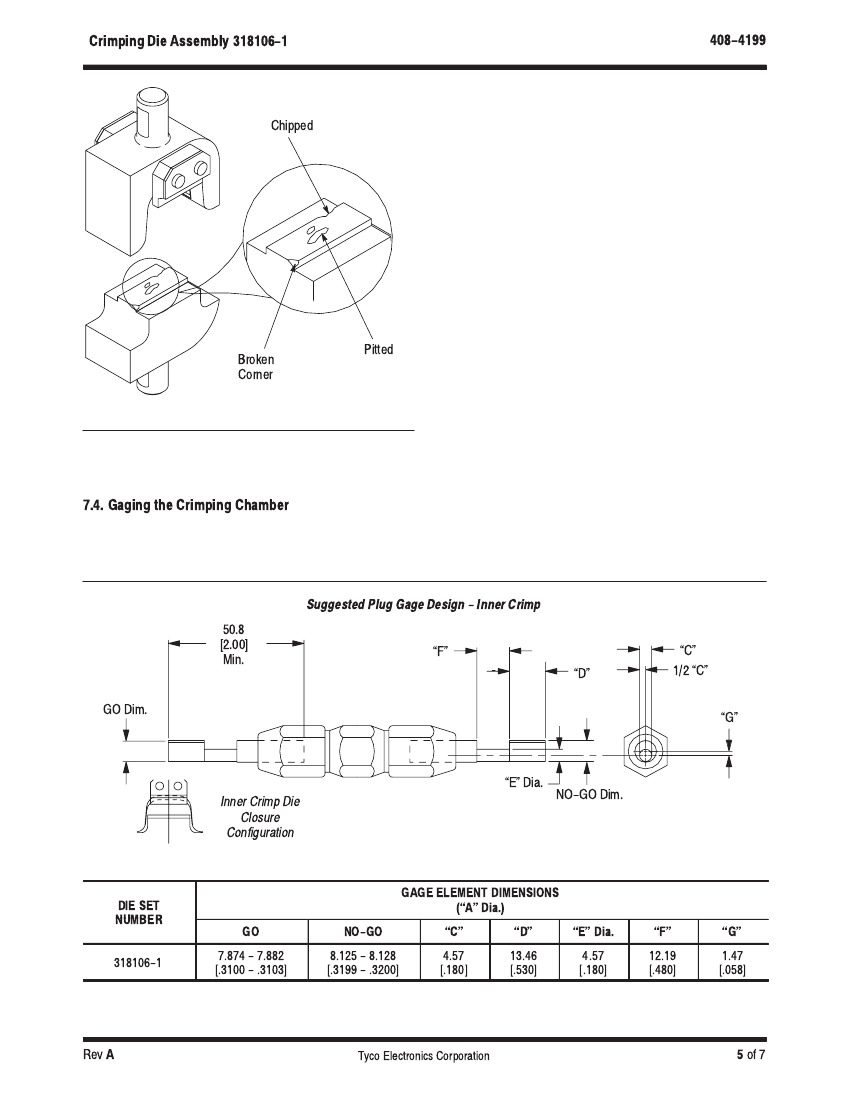

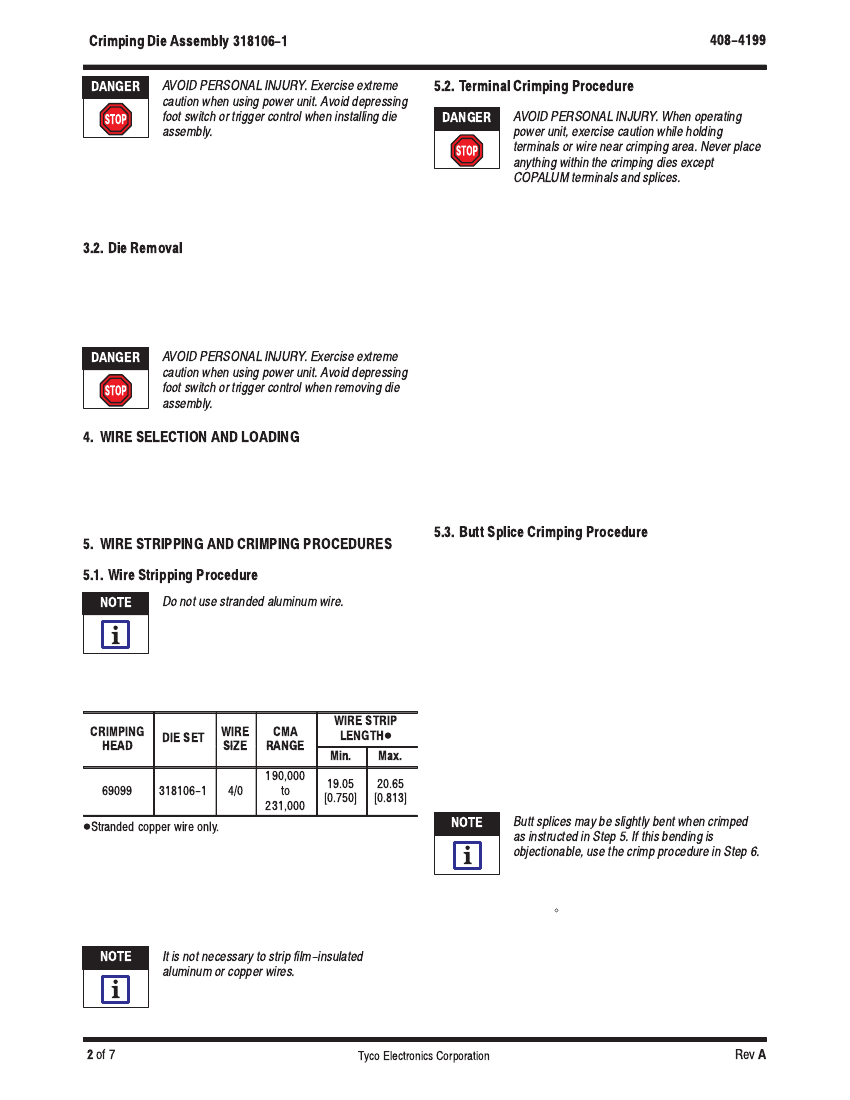

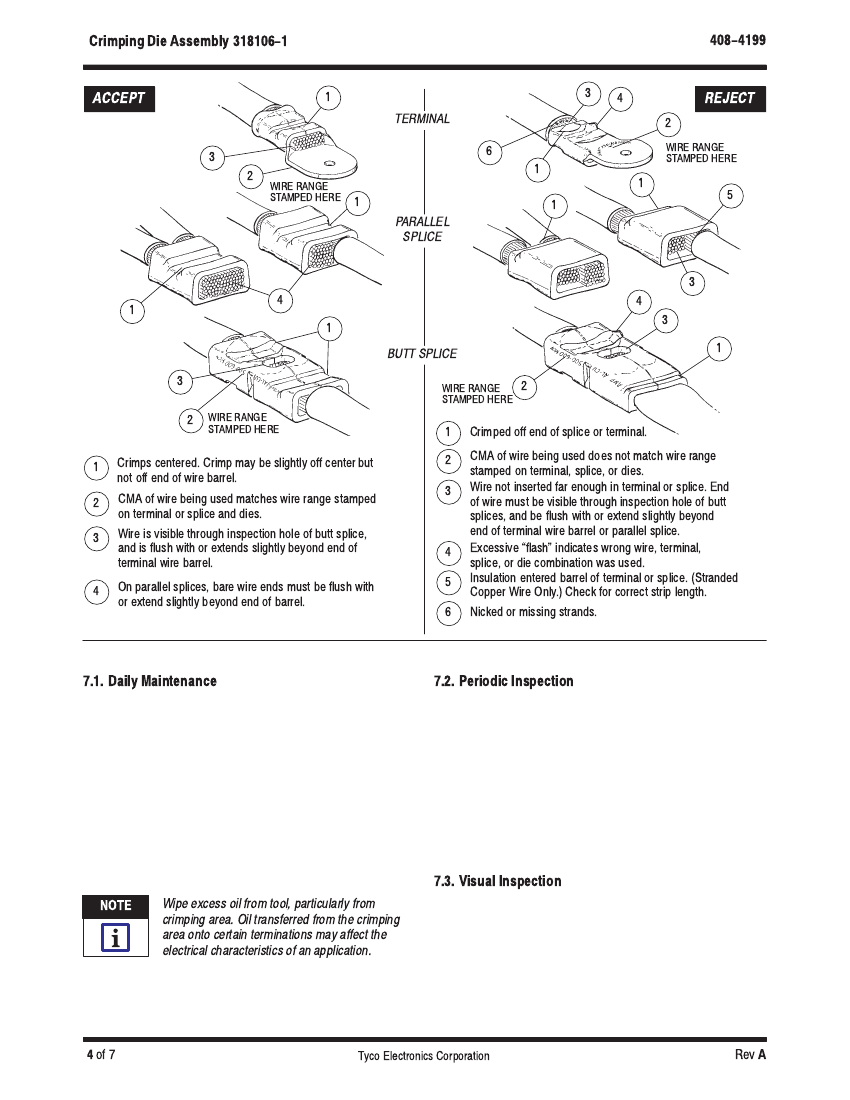

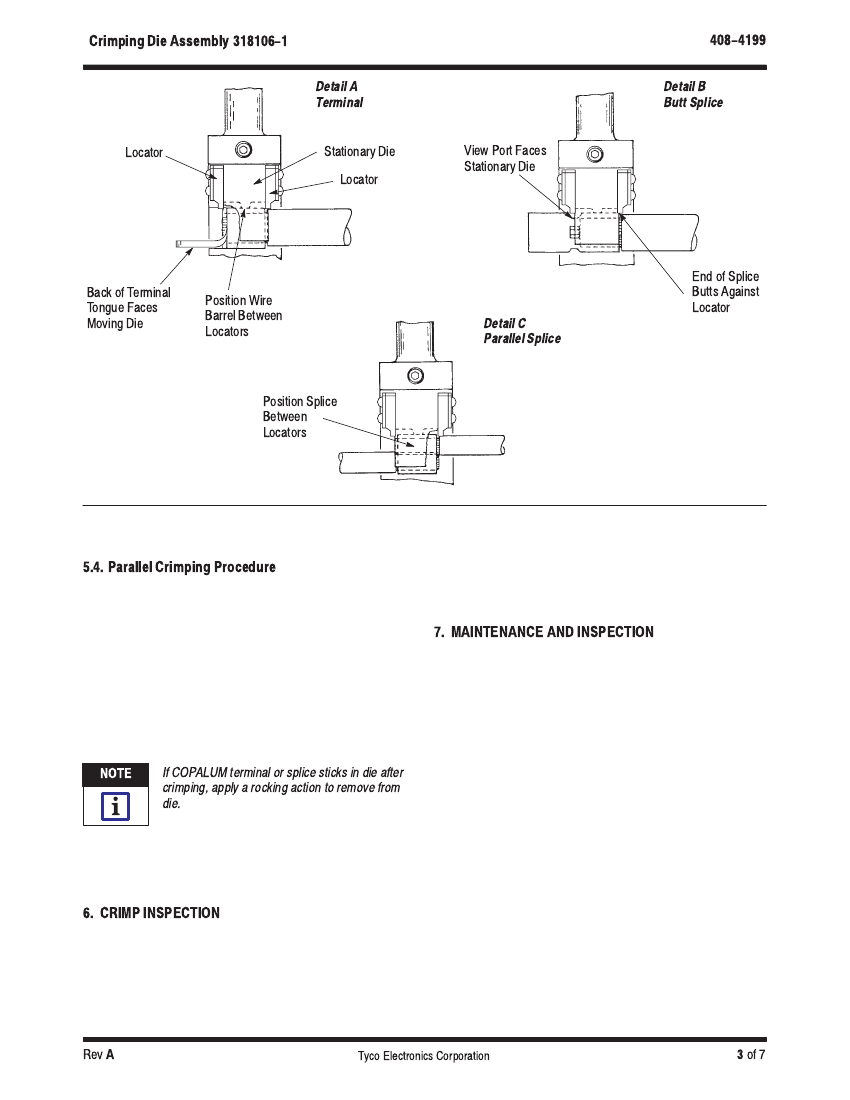

This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.tycoelectronics.com
LOC B
E
2007 Tyco Electronics Corporation, Harrisburg, PA
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
1
of 7
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
