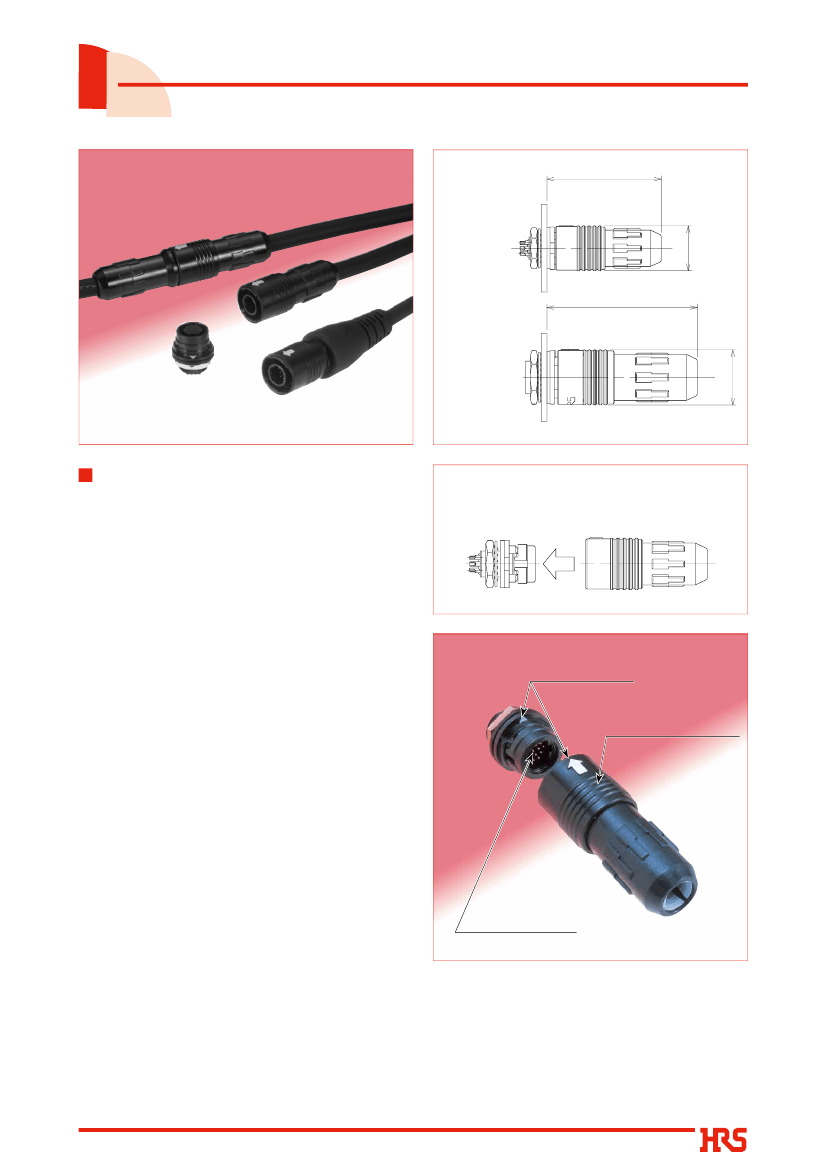

Miniature Waterproof Plastic Connectors
HR30 Series
Mated dimensions
32.3
3 and 6 pos.
Ø12.6
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
42.1
10 and 12 pos.
Ø15.5
Fig.1
Features
1. Small-size with low profile
3, 6 contacts : Maximum outer diameter
Ø12.6mm
Mated length 32.3mm (from the
panel surface)
10, 12 contacts : Maximum outer diameter
Ø15.5mm
Mated length 42.1mm (from the
panel surface)
These small, compact connectors offer unique
features available only from Hirose.
Lock/release operation
Push-pull- single action lock
Fig.2
2. Waterproof construction
IP67 and 68 waterproof construction in the mated state
IP67 : Left submerged in water at a depth of 1m for 30 minutes
IP68 : Left submerged in water at a depth of 2m for 14 days
Alignment marks
3. Push/pull lock
Waterproof connectors feature an easy to operate
push/pull locks developed with our exclusive
technology.
Push-pull locking collar
4. Light weight
3 and 6 contacts: 6g (plug + receptacle)
10 and 12 contacts: 9g (plug + receptacle)
5. Clamp structure
Our proprietary clamping method allows clamping
the cable by simply tightening the cord ring.
6. Easy mating operation
The plug can be securely locked while holding it in
your hand while mating. (Fig.2)
Polarized interface
Fig.3
7. Mis-insertion prevention
Mating portions are polarized to avoid improper
mating and connector damage.
8. Mating mark
Both the plug and the receptacle feature a white
index mark on them which is used to quickly align
the two interfaces for proper mating.(Fig.3)
9. Complies with the RoHS requirements
In consideration of environmental issues, we use
only materials that comply with the RoHS Directive.
2017.10④
1
HR30 Series●Miniature Waterproof Plastic Connectors
Product Specifications
Current rating
Ratings
Voltage rating
Characteristic
1.Contact
resistance
2.Insulation
resistance
3.Withstanding
voltage
4.Vibration
5A (3 pos.)
2A (6,10,12 pos.)
100V AC,140V DC(3,6 pos.)
30V AC,42V DC(10,12 pos.)
Specification
5mø max. (3 pos.)
15mø max. (Solder type : 6, 10, and 12 pos.)
30mø max. (Through hole type: 6 and 12 pos.)
1000Mø min.
No flashover or insulation breakdown
No electrical discontinuity of 10µs or more
1A DC
100V DC
300V AC / one minute
Frequency : 10 to 55 Hz, single amplitude of 0.75 mm,
1 cycle= 5min, 10 cycles in each of the 3 directions.
1000 cycles
(-55ç : 30 minutes
→
Room temperature : 10 to 15
minutes
→
+85ç : 30 minutes
→
Room temperature :
10 to 15 minutes) for 5 cycles
96 hours at temperature of 40ç and humidity of
90% to 95%
While mated with corresponding or protective cap
submerged at depth of 1m for half hour.
Operation Temperature Range
StorageTemperature Range
Conditions
-25ç to +85ç
-10ç to +60ç
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contact resistance 10mø min.(3 pos.)
5.Durability
Contact resistance 30mø min. (Solder type: 6, 10, and 12 pos.)
(mating/un-mating)
Contact resistance 100mø min. (Through hole type: 6 and 12 pos.)
6.Temperature
cycle
7.Humidity
resistance
8.Waterproof
performance
Insulation resistance 100Mø min.
Insulation resistance
10Mø min. (when humidity high)
100Mø min. (when dry)
No water penetration inside.
Material / Finish
Assembly
Component
PPS
Insulator
PBT
Polyacetal
Silicone rubber, chloroprene
rubber
Brass, phosphor bronze,
Copper compound metal
Stainless steel
PPS
Chloroprene rubber
Brass, phosphor bronze,
Copper compound metal
Zinc alloy
Phosphor bronze
Phosphor bronze
Material
Black
Black
Natural
Red/Black
Gold plated
----------
Black
Black
Gold plated
Chromate
Nickel plated
Selective gold plated
Finish
Remarks
UL94V-0
UL94V-0
----------
----------
----------
----------
UL94V-0
----------
----------
----------
----------
----------
Plug
Gasket
Contacts
Spring
Insulator
Gasket
Receptacles
Contacts
Hexagonal nut
Washer
Crimp contact
(male/female)
Contacts
Product Number Structure
HR30 - 6 P A - 6 S C (
* *
)
q
w
e
r
t
y
u
i
q
Model name
: HR30
w
Shell size
: Outside diameter/plug mating side
e
Connector type : P : Plug
t
Number of Contacts : 3, 6, 10 and 12
y
Contact type S
: Female contact
P
: Male contact
u
Contact wiring type
Blank : Solder
C
: Crimping
D
: Through hole
i
Other specifications:
Connector type
Connector type
r
Variation
Blank
A
B
:
R : Receptacle
:
J : Jack
: Standard
: Fine wire
: Over mold type
A two-digit character is added to indicate other
specifications as needed.
2
HR30 Series●Miniature Waterproof Plastic Connectors

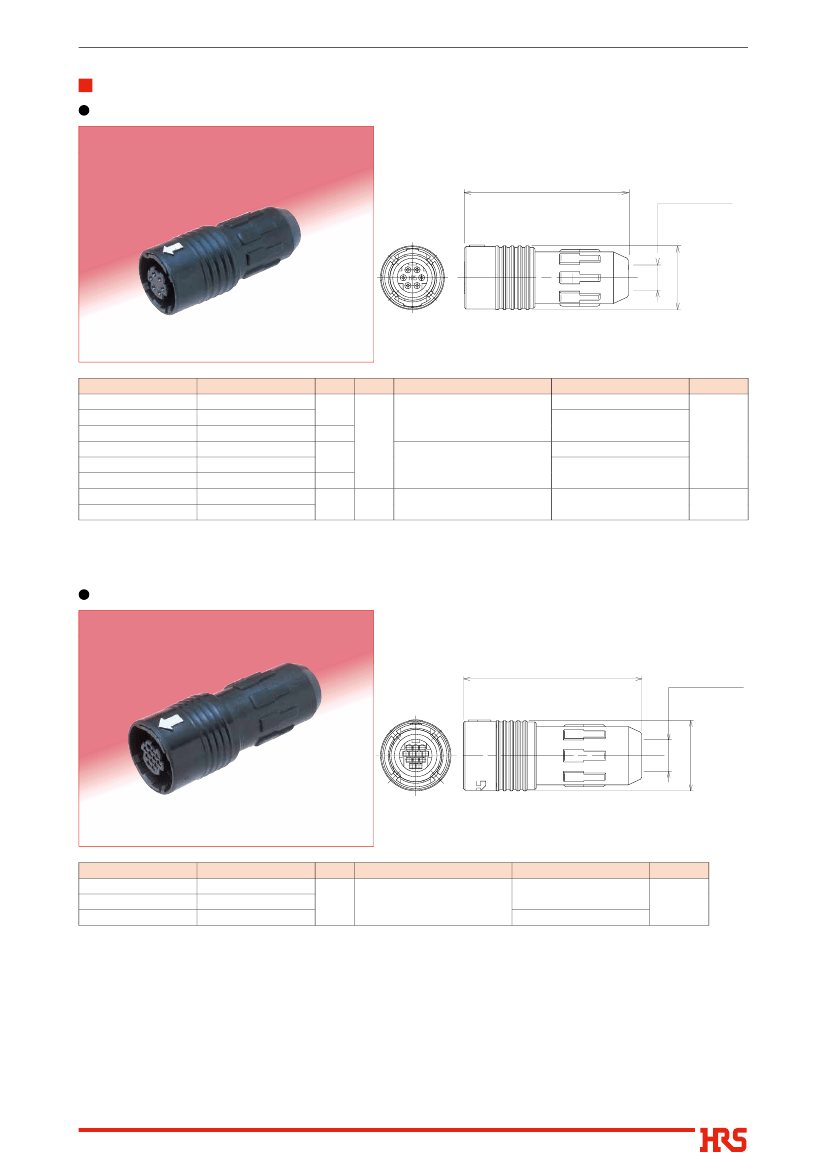

Plugs
Solder Type
HR30-6P-6S (71)
A(Fully tightened)
Applicable
cable diameter
6
5
4 3
1
2
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(Representative example)
Part No.
HR30-6P-3S(71)
HR30-6P-6S(71)
HR30-6P-6P(71)
HR30-6PA-3S(71)
HR30-6PA-6S(71)
HR30-6PA-6P(71)
HR30-7P-12S(71)
HR30-8P-12P(71)
HRS No.
130-0004-1 71
130-0010-4 71
130-0009-5 71
130-0021-0 71
130-0019-9 71
130-0020-8 71
130-0027-7 71
130-0026-4 71
A
29.8
30.3
29.8
30.3
39.8
15.5
6.2 to 7
12.6
3.5 to 4.3
B
Applicable cable diameter range Solder pot inner diameter
1.1 mm
4.2 to 5
0.8 mm
1.1 mm
0.8 mm
0.6 mm
6.7g
Weight
B
4g
Crimp Type
HR30-7P-12SC (71)
A(Fully tightened)
Applicable
cable diameter
Shown with contacts installed.
Part No.
HR30-7P-10SC(71)
HR30-7P-12SC(71)
HR30-8P-12PC(71)
HRS No.
130-0013-2 71
130-0014-5 71
130-0015-8 71
A
39.8
(Representative example)
Applicable cable diameter range
6.2 to 7
Crimp contact
HR30-SC-211
HR30-PC-211
Weight
6g
Ø15.5
3
HR30 Series●Miniature Waterproof Plastic Connectors

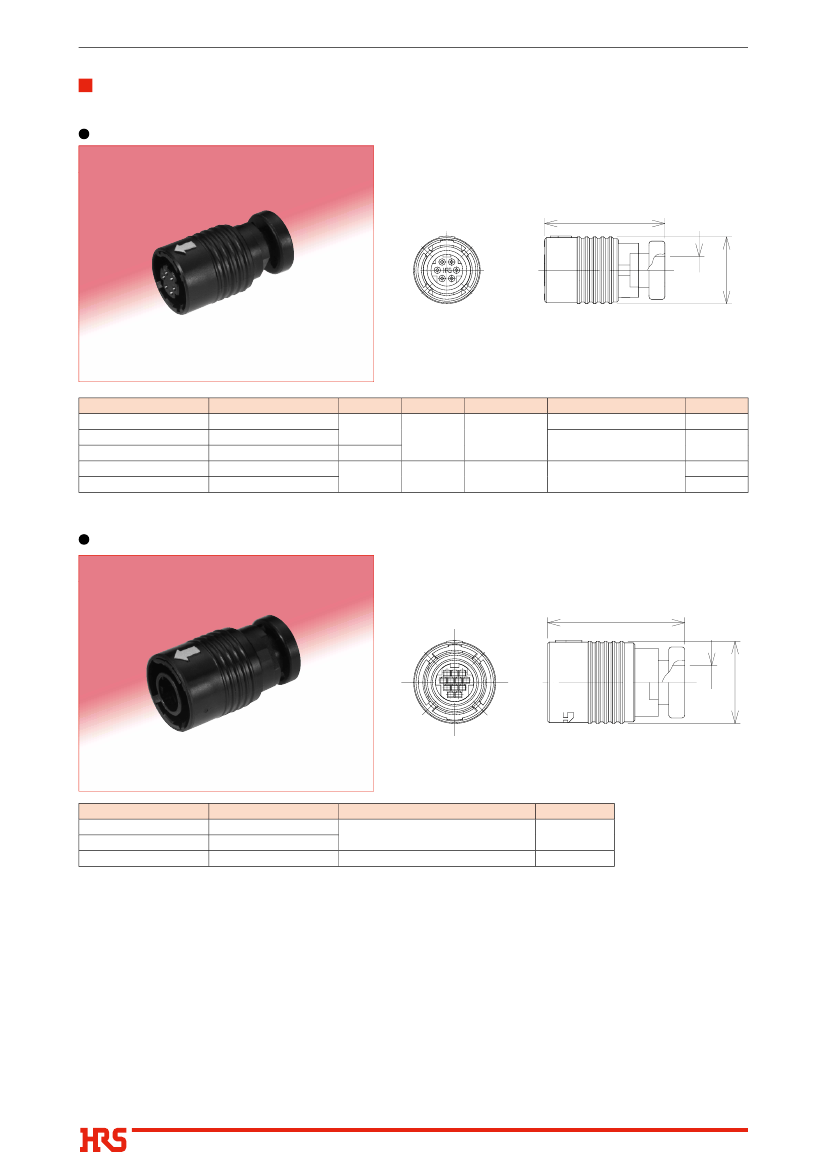

Plug for overmolds
Solder Type
HR30-6PB-6S
A
ØC
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
HR30-6PB-3S
HR30-6PB-6S
HR30-6PB-6P
HR30-7PB-12S
HR30-8PB-12P
HRS No.
130-0034-2 00
130-0032-7 00
130-0037-0 00
130-0035-5 00
130-0030-1 00
A
22.7
23.2
25.9
B
12.6
15.5
C
5.2
6.4
Solder pot inner diameter
1.1 mm
0.8 mm
0.6 mm
Weight
3.1g
2.9g
4.7g
4.5g
Crimp Type
HR30-8PB-12PC
25.9
Ø6.4
Part No.
HR30-7PB-10SC
HR30-7PB-12SC
HR30-8PB-12PC
HRS No.
130-0036-8 00
130-0033-0 00
130-0031-4 00
Crimp contact
HR30-SC-211
HR30-PC-211
Weight
4.1g
4.3g
4
Ø15.5
ØB
HR30 Series●Miniature Waterproof Plastic Connectors

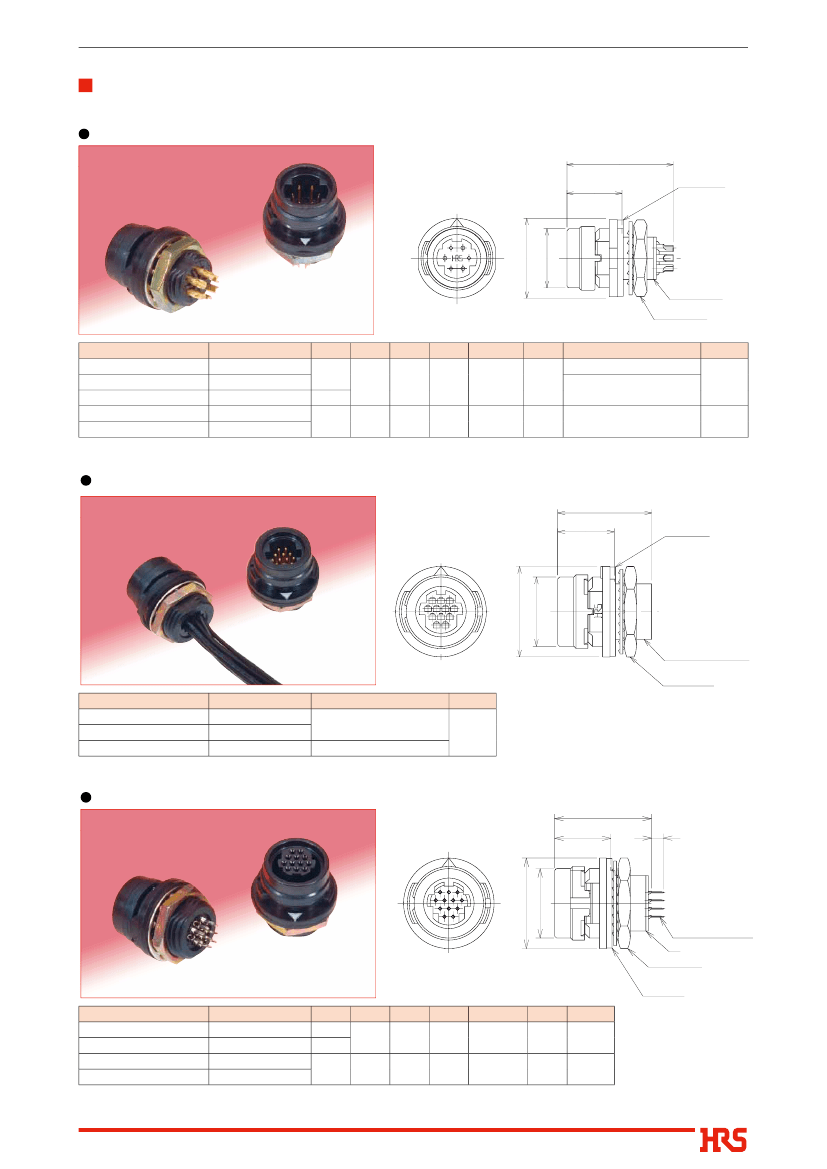

Receptacles
Solder Type
HR30-6R-6P (71)
B
A
Gasket
1
2
6
C
5
3
4
D
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
E(Thread)
F(Hex nut)
(Representative example)
Part No.
HR30-6R-3P(71)
HR30-6R-6P(71)
HR30-6R-6S(71)
HR30-7R-12P(71)
HR30-8R-12S(71)
HRS No.
130-1003-4 71
130-1009-0 71
130-1008-8 71
130-1016-6 71
130-1018-1 71
A
16
18.4
18.6
9.3
15
11.5
M11∞1
13
B
8.3
C
12
D
8.9
E
M8∞0.75
F
10
Solder pot inner diameter Weight
1.1mm
2g
0.8mm
0.6mm
3.4g
Crimp Type
HR30-7R-12PC (71)
9.3
15.5
Gasket
Ø11.5
Ø15
M11X1(Thread)
Shown with contacts installed.
Part No.
HR30-7R-10PC(71)
HR30-7R-12PC(71)
HR30-8R-12SC(71)
HRS No.
130-1012-5 71
130-1013-8 71
130-1014-0 71
Crimp contact
HR30-PC-211
HR30-SC-211
(Representative example)
Weight
3g
13(Hex nut)
Through hole Type
HR30-8R-12SD (71)
A
B
2
C
D
Through hole post
(0.2∞0.5)
E
F(Hex nut)
(Representative example)
Part No.
HR30-6R-6PD(71)
HR30-6R-6SD(71)
HR30-7R-12PD(71)
HR30-8R-12SD(71)
HRS No.
130-1020-3 71
130-1021-6 71
130-1017-9 71
130-1019-4 71
A
14.9
15.2
16
B
8.3
9.3
C
12
15
D
8.9
11.5
E
M8∞0.75
M11∞1
F
10
13
Weight
2g
3.4g
Gasket
5
