Datasheet
DC Brush Motor Drivers (18V Max)
BD622xxx Series
General Description
These H-bridge drivers are full bridge drivers for brush
motor applications. Each IC can operate at a power
supply voltage range of 6V to 15V, with output currents of
up to 2A. MOS transistors in the output stage allow PWM
speed control. The integrated VREF voltage control
function allows direct replacement of discontinued motor
driver ICs. These highly efficient H-bridge driver ICs
facilitate low-power consumption design.
Key Specifications
■
■
■
■
■
■
Supply Voltage Range:
Maximum Output Current:
Output ON-Resistance:
PWM Input Frequency Range:
Standby Current:
Operating Temperature Range:
18V(Max)
0.5A / 1.0A / 2.0A
1.5Ω / 1.5Ω / 1.0Ω
20kHz to 100kHz
0μA (Typ)
-40°C to +85°C
Packages
SOP8
HSOP25
HRP7
Features
Built-in Selectable One Channel or Two Channels
Configuration
VREF Voltage Setting Pin Enables PWM Duty Control
Cross-Conduction Prevention Circuit
Four Protection Circuits Provided: OCP, OVP, TSD
and UVLO
W(Typ) x D(Typ) x H(Max)
5.00mm x 6.20mm x 1.71mm
13.60mm x 7.80mm x 2.11mm
9.395mm x 10.540mm x 2.005mm
Applications
VTR; CD/DVD players; audio-visual equipment; optical
disc drives; PC peripherals; OA equipments
HRP7
(Pd=1.60W)
SOP8
(Pd=0.69W)
HSOP25
(Pd=1.45W)
(Note) Pd : Mounted on a 70mm x 70mm x 1.6mm glass-epoxy board.
Ordering Information
B
D
6
2
2
x
x
x
x
-
xx
Packaging and forming specification
E2: Embossed tape and reel
(SOP8/HSOP25)
TR: Embossed tape and reel
(HRP7)
Part Number
Package
F
: SOP8
FP
: HSOP25
HFP : HRP7
Lineup
Voltage Rating
(Max)
Output Current
(Max)
0.5A
1ch
18V
1.0A
2.0A
0.5A
2ch
1.0A
SOP8
SOP8
HSOP25
HRP7
HSOP25
HSOP25
Orderable
Part Number
BD6220F-E2
BD6221F-E2
BD6222FP- E2
BD6222HFP-TR
BD6225FP-E2
BD6226FP-E2
Channels
Package
Reel of 2500
Reel of 2500
Reel of 2000
Reel of 2000
Reel of 2000
Reel of 2000
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product has no designed protection against radioactive rays.
1/21
TSZ02201-0P2P0B300080-1-2
09.Sep.2014 Rev.003
BD622xxx Series

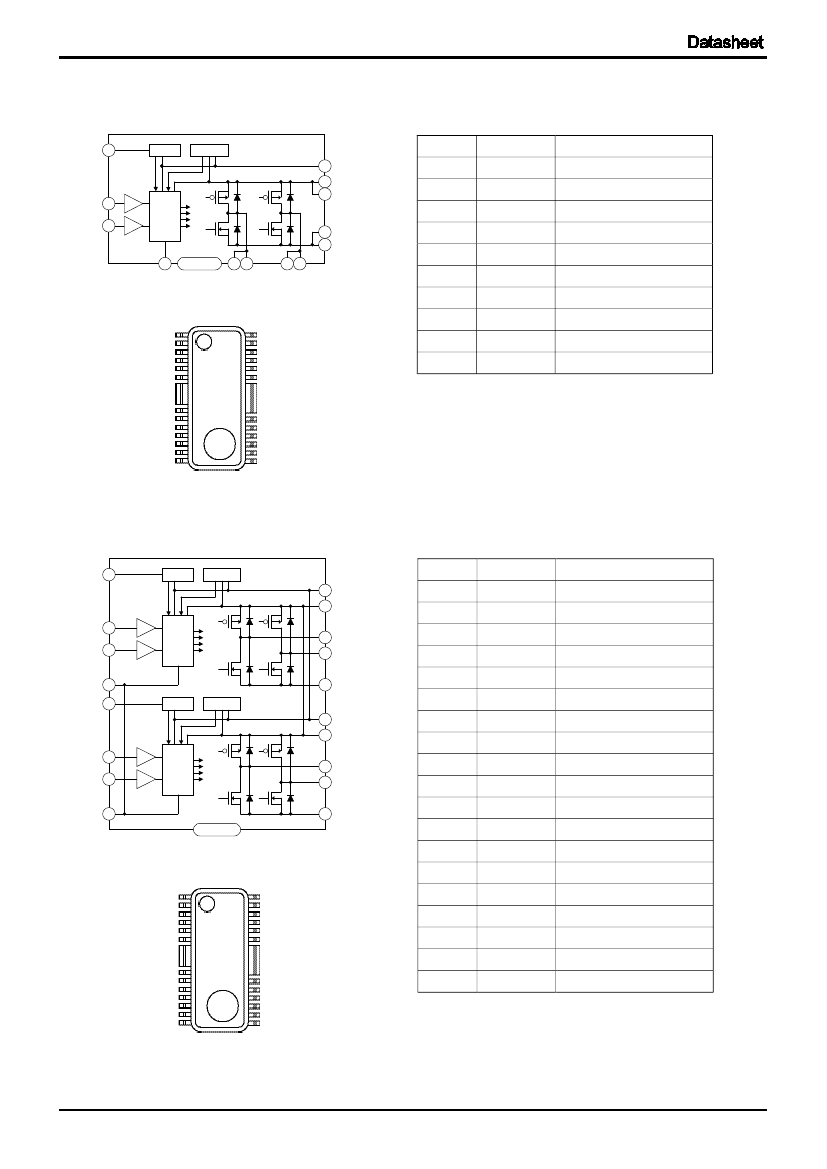

Block Diagrams / Pin Configurations / Pin Descriptions
BD6220F/BD6221F
Table 1 BD6220F/BD6221F
VREF
6
DUTY
PROTECT
3
2
FIN
4
CTRL
RIN
5
VCC
VCC
Pin No.
1
2
3
4
8
1
OUT1
7
OUT2
GND
Pin Name
OUT1
VCC
VCC
FIN
RIN
VREF
OUT2
GND
Function
Driver output
Power supply
Power supply
Control input (forward)
Control input (reverse)
Duty setting pin
Driver output
Ground
5
6
7
8
Figure 1. BD6220F / BD6221F
OUT1
VCC
VCC
FIN
GND
OUT2
VREF
RIN
(Note) Use all VCC pin by the same voltage.
Figure 2. SOP8 (TOP VIEW)
BD6222HFP
Pin No.
VREF
1
DUTY
PROTECT
Table 2 BD6222HFP
Pin Name
VREF
OUT1
FIN
GND
RIN
OUT2
VCC
GND
Function
Duty setting pin
Driver output
Control input (forward)
Ground
Control input (reverse)
Driver output
Power supply
Ground
1
2
7
VCC
3
4
5
FIN
3
CTRL
RIN
5
GND
4
FIN
GND
2
OUT1
6
OUT2
6
7
FIN
Figure 3. BD6222HFP
VCC
OUT2
RIN
GND
FIN
OUT1
VREF
Figure 4.
HRP7 (TOP VIEW)
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111
•
15
•
001
2/21
TSZ02201-0P2P0B300080-1-2
09.Sep.2014 Rev.003
BD622xxx Series
Block Diagrams / Pin Configurations / Pin Descriptions - Continued
BD6222FP
VREF 17
DUTY
PROTECT
21
22
23
FIN 20
CTRL
RIN 19
7
8
RNF
VCC
Table 3 BD6222FP
Pin No.
1,2
6
7,8
12,13
17
6
GND
FIN
GND
1
2
12 13
OUT2
OUT1
Pin Name
OUT1
GND
RNF
OUT2
VREF
RIN
FIN
VCC
VCC
GND
Function
Driver output
Small signal ground
Power stage ground
Driver output
Duty setting pin
Control input (reverse)
Control input (forward)
Power supply
Power supply
Ground
VCC
19
20
21
Figure 5. BD6222FP
OUT1
OUT1
NC
NC
NC
GND
GND
RNF
RNF
NC
NC
NC
OUT2
OUT2
NC
NC
VCC
VCC
VCC
FIN
GND
RIN
NC
VREF
NC
NC
NC
22,23
FIN
(Note) All pins not described above are NC pins.
Note: Use all VCC pin by the same voltage.
Figure 6. HSOP25 (TOP VIEW)
BD6225FP / BD6226FP
Table 4 BD6225FP/BD6226FP
VREFA
9
DUTY
PROTECT
24
25
FINA 11
CTRL
RINA 10
1
6
OUT1A
OUT2A
VCC
VCC
Pin No.
1
3
6
8
9
10
12
13
VCC
VCC
Pin Name
OUT1A
RNFA
OUT2A
GND
VREFA
RINA
FINA
VCC
VCC
OUT1B
RNFB
OUT2B
GND
VREFB
RINB
FINB
VCC
VCC
GND
Function
Driver output
Power stage ground
Driver output
Small signal ground
Duty setting pin
Control input (reverse)
Control input (forward)
Power supply
Power supply
Driver output
Power stage ground
Driver output
Small signal ground
Duty setting pin
Control input (reverse)
Control input (forward)
Power supply
Power supply
Ground
GND
20
DUTY
PROTECT
3
RNFA
VREFB 21
11
12
13
14
16
19
20
FINB 23
CTRL
RINB 22
14
19
OUT1B
OUT2B
GND
8
FIN
GND
16
RNFB
Figure 7. BD6225FP / BD6226FP
OUT1A
NC
RNFA
NC
NC
OUT2A
GND
NC
GND
VREFA
RINA
FINA
VCC
VCC
VCC
VCC
FINB
RINB
VREFB
GND
GND
OUT2B
NC
NC
RNFB
NC
OUT1B
21
22
23
24
25
FIN
(Note) All pins not described above are NC pins.
Note: Use all VCC pin by the same voltage.
Figure 8. HSOP25 (TOP VIEW)
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111
•
15
•
001
3/21
TSZ02201-0P2P0B300080-1-2
09.Sep.2014 Rev.003
BD622xxx Series
Absolute Maximum Ratings (Ta=25°C, All voltages are with respect to ground)
Parameter
Supply Voltage
Output Current
All Other Input Pins
Operating Temperature
Storage Temperature
Power Dissipation
Junction Temperature
Symbol
V
CC
I
OMAX
V
IN
Topr
Tstg
Pd
Tjmax
Rating
18
0.5
(Note 1)
/ 1.0
(Note 2)
/ 2.0
(Note 3)
-0.3 to V
CC
-40 to +85
-55 to +150
0.68
(Note 4)
/ 1.6
(Note 5)
/ 1.4
(Note 6)
150
Unit
V
A
V
°C
°C
W
°C
(Note 1) BD6220 / BD6225. Do not exceed Pd or ASO.
(Note 2) BD6221 / BD6226. Do not exceed Pd or ASO.
(Note 3) BD6222. Do not exceed Pd or ASO.
(Note 4) SOP8 package. Mounted on a 70mm x 70mm x 1.6mm glass-epoxy board. Derate by 5.5mW/°C for Ta above 25°C.
(Note 5) HRP7 package. Mounted on a 70mm x 70mm x 1.6mm glass-epoxy board. Derate by 12.8mW/°C for Ta above 25°C.
(Note 6) HSOP25 package. Mounted on a 70mm x 70mm x 1.6mm glass-epoxy board. Derate by 11.6mW/°C for Ta above 25°C.
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over
the absolute maximum ratings.
Recommended Operating Conditions (Ta=25°C)
Parameter
Supply voltage
VREF voltage
Symbol
V
CC
V
REF
Rating
6 to 15
3 to 15
Unit
V
V
Electrical Characteristics (Unless otherwise specified, Ta=25°C and V
CC
=V
REF
=12V)
Parameter
Supply Current (1ch)
Supply Current (2ch)
Stand-by Current
Input High Voltage
Input Low Voltage
Input Bias Current
Output ON-Resistance
(Note 7)
Output ON-Resistance
(Note 8)
Output ON-Resistance
(Note 9)
VREF Bias Current
Carrier Frequency
Input Frequency Range
(Note 7) BD6220 / BD6225
(Note 8) BD6221 / BD6226
(Note 9) BD6222
Symbol
I
CC
I
CC
I
STBY
V
IH
V
IL
I
IH
R
ON
R
ON
R
ON
I
VREF
f
PWM
f
MAX
Limit
Min
0.8
1.3
-
2.0
-
30
1.0
1.0
0.5
-10
20
20
Typ
1.3
2.0
0
-
-
50
1.5
1.5
1.0
0
25
-
Max
2.5
3.5
10
-
0.8
100
2.5
2.5
1.5
+10
35
100
Limit
mA
mA
µA
V
V
µA
Ω
Ω
Ω
µA
kHz
kHz
V
IN
=5.0V
Conditions
Forward / Reverse / Brake
Forward / Reverse / Brake
Stand-by
I
OUT
=0.25A, vertically total
I
OUT
=0.5A, vertically total
I
OUT
=1.0A, vertically total
V
REF
= V
CC
V
REF
=9V
FIN / RIN
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111
•
15
•
001
4/21
TSZ02201-0P2P0B300080-1-2
09.Sep.2014 Rev.003
BD622xxx Series
Typical Performance Curves (Reference Data)
2.0
85°C
25°C
-40°C
1.5
2.5
Circuit Current: Icc [mA]
Supply Current : I
CC
[mA]
Circuit Current: Icc [mA]
Supply Current : I
CC
[mA]
2.0
1.0
1.5
85°C
25°C
-40°C
0.5
6
9
12
15
18
1.0
6
9
12
15
18
Supply Voltage: Vcc [V]
Supply Voltage : V
CC
[V]
Supply Voltage : V
CC
[V]
Supply Voltage: Vcc [V]
Figure 9. Supply Current vs Supply Voltage
(1ch)
Figure 10. Supply Current vs Supply Voltage
(2ch)
1.5
400
85°C
25°C
-40°C
Internal Logic: H/L [-]
_
1.0
-40°C
25°C
85°C
0.5
-40°C
25°C
85°C
Input Bias Current: IIH
IH
[µA]
_
Input Bias Current : I
[µA]
300
200
0.0
100
-0.5
1
1.2
1.4
1.6
1.8
2
0
0
6
12
18
Input Voltage
VIN
[V]
Input Voltage:
: V
IN
[V]
Figure 11. Internal Logic vs Input Voltage
(Input Threshold Voltage)
Input Voltage : V
IN
[V]
Input Voltage: VIN [V]
Figure 12. Input Bias Current vs Input Voltage
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111
•
15
•
001
5/21
TSZ02201-0P2P0B300080-1-2
09.Sep.2014 Rev.003
