High-frequency medium output amplification (VCE=5V, IC=50mA)
: fT=4.7GHz typ (f=1GHz)
:
⏐
S21e
⏐
2
=8dB typ (f=1GHz)
: NF=1.8dB typ (f=1GHz)
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
PC
Tj
Tstg
When mounted on ceramic substrate (900mm
×0.8mm)
2
Conditions
Ratings
20
12
2
150
1.3
150
--55 to +150
Unit
V
V
V
mA
W
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

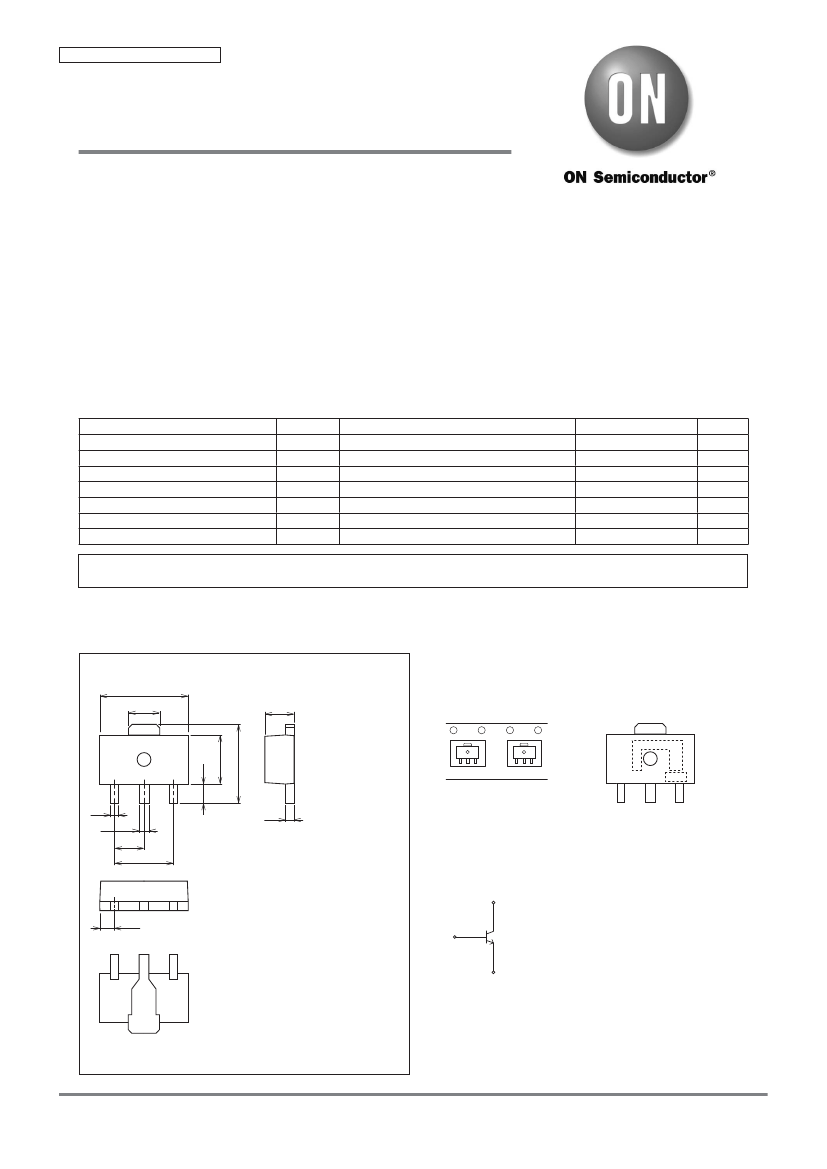

Package Dimensions
unit : mm (typ)
7007B-004
Top View
4.5
1.6
1.5
Product & Package Information
• Package
: PCP
• JEITA, JEDEC
: SC-62, SOT-89, TO-243
• Minimum Packing Quantity : 1,000 pcs./reel
2SC5347AE-TD-E
2SC5347AF-TD-E
Packing Type: TD
Marking
1.0
4.0
TD
CZ
RANK
1
0.4
0.5
1.5
3.0
2
3
0.4
Electrical Connection
2
0.75
1
1 : Base
2 : Collector
3 : Emitter
Bottom View
3
PCP
Semiconductor Components Industries, LLC, 2013
August, 2013
90512 TKIM/D0308AB MSIM TC-00001778 No. A1087-1/8
LOT No.
2.5
2SC5347A
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Reverse Transfer Capacitance
Forward Transfer Gain
Noise Figure
Symbol
ICBO
IEBO
hFE
fT
Cob
Cre
⏐S21e⏐
NF
2
Conditions
VCB=10V, IE=0A
VEB=1V, IC=0A
VCE=5V, IC=50mA
VCE=5V, IC=50mA
VCB=10V, f=1MHz
VCE=5V, IC=50mA, f=1GHz
VCE=5V, IC=50mA, f=1GHz
Ratings
min
typ
max
1.0
10
60*
3
4.7
1.3
0.9
6
8
1.8
3.0
2.0
270*
Unit
μA
μA
GHz
pF
pF
dB
dB
*

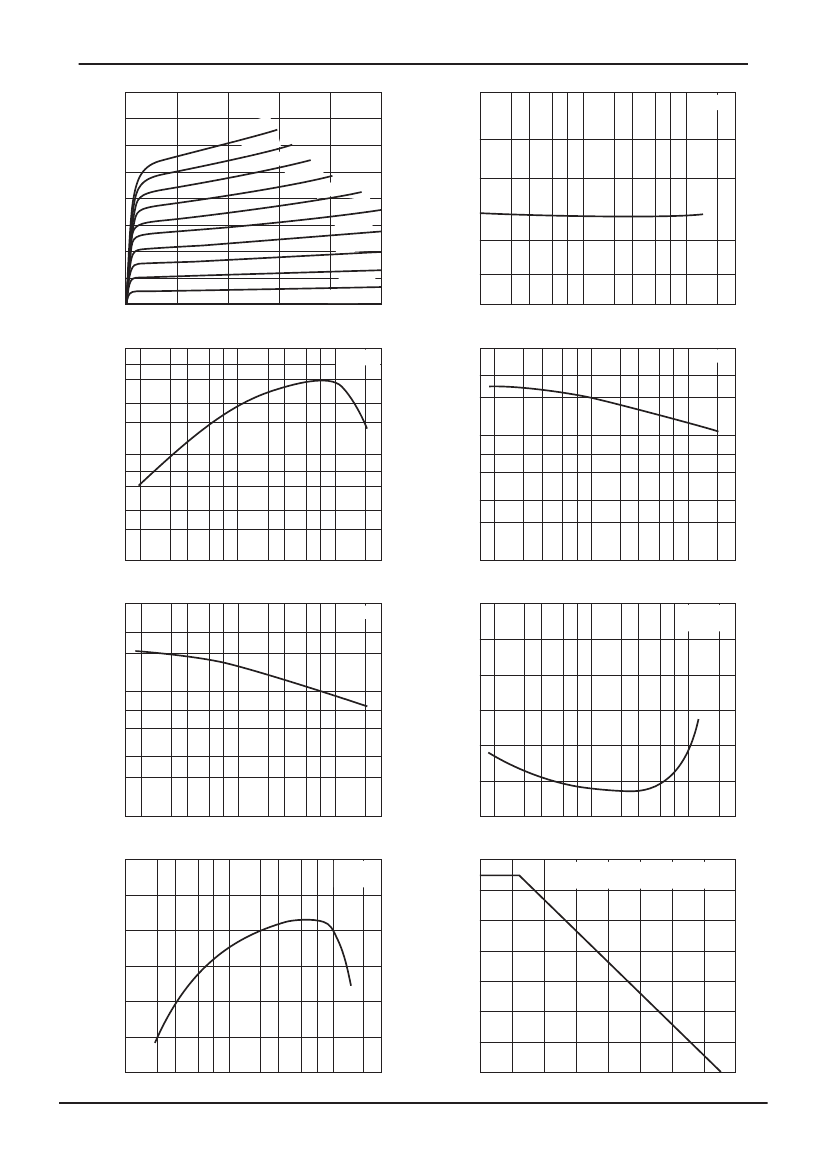

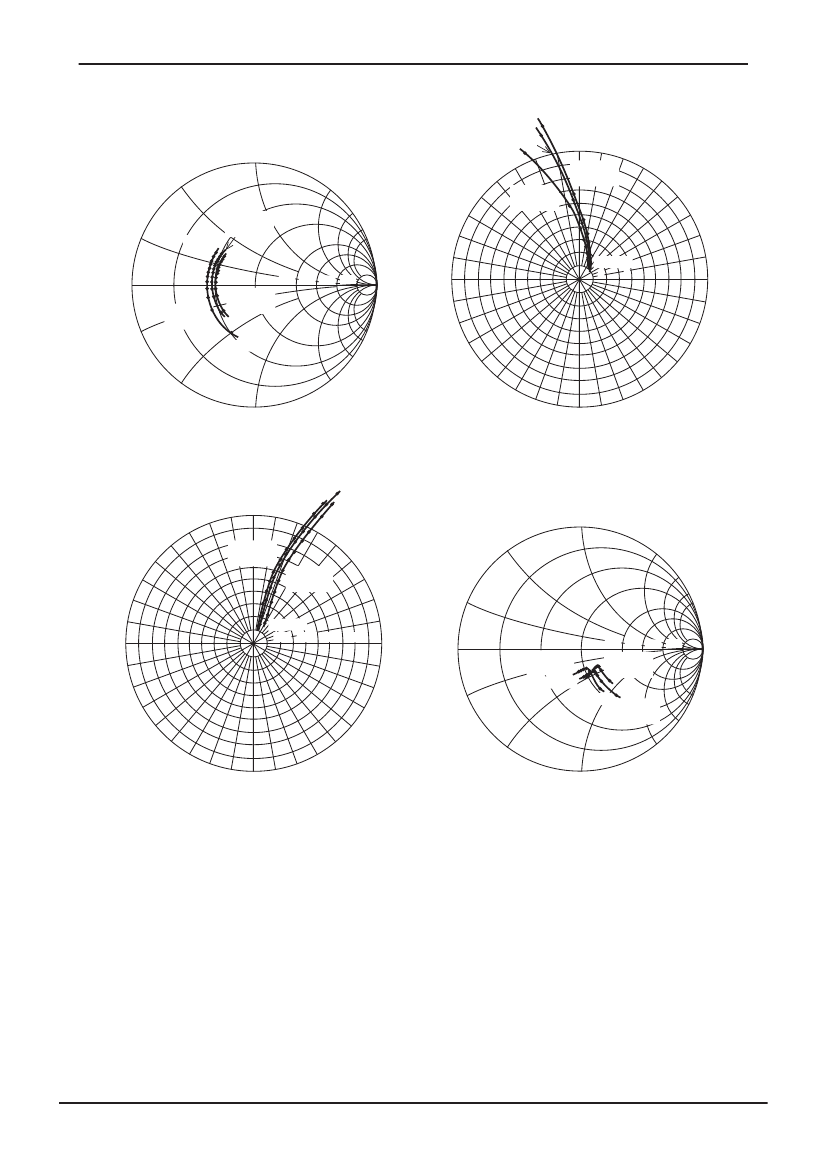

: The 2SC5347A is classified by 50mA hFE as follows :
