BU94603KV-E2: DescriptionInterface - CODECs USB HOST MP3 DECODER; CategoryOther integrated circuit (IC) Consumption circuit; File Size1MB，70 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BU94603KV-E2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BU94603KV-E2	-	-	View	Buy Now

BU94603KV-E2 Overview

Interface - CODECs USB HOST MP3 DECODER

BU94603KV-E2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	LFQFP,
Reach Compliance Code	compliant
Samacsys Description	Interface - CODECs USB HOST MP3 DECODER
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G64
length	10 mm
Number of functions	1
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm

Preview

Download Datasheet

View All

Datasheet

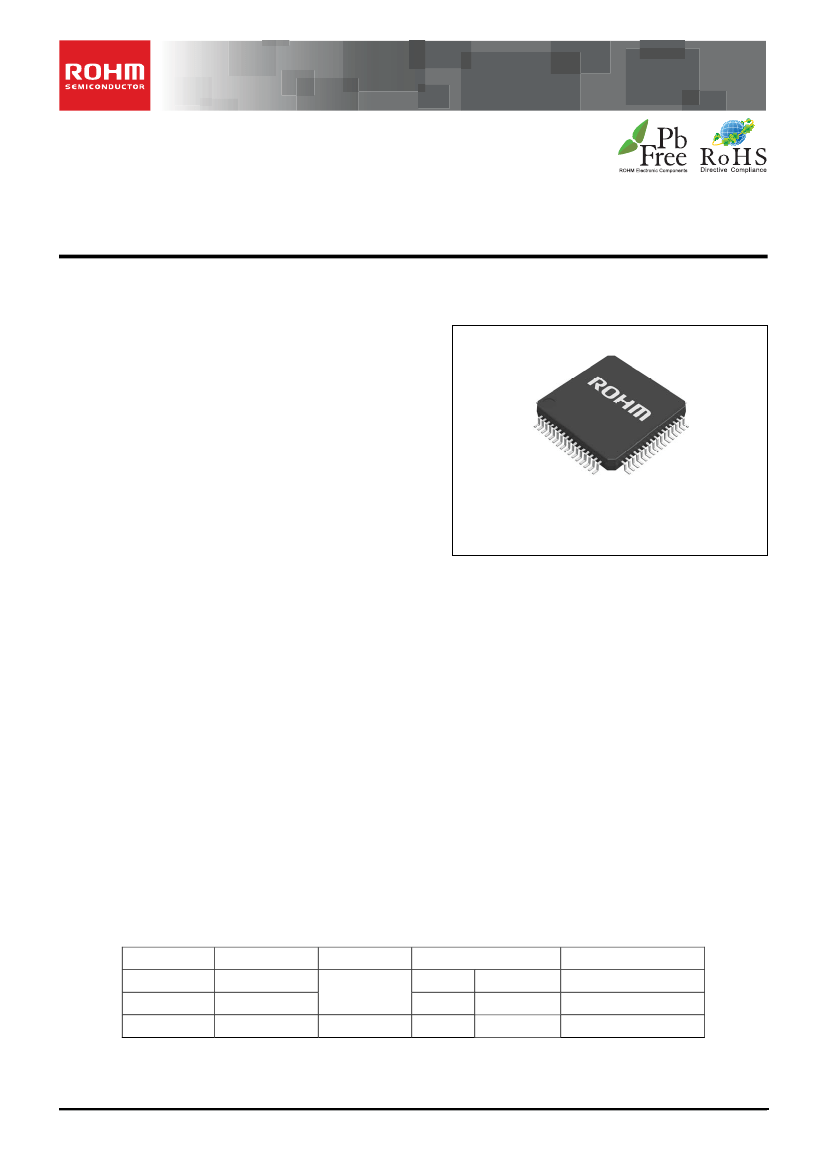

USB Audio Decoder LSI Series

AAC/WMA/MP3

+SD Memory Card + iPod

BU94601KV BU94603KV

BU94604BKV

●Package

W(Typ.) x D(Typ.) x H(Max.)

●Description

BU94601KV / BU94603KV / BU94604BKV are AAC+

WMA + MP3 decoder IC which contains USB host, SD

card I/F, audio DAC, system controller, and regulator for

internal CORE power supply.

●Features

USB2.0 Full Speed host I/F function contained.

Protocol conversion from I

C to USB HID or from

USB HID to I

C. (Only BU94604BKV)

SD card I/F function contained.

C I/F function contained.

FAT analysis function contained.

MP3 decode function contained. (available for

MPEG1, 2 and 2.5, Layer 1, 2 and 3)

WMA decode function contained.

(Except BU94601KV)

Available for WMA9 standard and not available for

DRM

AAC decode function contained.

(Except BU94601KV)

Available for MPEG4 AAC-LC and not available for

DRM

Sample Rate Converter contained.

System Controller contained.

LED Controller contained.

KEY matrix Controller contained.

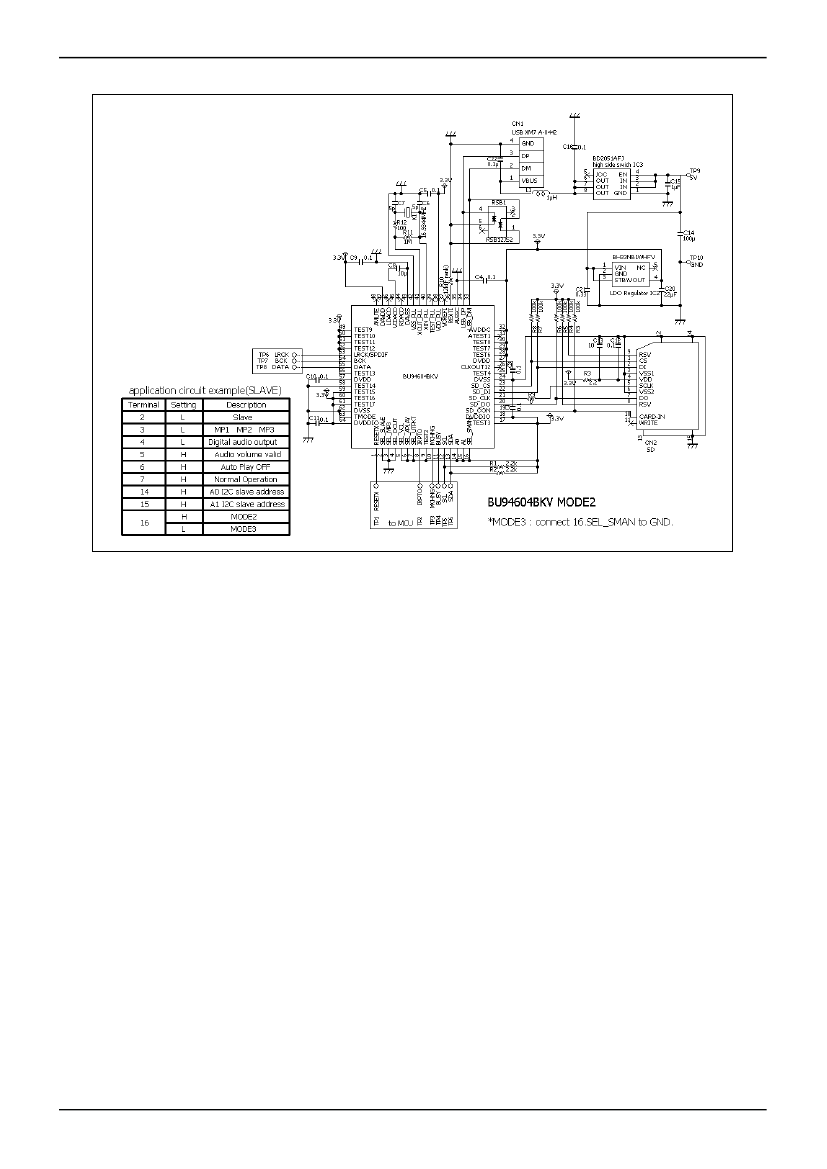

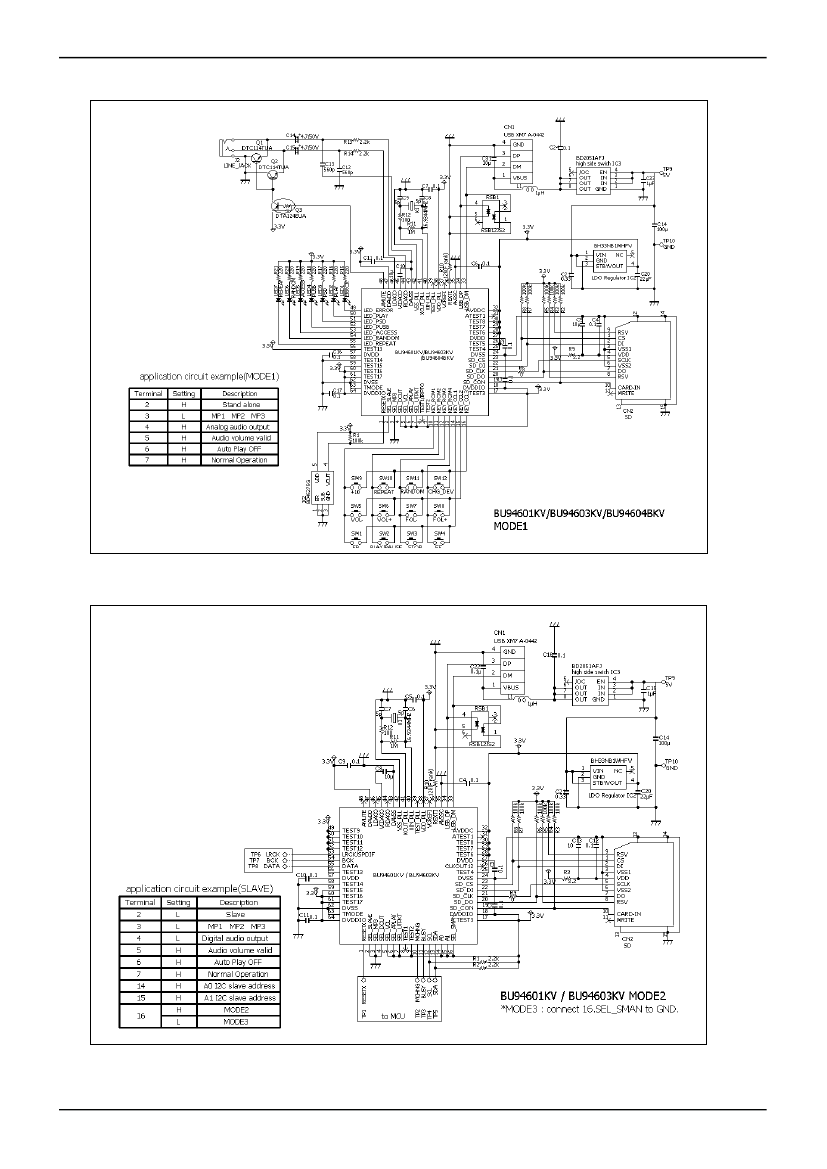

Stand Alone mode contained.

External processor can control. (Slave mode)

Audio DAC contained.

Sound Effect function contained.

Digital Audio Output(I

S, S/PDIF) function contained.

File Name, Folder Name Sorting.

ID3TAG and WMATAG and AACTAG Analysis.

Reading a specified file data is possible from USB

memory.

LUN is selectable.

Regulator for internal CORE power supply

contained.

VQFP64pin(0.5mm pitch)

●Applications

Audio products, etc

●Line

Part number

BU94601KV

BU94603KV

BU94604BKV

Format

MP3

AAC/WMA/MP3

iPod

Not supported

Supported

Package

VQFP64

Reel of 2000

Ordering part number

BU94601KV-ZAE2

BU94603KV-ZAE2

BU94604BKV-ZAE2

VQFP64

12.00mm x 12.00mm x 1.60mm

○Product

structure：

Silicon Monolithic integrated circuit

www.rohm.com

1/66

TSZ22111・14・001

○

Radiation resistance design is not arranged

TSZ02201-0V2V0E600010-1-2

2012.07.12 Rev.001

BU94603KV-E2 Related Products

	BU94603KV-E2	BU94601KV-E2
Description	Interface - CODECs USB HOST MP3 DECODER	Interface - CODECs USB HOST MP3 DECODER
Is it Rohs certified?	conform to	conform to
package instruction	LFQFP,	0.50 MM PITCH, ROHS COMPLIANT, VQFP-64
Reach Compliance Code	compliant	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G64	S-PQFP-G64
length	10 mm	10 mm
Number of functions	1	1
Number of terminals	64	64
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260
Maximum seat height	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	10
width	10 mm	10 mm
