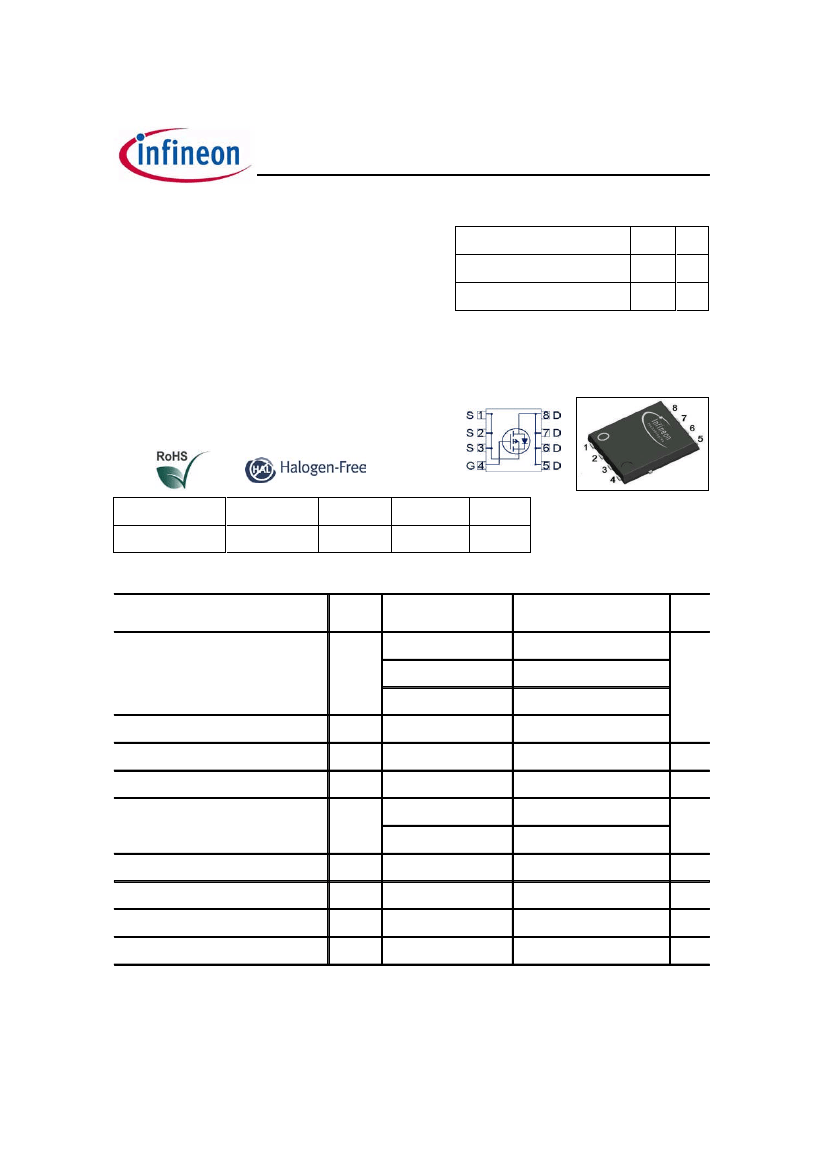

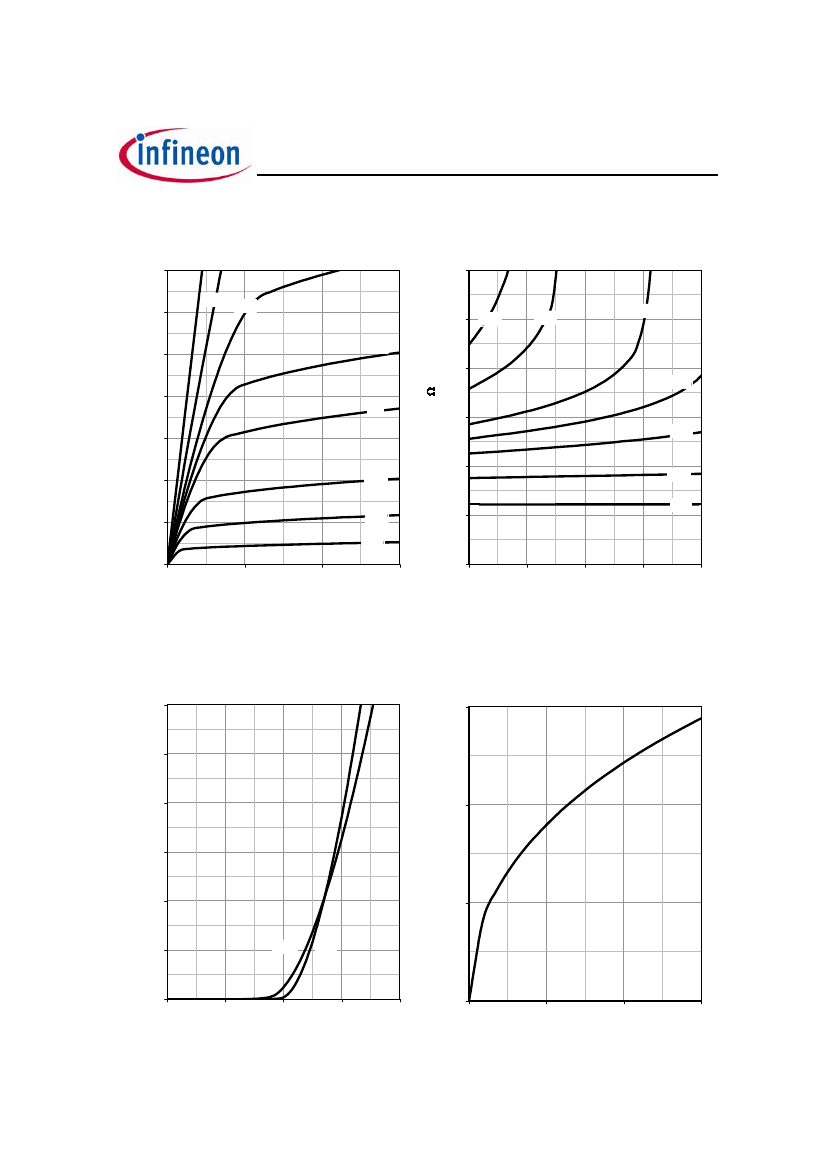

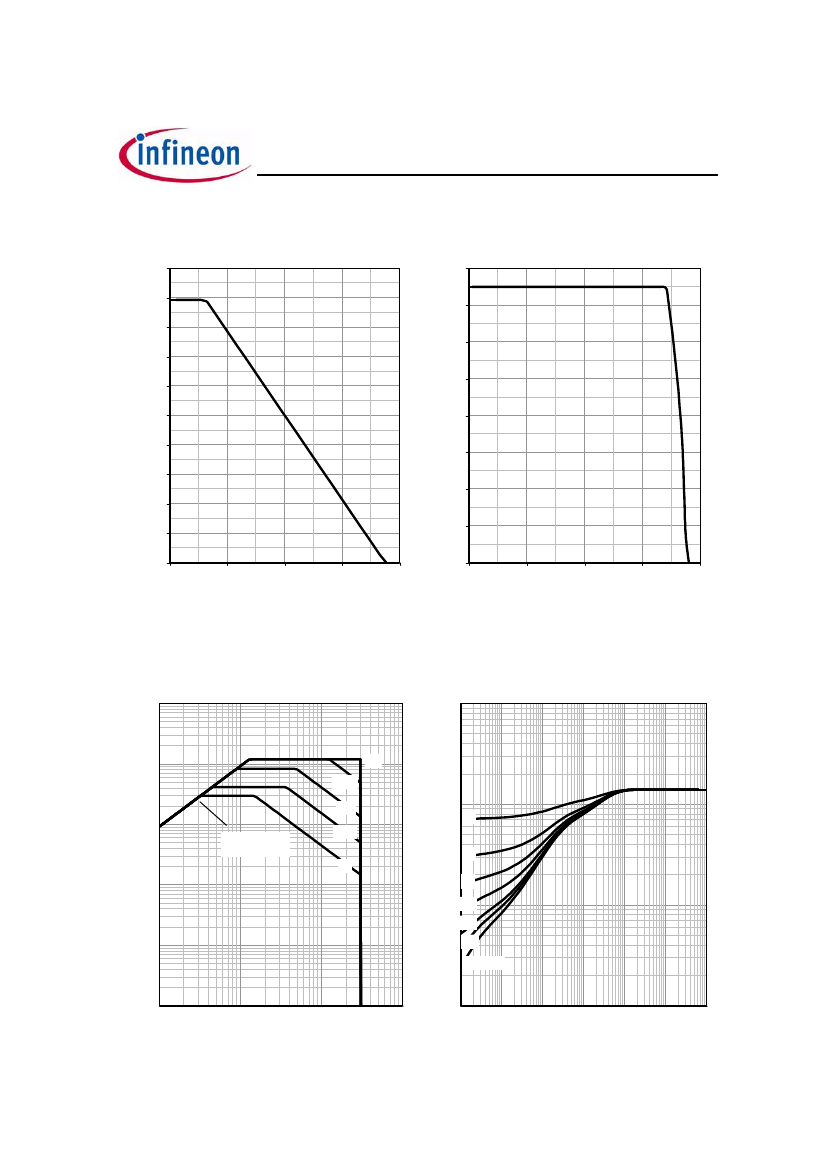

MOSFET SMALL SIGNAL+P-CH
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | conform to |
| Maker | Infineon |
| package instruction | SMALL OUTLINE, R-PDSO-F5 |
| Contacts | 8 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 26 weeks |
| Is Samacsys | N |
| Other features | AVALANCHE RATED, LOGIC LEVEL COMPATIBLE |
| Avalanche Energy Efficiency Rating (Eas) | 248 mJ |
| Shell connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 30 V |
| Maximum drain current (ID) | 16 A |
| Maximum drain-source on-resistance | 0.008 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| JESD-30 code | R-PDSO-F5 |
| JESD-609 code | e3 |
| Humidity sensitivity level | 3 |
| Number of components | 1 |
| Number of terminals | 5 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 175 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | P-CHANNEL |
| Maximum pulsed drain current (IDM) | 120 A |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal surface | Tin (Sn) |
| Terminal form | FLAT |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |

T @A6B D 8 D A6B D B
*
& , !
T
T
| BSC080P03LSGAUMA1 | BSC080P03LS G | |
|---|---|---|
| Description | MOSFET SMALL SIGNAL+P-CH | Drain-source voltage (Vdss): 30V Continuous drain current (Id) (at 25°C): 16A Gate-source threshold voltage: 2.2V @ 250uA Drain-source on-resistance: 8mΩ @ 30A, 10V Maximum power dissipation (Ta =25°C): 2.5W Type: P channel N channel, 30V, 16A, 8mΩ@10V |
