BD12KA5FP-E2

Description
HDMI, Displayport u0026 DVI Connectors .5MM RA SMT RCPT
CategoryPower/power management    The power supply circuit
File Size685KB，19 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BD12KA5FP-E2 Online Shopping

Suppliers Part Number Price MOQ In stock
BD12KA5FP-E2 - - View Buy Now

BD12KA5FP-E2 Overview

HDMI, Displayport u0026 DVI Connectors .5MM RA SMT RCPT

BD12KA5FP-E2 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerROHM Semiconductor
Parts packaging codeTO-252
package instructionTO-252, SMSIP3H,.38,90TB
Contacts4
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time9 weeks
Samacsys Description500mA Variable/Fixed Output LDO Regulators: ROHM\'s secondary LDO regulators were designed to maximize device characteristics and provide stable operation through low power consumption, increased miniaturization, and low noise. 500mA fixed output types are offered for local power supplies that feature an output voltage accuracy of ±1% with low saturation. A number of other models are also available in various package types and output voltages, enabling selection of the ideal solution for virtually any
AdjustabilityFIXED
Nominal dropback voltage 10.12 V
Maximum absolute input voltage7 V
Maximum input voltage5.5 V
Minimum input voltage2.3 V
JESD-30 codeR-PSSO-G3
length6.5 mm
Maximum load regulation0.075%
Number of functions1
Output times1
Number of terminals3
Working temperatureTJ-Max150 °C
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Maximum output current 10.5 A
Maximum output voltage 11.215 V
Minimum output voltage 11.185 V
Nominal output voltage 11.2 V
Package body materialPLASTIC/EPOXY
encapsulated codeTO-252
Encapsulate equivalent codeSMSIP3H,.38,90TB
Package shapeRECTANGULAR
Package formSMALL OUTLINE
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height2.5 mm
surface mountYES
technologyCMOS
Terminal formGULL WING
Terminal pitch2.3 mm
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance1.5%
width5.5 mm
Base Number Matches1

Preview

Download Datasheet
Datasheet

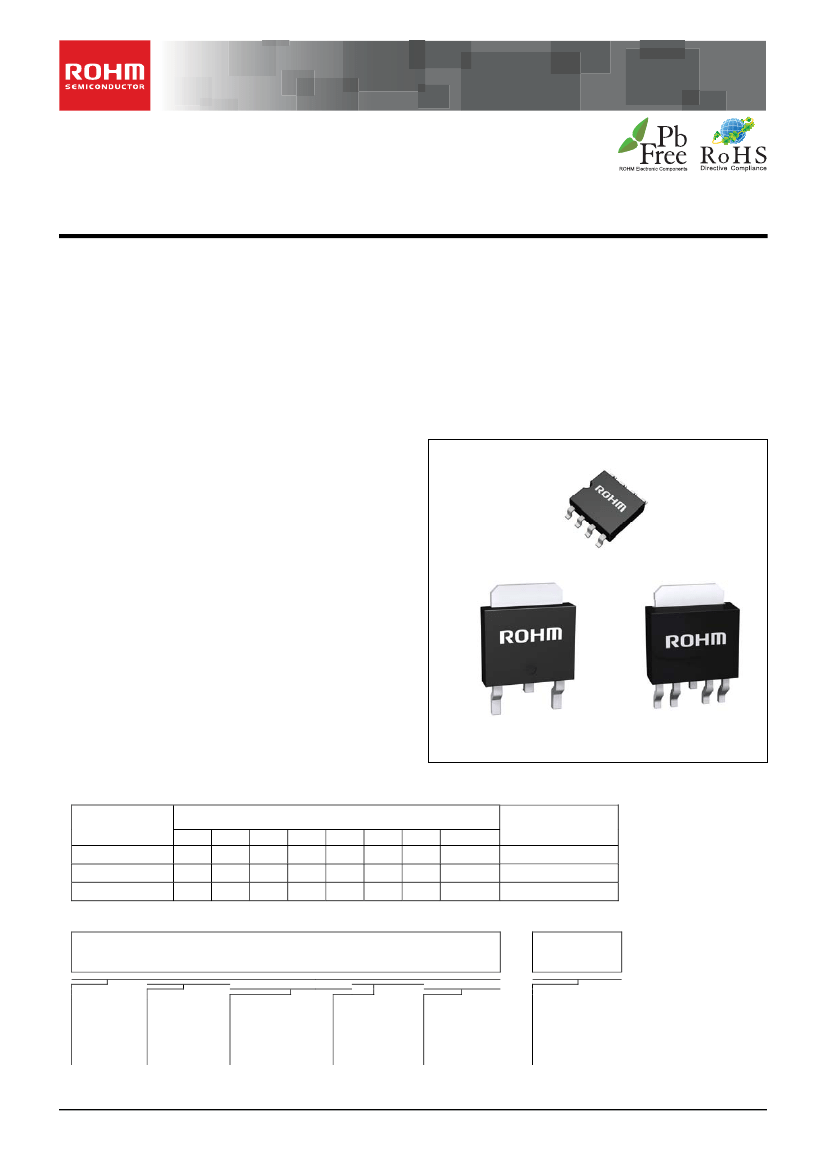

500mA Variable/Fixed Output
LDO Regulators
BDxxKA5 Series
BDxxKA5W Series
BD00KA5W Series
●General
Description
The BDxxKA5 series are low-saturation regulators that are available for output currents up to 500mA. The output voltage
precision is
±1%.
These LDO regulators are offered in several output voltages and package lineups with or without
ON/OFF switches (that set the circuit current to 0μA at shutdown). This series can be used for a broad spectrum of
applications ranging from TVs and car audio systems to HDDs, PCs, and DVDs. There regulators have a built-in
overcurrent protection circuit that prevents the destruction of the IC, due to output short circuits and a thermal shutdown
circuit.
●Features
Output voltage precision: ±1%
Low-saturation voltage with PMOS output: 0.12V
Typ.(Io=200mA)
Built-in over-current protection circuit
Built-in thermal shutdown circuit
Shutdown switch (BDxxKA5WFP and BDxxKA5WF
series)
Ceramic capacitor compatible (recommended
capacitance: 1μF or greater)
●Key
Specifications
Input Power Supply Voltage:
Output voltage type: BA00KA5
BAxxKA5
Output current:
Operating temperature range:
5.5V (Max.)
Variable
Fixed
500mA (Max.)
-40℃ to +105℃
●Packages
SOP8
TO252-3
TO252-5
W (Typ.) x D (Typ.) x H (Max.)
5.00mm x 6.20mm x 1.71mm
6.50mm x 9.50mm x 2.50mm
6.50mm x 9.50mm x 2.50mm
SOP8
●Applications
Microcontrollers and all electronic devices that use
logic circuit
TO252-3
TO252-5
●Lineup
matrix
Part Number
BDxxKA5WFP
BDxxKA5WF
BDxxKA5FP
1.0
○
○
○
1.2
○
○
○
1.5
○
○
○
Output Voltage (V)
1.8
○
○
○
2.5
○
○
○
3.0
○
○
○
3.3
○
○
○
Variable
○
○
-
Package
TO252-5
SOP8
TO252-3
●Ordering
Information
B
D
x
x
K
A
5
W
x
x
-
E2
Packaging and forming specification
E2: Embossed tape and reel
Part Number
Output voltage
Current capacity
Shutdown Switch Package
W: Include
KA5: 500mA
00:Variable
Other: Fixed
None:without
FP : TO252-3
TO252-5
F : SOP8

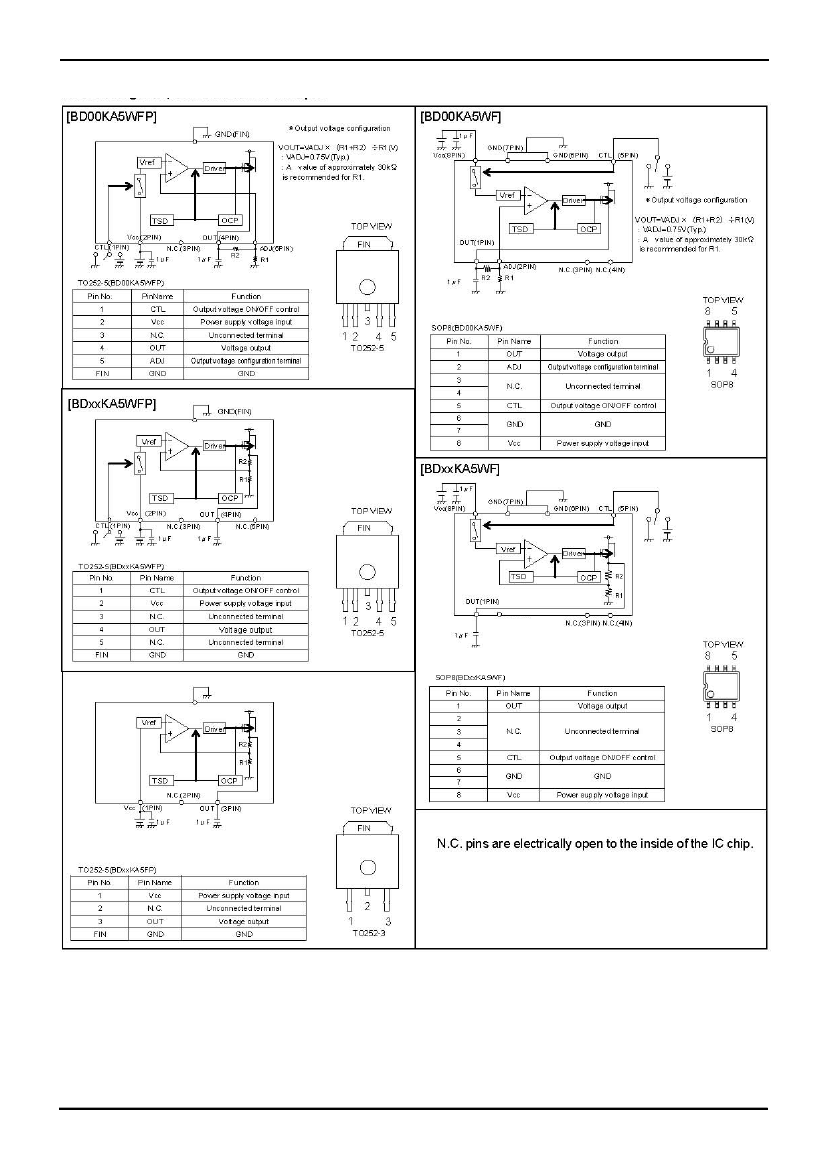

○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product is not designed protection against radioactive rays.
1/15
TSZ02201-0R6R0A600150-1-2
26.Jun.2012 Rev.001
