BD450M5WFP2-CZE2 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> BD450M5WFP2-CZE2

BD450M5WFP2-CZE2: DescriptionHDMI, Displayport u0026 DVI Connectors .5MM RA SMT RCPT; CategoryPower/power management The power supply circuit; File Size2MB，39 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BD450M5WFP2-CZE2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD450M5WFP2-CZE2	-	-	View	Buy Now

BD450M5WFP2-CZE2 Overview

HDMI, Displayport u0026 DVI Connectors .5MM RA SMT RCPT

BD450M5WFP2-CZE2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	TO263 5 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum drop-back voltage 1	0.5 V
Maximum input voltage	42 V
Minimum input voltage	5.9 V
JESD-30 code	R-PSSO-G5
length	10.16 mm
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.5 A
Maximum output voltage 1	5.1 V
Minimum output voltage 1	4.8 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Filter level	AEC-Q100
Maximum seat height	4.95 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.7 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	9.15 mm

Preview

Download Datasheet

View All

Datasheet

500-mA 3.3-V or 5.0-V Output

LDO Regulators

BD4xxM5-C Series

●General

Description

The BD4xxM5 series are low quiescent regulators

featuring 45 V absolute maximum voltage, and output

voltage accuracy of ±2 % (3.3 V or 5 V: Typ.), 500 mA

output current and 38

μA

(Typ.) current consumption.

These regulators are therefore ideal for applications

requiring a direct connection to the battery and a low

current consumption.

A logical “HIGH” at the CTL enables the device and

“LOW” at the CTL disables the device.

(Only W: Includes Enable Input).

Ceramic capacitors can be used for compensation of the

output capacitor phase. Furthermore, these ICs also

feature overcurrent protection to protect the device from

damage caused by short-circuiting and an integrated

thermal shutdown to protect the device from overheating

at overload conditions.

●Package

W (Typ.) × D (Typ.) × H (Max.)

■

FP2: TO263-5

(Note3)

10.16 mm × 15.10 mm × 4.70 mm

●Features



Qualified for Automotive Applications

Wide Temperature Range (Tj):

-40 °C to +150 °C

Wide Operating Input Range:

3.0 V to 42 V

Low Quiescent Current:

μA

(Typ.)

Output Current:

500 mA

High Output Voltage Accuracy:

±2 %

Output Voltage:

3.3 V or 5.0 V (Typ.)

Enable Input (Only W)

Overload Current Protection (OCP)

Thermal Shutdown Protection (TSD)

AEC-Q100 Qualified

(Note1)

(Note1:Grade1)

■

FPJ: TO252-J5

(Note2)

6.60 mm × 10.10 mm × 2.38 mm

(Note2: TO252-J5 & TO252-J5F)

(Note3: TO263-5 & TO263-5F)

■

FP: TO252-3

6.50 mm × 9.50 mm × 2.50 mm

■

FP2: TO263-3

(Note4)

10.16 mm × 15.10 mm × 4.70 mm

(Note4: TO263-3 & TO263-3F)

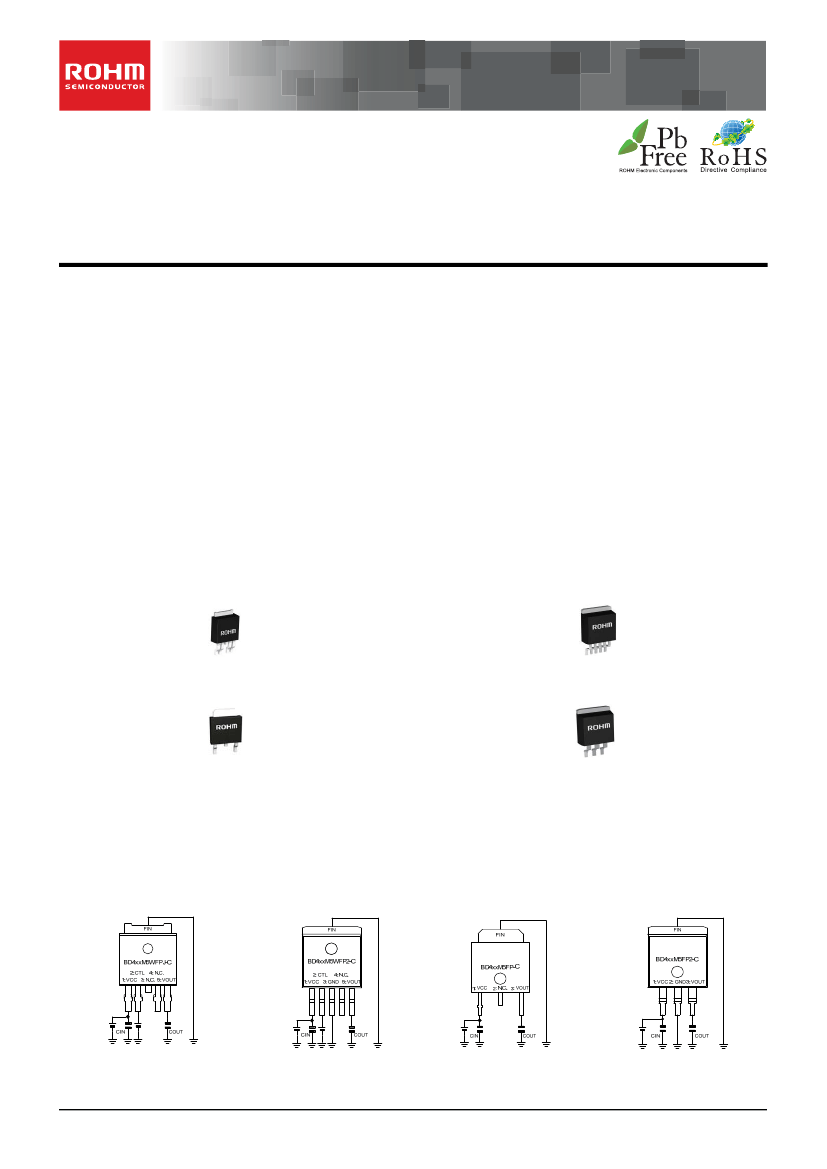

Figure 1. Package Outlook

●Applications

■

Automotive (body, audio system, navigation system, etc.)

●Typical

Application Circuits

■

Components Externally Connected: 0.1 µF

≤

CIN, 10 µF

≤

COUT (Typ.)

* Electrolytic, tantalum and ceramic capacitors can be used.

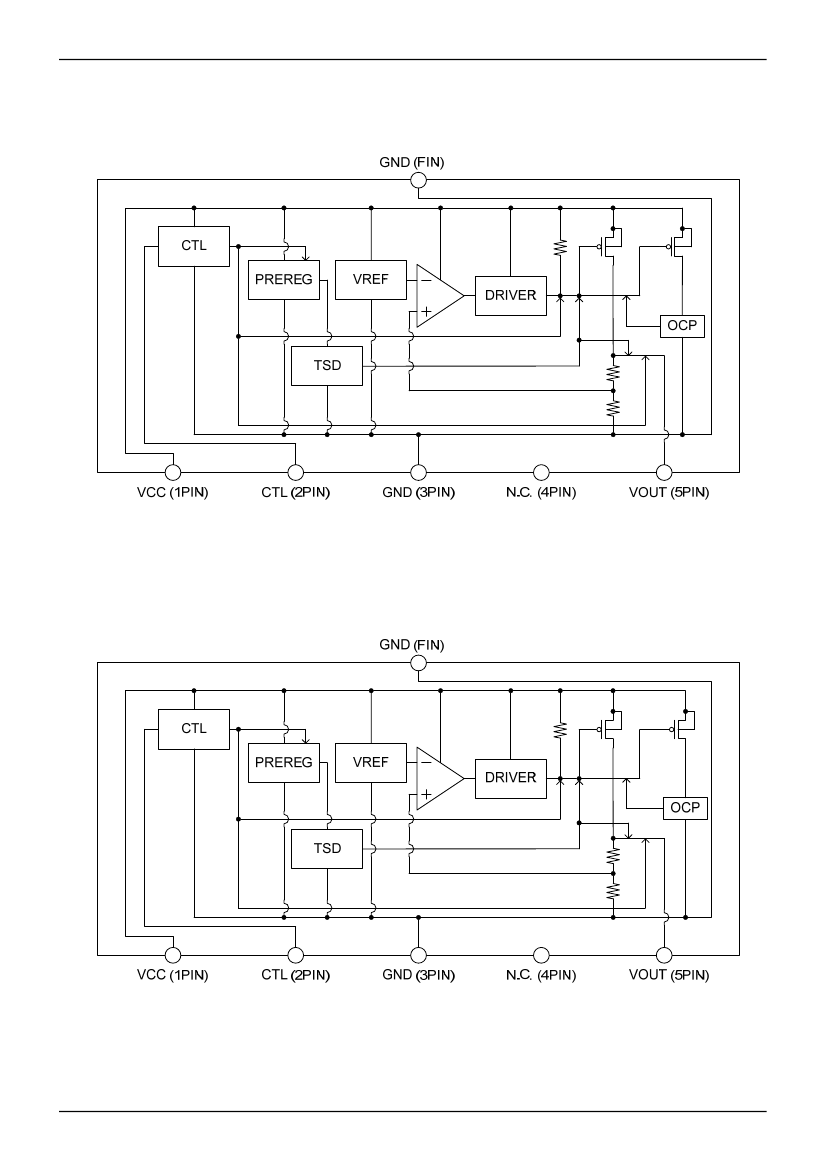

BD433 / 450M5WFPJ-C

BD433 / 450M5WFP2-C

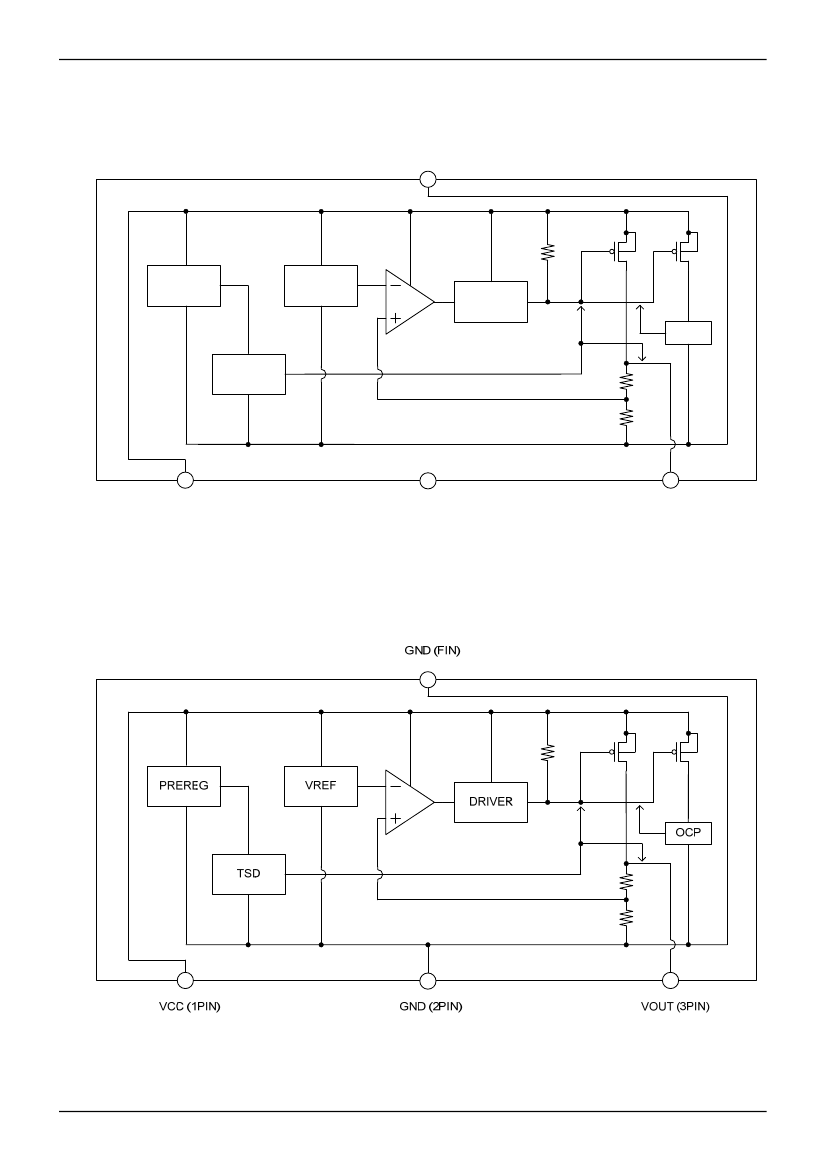

BD433 / 450M5FP-C

Figure 2. Typical Application Circuits

BD433 / 450M5FP2-C

◯Product

structure: Silicon Monolithic Integrated Circuit

◯This

product is not designed protection against radioactive rays.

www.rohm.com

TSZ02201-0G1G0AN00066-1-2

1/36

TSZ22111½14½001

22.Feb.2017 Rev.006
