XC6415
Series
Dual LDO Regulator with ON/OFF Switch
ETR0332-008
■GENERAL
DESCRIPTION
The XC6415 series is a highly accurate, CMOS Dual LDO voltage regulator. Performance features include low output noise,
high ripple rejection rate, and low dropout. Extremely dense power supply circuit can be organized with a 2 channeled high
speed voltage regulator in low ON resistance which is built-in to an ultra small USP-6C package. The output voltage for each
regulator is set independently by laser trimming and selectable in 0.05V increments within a range of 0.8 to 5.0V. The EN
function allows the output of each regulator to be turned off independently. In this state, the electric charge at the output
capacitor (C
L
) will be discharged via the internal auto-discharge switch, and as a result the V
OUT
pin quickly returns to the V
SS
level. The output stabilization capacitor (C
L
) is also compatible with low ESR ceramic capacitors. The high level of output
stability is maintained even during frequent load fluctuations, due to the excellent transient response performance. Because
regulator 1 and 2 are completely isolated, a cross talk between each channel, which causes a problem during load fluctuations,
can be greatly reduced.
■APPLICATIONS
●
Smart phones / Mobile phones
●
Portable game consoles
●
Digital still cameras / camcorders
●
Digital audio equipment
●
Mobile devices / terminals
■FEATURES
Output Current
Dropout Voltage
Operating Voltage Range
Output Voltage Range
High Accuracy
: 200mA (300mA limit, TYP.)
: 95mV @ I
OUT
=100mA
V
OUT
=3.0V
: 1.5V~6.0V
: 0.8V~5.0V
(0.05V increments)
: + 1% @ V
OUT
>2.0V
+ 2% @ V
OUT
≧1.5V
+ 20mV @V
OUT
<2.0V
+ 30mV @V
OUT
＜1.5V
: 28μA/ch (TYP.)
: Less than 0.1μA
: 65dB@1kHz
: - 40
O
C ~ 85
O
C
: 1.0μF ceramic capacitors
: USP-6C, SOT-26, USPN-6
: EU RoHS Compliant, Pb Free
Low Power Consumption
Stand-by Current
Ripple Rejection
Operating Ambient Temperature
Low ESR Capacitor
Packages
Environmentally Friendly
■TYPICAL
APPLICATION CIRCUITS
6
1
2
3
■TYPICAL
PERFORMANCE
CHARACTERISTICS
●
Cross Talk
XC6415(V
OUT1
=3.3V, V
OUT2
=2.5V)
V
IN
=4.3V, tr=tf=5μS, Ta=25℃
I
OUT2
=0.1→50mA, C
IN
=C
L1
=C
L2
=1.0μF(ceramic)
Output Voltage(VR1) : V
OUT
(V)
3.35
Output Voltage(VR1 : 10mA)
200
150
100
50
0
Time (200uS/div)
3.30
3.25
3.20
3.15
Output Current
（VR2 : 0.1mA→50mA)
Output Current(VR2) : I
OUT
(mA)
5
3.40
4
250
1/24
XC6415
Series
■PIN
CONFIGURATION
V
OUT1
V
SS
V
OUT2
6
5
4
V
OUT2
6
V
OUT1
5
V
SS
4
1
EN1
1 EN2
2 V
IN
3 EN1
V
OUT2
6
V
OUT1
5
V
SS
4
1 EN2
2 V
IN
3 EN1
2
V
IN
3
EN2
SOT-26
(TOP VIEW)
(TOP VIEW)
SOT-26
USP-6C *
(BOTTOM VIEW)
(BOTTOM VIEW)
USP-6C *
USPN-6
(BOTTOM VIEW)
(BOTTOM VIEW)
USPN-6
*The dissipation pad for the USP-6C package should be solder-plated in recommended mount
pattern and metal masking so as to enhance mounting strength and heat release.
to be connected to other pins, if should be connected to the V
SS
(No. 4) pin.
If the pad needs
■PIN
ASSIGNMENT
PIN NUMBER
SOT-26
1
2
3
4
5
6
USP-6C
3
2
1
6
4
5
USPN-6
3
2
1
6
4
5
PIN NAME
EN1
V
IN
EN2
V
OUT2
V
SS
V
OUT1
FUNCTIONS
ON/OFF Control 1
Power Input
ON/OFF Control 2
Output 2
Ground
Output 1
2/24
XC6415
Series
■PRODUCT
CLASSIFICATION
●Ordering
Information
XC6415①②③④⑤⑥-⑦
DESIGNATOR
DESCRIPTION
SYMBOL
A
B
C
D
E
F
G
H
A
B
C
D
E
F
G
H
-
MR-G
MR
ER-G
ER
7R-G
DESCRIPTON
(without EN1 pulled down resistor) (Accuracy 1%) (without C
L
discharge)
(without EN1 pulled down resistor) (Accuracy 1%) (with C
L
discharge)
(without EN1 pulled down resistor) (Accuracy 2%) (without C
L
discharge)
(without EN1 pulled down resistor) (Accuracy 2%) (with C
L
discharge)
(with EN1 pulled down resistor) (Accuracy 1%) (without C
L
discharge)
(with EN1 pulled down resistor) (Accuracy 1%) (with C
L
discharge)
(with EN1 pulled down resistor) (Accuracy 2%) (without C
L
discharge)
(with EN1 pulled down resistor) (Accuracy 2%) (with C
L
discharge)
(without EN2 pulled down resistor) (Accuracy 1%) (without C
L
discharge)
(without EN2 pulled down resistor) (Accuracy 1%) (with C
L
discharge)
(without EN2 pulled down resistor) (Accuracy 2%) (without C
L
discharge)
(without EN2 pulled down resistor) (Accuracy 2%) (with C
L
discharge)
(with EN2 pulled down resistor) (Accuracy 1%) (without C
L
discharge)
(with EN2 pulled down resistor) (Accuracy 1%) (with C
L
discharge)
(with EN2 pulled down resistor) (Accuracy 2%) (without C
L
discharge)
(with EN2 pulled down resistor) (Accuracy 2%) (with C
L
discharge)
Refer to the table in the next page.
SOT-26 (3,000/Reel)
SOT-26 (3,000/Reel)
USP-6C (3,000/Reel)
USP-6C (3,000/Reel)
USPN-6 (5,000/Reel)
①
Type of Regulator 1
(All EN High Active)
②
Type of Regulator 2
(All EN High Active)
③④
Output Voltage
⑤⑥-⑦
(*1)
Packages
(Order Unit)
(*1)
The “-G” suffix indicates that the products are Halogen and Antimony free as well as being fully EU RoHS compliant.
3/24
XC6415
Series
■PRODUCT
CLASSIFICATION (Continued)
DESIGNATOR
③④
③④
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
VR1
1.80
1.20
1.80
1.50
2.85
1.80
3.00
2.80
1.20
1.10
1.30
2.80
2.50
3.00
1.20
2.80
3.30
3.10
2.80
1.30
1.50
1.80
1.85
1.85
2.60
1.50
2.00
3.30
3.30
2.10
1.20
1.50
1.50
1.50
1.50
2.00
3.30
2.50
1.80
1.20
VR2
2.80
2.90
1.80
2.70
2.85
3.30
3.00
1.80
1.20
1.30
1.50
2.80
3.30
3.30
1.80
3.30
3.30
3.10
1.50
2.80
2.80
3.00
2.80
3.30
2.80
1.50
3.00
1.80
1.75
4.10
2.80
1.80
3.00
3.30
2.60
2.50
4.50
2.50
2.50
2.50
③④
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
VR1
2.80
2.90
3.00
2.50
1.80
1.50
2.85
3.20
1.20
2.60
4.20
5.00
1.80
2.60
2.60
1.80
2.60
2.50
1.80
1.00
3.00
2.70
2.80
2.80
2.85
1.20
2.80
2.85
2.75
3.00
3.00
3.00
3.10
3.10
3.10
3.10
3.00
1.20
3.50
1.10
VR2
3.00
1.80
1.80
1.80
2.85
1.20
1.50
3.20
3.00
2.85
3.10
3.60
1.20
3.00
2.60
2.60
3.30
2.90
2.70
2.80
1.50
1.80
2.70
3.10
3.30
3.30
2.50
1.20
2.75
2.90
2.95
3.05
2.90
2.95
3.00
3.05
3.10
2.60
3.50
1.50
③④
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
C0
VR1
2.00
3.30
2.80
1.00
2.70
2.70
2.90
2.50
2.50
4.50
3.30
3.00
1.80
1.10
1.20
1.00
1.50
1.20
3.15
3.10
1.80
1.50
2.85
1.25
1.85
3.30
1.80
2.85
1.55
1.90
2.50
3.00
1.30
2.70
2.80
2.50
3.15
2.60
3.00
3.30
VR2
3.30
2.00
1.20
3.30
2.70
3.30
2.90
2.80
3.00
4.50
5.00
5.00
2.90
1.80
1.30
1.20
2.50
0.90
3.15
1.80
2.00
1.30
2.60
2.50
1.20
1.20
1.95
3.00
2.80
1.90
2.85
1.00
1.80
3.00
1.90
0.90
2.85
1.30
2.50
1.10
③④
C1
C2
C3
C4
C5
C6
C7
C8
C9
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
E0
E1
E2
VR1
3.30
1.85
1.50
1.80
1.00
3.10
3.00
1.30
1.50
3.30
1.00
1.80
3.60
3.00
4.50
2.00
3.30
3.20
3.40
3.10
2.50
3.40
VR2
2.50
2.85
2.90
3.20
2.50
2.80
3.60
3.00
2.40
3.60
2.85
1.85
1.50
2.80
2.60
1.80
3.10
3.10
3.10
2.50
3.10
3.40
*For other output voltage combinations, please contact your local Torex sales office or representative.
4/24
XC6415
Series

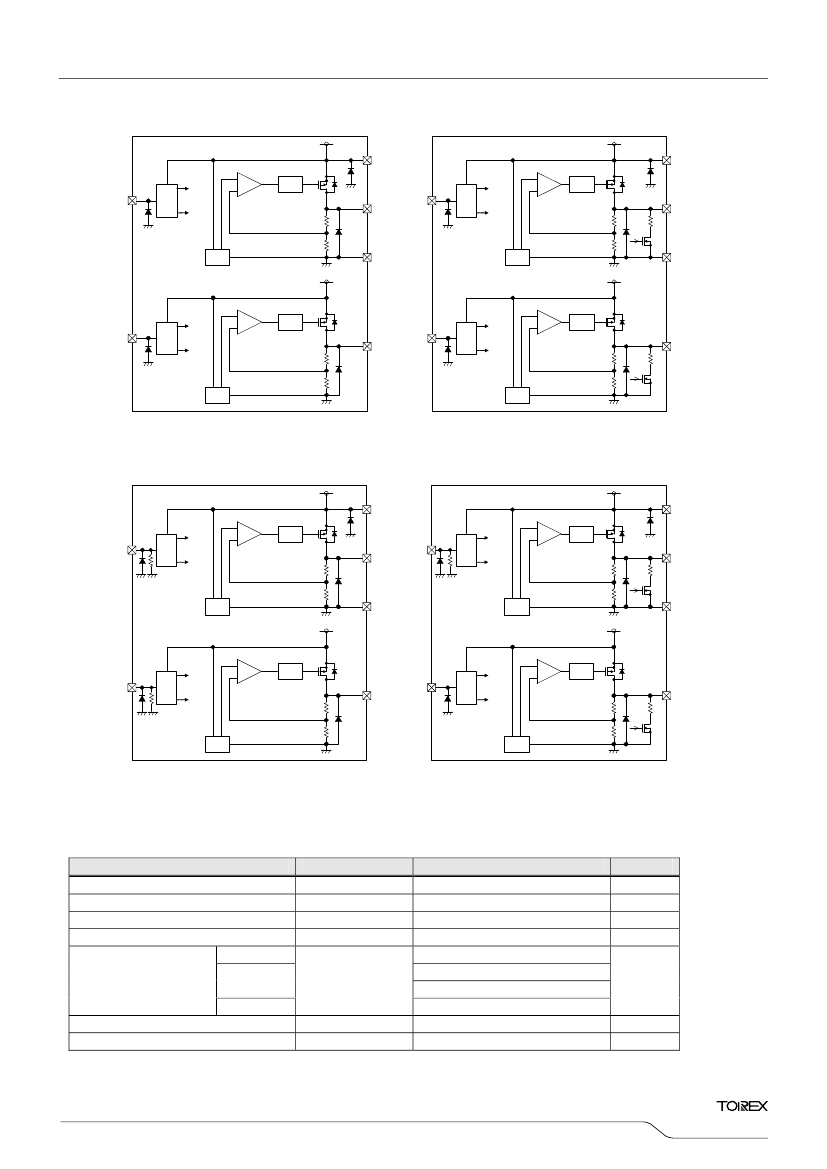

■BLOCK
DIAGRAMS
V
IN
-
EN1
V
IN
-
EN1
+
Error
Amp 1
Current
Limit
+
Error
Amp 1
Current
Limit
EN1
VR1
ON/OFF
Control
each
circuit
EN 1/
R11
EN1
V
OUT1
VR1
ON/OFF
Control
each
circuit
EN1/
R11
Rdischg
V
OUT1
R12
Voltage
Reference
R12
EN1/
V
SS
Voltage
Reference
V
SS
-
EN2
Error
Amp 2
Current
Limit
VR2
ON/OFF
Control
-
EN2
Error
Amp 2
Current
Limit
+
+
EN2
VR2
ON/OFF
Control
each
circuit
EN 2/
R21
EN2
V
OUT2
each
circuit
EN2/
R21
Rdischg
V
OUT2
R22
Voltage
Reference
Voltage
Reference
R22
EN2/
<XC6415AA, CC Series>
<XC6415BB, DD Series>
V
IN
-
EN1
V
IN
-
EN1
Error
Amp 1
Current
Limit
Error
Amp 1
Current
Limit
+
+
EN 1
VR1
ON/OFF
Control
each
circuit
EN 1/
R11
EN1
V
OUT1
VR1
ON/OFF
Control
each
circuit
EN1/
R11
Rdischg
V
OUT1
R12
Voltage
Reference
R12
EN1/
V
SS
Voltage
Reference
V
SS
-
EN2
Error
Amp 2
Current
Limit
VR2
ON/OFF
Control
-
EN2
Error
Amp 2
Current
Limit
+
+
EN 2
VR2
ON/OFF
Control
each
circuit
EN 2/
R21
EN2
V
OUT2
each
circuit
EN2/
R21
Rdischg
V
OUT2
R22
Voltage
Reference
Voltage
Reference
R22
EN2/
<XC6415EE, GG Series>
* Diodes inside the circuits are ESD protection diodes and parasitic diodes.
<XC6415FB, HD Series>
■ABSOLUTE
MAXIMUM RATINGS
PARAMETER
Input Voltage
Output Current
Output Voltage 1 / Output Voltage 2
EN1/EN2 Input Voltage
SOT-26
Power Dissipation
USP-6C
SYMBOL
V
IN
I
OUT1
+ I
OUT2
V
OUT1
/ V
OUT2
V
EN1
/ V
EN2
Pd
RATINGS
- 0.3 ~ + 6.5
500
(*1)
V
SS
- 0.3 ~ V
IN
+ 0.3
V
SS
- 0.3 ~ + 6.5
250
100
1000
（PCB
mounted）
(*2)
100
- 40 ~ + 85
- 55 ~ + 125
Ta=25
O
C
UNITS
V
mA
V
V
mW
℃
℃
USPN-6
Operating Ambient Temperature
Storage Temperature
Topr
Tstg
*1: Please use within the range of Pd > { (V
IN
-V
OUT1
)×I
OUT1
+ (V
IN
-V
OUT2
)×I
OUT2
}
*2: The power dissipation figure shown is PCB mounted. Please refer to page 21 for details.
5/24
Integrated technical exchanges
京公网安备 11010802033920号
EEWORLD
