DTB123YUT106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> DTB123YUT106

DTB123YUT106: DescriptionTactile Switches Top Actuated w/o boss w/o ground; CategoryDiscrete semiconductor The transistor; File Size850KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

DTB123YUT106 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTB123YUT106	-	-	View	Buy Now

DTB123YUT106 Overview

Tactile Switches Top Actuated w/o boss w/o ground

DTB123YUT106 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SC-70
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Is Samacsys	N
Other features	BUILT-IN BIAS RESISTOR RATIO IS 4.5
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	82
JESD-30 code	R-PDSO-G3
JESD-609 code	e1
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN SILVER COPPER
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

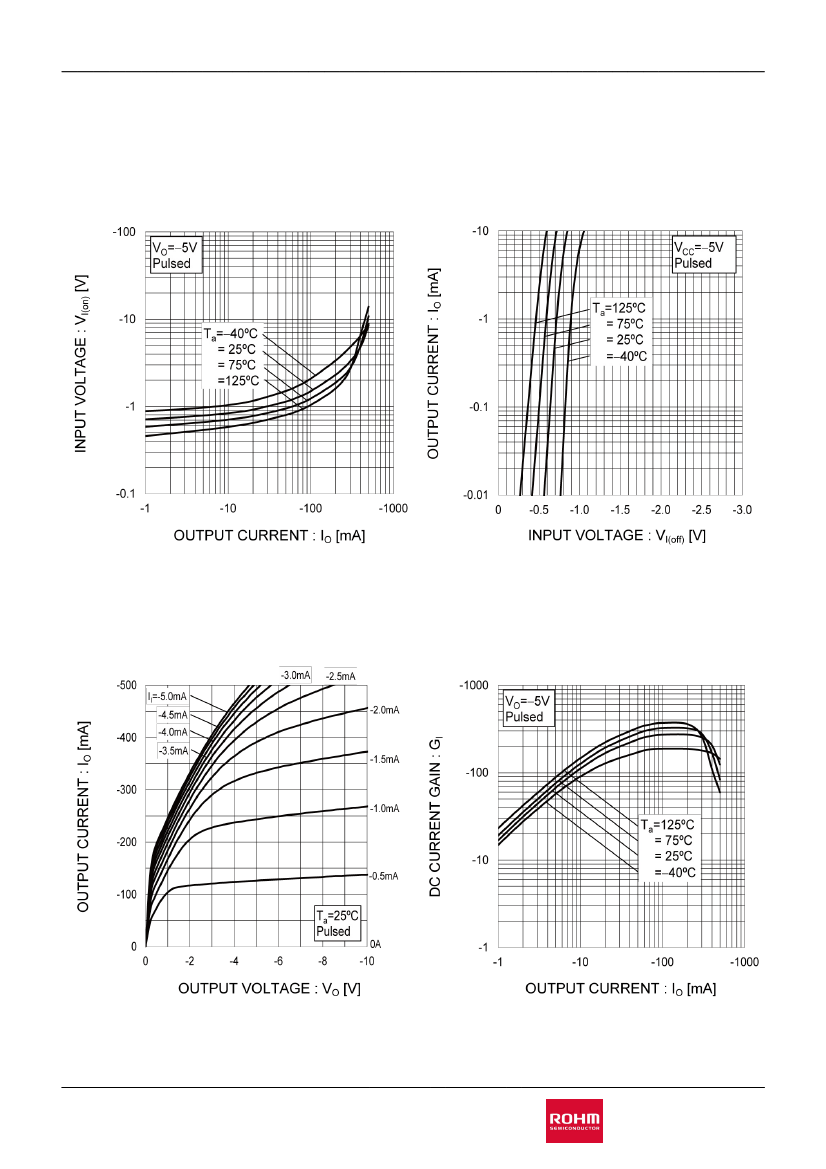

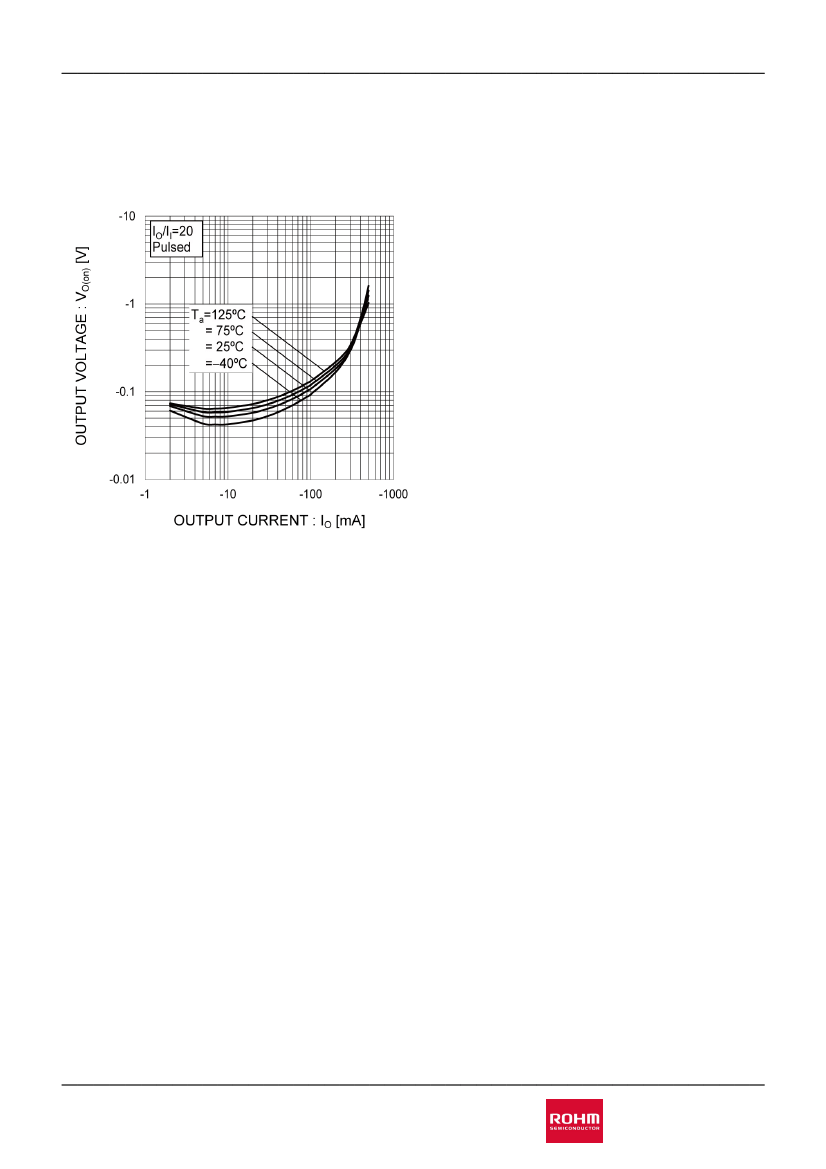

Preview

Download Datasheet

View All

DTB123YU

-500mA/-50V Digital transistor (with built-in resistors)

Datasheet

Outline

Parameter

Features

Value

-50V

-500mA

2.2kΩ

10kΩ

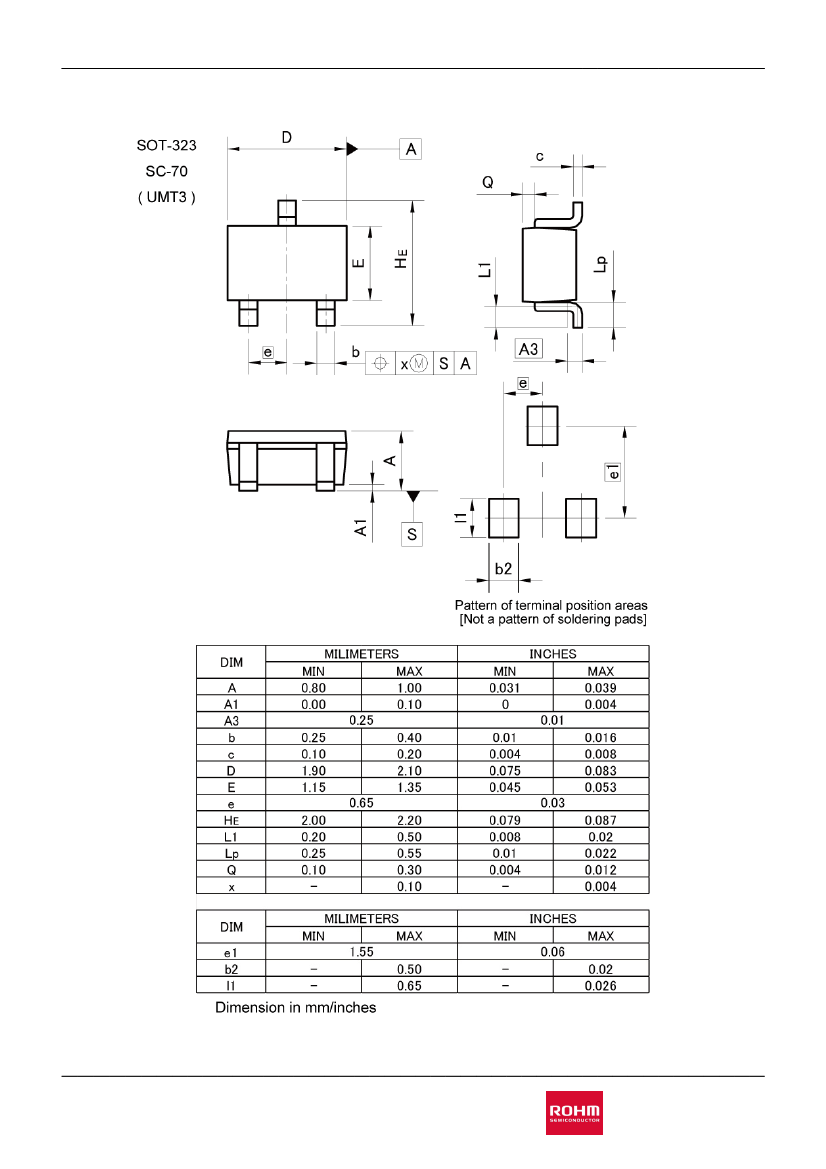

SOT-323

SC-70

(UMT3)

Inner circuit

1)Built-in bias resistors enable the configuration

of an inverter circuit without connecting

external input resistors.(see equivalent circuit)

2)The bias resistors consist of thin-film resistors

with complete isolation to allow positive

biasing of the input. They also have the advantage

of almost completely eliminating parasitic effects.

3)Only the on/off conditions need to be set for

operation, making the device desigh easy.

Application

INVERTER, INTERFACE, DRIVER

Packaging specifications

Part No.

Package

SOT-323

(UMT3)

Package

size

2021

Taping

code

T106

Reel size Tape width

(mm)

180

Basic

ordering

unit.(pcs)

3000

Marking

DTB123YU

F52

www.rohm.com

1/5

20150911 - Rev.002
