70V3569S5BF8

Description
SRAM 16K X 36 SYNCH DPRAM
Categorystorage
File Size182KB,17 Pages
ManufacturerIDT (Integrated Device Technology, Inc.)
Websitehttp://www.idt.com/
Download Datasheet Parametric Compare View All

70V3569S5BF8 Online Shopping

Suppliers Part Number Price MOQ In stock
70V3569S5BF8 - - View Buy Now

70V3569S5BF8 Overview

SRAM 16K X 36 SYNCH DPRAM

70V3569S5BF8 Parametric

Parameter NameAttribute value
Product CategorySRAM
ManufacturerIDT (Integrated Device Technology, Inc.)
RoHSNo
Memory Size576 kbit
Organization16 k x 36
Access Time5 ns
Maximum Clock Frequency133 MHz
Interface TypeParallel
Supply Voltage - Max3.45 V
Supply Voltage - Min3.15 V
Supply Current - Max360 mA
Minimum Operating Temperature0 C
Maximum Operating Temperature+ 70 C
Mounting StyleSMD/SMT
Package / CaseCABGA-208
PackagingReel
Height1.4 mm
Length15 mm
Memory TypeSDR
Moisture SensitiveYes
Factory Pack Quantity1000
TypeSynchronous
Width15 mm
HIGH-SPEED 3.3V 16K x 36
SYNCHRONOUS PIPELINED
DUAL-PORT STATIC RAM
WITH 3.3V OR 2.5V INTERFACE
Features:
IDT70V3569S
True Dual-Port memory cells which allow simultaneous
access of the same memory location
High-speed clock to data access
– Commercial: 4.2/5/6ns (max.)
– Industrial: 5ns (max)
Pipelined output mode
Counter enable and reset features
Dual chip enables allow for depth expansion without
additional logic
Full synchronous operation on both ports
– 7.5ns cycle time, 133MHz operation (9.6 Gbps bandwidth)
– Fast 4.2ns clock to data out
– 1.8ns setup to clock and 0.7ns hold on all control, data, and
address inputs @ 133MHz
– Data input, address, byte enable and control registers
– Self-timed write allows fast cycle time
Separate byte controls for multiplexed bus and bus
matching compatibility
LVTTL- compatible, single 3.3V (±150mV) power supply for
core
LVTTL- compatible, selectable 3.3V (±150mV)/2.5V (±125mV)
power supply for I/Os and control signals on each port
Industrial temperature range (-40°C to +85°C) is
available for selected speeds
Available in a 208-pin Plastic Quad Flatpack (PQFP),
208-ball fine-pitch Ball Grid Array, and 256-pin Ball
Grid Array
Green parts availble, see ordering instructions

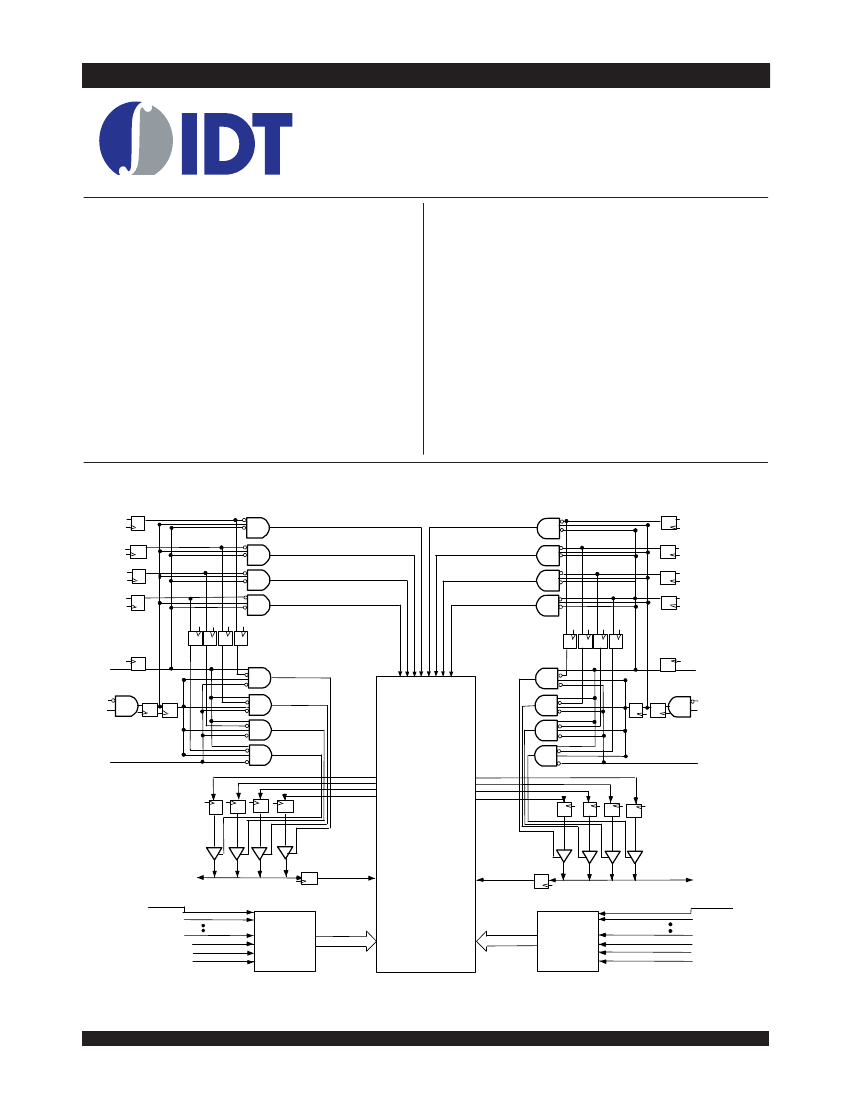

Functional Block Diagram
BE
3L
BE
3R
BE
2L
BE
1L
BE
0L
BE
2R
BE
1R
BE
0R
R/W
L
B
W
0
L
B
W
1
L
B
W
2
L
B B
WW
3 3
L R
BB
WW
2 1
RR
B
W
0
R
R/W
R
CE
0L
CE
1L
CE
0R
CE
1R
OE
L
Dout0-8_L
Dout9-17_L
Dout18-26_L
Dout27-35_L
Dout0-8_R
Dout9-17_R
Dout18-26_R
Dout27-35_R
OE
R
16K x 36
MEMORY
ARRAY
I/O
0L
- I/O
35L
Din_L
Din_R
I/O
0R
- I/O
35R
CLK
L
A
13L
A
0L
CNTRST
L
ADS
L
CNTEN
L
CLK
R
,
Counter/
Address
Reg.
A
13R
ADDR_L
ADDR_R
Counter/
Address
Reg.
A
0R
CNTRST
R
ADS
R
CNTEN
R
4831 tbl 01
OCTOBER 2014
1
©2014 Integrated Device Technology, Inc.
DSC 4831/13
