Data Sheet
3-TERMINAL POSITIVE LINEAR REGULATOR
General Description
The AZ78LXX series are three terminal positive regu-
lators with several fixed output voltages. These regula-
tors can provide local on card regulation, eliminating
the distribution problems associated with single point
regulation. The AZ78LXX can be used in logic sys-
tems, instrumentation, HiFi, and other solid state elec-
tronic equipment. When used as a Zener diode/resistor
combination replacement, the AZ78LXX usually
results an effective output impedance improvement of
two orders of magnitude, and lower quiescent current.
With adequate heat sinking the AZ78LXX can deliver
100mA output current. Current limiting is included to
limit the peak output current to a safe value. Thermal
protection is also provided. If internal power
dissipation becomes too high for the heat sinking
provided, the thermal shutdown circuit takes over
preventing the IC from overheating.
The AZ78LXX are available in the plastic TO-92
(bulk or ammo packing), SOT-223 and SOT-89 pack-
ages.
AZ78LXX
Features
·
·
·
·
·
·
Output Current up to 100mA
Fixed Output Voltages of 5V, 8V, 9V and 12V
Output Voltage Tolerances of
±5%
over the Full
Temperature Range
Internal Short Circuit Current-limiting
Internal Thermal Overload Protection
No External Components
Applications
·
·
·
·
High Efficiency Linear Regulator
Post Regulation for Switching Supply
Microprocessor Power Supply
Mother Board I/O Power Supply
TO-92(Bulk Packing)
TO-92(Ammo Packing)
SOT-223
SOT-89

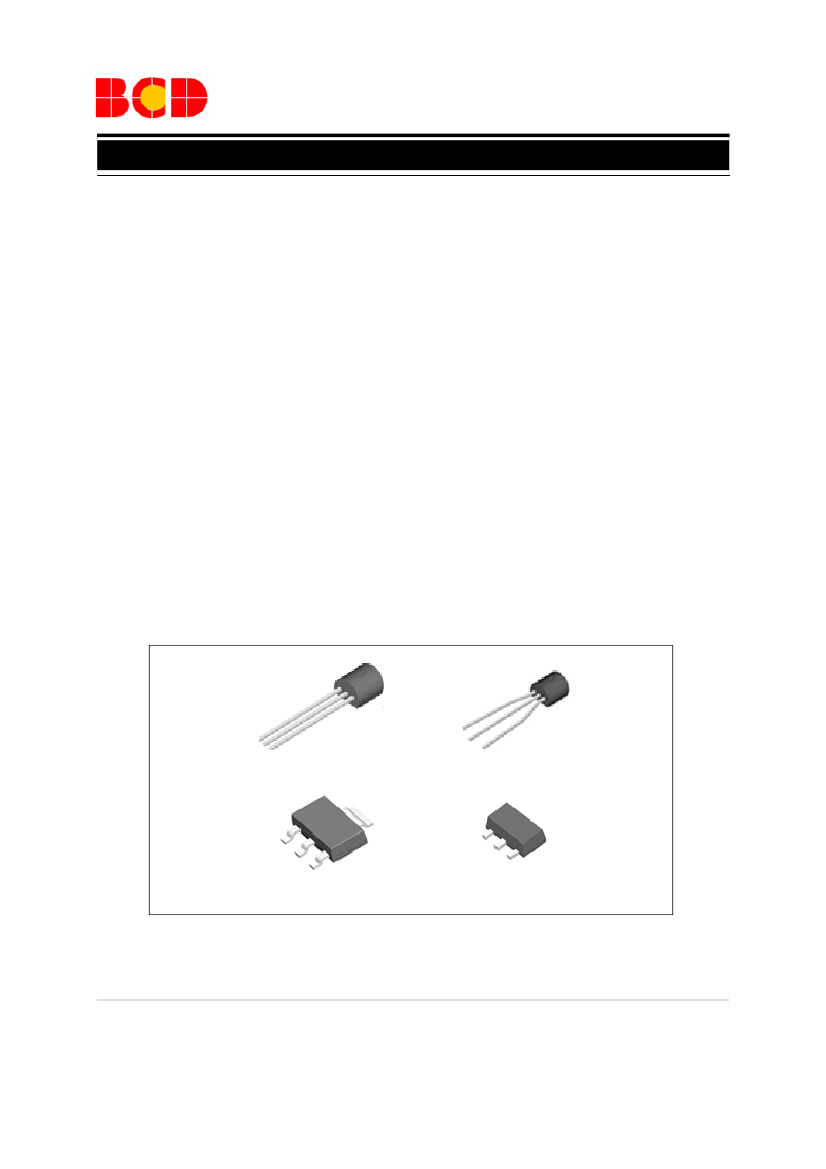

Figure 1. Package Types of the AZ78LXX
Nov. 2012 Rev. 2. 2
1
BCD Semiconductor Manufacturing Limited

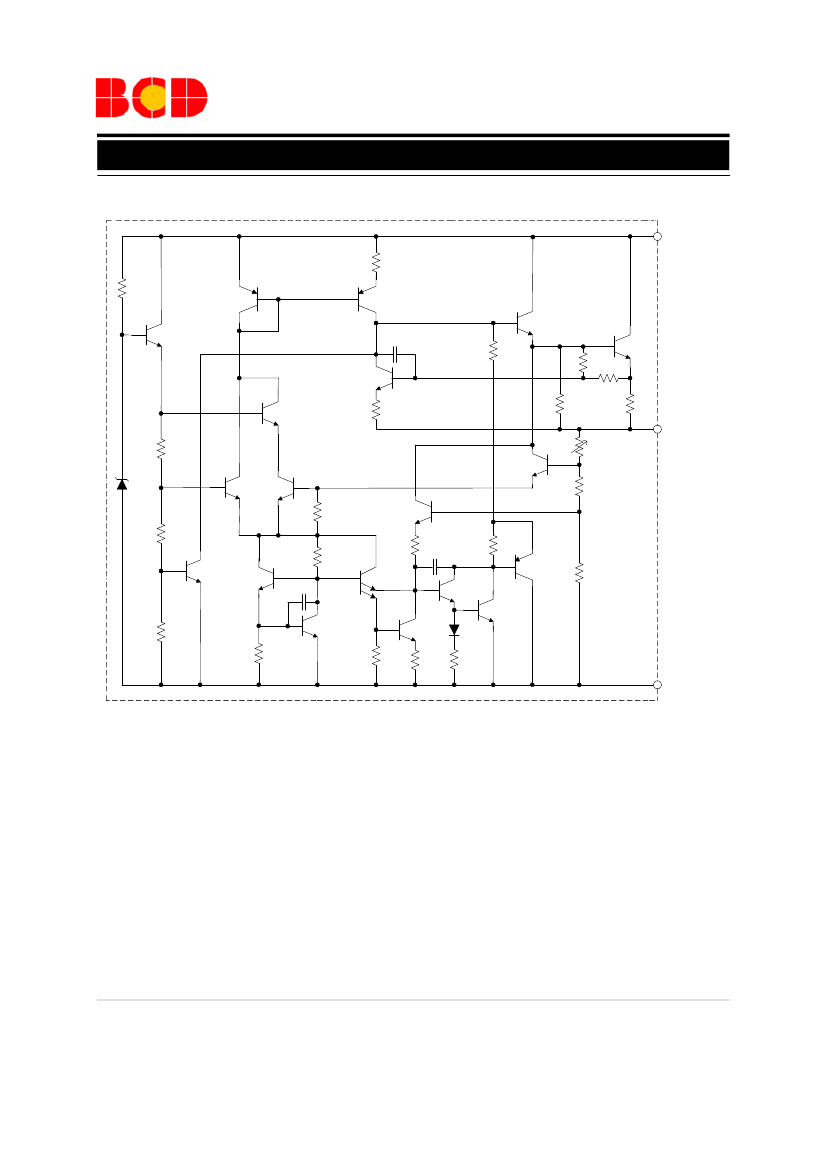

Data Sheet
3-TERMINAL POSITIVE LINEAR REGULATOR
Ordering Information
AZ78L
Circuit Type
Output Voltage
05: 5V
08: 8V
09: 9V
12: 12V
-
E1: Lead Free
G1: Green
TR: Tape and Reel or Ammo
Blank: Tube or Bulk
Package
Z: TO-92
R: SOT-89
H: SOT-223
AZ78LXX
Package
Temperature
Range
Part Number
Lead Free
AZ78L05Z-E1
AZ78L05ZTR-E1
AZ78L08Z-E1
AZ78L08ZTR-E1
AZ78L09Z-E1
AZ78L09ZTR-E1
AZ78L12Z-E1
AZ78L12ZTR-E1
AZ78L05RTR-E1
AZ78L08RTR-E1
AZ78L09RTR-E1
AZ78L12RTR-E1
AZ78L05HTR-E1
AZ78L08HTR-E1
AZ78L09HTR-E1
AZ78L12HTR-E1
Green
AZ78L05Z-G1
AZ78L05ZTR-G1
AZ78L08Z-G1
AZ78L08ZTR-G1
AZ78L09Z-G1
AZ78L09ZTR-G1
AZ78L12Z-G1
AZ78L12ZTR-G1
AZ78L05RTR-G1
AZ78L08RTR-G1
AZ78L09RTR-G1
AZ78L12RTR-G1
AZ78L05HTR-G1
AZ78L08HTR-G1
AZ78L09HTR-G1
AZ78L12HTR-G1
Marking ID
Lead Free
AZ78L05Z-E1
AZ78L05Z-E1
AZ78L08Z-E1
AZ78L08Z-E1
AZ78L09Z-E1
AZ78L09Z-E1
AZ78L12Z-E1
AZ78L12Z-E1
E78A
E78B
E78C
E78D
EH78A
EH78B
EH78C
EH78D
Green
AZ78L05Z-G1
AZ78L05Z-G1
AZ78L08Z-G1
AZ78L08Z-G1
AZ78L09Z-G1
AZ78L09Z-G1
AZ78L12Z-G1
AZ78L12Z-G1
G78A
G78B
G78C
G78D
GH78A
GH78B
GH78C
GH78D
Packing Type
Bulk
Ammo
Bulk
Ammo
Bulk
Ammo
Bulk
Ammo
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
TO-92
-40 to 125
o
C
SOT-89
-40 to 125
o
C
SOT-223
-40 to 125
o
C
BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant. Products with
"G1" suffix are available in green packages.
Nov. 2012 Rev. 2. 2
4
BCD Semiconductor Manufacturing Limited
Data Sheet
3-TERMINAL POSITIVE LINEAR REGULATOR
Absolute Maximum Ratings (Note 1)
Parameter
Input Voltage
Operating Junction Temperature
Lead Temperature (Soldering, 10sec)
Symbol
V
IN
T
J
T
LEAD
TO-92
Power Dissipation (T
A
=25
o
C)
P
D
SOT-223
SOT-89
Storage Temperature Range
ESD (Human Body Model)
ESD (Machine Model)
T
STG
ESD
ESD
-65 to 150
2000
200
Value
20
150
260
0.65
0.7
0.65
o
C
AZ78LXX
Unit
V
o
C
o
C
W
V
V
N
ote 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to
the device. These are stress ratings only, and functional operation of the device at these or any other conditions
beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Max-
imum Ratings" for extended periods may affect device reliability.
Recommended Operating Conditions
Parameter
AZ78L05
Input Voltage
AZ78L08
AZ78L09
AZ78L12
Operating Junction Temperature
T
J
-40
V
IN
Symbol
Min
Max
15
18
18
18
125
o
Unit
V
C
Nov. 2012 Rev. 2. 2
5
BCD Semiconductor Manufacturing Limited
Robotics Development
