85411AMILF

Description
High Speed Operational Amplifiers Single Channel High Speed
Categorysemiconductor    Analog mixed-signal IC
File Size192KB,15 Pages
ManufacturerIDT (Integrated Device Technology, Inc.)
Websitehttp://www.idt.com/
Download Datasheet Parametric View All

85411AMILF Online Shopping

Suppliers Part Number Price MOQ In stock
85411AMILF - - View Buy Now

85411AMILF Overview

High Speed Operational Amplifiers Single Channel High Speed

85411AMILF Parametric

Parameter NameAttribute value
Product CategoryClock Buffer
ManufacturerIDT (Integrated Device Technology, Inc.)
RoHSDetails
Number of Outputs2 Output
Propagation Delay - Max2.5 ns
Supply Voltage - Max3.63 V
Supply Voltage - Min2.97 V
Maximum Operating Temperature+ 85 C
Minimum Operating Temperature- 40 C
Mounting StyleSMD/SMT
Package / CaseSOIC-8
PackagingTube
Height1.5 mm
Length4.9 mm
Operating Supply Current50 mA
Factory Pack Quantity97
Width3.9 mm
Unit Weight0.019048 oz
Low Skew, 1-to-2 Differential-to-LVDS
Fanout Buffer
Data Sheet
85411I
G
ENERAL
D
ESCRIPTION
The 85411I is a low skew, high performance 1-to-2 Differential-
to-LVDS Fanout Buffer and a member of the family of High
Performance Clock Solutions from IDT. The CLK, nCLK pair
can accept most standard differential input levels.The 85411I is
characterized to operate from a 3.3V power supply. Guaranteed
output and part-to-part skew characteristics make the 85411I ideal
for those clock distribution applications demanding well defined
performance and repeatability.
F
EATURES
Two differential LVDS outputs
One differential CLK, nCLK clock input
CLK, nCLK pair can accept the following differential
input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL
Maximum output frequency: 650MHz
Translates any single ended input signal to
LVDS levels with resistor bias on nCLK input
Output skew: 25ps (maximum)
Part-to-part skew: 300ps (maximum)

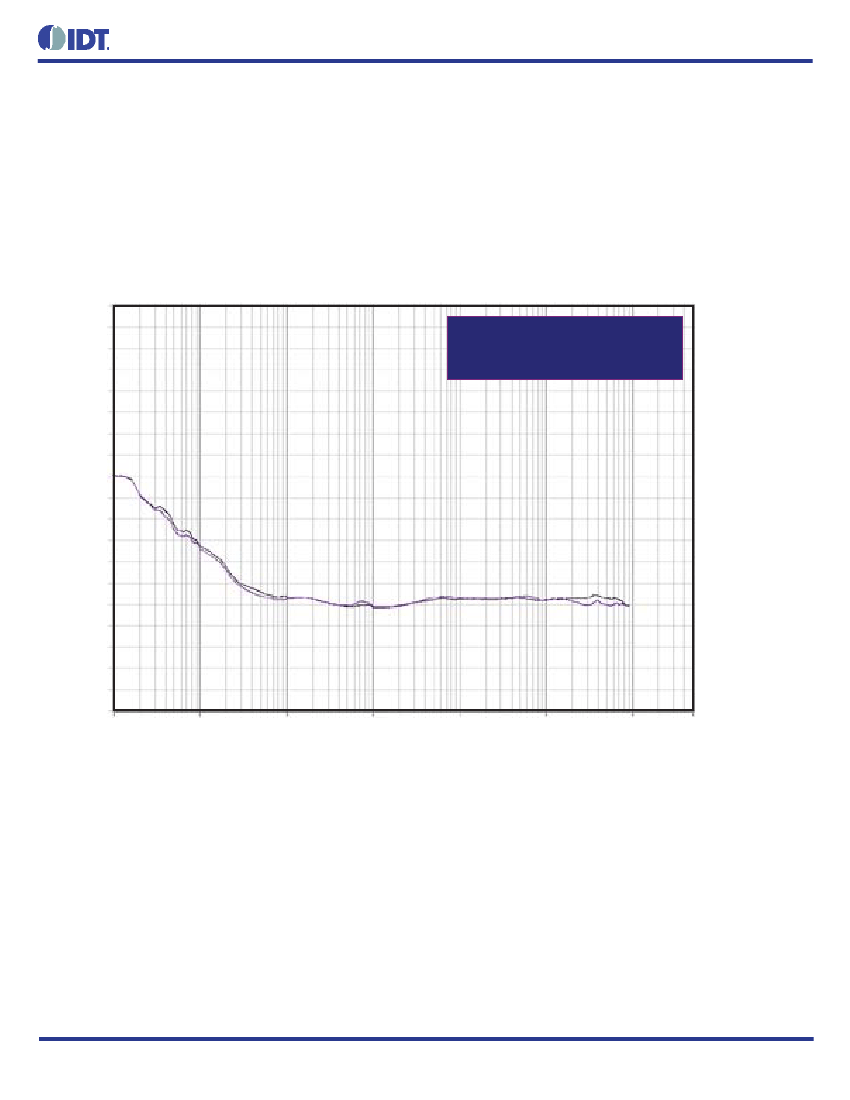

Additive phase jitter, RMS: 0.05ps (typical)
Propagation delay: 2.5ns (maximum)
3.3V operating supply
-40°C to 85°C ambient operating temperature
Available in lead free (RoHS 6) package
B
LOCK
D
IAGRAM
CLK
nCLK
Q0
nQ0
Q1
nQ1
P
IN
A
SSIGNMENT
Q0
nQ0
Q1
nQ1
1
2
3
4
8
7
6
5
V
DD
CLK
nCLK
GND
85411I
8-Lead SOIC
3.90mm x 4.90mm x 1.37mm package body
M Package
Top View
©2016 Integrated Device Technology, Inc
1
Revision B January 20, 2016
