USB2SERA11CFK Overview

Fixed Inductors LPS3015 AEC-Q200 3.3uH 1.4A 20% SMD

USB2SERA11CFK Parametric

Parameter Name	Attribute value
Brand Name	Freescale
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	QFN
package instruction	5 X 5 MM, 1 MM HEIGHT, 0.65 MM PITCH, ROHS COMPLIANT, MO-220VHHC-1, QFN-24
Contacts	24
Reach Compliance Code	compliant
ECCN code	3A991.A.2
maximum clock frequency	16 MHz
JESD-30 code	S-XQCC-N24
length	5 mm
Humidity sensitivity level	3
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC24,.19SQ,25
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	1 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	5 mm
uPs/uCs/peripheral integrated circuit type	BUS CONTROLLER, UNIVERSAL SERIAL BUS
Base Number Matches	1

Preview

Download Datasheet

View All

Freescale Semiconductor

Data Sheet: Advance Information

Document Number: USB2SERA11DS

Rev. 0, 10/2012

USB2SERA11

USB2SERA11 Data Sheet

USB to UART Application Specific IC

Introduction

Freescale Ready Play Solutions integrate a certified function

to different applications allowing customers to add features

while reducing development cost. This simplifies design

cycles and enables scalability in applications and systems.

The USB2SER is a USB to UART bridge controller on a 5 x 5

mm lead free QFN24. It is a simple low cost solution to enable

a USB for an embedded system with a UART port, reducing

external component counts. It supports USB 2.0 full-speed

and TTL RS232, or RS485 UART with options for hardware

flow control, Software Flow control (Xon-Xoff), even or odd

parity, and stop bits configuration.

Features

•

Single chip USB to UART Data Transfer (RS232 or

RS485)

USB specification 2.0 compliant, full speed

(12 Mbps)

User programmable custom baud rates from 300 bps

to 115200 bps

UART supports 8 bit data, 1 or 2 stop bits and odd,

even or no parity

RESUME signal to request a remote wake-up and

SUSPEND output to indicate that the device is in

suspended mode

Integrated 3.3 V regulator for a USB IO

Integrated Power-On-Reset circuit

Integrated 2 MHz – 48 Mhz clock multiplier PLL

Supports 2 MHz, 4 MHz, 6 MHz, 8 MHz, 12 MHz,

and 16 MHz external crystals with automatic crystal

frequency detection

USB bulk data transfer modes for data

communication

3 V to 5 V single supply operation

UHCI / OHCI / EHCI host controller compatible

•

Configurable password to protect the device from

additional parameter modifications

Data formats supported 8 bits data, 1 and 2 stop bits

Parity odd, even, no parity

Hardware flow control (RTC / CTS) or Software

Xon/Xoff flow control

Adjustable receive buffer timeout from 1 ms through

99 ms.

RS485_TXEN signal to support RS485

USB and UART activity pins to indicate

communication activity and fail sequences

24-pin QFN

Case 1897

Drivers support

The USB2SER can act as a CDC standard device that

eliminates the need for custom drivers for operation when

flow-control is not needed (only an INF file is required).

For flow control support, COM emulator drivers are available

for:

•

Windows XP 32-bits and 64-bits versions

Windows Vista 32-bits and 64-bits versions

Windows 7 32-bits and 64-bits versions

Linux Kernel 2.6.34 and higher

•

Additionally to the drivers, a software configuration tool is

provided to customize the Product ID, Vendor ID, Product

strings, current consumption parameters and password

protection option, to prevent further modifications to the

device information. For driver installation and software go to:

The GUI and Driver Installer at

www.freescale.com/usb2ser.

Package

USB2SER comes in a compact 5 x 5 mm Pb free RoHS

compliant QFN24.

•

Configurable USB, VID, PID, and device

description strings in the internal flash

This document contains information on a product under development. Freescale reserves the

right to change or discontinue this product without notice.

Contents

USB2SER

Introduction....................................................................................................................

Features.....................................................................................................................

Drivers Support.........................................................................................................

Package

..................................................................................................................... 2

USB Compliant Device............................................................................................

Pins and Connections..................................................................................................

Block Diagram

.......................................................................................................... 4

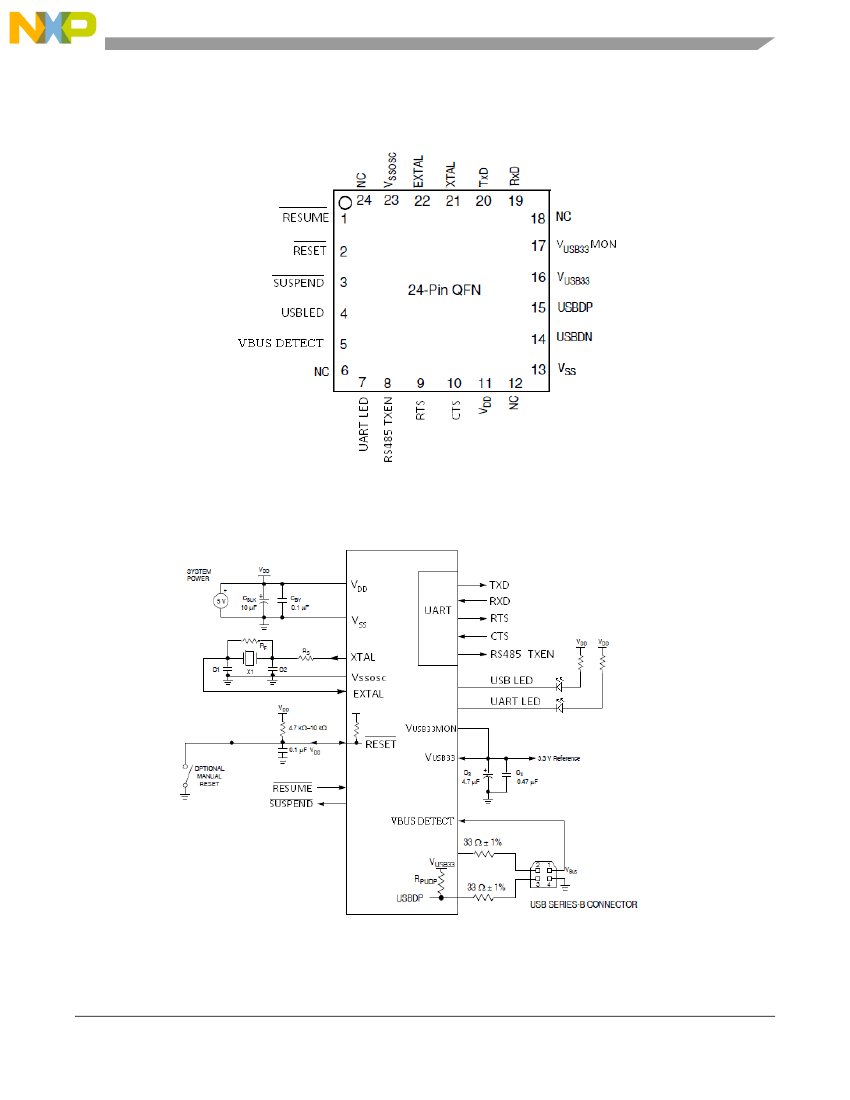

Device Pin Out..........................................................................................................

Recommended System Connections....................................................................

Signals Description

.................................................................................................. 6

Power (V

, V

SSOSC

, V

USB33

)......................................................................

Reset and System Initialization..............................................................................

VID and PID configuration

...................................................................................... 8

Functional Description

................................................................................................. 8

Crystal Frequency Auto-detection

......................................................................... 8

Operating errors

....................................................................................................... 9

RS232 Connections

................................................................................................. 9

UART Baud rates

..................................................................................................... 9

Flow Control Operation

......................................................................................... 11

Operation with commercial terminals for serial communication

..................... 11

Drivers and GUI..........................................................................................................

Graphical User Interface for Product Configuration..........................................

Windows Driver

...................................................................................................... 14

Linux Driver

............................................................................................................. 14

Appendix A – Electrical Characteristics..................................................................

Parameter Classification

....................................................................................... 17

Absolute Maximum Ratings..................................................................................

Thermal Characteristics

........................................................................................ 18

Electrostatic Discharge (ESD) Protection Characteristics

..................................20

DC Characteristics

................................................................................................. 20

Supply Current Characteristics

............................................................................ 21

Appendix B – Package information

......................................................................... 21

Appendix C – INF File

............................................................................................... 21

Appendix D – USB2SEREVB Layout, Schematics, and BOM.............................23

USB2SERA11 Data Sheet, Rev. 0
