SY89113UMY-TR: DescriptionClock Multiplexer 12-OUT 2-IN 1:12 44-Pin QFN EP T/R; File Size874KB，14 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SY89113UMY-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SY89113UMY-TR	-	-	View	Buy Now

SY89113UMY-TR Overview

Clock Multiplexer 12-OUT 2-IN 1:12 44-Pin QFN EP T/R

SY89113UMY-TR Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Type	Clock Multiplexer
Fanout	1:12
Number of Outputs per Chip	12
Maximum Propagation Delay Time @ Maximum CL (ns)	1.2@2.375V to 2.625V
Absolute Propagation Delay Time (ns)	1.2
Input Logic Level	CML\|CMOS\|HSTL\|LVDS\|LVPECL\|TTL
Output Logic Level	LVDS
Minimum Operating Supply Voltage (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Maximum Operating Supply Voltage (V)	2.625
Maximum Quiescent Current (mA)	330
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Packaging	Tape and Reel
Pin Count	44
Standard Package Name	QFN
Supplier Package	QFN EP
Mounting	Surface Mount
Package Height	0.85(Max)
Package Length	7
Package Width	7
PCB changed	44
Lead Shape	No Lead

Preview

Download Datasheet

View All

SY89113U

2.5V Low Jitter, Low Skew 1:12 LVDS

Fanout Buffer with 2:1 Input MUX and

Internal Termination

General Description

The SY89113U is a 2.5V low jitter, low skew, 1:12

LVDS fanout buffer optimized for precision telecom

and enterprise server distribution applications. The

input includes a 2:1 MUX for clock switchover

applications. Unlike other multiplexers, this input

includes a unique isolation design that minimizes

channel-to-channel

crosstalk.

The

SY89113U

distributes clock frequencies from DC to >1GHz

guaranteed over temperature and voltage. The

SY89113U incorporates a synchronous output enable

(EN) so that the outputs will only be enabled/disabled

when they are already in the LOW state.

CLK0 differential input includes Micrel's unique, 3-pin

input termination architecture that directly interfaces to

any differential signal (AC- or DC-coupled) as small as

100mV (200mV

) without any level shifting or

termination resistor networks in the signal path.

CLK1 differential input includes a new version of

Micrel's unique, Any-Input architecture that directly

interfaces with single-ended TTL/CMOS logic

(including 3.3V logic), single-ended LVPECL,

differential (AC- or DC-coupled) LVDS, HSTL, CML,

and LVPECL logic levels as small as 200mV

(400mV

). CLK1 input requires external termination.

LVDS output swing 325mV into 100Ω with extremely

fast rise/fall time guaranteed to be less than 250ps.

The SY89113U operates from a 2.5V±5% supply and

is guaranteed over the full industrial temperature

range of -40°C to +85°C. The SY89113U is part of

Micrel's high-speed, Precision Edge product line.

All support documentation can be found on Micrel’s

web site at:

www.micrel.com.

Precision Edge

Features



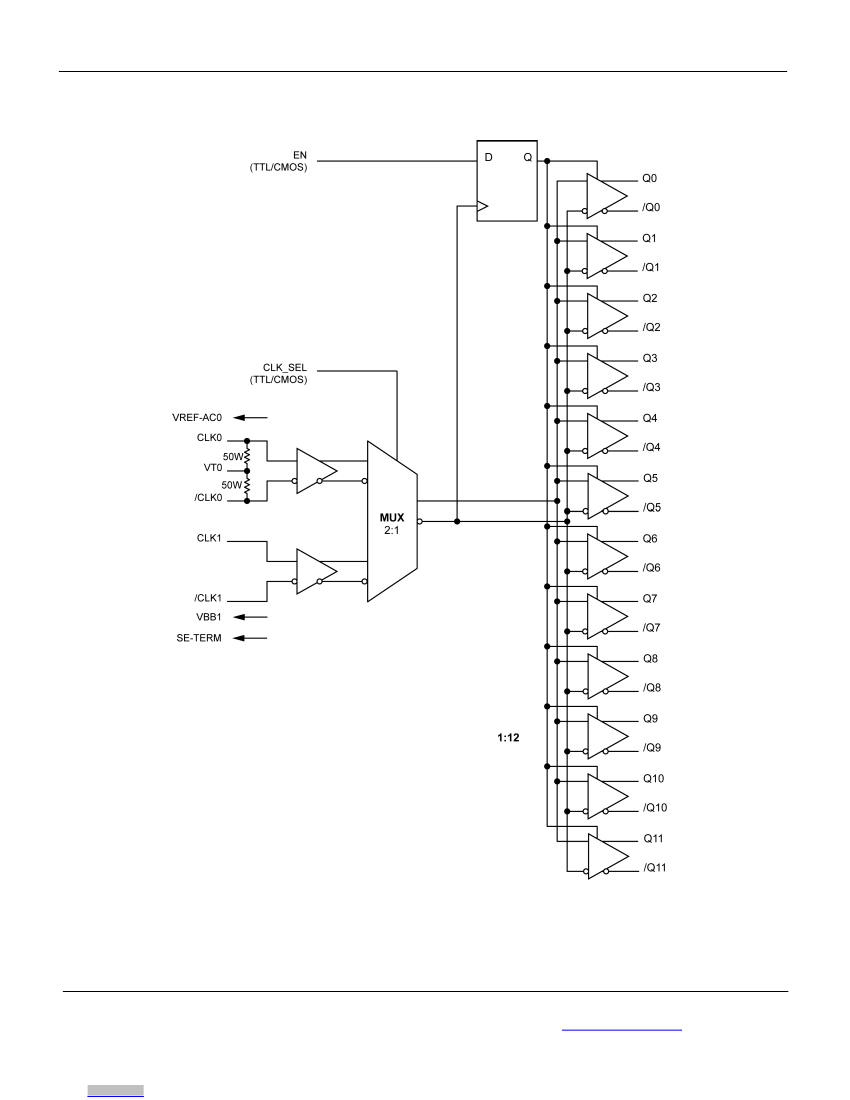

Selects between 1 of 2 inputs, and provides 12

precision, low skew LVDS output copies



Guaranteed AC performance over temperature and

voltage:

– DC to >1GHz throughput

– <975ps propagation delay CLK0-to-Q

– <250ps rise/fall time

– <25ps output-to-output skew



Ultra-low jitter design:

– 130fs RMS phase jitter (Typ)

– 0.7ps

RMS

crosstalk induced jitter



Unique, patent-pending 2:1 input MUX provides

superior isolation to minimize channel-to-channel

crosstalk



CLK0 input features a unique, patent-pending input

termination and VT pin that accepts AC- and DC-

coupled inputs (CML, LVPECL, LVDS)



CLK1 accepts virtually any logic standard:

– Single-ended: TTL/CMOS (including 3.3V logic),

LVPECL

– Differential: LVPECL, LVDS, CML, HSTL



325mV LVDS-compatible output swing



Power supply: 2.5V +5%



Industrial temperature range –40°C to +85°C



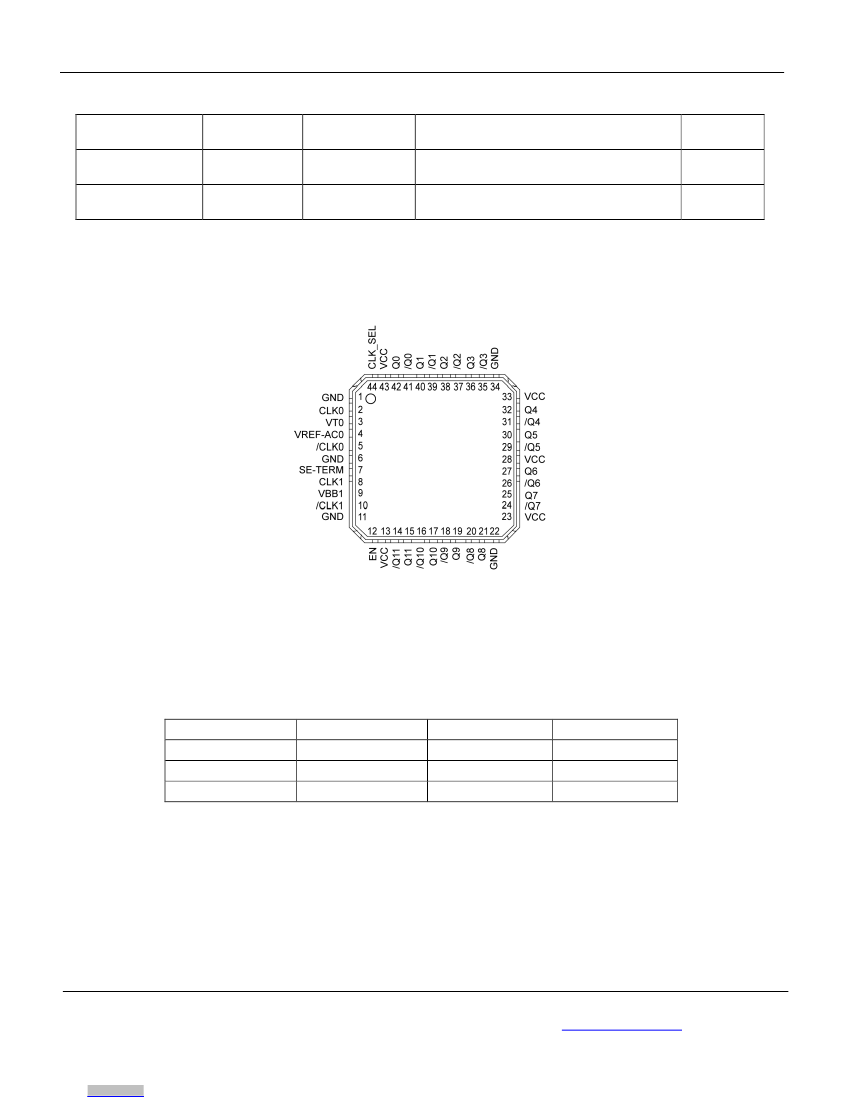

Available in 44-pin (7mm x 7mm) QFN package

Applications



Multi-processor server

SONET/SDH clock/data distribution

Fibre Channel distribution

Gigabit Ethernet clock distribution

United States Patent No. RE44,134

Precision Edge is a registered trademark of Micrel, Inc.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com

Oct. 1, 2013

M9999-120607

hbwhelp@micrel.com

or (408) 955-1690
