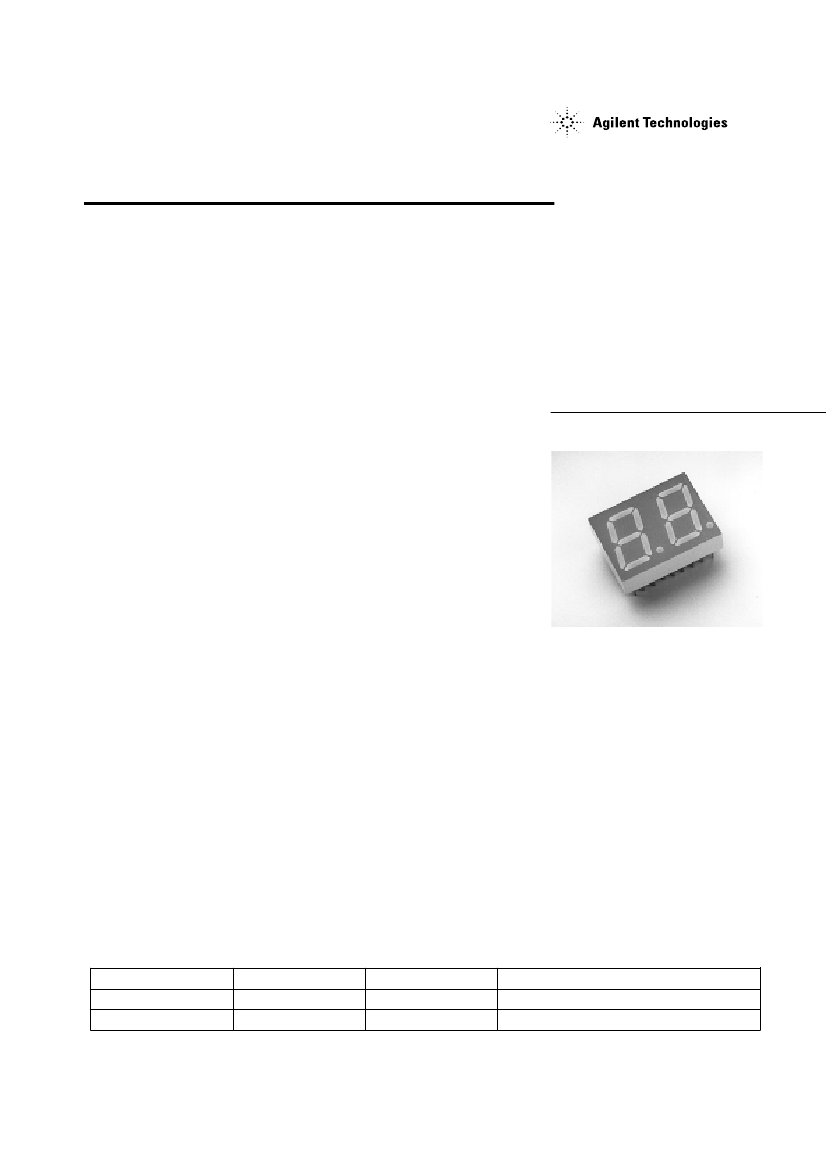

14.2 mm (0.56 inch) General Purpose
Two Digit Seven Segment Displays
Technical Data
HDSP-52xE Series
HDSP-52xG Series
HDSP-52xY Series
Features
• Industry Standard Size
• Industry Standard Pin-Out
15.24 mm (0.6 in.) DIP Leads
on 2.54 mm (0.1 in.) Centers
• Choice of Colors
Red, Green, Yellow
• Mitered Font
Mitered Corners on Segments
• Gray Face Paint
Gray Package Gives Optimum
Contrast
•
±
50
°
Viewing Angle
• Design Flexibility
Common Anode or Common
Cathode
• Categorized for Luminous
Intensity
• Green and Yellow
Categorized for Color
Applications
• Suitable for Indoor Use
• Not Recommended for
Industrial Applications, i.e.
Operating Temperatures
Requirements Exceeding
85
°
C or Below -35
°
C
[1]
• Extreme Temperature
Cycling Not
Recommended
[2]
Description
These 14.2 mm (0.56 inch) two
digit displays use industry
standard size and pin-out. The
devices are available as either
common anode or common
cathode. These gray-faced
displays are available in a choice
of high efficiency red (HER),
green, or yellow colors. The
HDSP-521x and HDSP-523x
series are suitable for indoor use.
These parts are subjected to
Outgoing Quality Assurance
(OQA) inspection with AQL of
0.065% for functional and visual/
cosmetic rejects.
Devices
HER HDSP-
521E
523E
Green HDSP-
521G
523G
Yellow HDSP-
521Y
523Y
Description
Common Anode Right Hand Decimal
Common Cathode Right Hand Decimal
Notes:
1. For industrial applications, it is recommended to use HDSP-5521/5523/5621/5623/5721/5723.
2. For details, please contact your local Agilent sales office or an authorized distributor.
2
Part Numbering System
5082 -X X X X-X X X X X
HDSP-X X X X-X X X X X
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1,2]
0: No Color Bin Limitation
Maximum Intensity Bin
[1,2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1,2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
E: High Efficiency Red
G: Green
Y: Yellow
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
Refer to Respective Datasheet
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest
Agilent representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1
bin per tube (exceptions may apply). Please refer to respective datasheet for specific bin limit information.
3
Package Dimensions
TOP END VIEW
2.54
(0.100)
COUNTRY OF ORIGIN
HDSP-XXXX
YWW XZ COO
COLOR BINNING
(NOTE 3)
LUMINOUS
INTENSITY
CATEGORY
2.34
(0.092)
DATE CODE
4.27 ± 0.50
(0.168 ± 0.020)
7.80
(0.307)
10°
8.00
(0.315)
18 17 16 15 14 13 12 11 10
0.50
DIA.
(0.020)
18.60
(0.732)
14.22
(0.560)
15.24
(0.600)
1
DIGIT NO. 1
2
3
4
5
6
7
8
9
12.70
(0.500)
4.81
(0.191)
6.150
(0.242)
25.00
(0.984)
6.86
(0.270)
SIDE VIEW
FRONT VIEW
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. TOLERANCE IS 0.25 mm (0.01 INCH) UNLESS OTHERWISE STATED.
3. FOR GREEN AND YELLOW ONLY.
4
Internal Circuit Diagram
18 17
16
15
14
13
12
11
10
COMMON ANODE
COMMON CATHODE
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
FUNCTION
E ANODE NO. 1
D ANODE NO. 1
C ANODE NO. 1
DP ANODE NO. 1
E ANODE NO. 2
D ANODE NO. 2
G ANODE NO. 2
C ANODE NO. 2
DP ANODE NO. 2
B ANODE NO. 2
A ANODE NO. 2
F ANODE NO. 2
DIGIT NO. 2 CATHODE
DIGIT NO. 1 CATHODE
B ANODE NO. 1
A ANODE NO. 1
G ANODE NO. 1
F ANODE NO. 1
a
f
b
f
g
e
d
c
DP
1
2
3
4
5
6
7
e
a
b
g
c
d
DP
8
9
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
FUNCTION
E CATHODE NO. 1
D CATHODE NO. 1
C CATHODE NO. 1
DP CATHODE NO. 1
E CATHODE NO. 2
D CATHODE NO. 2
G CATHODE NO. 2
C CATHODE NO. 2
DP CATHODE NO. 2
B CATHODE NO. 2
A CATHODE NO. 2
F CATHODE NO. 2
DIGIT NO. 2 ANODE
DIGIT NO. 1 ANODE
B CATHODE NO. 1
A CATHODE NO. 1
G CATHODE NO. 1
F CATHODE NO. 1
COMMON ANODE
18 17
16
15
14
13
12
11
10
a
f
b
f
g
e
d
c
DP
1
2
3
4
5
6
7
e
a
b
g
c
d
DP
8
9
15
16
17
18
COMMON CATHODE
5
Absolute Maximum Ratings at T
A
=25
°
C
HER
HDSP-521E
HDSP-523E
62.5
90
25
[1]
5
-35 to +85
-35 to +85
250
Green
Yellow
HDSP-521G HDSP-521Y
HDSP-523G HDSP-523Y Units
105
45
mW
90
60
mA
30
[3]
5
-35 to +85
-35 to +85
250
20
[2]
5
-35 to +85
-35 to +85
250
mA
V
°C
°C
°C
Parameter
Average Power per Segment or DP
Peak Forward Current per Segment or DP
(1/10 Duty Cycle, 0.1 ms Pulse Width)
DC Forward Current per Segment or DP
[1]
Reverse Voltage per Segment or DP
Operating Temperature
Storage Temperature
Wave Soldering Temperature for 3 seconds
[4]
(2 mm [0.063 in.] below Body)
Notes:
1. Derate above 25°C at 0.33 mA/°C.
2. Derate above 25°C at 0.27 mA/°C.
3. Derate above 40 celcius at 0.35 mA/celcius.
4. Not recommended to be soldered more than 2 times. Minimum interval between solderings is 15 minutes. Total soldering time not
to exceed 5 seconds.
Optical/Electrical Characteristics at T
A
=25
°
C
High Efficiency Red
Devices
HDSP-
Parameter
Luminous Intensity/Segment
(Segment Average)
[1,2]
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Symbol
I
v
V
F
PEAK
d
Min.
2.28
Typ.
4.00
2.05
640
628
Test
Max. Units Conditions
7.69 mcd I
F
= 10 mA
2.60
V
I
F
= 20 mA
nm
nm
I
F
= 10 mA
V
I
R
= 100
µA
mV/°C
521E
523E
V
R
V
F
/°C
5.0
-2
Green
Devices
HDSP-
Parameter
Luminous Intensity/Segment
(Segment Average)
[1,2]
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Symbol
I
v
V
F
PEAK
d
Min.
2.28
Typ.
3.50
2.0
568
570
-2
Test
Max. Units Conditions
5.13 mcd I
F
= 10 mA
V
I
F
= 10 mA
nm
576.5 nm
I
F
= 10 mA
V
I
R
= 100
µA
mV/°C
2.4
521G
523G
V
R
V
F
/°C
564.5
5.0
