Agilent HDSP-521A/523A
14.22 mm (0.56 inch) Dual Digit General
Purpose Seven Segment Display
Data Sheet
Features
• Industry standard size
• Industry standard pinout
14.22 mm (0.56 inch)
DIP lead on 2.54 mm
• AlGaAs Red color
• Excellent appearance
Evenly lighted segments gray
package gives optimum contrast
±
50 ft. viewing angle
Description

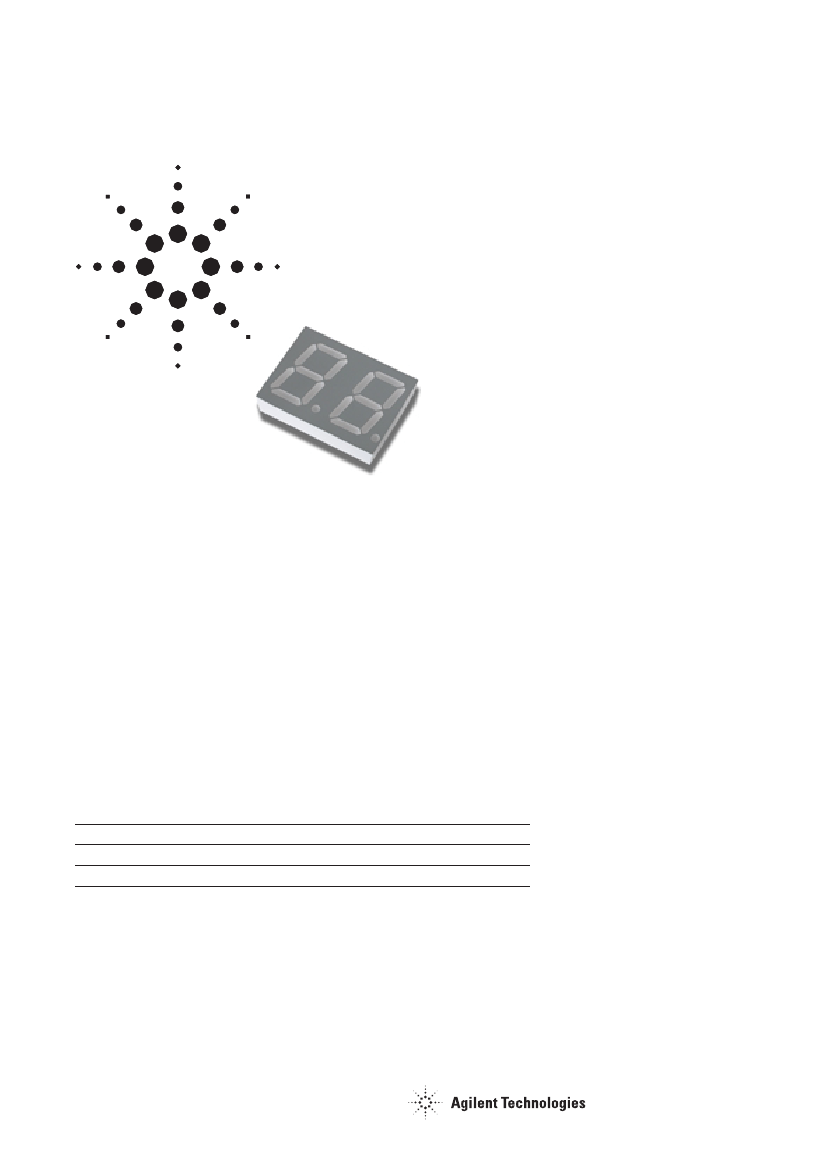

The 14.22 mm (0.56 inch) LED
dual digit seven segment displays
use industry standard size
package and pinout. The device is
available in either common anode
or common cathode. These gray
face displays are suitable for
indoor use.
• Design flexibility
Common anode right hand deci-
mal point or common
cathode right hand decimal point
Applications
• Suitable for indoor use
• Not recommended for industrial
application, i.e., operating tem-
perature requirements exceeding
+85˚C or below –25˚C
[1]
• Extreme temperature cycling not
recommended
Note:
1. For additional details, please contact your
local Agilent sales office or an authorized
distributor.
Devices
AlGaAs Red
HDSP-521A
HDSP-523A
Description
Common Anode Right Hand Decimal
Common Cathode Right Hand Decimal
Part Numbering System
5082 -X X X X-X X X X X
HDSP-X X X X-X X X X X
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1,2]
0: No Color Bin Limitation
Maximum Intensity Bin
[1,2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1,2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
A: AlGaAs Red
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
Refer to Respective Datasheet
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest
Agilent representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1
bin per tube (exceptions may apply). Please refer to respective datasheet for specific bin limit information.
2
Package Dimensions
TOP END VIEW
2.54
(0.10)
COUNTRY OF ORIGIN
HDSP-XXXX
YWW XZ COO
COLOR BINNING
(NOTE 3)
LUMINOUS
INTENSITY
CATEGORY
2.34
(0.09)
DATE CODE
4.27 ± 0.50
(0.168 ± 0.020)
7.80
(0.307)
10°
8.00
(0.31)
18 17 16 15 14 13 12 11 10
0.50
DIA.
(0.02)
18.60
(0.73)
0.0625
(TYP.)
14.22
(0.56)
15.24
(0.60)
1
DIGIT NO. 1
2
3
4
5
12.70
(0.50)
6
7
8
9
6.86
(0.27)
4.81
(0.19)
6.150
(0.242)
25.00
(0.98)
SIDE VIEW
FRONT VIEW
ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
3
Internal Circuit Diagram
18 17
16
15
14
13
12
11
10
COMMON ANODE
a
f
b
f
g
e
d
c
DP
1
2
3
4
5
6
7
8
9
e
g
c
d
DP
b
a
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
a
f
b
f
g
e
d
c
DP
1
2
3
4
5
6
7
8
9
e
g
c
d
DP
b
a
15
16
17
18
FUNCTION
E CATHODE NO. 1
D CATHODE NO. 1
C CATHODE NO. 1
DP CATHODE NO. 1
E CATHODE NO. 2
D CATHODE NO. 2
G CATHODE NO. 2
C CATHODE NO. 2
DP CATHODE NO. 2
B CATHODE NO. 2
A CATHODE NO. 2
F CATHODE NO. 2
DIGIT NO. 2 ANODE
DIGIT NO. 1 ANODE
B CATHODE NO. 1
A CATHODE NO. 1
G CATHODE NO. 1
F CATHODE NO. 1
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
COMMON CATHODE
FUNCTION
E ANODE NO. 1
D ANODE NO. 1
C ANODE NO. 1
DP ANODE NO. 1
E ANODE NO. 2
D ANODE NO. 2
G ANODE NO. 2
C ANODE NO. 2
DP ANODE NO. 2
B ANODE NO. 2
A ANODE NO. 2
F ANODE NO. 2
DIGIT NO. 2 CATHODE
DIGIT NO. 1 CATHODE
B ANODE NO. 1
A ANODE NO. 1
G ANODE NO. 1
F ANODE NO. 1
COMMON ANODE
18 17
16
15
14
13
12
11
10
COMMON CATHODE
Absolute Maximum Ratings at T
A
= 25˚C
Description
Power Dissipation Segment
Forward Current Segment
Peak Forward Current per Segment
(1/10 Duty Factor at 10 KHz)
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per Segment or DP
Wavesoldering Temperature for 3 seconds
(at 2 mm Distance from the bodyz)
Note:
1. Derate above 25˚C at 0.2 mA/˚C.
Intensity Bin Limits (mcd at 10 mA)
AlGaAs Red
HDSP-52xA
30
15
[1]
80
–35 to +85
–35 to +85
5
250
Units
mW
mA
mA
˚C
˚C
V
˚C
Bin
Name
J
K
L
AlGaAs Red
Min.
[1]
Max.
[1]
3.201
5.050
5.051
8.000
8.001
12.650
Note:
1. Tolerance for each bin limit is
±
10%.
4
Electrical/Optical Characteristics at T
A
= 25˚C
AlGaAs Red
Device
HDSP-
521A
523A
Parameter
Luminous Intensity/Segment
Forward Voltage
Peak Wavelength
Dominant Wavelength
Reverse Voltage
AlGaAs Red
Symbol
I
V
V
F
λ
PEAK
λ
d
VR
Min.
3.201
Typ.
3.66
6.500
1.85
660
643
5
Max.
Units
mcd
mcd
V
nm
nm
V
Test Conditions
I
F
= 5 mA
I
F
= 10 mA
I
F
= 20 mA
2.00
I
R
= 100
µA
16
14
12
10
8
6
4
2
0
0
20
40
60
80
100
I
F
– FORWARD CURRENT PER SEGMENT – mA
MAXIMUM DC CURRENT PER SEGMENT – mA
120
100
80
60
40
20
0
0
0.5
1.0
1.5
2.0
2.5
T
A
– AMBIENT TEMPERATURE – °C
V
F
– FORWARD VOLTAGE – V
Figure 1. Maximum allowable average or DC
current vs. ambient temperature.
Figure 2. Forward current vs. forward voltage.
RELATIVE EFFICIENCY
(NORMALIZED TO 1 AT 10 mA PER SEGMENT)
2.5
RELATIVE LUMINOUS INTENSITY
(NORMALIZED TO 1 AT 10 mA)
1.2
2.0
1.1
1.5
1.0
1.0
0.5
0.9
0
0
5
10
15
20
25
0.8
0
5 10 15 20 25 30 35 40 45 50
I
F
– FORWARD CURRENT PER SEGMENT – mA
I
PEAK
– PEAK FORWARD CURRENT
PER SEGMENT – mA
Figure 3. Relative luminous intensity vs. DC
forward current.
Figure 4. Relative efficiency (luminous
intensity per unit current) vs. peak current.
5
