ZMM5267B-7

Description
Zener Diodes 500MW 75V
Categorysemiconductor    Discrete semiconductor
File Size74KB，5 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric View All

ZMM5267B-7 Online Shopping

Suppliers Part Number Price MOQ In stock
ZMM5267B-7 - - View Buy Now

ZMM5267B-7 Overview

Zener Diodes 500MW 75V

ZMM5267B-7 Parametric

Parameter NameAttribute value
Product CategoryZener Diodes
ManufacturerDiodes
RoHSDetails
Vz - Zener Voltage75 V
Mounting StyleSMD/SMT
Package / CaseDO-213AA-2
Pd - Power Dissipation500 mW (1/2 W)
Voltage Tolerance5 %
Voltage Temperature Coefficient0.098 %/C
Zz - Zener Impedance270 Ohms
Minimum Operating Temperature- 65 C
Maximum Operating Temperature+ 175 C
ConfigurationSingle
Test Current1.7 mA
PackagingCut Tape
PackagingReel
PackagingMouseReel
Height1.6 mm
Ir - Reverse Current100 nA
Length3.7 mm
Factory Pack Quantity2500
Termination StyleMELF
Width1.6 mm
Unit Weight0.001199 oz

Preview

Download Datasheet
ZMM5221B - ZMM5267B
500mW SURFACE MOUNT ZENER DIODE
NOT RECOMMENDED FOR NEW DESIGN
SUGGESTED REPLACEMENT MMSZ52xx
C
Features
·
·
·
·
500mW Power Dissipation
Outline Similar to JEDEC DO-213AA
Hemetic Glass Package
Lead Free Finish, RoHS Compliant (Note 3)
B
Mechanical Data
·
·
·
·
·
·
·
·
Case: MiniMELF
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Sn97.5Ag2.5. Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Ordering Information: See Last Page
Marking: Cathode Band Only
Weight: 0.034 grams (approximate)
Dim
A
B
C
MiniMELF
Min
3.30
1.30
0.28
Max
3.70
1.60
0.50
A
All Dimensions in mm

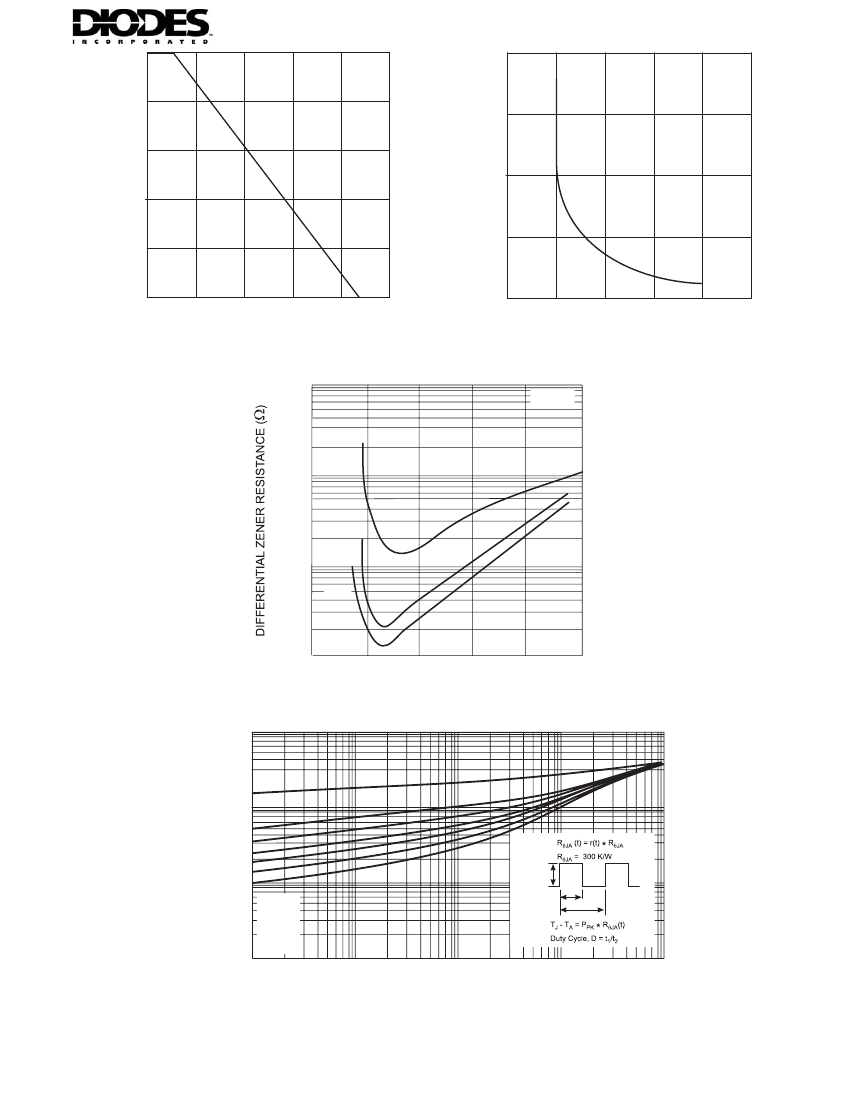

Maximum Ratings and Electrical Characteristics
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Forward Voltage
(Note 1)
(Note 1)
P
d
R
qJA
V
F
@ T
A
= 25°C unless otherwise specified
Value
500
300
1.5
-65 to +175
Unit
mW
°C /W
V
o
C
Symbol
@ I
F
= 200mA
Operating and Storage Temperature Range
Notes:
T
j,
T
STG
1. Valid provided that electrodes are kept at ambient temperature.
2. Tested with pulses, T
p
£
100ms.
3. EC Directive 2002/95/EC (RoHS) revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied where applicable,
see
EU Directive Annex Notes 5 and 7.
DS30024 Rev. 5 - 3
1 of 5
www.diodes.com
ZMM5221B-ZMM5267B
ã
Diodes Incorporated
