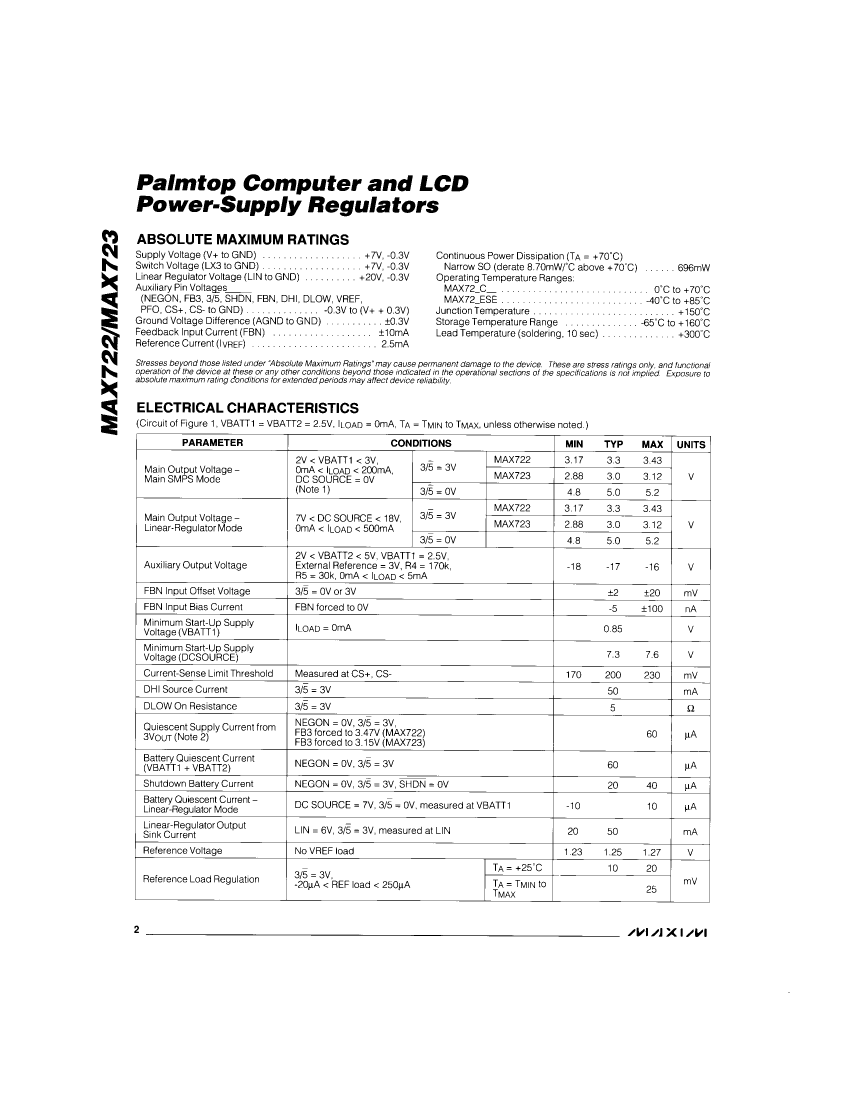

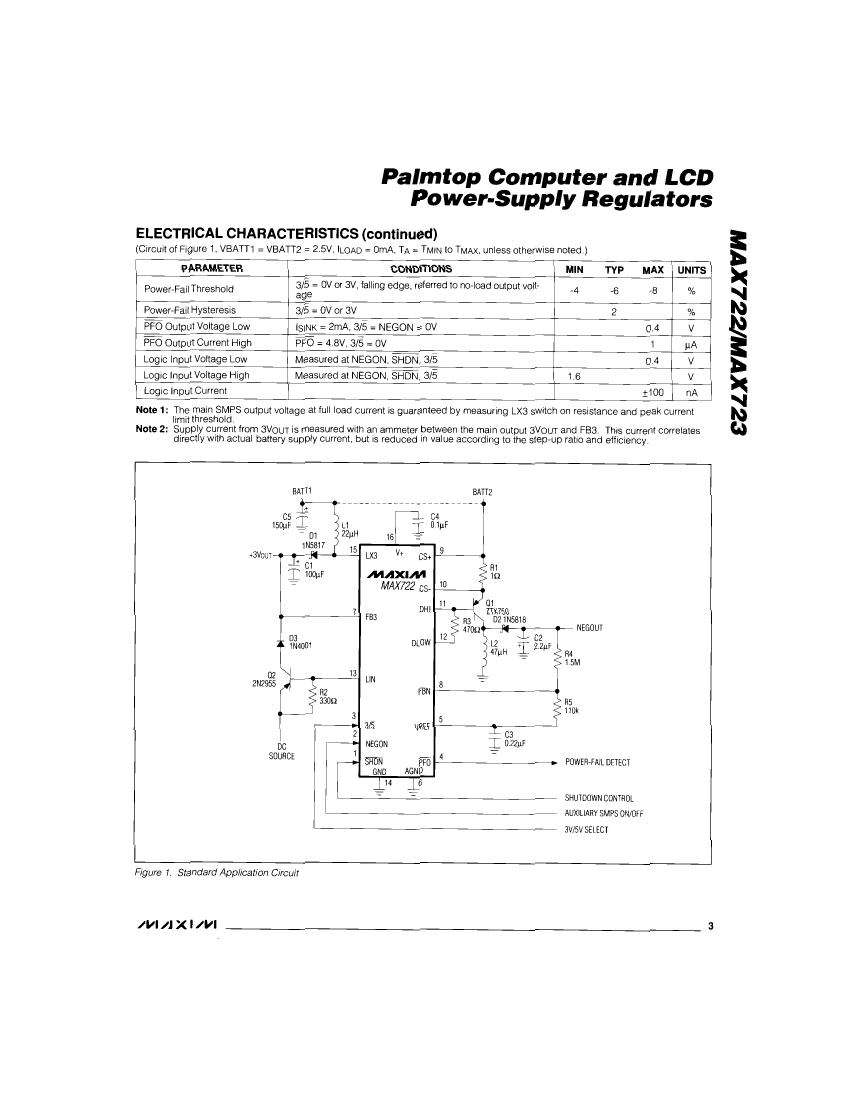

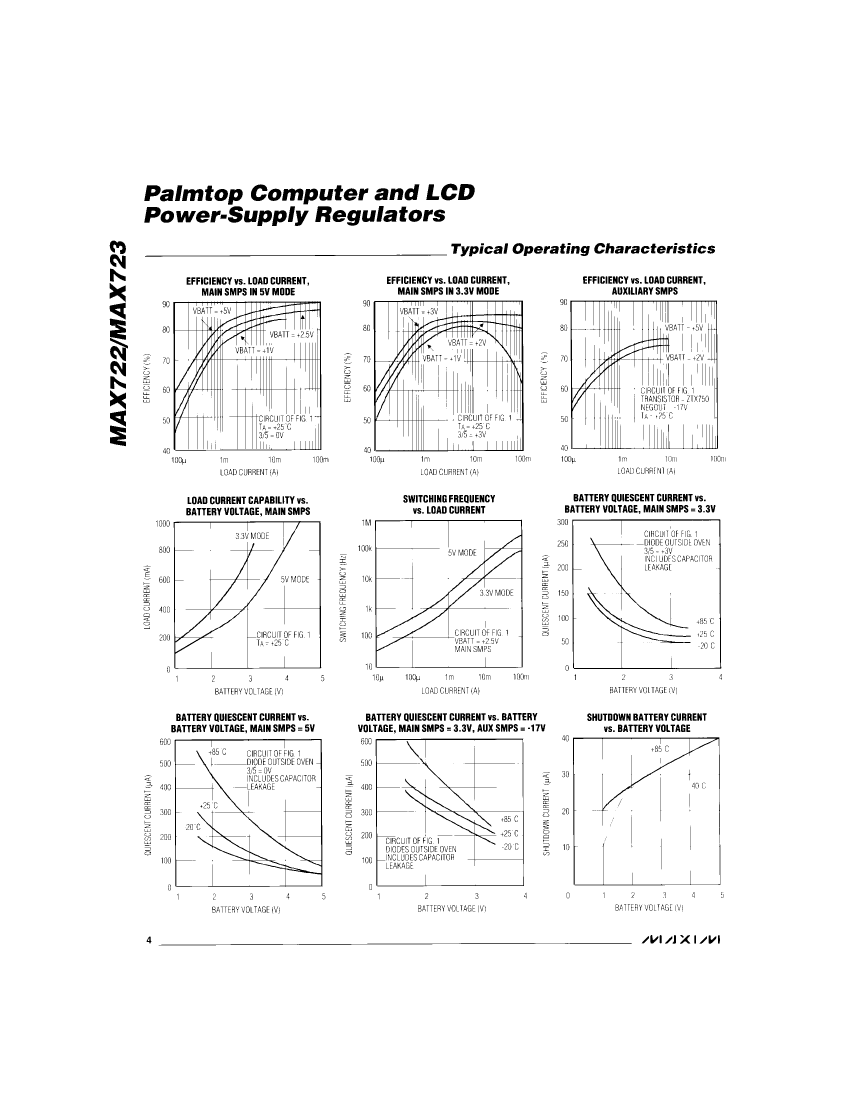

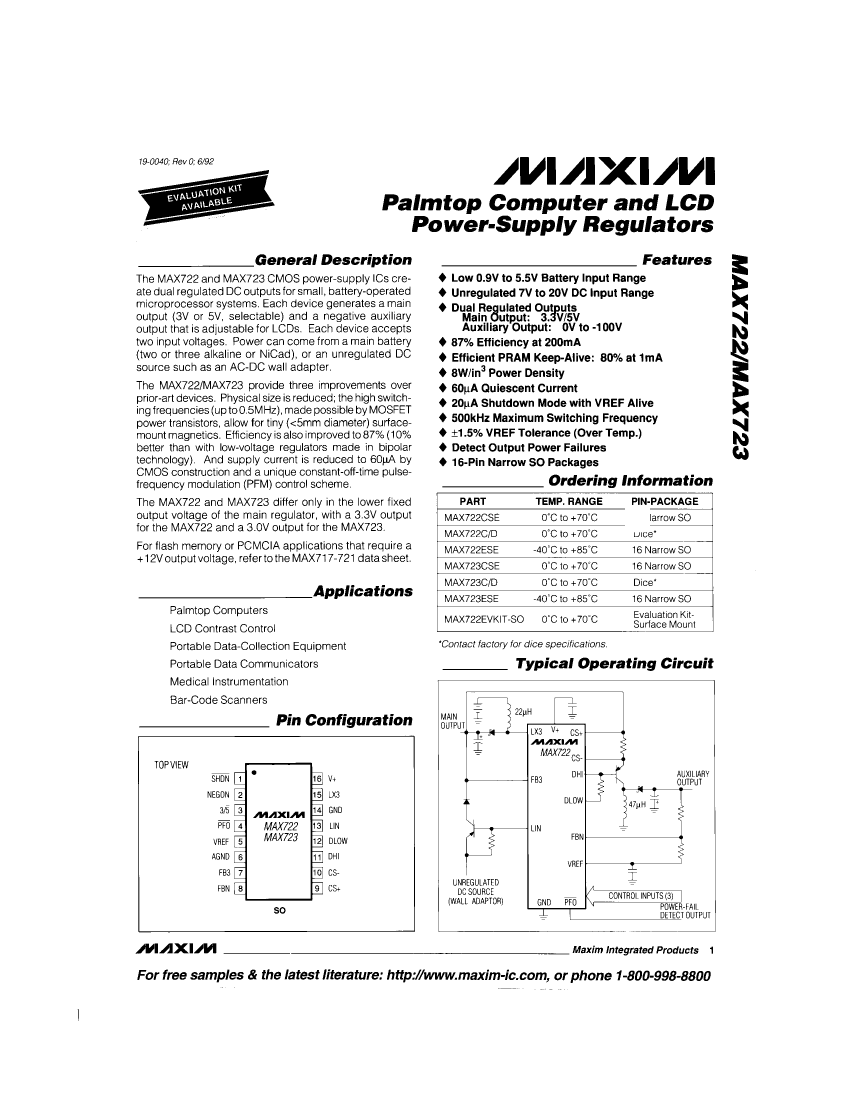

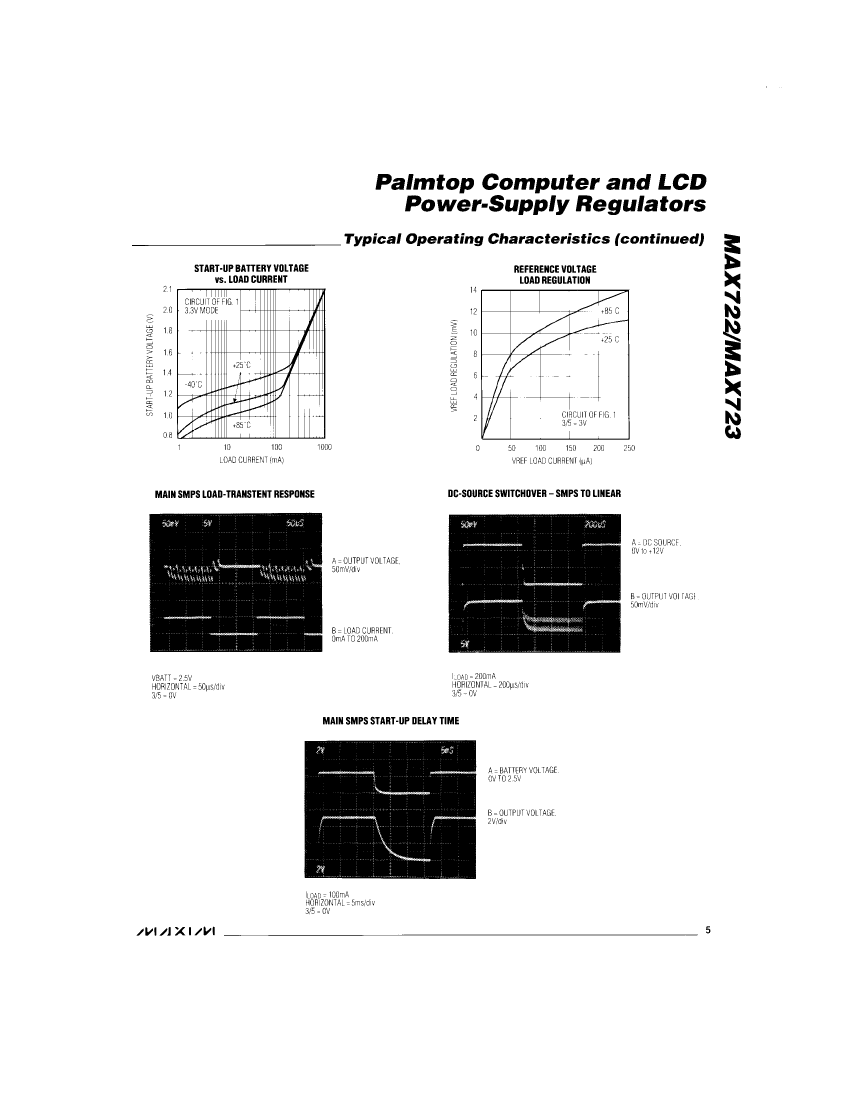

PDF
Preview

MAX723CSE

Description
LCD Drivers
CategoryPower/power management    The power supply circuit
File Size554KB，16 Pages
ManufacturerMaxim
Websitehttps://www.maximintegrated.com/en.html
Download Datasheet Parametric Compare View All

MAX723CSE Online Shopping

Suppliers Part Number Price MOQ In stock
MAX723CSE - - View Buy Now

MAX723CSE Overview

LCD Drivers

MAX723CSE Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMaxim
Parts packaging codeSOIC
package instructionSOP, SOP16,.25
Contacts16
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresALSO CONTAINS AN ADDITIONAL CONTROLLER
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
control modeCURRENT-MODE
Control TechnologyCONSTANT OFF TIME
Maximum input voltage5.5 V
Minimum input voltage0.9 V
JESD-30 codeR-PDSO-G16
JESD-609 codee0
length9.9 mm
Humidity sensitivity level1
Number of functions1
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Maximum output current1 A
Nominal output voltage5 V
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP16,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)245
Certification statusNot Qualified
Maximum seat height1.75 mm
Maximum supply current (Isup)0.06 mA
surface mountYES
Switch configurationBOOST
Maximum switching frequency500 kHz
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width3.9 mm

Preview

Download Datasheet

MAX723CSE Related Products

MAX723CSE MAX722EVKIT-SO MAX722C-D MAX723ESE-T MAX723ESE
Description LCD Drivers Power Management IC Development Tools Switching Voltage Regulators Current u0026 Power Monitors u0026 Regulators Current u0026 Power Monitors u0026 Regulators 3.3V Palmtop/LCD Power Supply Reg
Is it Rohs certified? incompatible - - incompatible incompatible
Maker Maxim - - Maxim Maxim
Parts packaging code SOIC - - SOIC SOIC
package instruction SOP, SOP16,.25 - - SOP, SOP, SOP16,.25
Contacts 16 - - 16 16
Reach Compliance Code not_compliant - - compliant not_compliant
ECCN code EAR99 - - EAR99 EAR99
Other features ALSO CONTAINS AN ADDITIONAL CONTROLLER - - ALSO CONTAINS AN ADDITIONAL CONTROLLER ALSO CONTAINS AN ADDITIONAL CONTROLLER
Analog Integrated Circuits - Other Types SWITCHING REGULATOR - - SWITCHING REGULATOR SWITCHING REGULATOR
control mode CURRENT-MODE - - CURRENT-MODE CURRENT-MODE
Control Technology CONSTANT OFF TIME - - CONSTANT OFF TIME CONSTANT OFF TIME
Maximum input voltage 5.5 V - - 5.5 V 5.5 V
Minimum input voltage 0.9 V - - 0.9 V 0.9 V
JESD-30 code R-PDSO-G16 - - R-PDSO-G16 R-PDSO-G16
JESD-609 code e0 - - e0 e0
length 9.9 mm - - 9.9 mm 9.9 mm
Humidity sensitivity level 1 - - 1 1
Number of functions 1 - - 1 1
Number of terminals 16 - - 16 16
Maximum operating temperature 70 °C - - 85 °C 85 °C
Maximum output current 1 A - - 1 A 1 A
Nominal output voltage 5 V - - 5 V 5 V
Package body material PLASTIC/EPOXY - - PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP - - SOP SOP
Package shape RECTANGULAR - - RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE - - SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 245 - - 240 245
Certification status Not Qualified - - Not Qualified Not Qualified
Maximum seat height 1.75 mm - - 1.75 mm 1.75 mm
Maximum supply current (Isup) 0.06 mA - - 0.06 mA 0.06 mA
surface mount YES - - YES YES
Switch configuration BOOST - - BOOST BOOST
Maximum switching frequency 500 kHz - - 500 kHz 500 kHz
technology CMOS - - CMOS CMOS
Temperature level COMMERCIAL - - INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) - - TIN LEAD Tin/Lead (Sn/Pb)
Terminal form GULL WING - - GULL WING GULL WING
Terminal pitch 1.27 mm - - 1.27 mm 1.27 mm
Terminal location DUAL - - DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED - - NOT SPECIFIED NOT SPECIFIED
width 3.9 mm - - 3.9 mm 3.9 mm
